Features
8 MP Dual Lens Stitched Wide Angle Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- 180° Field of view
- Active strobe light and audio alarm to warn intruders off

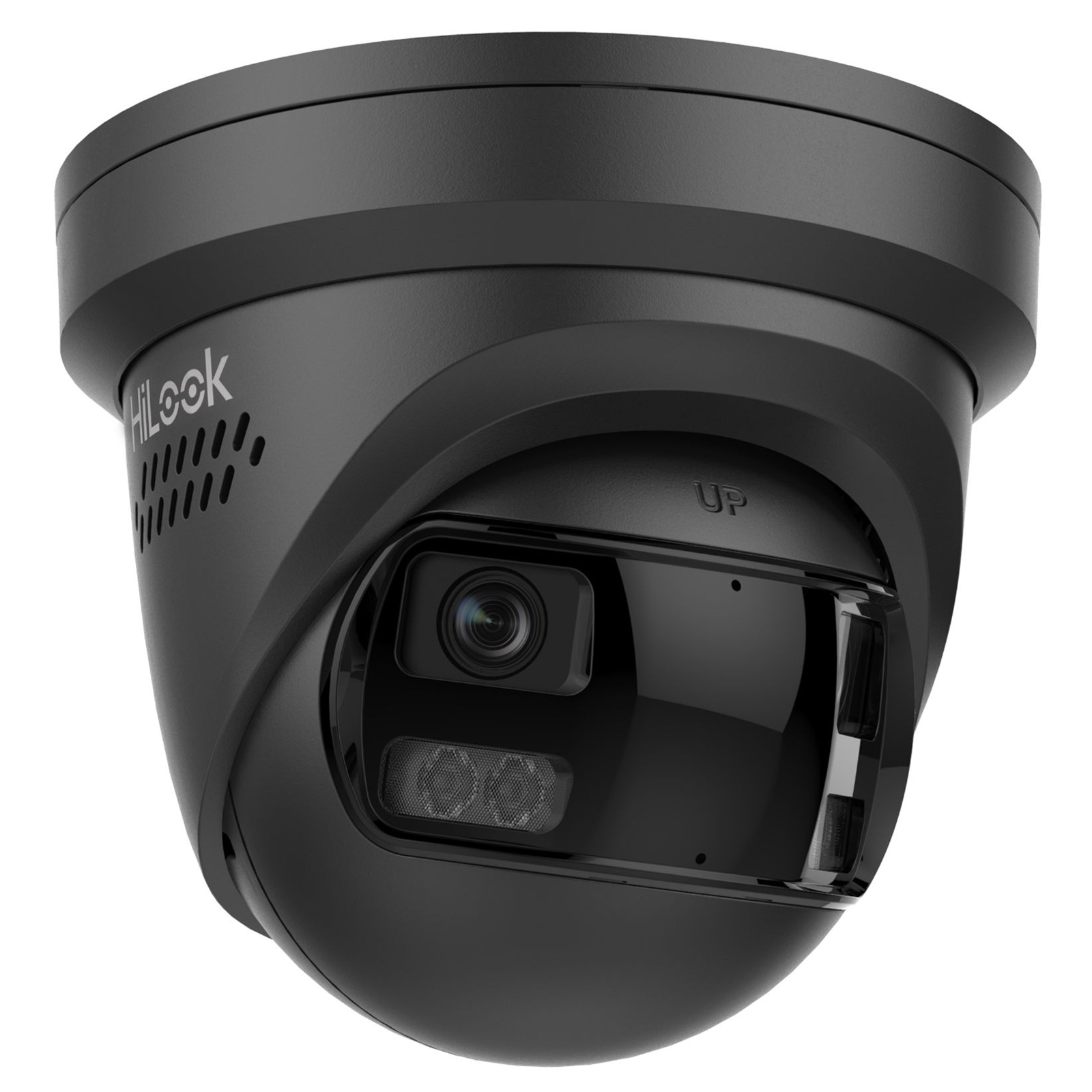

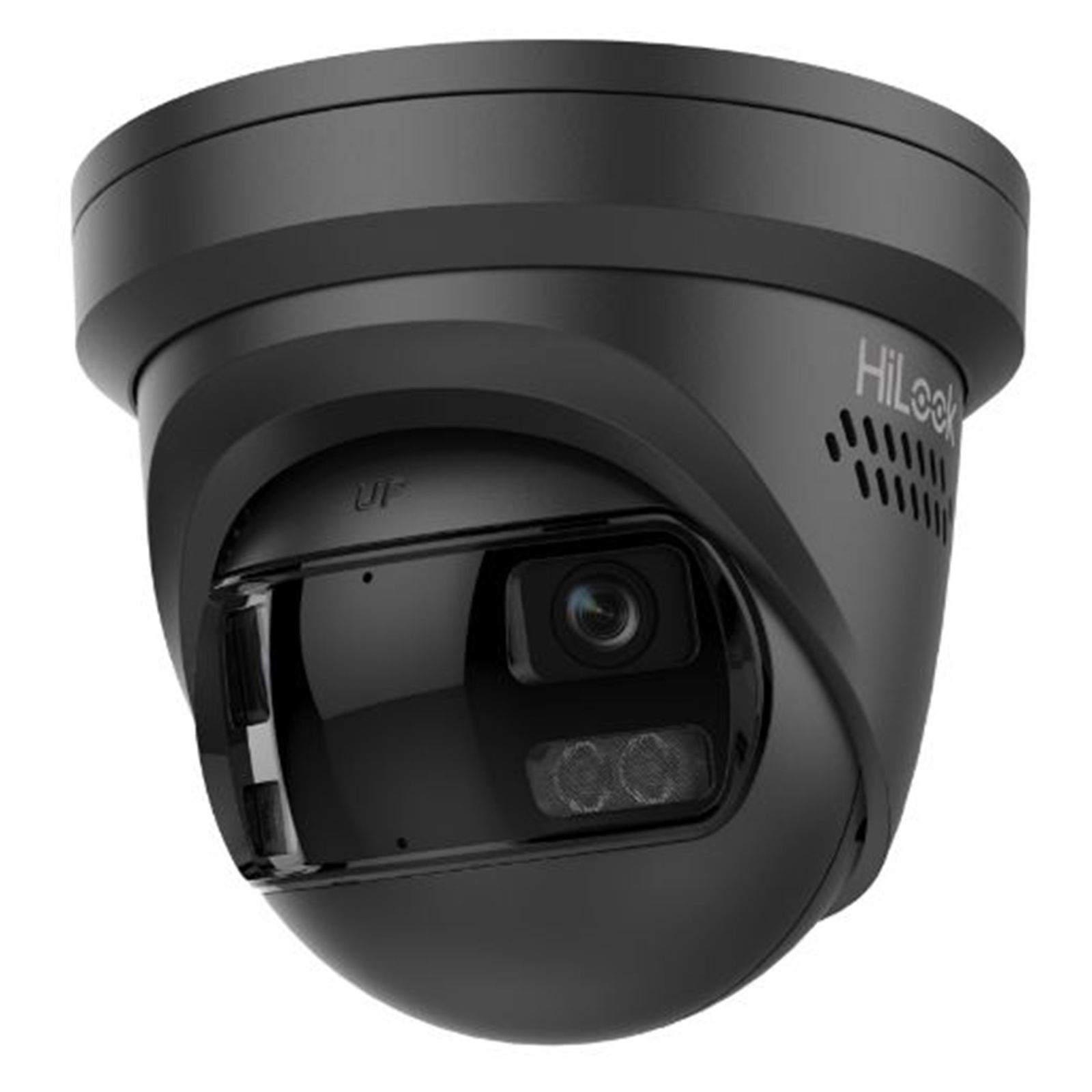

Ultra-Wide 8MP Smart Hybrid Turret Camera
The HiLook IPC-T289PH-MU-2B features dual-lens stitching and 8MP resolution for wide, high-quality images. Person and vehicle detection is supported, as well as a powerful hybrid IR/white light up to 30m range. Efficient H.265+ compression and up to 512GB on-board storage give advanced performance for outdoor PoE security.
Advanced Imaging with Flexible Illumination
Using a 1/2.4" progressive scan CMOS sensor, the camera delivers 4256 × 1888 resolution and low-light sensitivity at 0.005 Lux. Its fixed 2mm lens offers a stunning 180° horizontal field and 77° vertical coverage, with a fast F1.6 aperture and DORI range (detect up to 50m). Smart adaptive WDR and image enhancement maintain excellent clarity in all conditions.
Powerful Video and Audio Security Features
Video streams at 20fps (4K) and supports H.265+/H.265/H.264+/H.264, up to 16 Mbps. With a built-in microphone and speaker (97dB max), live two-way audio, environmental noise filtering, and mono sound, the camera enables real-time interactive security. Motion detection, strobe light, and audible alarms provide active response to incidents.
Robust Network, Storage, and Privacy Functions
This camera features advanced user management (32 users, 3 roles), encrypted authentication, and security logging. It supports simultaneous six-channel viewing, multiple clients (iVMS-4200, Hik-Connect), ONVIF/ISAPI/SDK APIs, and up to 512GB microSD storage. Four privacy masks and strong image controls ensure secure, customizable surveillance.
Durable Build and Environmental Protection
The device is water and dust resistant (IP67) and operates from -30°C to 60°C, with a robust metal base and plastic cover housing. Power options include 12VDC or PoE (max 11.5W), and a reset key is provided for easy maintenance. The camera measures Ø138.3 mm × 115.4 mm and weighs 790g.
Standards, Certification, and User Experience
Certified to EMC, safety, RoHS, and environmental standards, the camera is suitable for global deployment. The interface is available in multiple languages and supports features like password reset via email, heartbeat, and anti-banding. White strobe lighting is available in SL models for visible deterrence and active intruder warning.
Specifications
Camera
Image Sensor
1/2.4" Progressive Scan CMOS
Max. Resolution
4256 × 1888
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2 mm
Focal Length & FOV
2 mm, horizontal FOV 180°, vertical FOV 77°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m
Illuminator
Supplement Light Type
IR, White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (4256 × 1888)
60 Hz: 20 fps (4256 × 1888)
Sub-Stream
50 Hz: 20 fps (1200×536, 960 × 432)
60 Hz: 20 fps (1200×536, 960 × 432)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Region of Interest (ROI)
1 fixed region for main stream
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Audio
Audio Type
Mono sound
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)
Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 11
Local service: Chrome 80+, Firefox 80+, Edge 89+
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes, 1 built-in microphone
Built-in Speaker
Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
General
Power
12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 11.5 W
Material
Base: Metal, cover: Plastic
Dimension
Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Weight
Approx. 790 g (1.7 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
General Function
Heartbeat, anti-banding, password protection, password reset via email
Flashing Light
SL model: White Light
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
