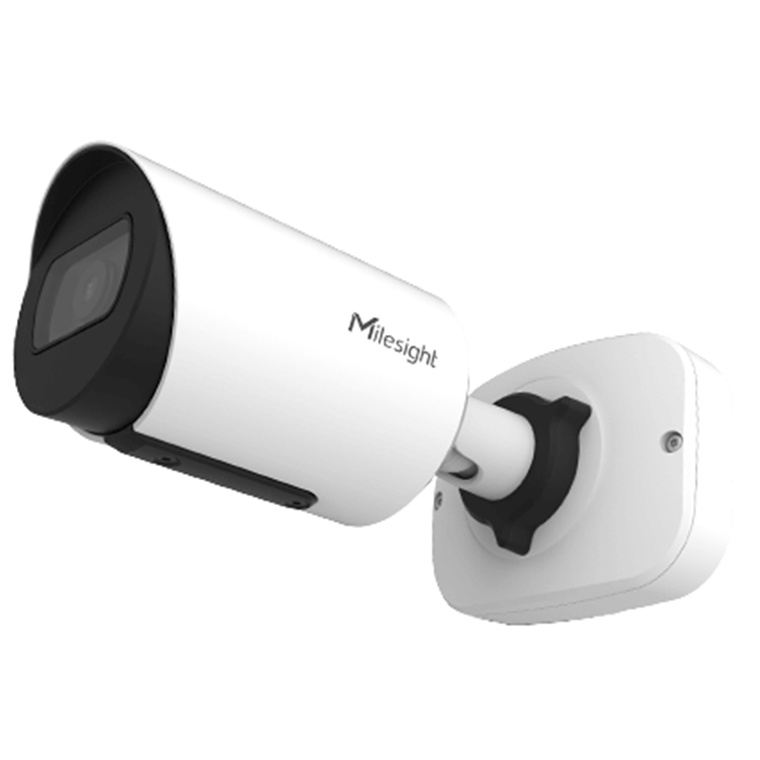

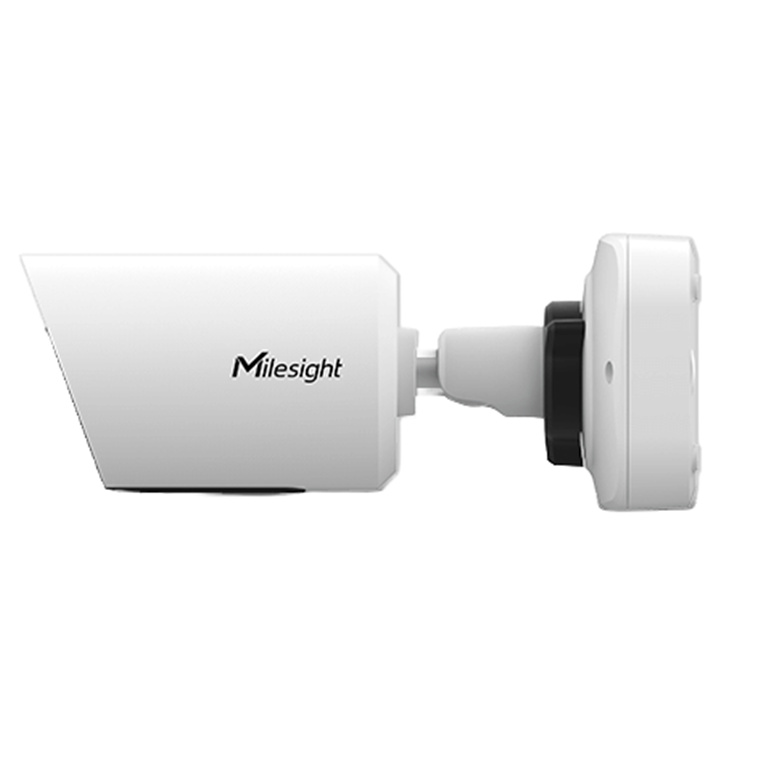

Milesight MS-C5364-PD NDAA 5MP AI Vandal-proof Mini Bullet Network IP Camera
Milesight MS-C5364-PD NDAA 5MP AI Vandal-proof Mini Bullet Network IP Camera
- Brand: Milesight
- MPN: MS-C5364-PD
- Part #: CCTMLS1096
- UPC:
- Brand: Milesight
- MPN: MS-C5364-PD
- Part #: CCTMLS1096
- UPC:
Features
Milesight MS-C5364-PD NDAA 5MP AI Vandal-proof Mini Bullet Network IP Camera - White
The Milesight AI Vandal-proof Mini Bullet Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit around your home or business.
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
- Ultra Mini Size
- Fixed 2.8mm Lens
- IR Distance up to 30m
- Junction Box Version
- Suitable for outdoor applications (IP67 & IK10)
- ONVIF Profile Support for profiles G & Q & S & T, API
- Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- vGRID SaferCity Platform Compliant
Milesight AI Camera Series feature Super Wide Dynamic Range
Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.
AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.
Revolutionary IR Performance
To maximize the IR performance, the camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.
SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Integrated Junction Box
The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix WiFi 8MP/4K Dual-Lens Outdoor PTZ Wi-Fi Camera...
Reolink Duo Floodlight PoE 8MP/4K Dual Lens Outdoor PoE Camera...
Ubiquiti UniFi Protect UVC-G5-Bullet 4MP/2K Bullet PoE Camera ...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Milesight MS-C5364-PD NDAA 5MP AI Vandal-proof Mini Bullet Network IP Camera
- Brand: Milesight
- MPN: MS-C5364-PD
- Part #: CCTMLS1096
Product URL: https://www.pbtech.co.nz/product/CCTMLS1096/Milesight-MS-C5364-PD-NDAA-5MP-AI-Vandal-proof-Min
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 0 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 0 | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
Milesight MS-C5364-PD NDAA 5MP AI Vandal-proof Mini Bullet Network IP Camera - White
The Milesight AI Vandal-proof Mini Bullet Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit around your home or business.
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
- Ultra Mini Size
- Fixed 2.8mm Lens
- IR Distance up to 30m
- Junction Box Version
- Suitable for outdoor applications (IP67 & IK10)
- ONVIF Profile Support for profiles G & Q & S & T, API
- Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- vGRID SaferCity Platform Compliant
Milesight AI Camera Series feature Super Wide Dynamic Range
Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.
AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.
Revolutionary IR Performance
To maximize the IR performance, the camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.
SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Integrated Junction Box
The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Specifications
Model
5MP: MS-C5364-PD
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
5MP: Color: 0.008Lux @ F1.6, B/W: 0Lux with IR on
WDR
120dB Super WDR
Lens
2.8mm
Mount
M12
Field of View
5MP: H105°/D131°/V78°(2.8mm)
IR Distance
Up to 30m
Day/Night Mode
Day/Night/Auto/Customize/Schedule
Max.Image Resolution
5MP: 2592x1944
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking
Up to 4 areas
ROI
Up to 8 areas
Image Setting
Brightness/Contrast/Saturation/Sharpness
Ethernet
1*RJ45 10M/100M Ethernet Port
Audio I/O
N/A
Alarm I/O
N/A
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Protocol
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
N/A
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Storage Support
microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support
Yes, Voice & Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Method
PoE (802.3af)
Power Consumption
5MP: 3.5W MAX, 5.4W MAX (With IR on
Housing
Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing
Dimensions
97mm x 74mm x 180mm
Accessories
A01 Pole Mount, A03 External Corner Bracket
