Panasonic VL-MC3030WX IP Video Intercom Room Monitor - White WiFi Std POE
Panasonic VL-MC3030WX IP Video Intercom Room Monitor - White WiFi Std POE
- Brand: Panasonic
- MPN: VL-MC3030WX
- Part #: CCTPAN0077
- UPC:
- Brand: Panasonic
- MPN: VL-MC3030WX
- Part #: CCTPAN0077
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Intercom Systems
Panasonic VL-MC3030WX IP Video Intercom Room Monitor - White WiFi Std POE
- Brand: Panasonic
- MPN: VL-MC3030WX
- Part #: CCTPAN0077
Product URL: https://www.pbtech.co.nz/product/CCTPAN0077/Panasonic-VL-MC3030WX-IP-Video-Intercom-Room-Monit
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Nelson | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Security at Every Level
Multi-tiered Security
Ensure safety at all access points - from Guard House/Reception to Lobby Entrance to Residents' Unit. Unauthorized access is intercepted with integrated video intercom devices and security cameras.

Contactless and Secure Access
QR code and facial recognition make entering your building seamless and secure. These contactless methods provide convenience and efficiency for residents and visitors alike.

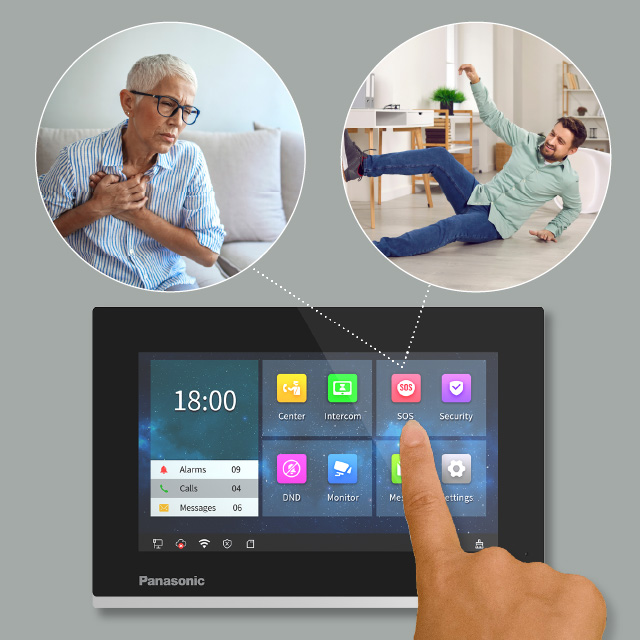

Emergency SOS Alerts
Stay safe during emergencies with a one-touch SOS button that instantly sends alerts security personnel and your family members' smartphones.

Convenient Lifestyle
Remote Control & Access
Easily manage visitor calls, unlock doors, and control elevator access from anywhere using smartphone or Room Monitor for ultimate convenience.

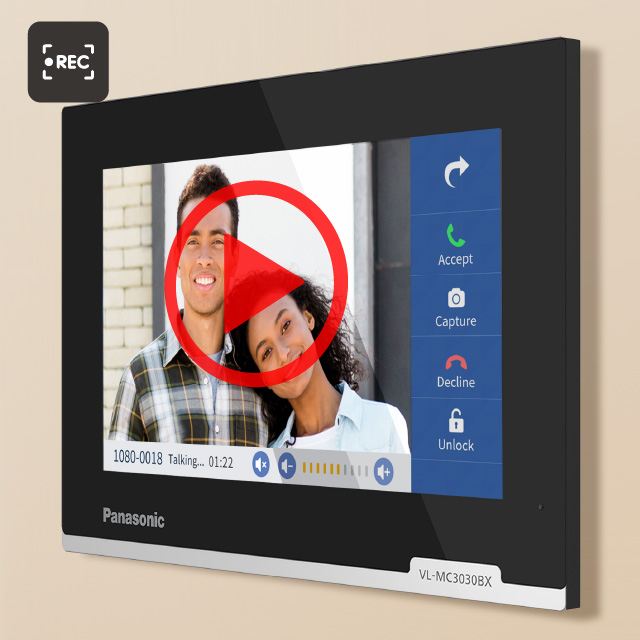

Video and Audio Recording
Record video and audio automatically during calls. You can revisit the footage for added security and peace of mind. Visitors can also leave messages.

Privacy-Control Voice Changer
Safeguard your identity with a built-in voice changer that allows real-time transformation from a female to a male voice during calls.

Elevator Access Control Integration
Contactless Guide to Your Guests and Deliveries
Using the room monitor or smartphones, residents can control the elevator to receive guests or deliveries. By specifying the exact floor, the elevator will stop accordingly so guests will easily find the unit and be prevented from roaming to other floors.

On-time Departure At Your Convenience
Residents can control the elevator even before leaving their unit to eliminate waiting time.

Seamless Connectivity
IP Video Intercom Server Options
You can choose between a local server setup for enhanced control or a cloud server for greater flexibility.

Specifications
General
Power Source
PoE (IEEE 802.3af compliant, Class 0 device)
Operating Voltage
PoE 48V or 12 to 27VDC
Current Rating
POE 48V, 160mA or DC 12V, 630mA; or DC 27V, 280mA
Power Consumption
Standby: 2.7W; Operating: 3.8W (excluding power out)
Installation Method
Surface mount with magnet
Colour
White
Dimensions (H x W x D)
(Excluding protruding sections) Approx. 130mm x 194mm x 15.9mm
Operating Temperature
-25°C to +50°C
Storage Temperature
-40°C to +70°C
Operating Humidity
Up to 90% (non-condensing)
IP rating (Ingress Protection)
IP30
IK rating (Impact Protection)
-
Talking Method
Hands-free
Display Language
English, Chinese, Vietnamese, Indonesian and Thai
Casing Material
PMMA + ABS
Weight Without package
330g
System Parameters
Operation system
Linux
Flash
128MB
RAM
64MB
Storage (MicroSD Card)
32GB (Included)
Display Parameters
Size
7-inch wide colour display
Operation Method
Capacitive touch screen
Display Resolution
1024 x 600
Video Parameters
Video Codec
H.264 & H.265
Video Resolution
VGA, 720P
Audio Parameters
Audio Compression
G.711
Speaker
8Ω / 0.5W
Microphone
-56 ± 2dB
Network Parameters
Wi-Fi Supported (WLAN 2.4GHz)
Wiring UTP (Cat 5e or higher)
Wiring
UTP (Cat 5e or higher)
Protocol
IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP
Device Interfaces
Network Interface
RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)
Power Out Port
12V, 200mA max (Output for alarm zone devices)
Alarm Input
8
Doorbell Port
1
Capacity
Linked IP Camera
6 (Private IPC) + 12 (Public IPC)
Text Messages
100
Voice Messages
10
Intercom Logs
100
Alarm Logs
100
Recording
100
*With MircoSD card (video with audio)
