Features
VIGI 16 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
- 140 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 140 W.‡
- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
- 24/7 Continuous Recording: Stores up to 32 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†

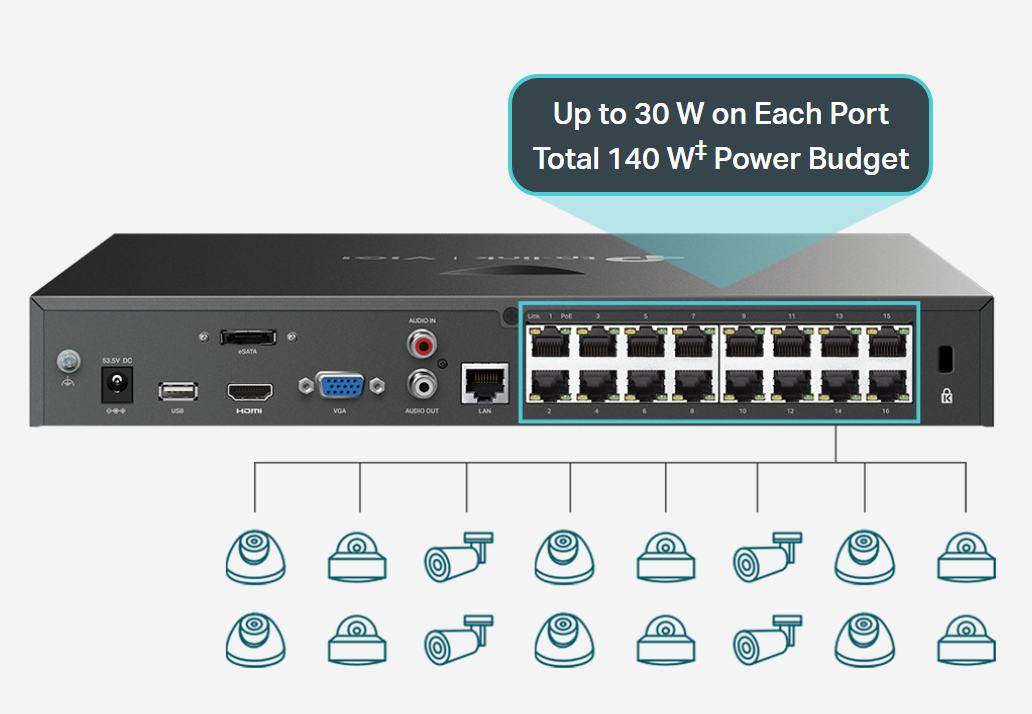

Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.
Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

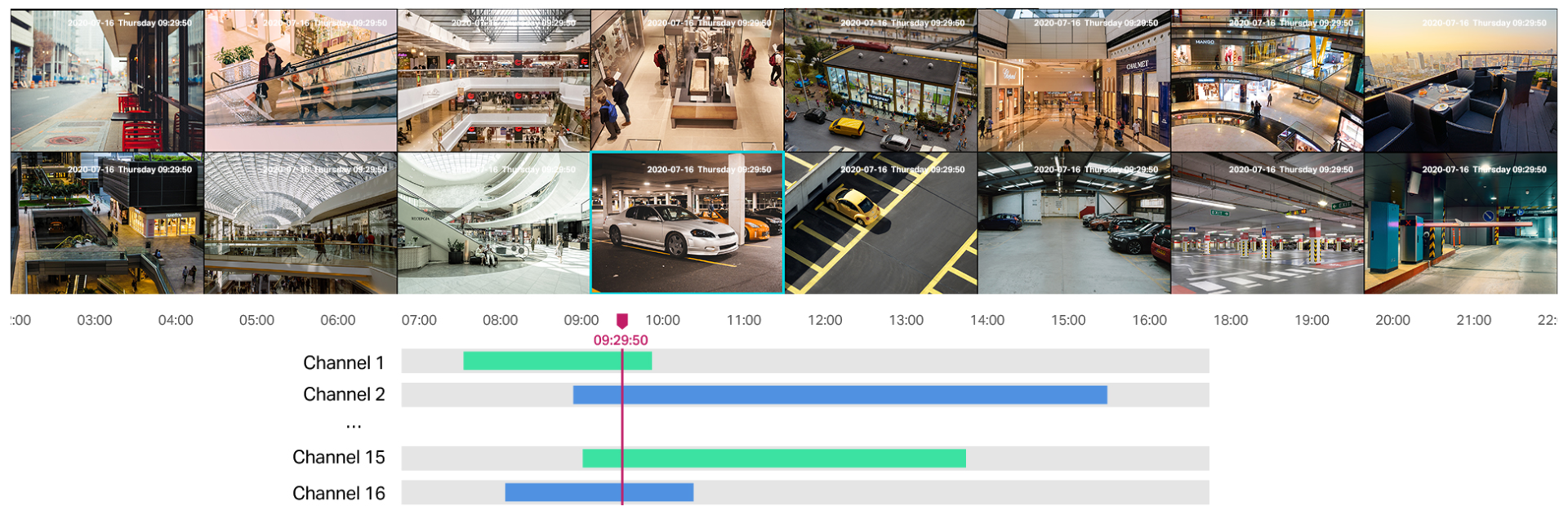

16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

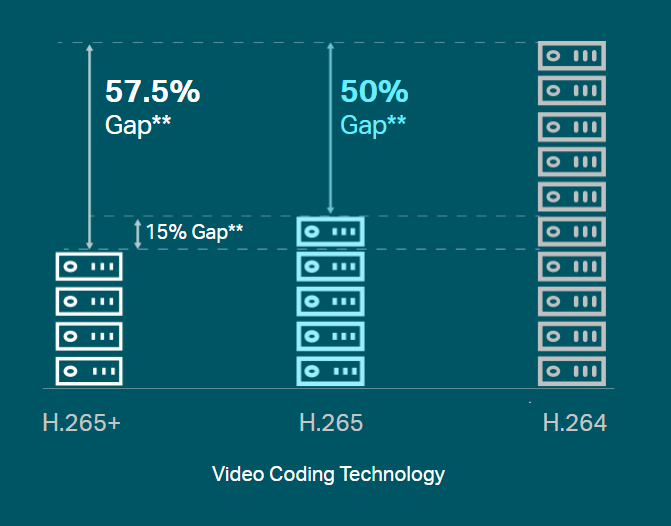

More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Security for Every Hour and Every Day
With the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.

Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.

Specifications
Video and Audio
IP Video Input
16-Channel
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output Resolution
1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution
1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode
HDMI/VGA Simultaneous Output
Multi-View Display
1/4/6/8/9/16
DECODING
Audio Compression
G.711A/G.711U/G.726
Video Compression
H.265+/H.265/ H.264+/H.264
Record Resolution
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
16-Channel
Capability
- 25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
- 30fps:
4-ch @ 3MP, 2-ch @ 5MP
Record Management
Record Mode
- Manual Recording
- Scheduling Recording
- Motion Detection Recording
Playback Mode
- Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
Backup Mode
- Regular Backup
- Video Clip Backup
Playback Function
- Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off
NETWORK
Protocol
UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access
Android, iOS
Web Browser
Chrome (57+), Firefox (52+), Edge (91+)
Interoperability
ONVIF, CGI
External Interface
Network Interface
1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface
1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface
1, Audio In; 1, Audio Out
Power
1× DC Jack
Reset Button
1
eSATA
1
HDMI
1
VGA
1
HARD DISK
SATA
2 SATA Interfaces
Capacity
Up to 16 TB Capacity for Each HDD
PoE
Standard
802.3at/af Compliant
Interface
1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget
140 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm
- Motion Detection
- Video Tampering
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
- Smart Frame
Anomaly Alarm
- Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
- Fan Exception
Alarm Linkage
- Recording
- White Light Alarm
- Buzzer
- Log
- Audible Alarm
GENERAL
Storage Temperature
-40-70 °C
Storage Humidity
10%~90% RH Non-Condensing
Package Contents
- VIGI Network Video Recorder
- Power Adapter
- Power Cables
- HDD Power Cables
- HDD Data Cables
- Mounting Accessories
- Mouse
- Quick Installation Guide
Working Temperature
- NVR: -10-55 °C
- Power Adapter: 0-40 °C
Working Humidity
10%~90% RH Non-Condensing
Dimensions( W X D X H )
330 × 285 × 45 mm
Net Weight
2.1 Kg
Gross Weight
4.1 Kg
Power Supply
53.5V DC/3.37A
Power Consumption
- 6.2 W (Without Disk)
- 40 W (With Disk)
Certifications
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
