Ubiquiti Unifi Protect UNVR-Instant 4K 1U 1-Bay NVR with 6-Port PoE (40W)
Support up to 6 x 4K or 8 x 2K Cameras / Support up to 1 x 24TB Storage
Ubiquiti Unifi Protect UNVR-Instant 4K 1U 1-Bay NVR with 6-Port PoE (40W)
Support up to 6 x 4K or 8 x 2K Cameras / Support up to 1 x 24TB Storage
- Brand: Ubiquiti
- MPN: UNVR-Instant
- Part #: CCTUBI21541
- UPC: 810177163725
- Brand: Ubiquiti
- MPN: UNVR-Instant
- Part #: CCTUBI21541
- UPC: 810177163725
Similar in-stock products available at PB Tech right now
COMBO DEALS: Buy Together and SAVE!
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE Camera (Black) 2K 30FPS / Viewing Angle...
$194.23 +GST
$223.36
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Video Recorders
Ubiquiti Unifi Protect UNVR-Instant 4K 1U 1-Bay NVR with 6-Port PoE (40W) Support up to 6 x 4K or 8 x 2K Cameras / Support up to 1 x 24TB Storage
- Brand: Ubiquiti
- MPN: UNVR-Instant
- Part #: CCTUBI21541
- UPC:810177163725
Product URL: https://www.pbtech.co.nz/product/CCTUBI21541/Ubiquiti-Unifi-Protect-UNVR-Instant-4K-1U-1-Bay-NV
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
UNVR-Instant Network Video Recorder Instant
Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.





Specifications
General
Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9")
UniFi Application Suite
Protect: Yes
Access: Yes
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Storage Capacity
(1) 3.5" drive bay
Data Protection
Yes
Vantage Point
Yes

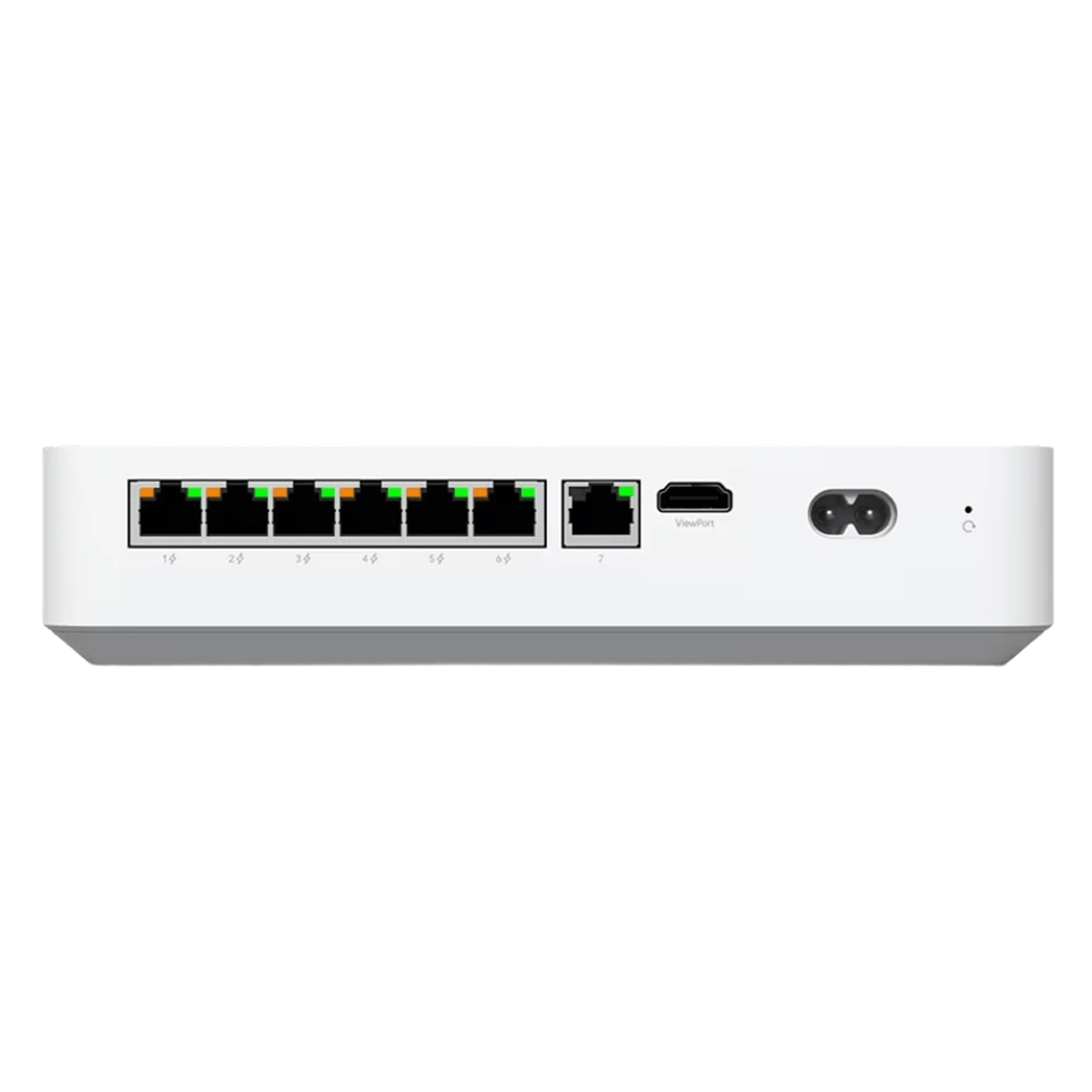

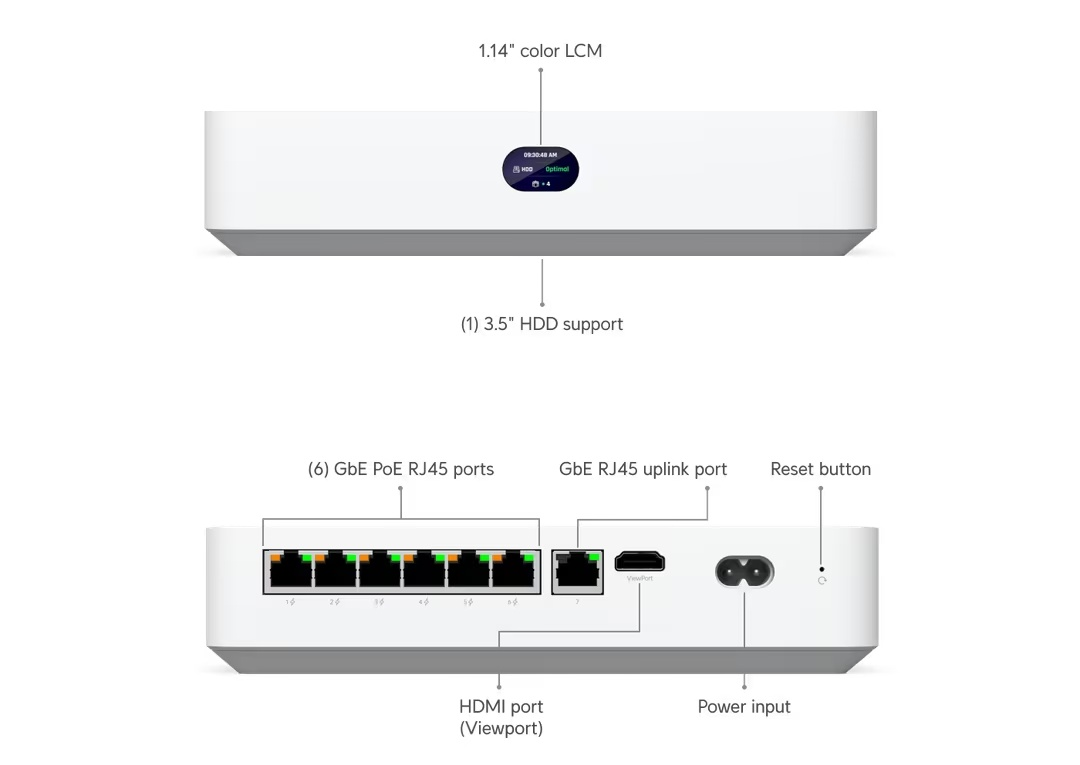

Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor
Compact Desktop

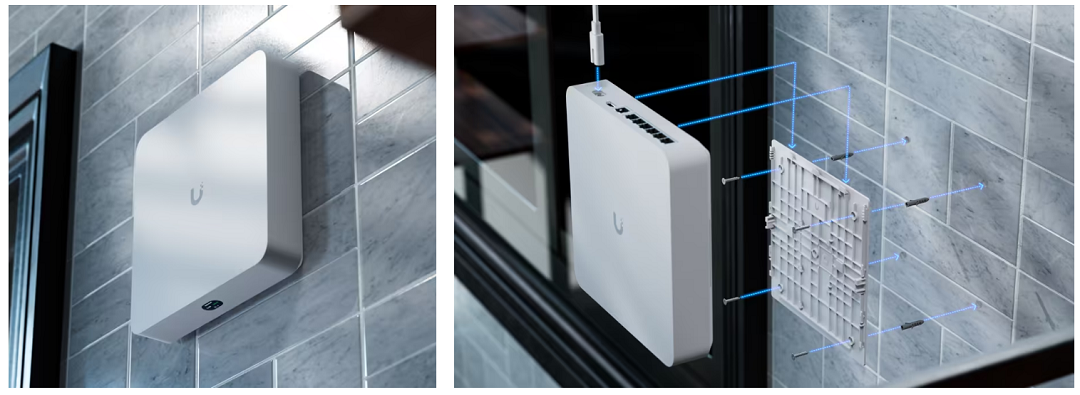

Mounting
Wall, Din rail mount (Included)
Hardware

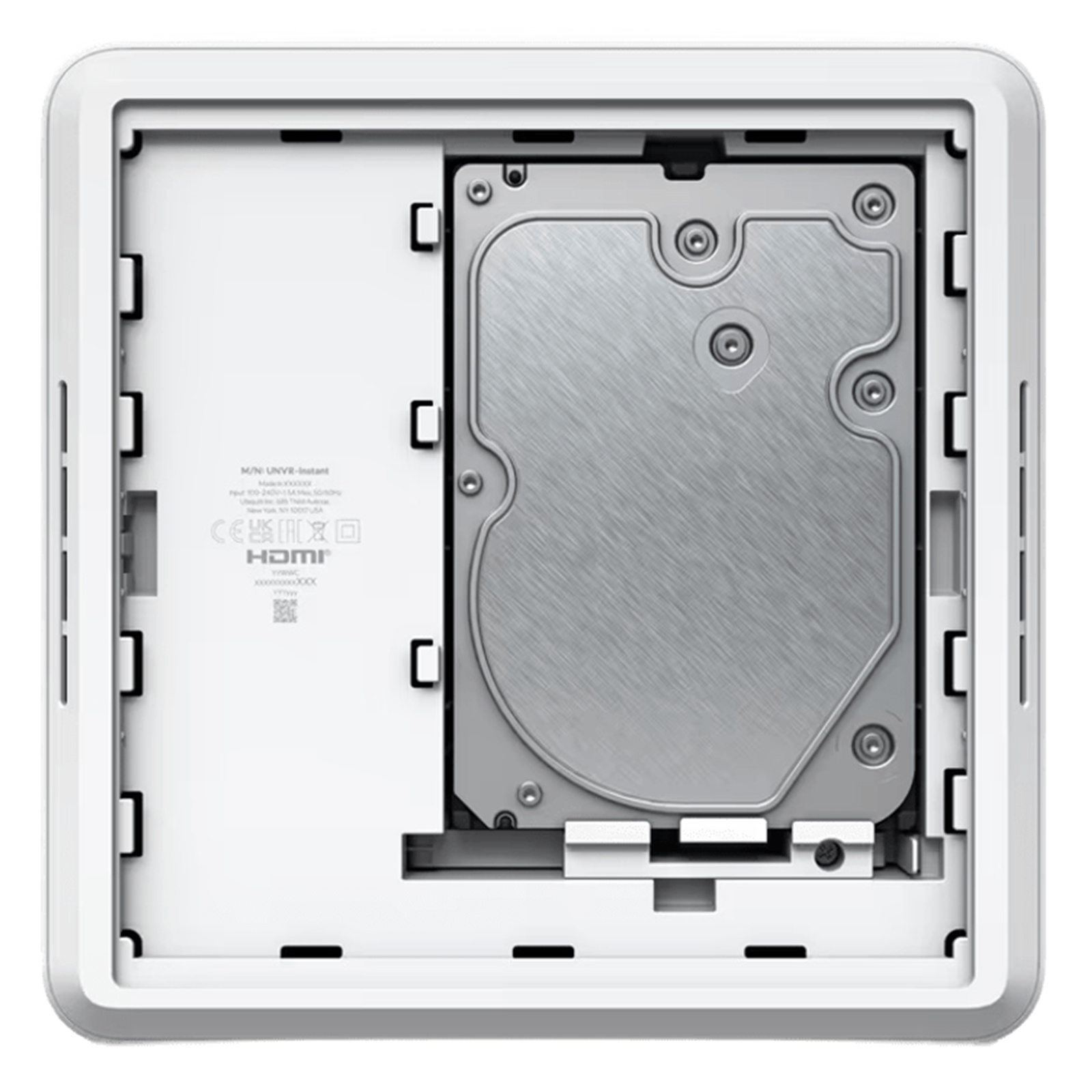

Hard Drive Capacity
(1) 3.5" HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W
Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE: 15.4W
Voltage Range PoE Mode
44-57V
Processor
Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet
Bluetooth
Display
1.14" screen
Weight
1.04 kg (2.3 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
LEDs
Ethernet: Yes
PoE: Yes
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidit
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE, Electrical Safety
