Features
Network Video Recorder Instant Kit
Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
- 4x G5 Turret Ultra cameras
- 1TB 3.5" drive
- Vantage Point support
- (1) GbE RJ45, (6) GbE PoE RJ45, (1) HDMI port (Viewport)
- Compact Desktop form factor
- Door Access Support
Note. Requires connection to a Gateway or Layer 3 switch.
A New Era of Security for Everyone
Today marks a big step forward in making professional-grade physical security accessible to everyone. The new UNVR Instant is a compact, all-in-one solution built to deliver enterprise-class performance without complexity or high costs.

Power and Flexibility in One Device
UNVR Instant is equipped with a 3.5" HDD bay, an integrated 6-port PoE switch, and a ViewPort output for real-time monitoring. Supporting up to (8) 2K cameras or (6) 4K cameras, it redefines what's possible at this price point.

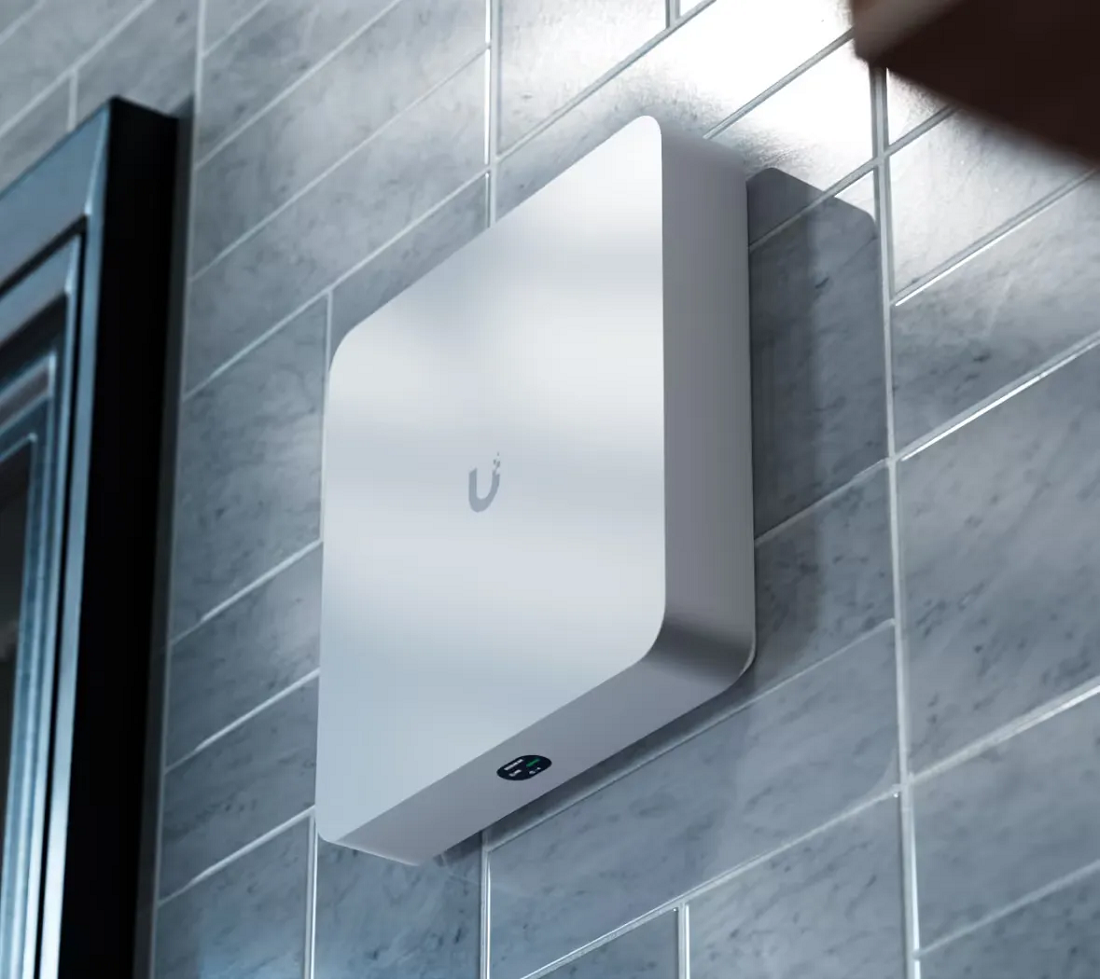

Compact Yet Powerful
UNVR Instant makes enterprise-class security simple and affordable. Compact, powerful, and easy to set up, it's built for anyone who needs reliable protection.
- Designed for homes, small businesses, and enterprises alike
- 3.5" HDD bay for expandable storage
- Built-in 6-port PoE switch for simple connectivity

Breaking the Barrier
UNVR Instant brings professional-grade physical security within reach, making it simpler, faster, and more affordable than ever.
- Live monitoring via ViewPort output
- Quick installation for fast deployment
- Cloud-based management with no hidden costs

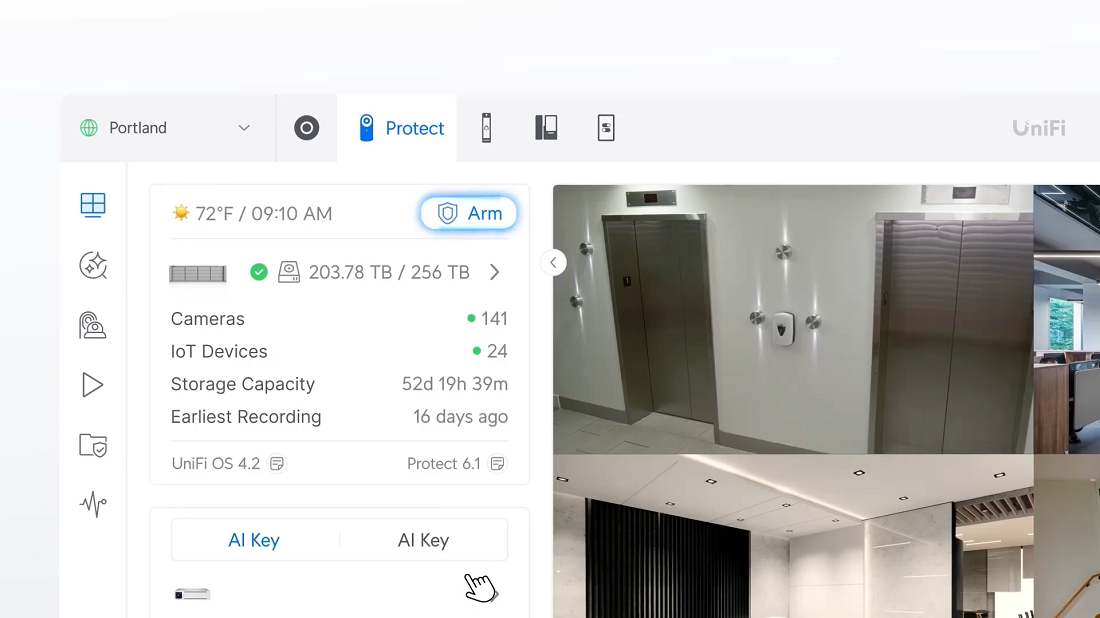

Setup That Just Works
Getting started with UNVR Instant takes only seconds. Powered by the UniFi Protect platform, it combines user-friendly design with advanced functionality. Local storage ensures high-speed access and privacy, while cloud-based management gives you control from anywhere, all with zero licensing fees.

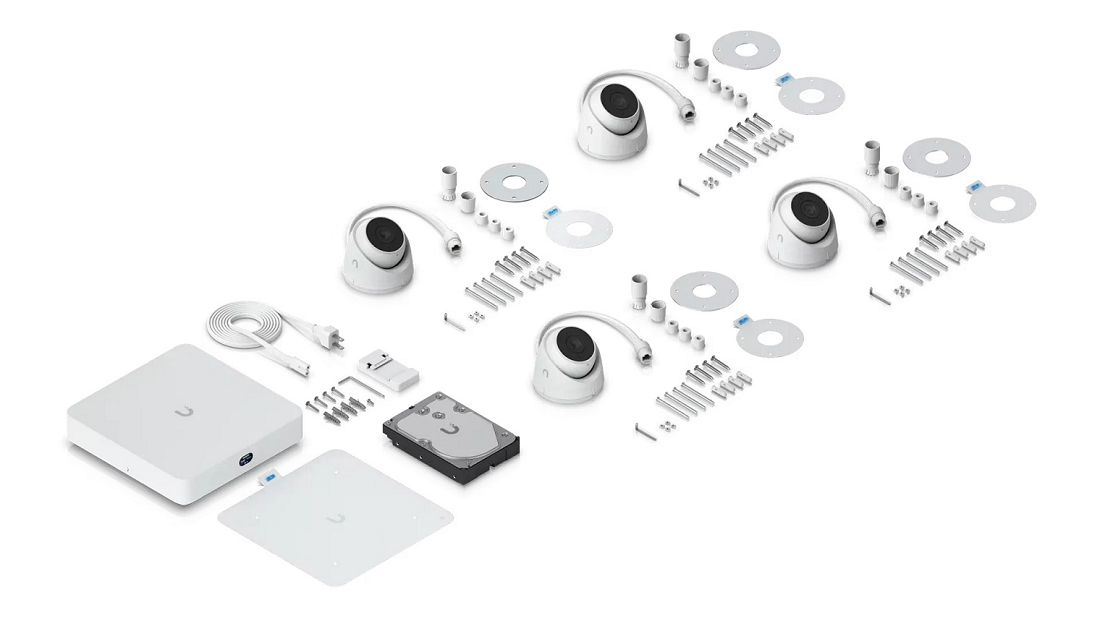

A 4-Camera Bundled Kit
The UNVR Instant kit delivers an all-in-one security solution right out of the box. Bundled with a 1TB HDD and 4x G5 Turret Ultra cameras for a complete setup.

Specifications
Included
(1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD
Network Video Recorder Instant
Dimensions
220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
UniFi Application Suite
Protect: Yes
Access: Yes
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Managed Access Hubs
50
Storage Capacity
(1) 3.5" drive bay
Data Protection
Yes
Vantage Point
Yes
Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor
Compact Desktop

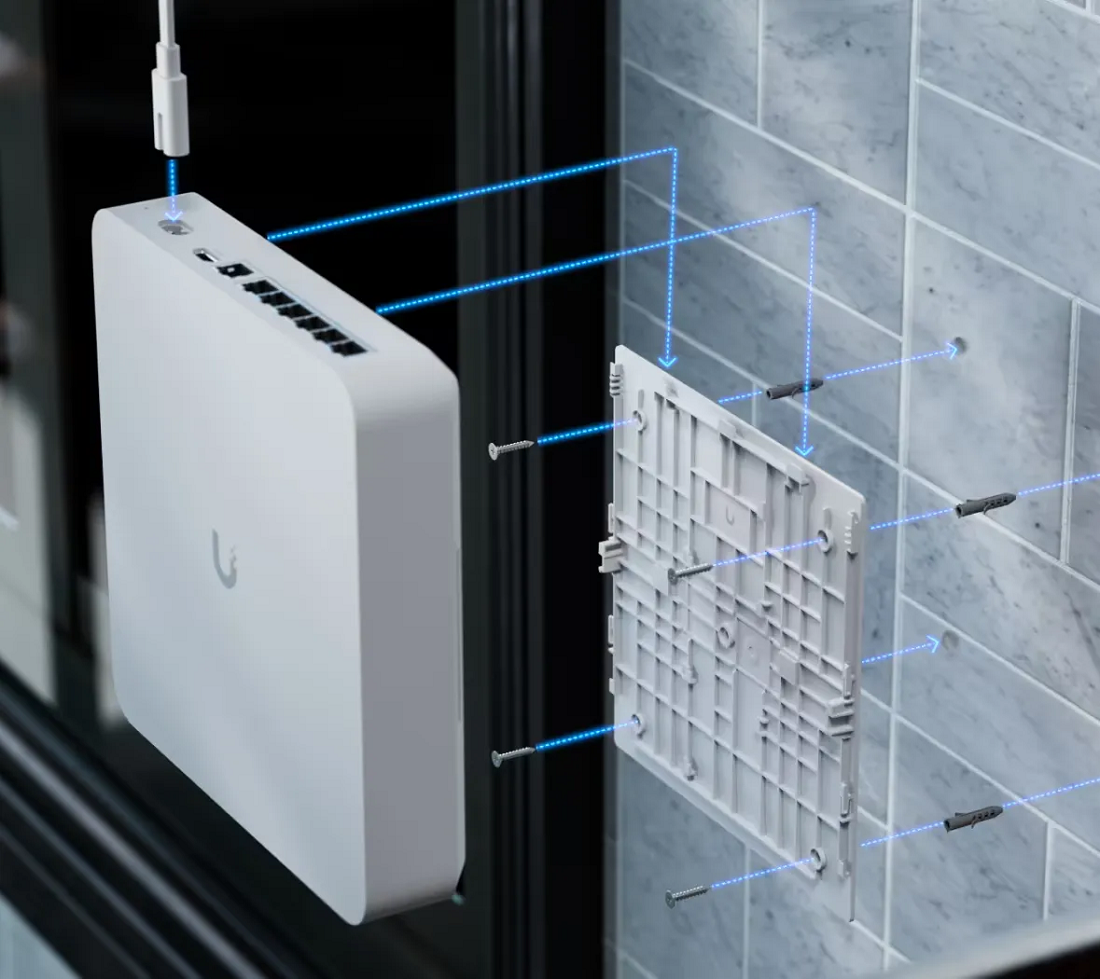

Mounting
Wall, Din rail mount (Included)
Door Access Support
Yes
Hard Drive Capacity
(1) 3.5" HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W
Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE 15.4W
Voltage Range PoE Mode
44-57V
Processor
Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet
Bluetooth
Display
1.14" screen
Weight
1.04 kg (2.3 lb)
Enclosure Materials
Polycarbonate
Mount Material
Polycarbonate
LEDs
Ethernet: Yes
PoE: Yes
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE, Electrical Safety
G5 Turret Ultra
Dimensions
Ø90 x 71.2 mm (Ø3.5 x 2.8")
IR Night Vision
30 m (98 ft)
Smart Detections (People, Vehicles, Animals)
Yes
Resolution
2K
Field of View
H: 102.4°, V: 54.9°, D: 120.6°
Audio
Microphone
Weatherproofing
IP66
Tamper Resistance
IK04
Mounting
Wall, ceiling mount (Included)
Junction box, arm mount (Optional)
Networking Interface
10/100 MbE RJ45 port
Video
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate
30 FPS
Resolution
4MP 2688 x 1512 (16:9)
Optics
Sensor: 1/2.4" CMOS
Lens: Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Max. Power Consumption
4W
Supported Voltage Range
37-57V DC
Power Method
PoE
Processor
Dual-core Arm® Cortex®-A7 based chip
Weight
330 g (11.6 oz)
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate
Mount Material
Polycarbonate
Button
(1) Factory-reset
Cable
Cable Connector Type: RJ45
Cable Diameter: 5 mm (0.2")
Cable Length: 30 cm (1 ft)
Jacket Material: Polycarbonate
Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
0 to 90% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC
HDD
Dimensions
147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Hard Disk Form Factor
3.5-inch
Weight
0.45 kg (0.99 lb)
Storage Capacity
1 TB
Power Method
5V/12V input
Management Interface
SATA 6 Gb/s
Rotation Speed
5400 RPM
Workload Rating
180 TB/year
Mean Time Between Failure (MTBF)
1,000,000 h
Ambient Operating Temperature
0 to 65° C (32 to 149° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, CE, TUV, RCM, KC, BSMI
