Features
Ubiquiti UniFi Access G2 Starter Kit Professional (UA-G2-SK-Pro)
The Ubiquiti G2 Starter Kit Professional (UA-G2-SK-Pro) offers a professional-grade door access solution, featuring two distinct readers to enhance access control. Included in this kit are the UniFi Access Door Hub, an Access Reader G2 Professional, an additional Access Reader G2 for door entry or exit, and two UniFi Access pocket key fobs. These components work in harmony to provide a comprehensive access management experience.
UA-G2-SK-Pro includes:
(1) UniFi Access Door Hub
(1) Access Reader G2 Professional
(1) Access Reader G2 for door exit or entrance for additional door
(2) UniFi Access pocket key fob
The Access Reader G2 Professional, with its polycarbonate enclosure, features a robust design and is accompanied by the UniFi Access Door Hub, which offers a range of hardware features, including a 10/100/1000 Base-T networking interface, PoE++ support, and multiple input and output options. These components are compliant with various certifications, ensuring security and reliability in access control systems.
Specifications

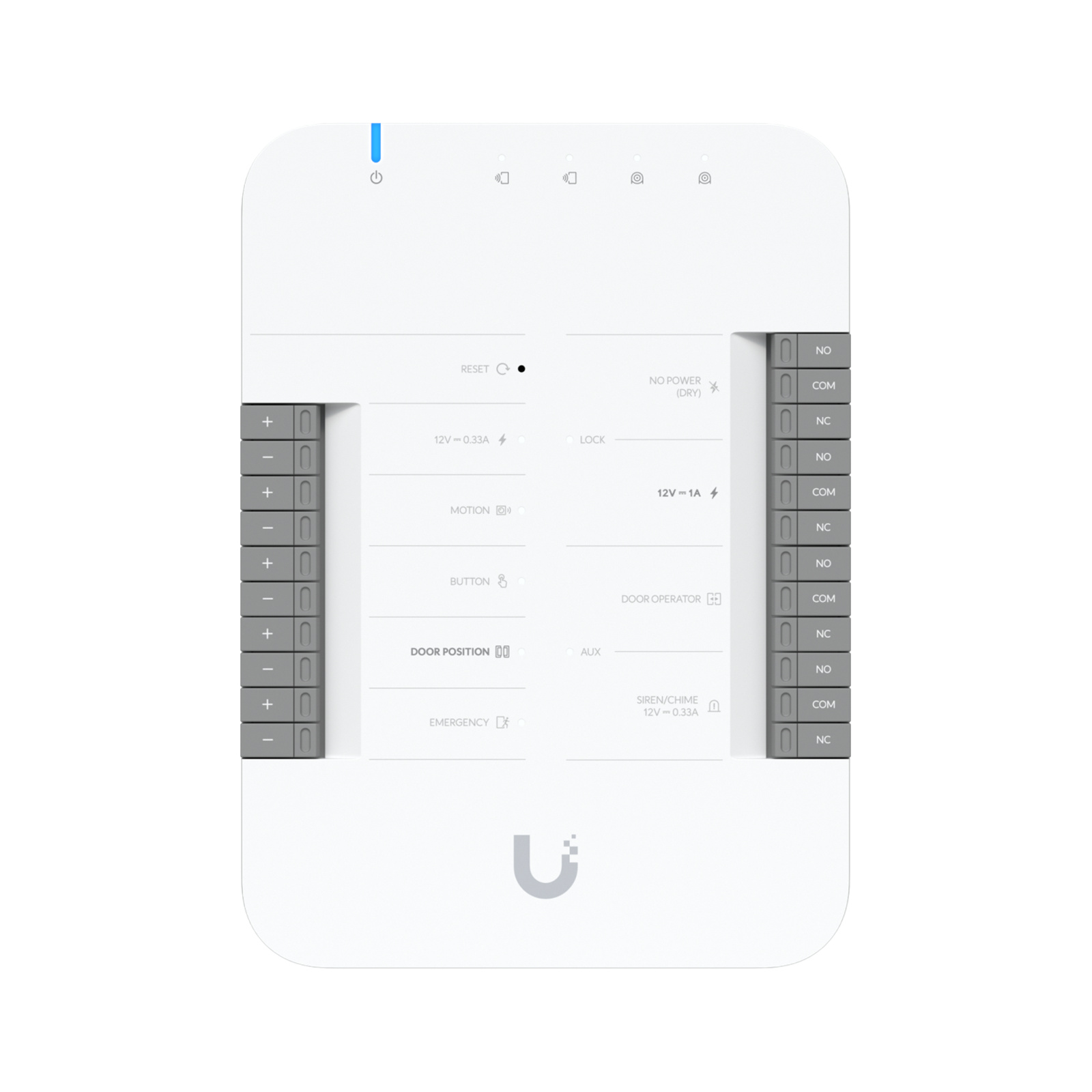

UA-Hub-Door
Mechanical
Dimensions
174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Weight
363 g (12.8 oz)
Enclosure material
Polycarbonate
Mounting material
Polycarbonate
Hardware
Networking interface
(5) 10/100/1000 Base-T
Power method
PoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU
Max. power consumption
Without PoE output: 30W
With PoE output: 50W
PoE input
50V DC, 1A
PoE output
PoE passthrough, (4) PoE, 50V DC, total 20W
Button
(1) Factory-reset
LEDs
System: white/blue
Output relays: white
Digital input
Request to exit/request to enter/remote release/door position sensor
Dry output relay
Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered output relay
Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
Operating environment
Indoor use only
Operating temperature
0 to 40° C (32 to 104° F)
Operating humidity
5 to 95% noncondensing
UL 294 level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement
Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: 1
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Door002, V01
Wiring Information
Typical installation (Shielded)
DC power input: Belden 8750 18 AWG 2 conductor (30.5 m/100 ft)
Door position switch: Belden 8750 18 AWG 2 conductor (152.5 m/500 ft)
Request to exit: Belden 8750 18 AWG 2 (152.5 m/500 ft)
Wiring gauge requirements (AWG)
Total length to device / Output load current at 12V DC
6.1 m (20 ft)
100mA: 22
250mA: 22
500mA: 22
1A: 18
15.2 m (50 ft)
100mA: 22
250mA: 22
500mA: 22
1A: 18
30.5 m (100 ft)
100mA: 22
250mA: 22
500mA: 18
1A: 18
PoE cabling requirements
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable.
LEDs
PoE in
Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware
PoE out
Off: Not connected or no data link
Steady blue: Connected and data link on

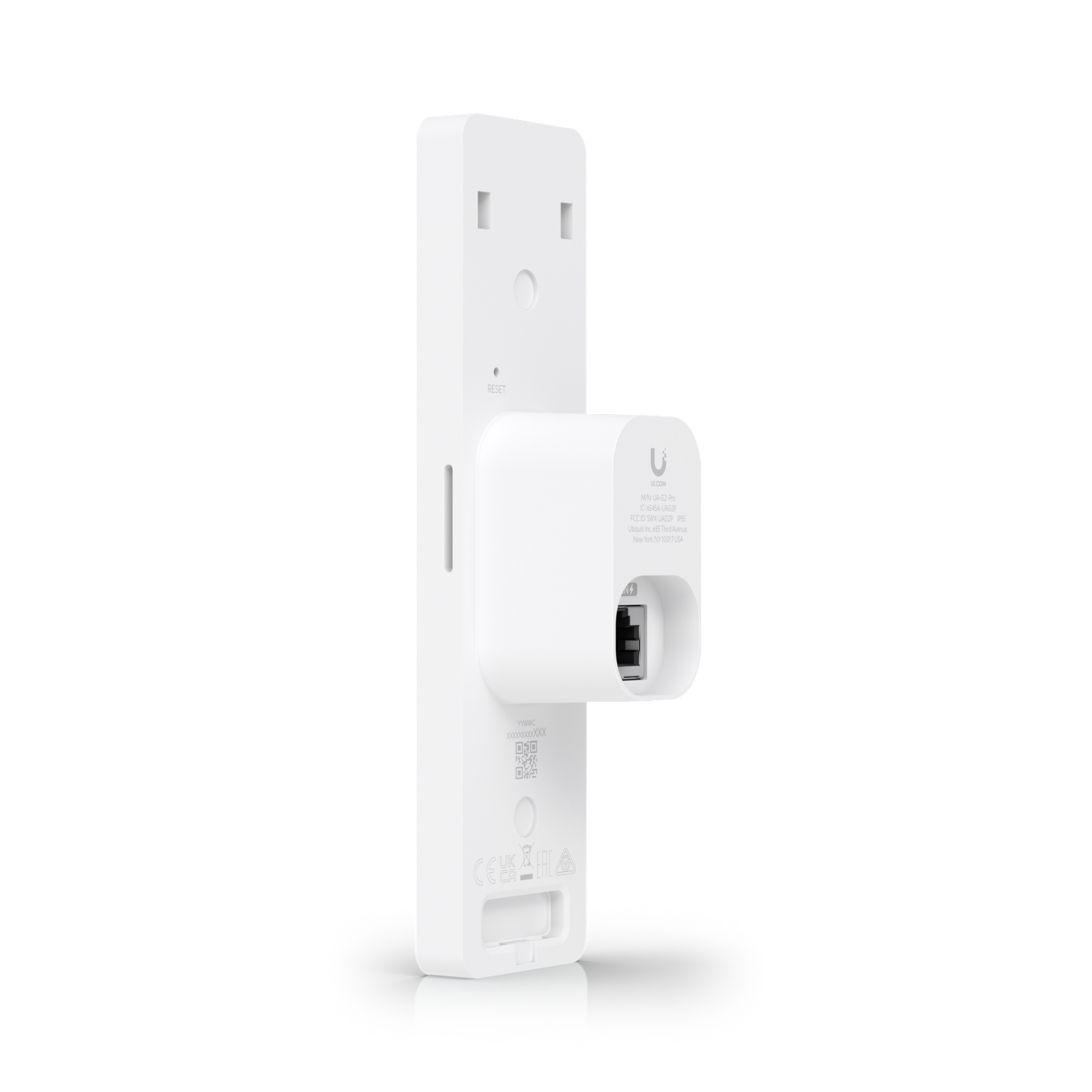

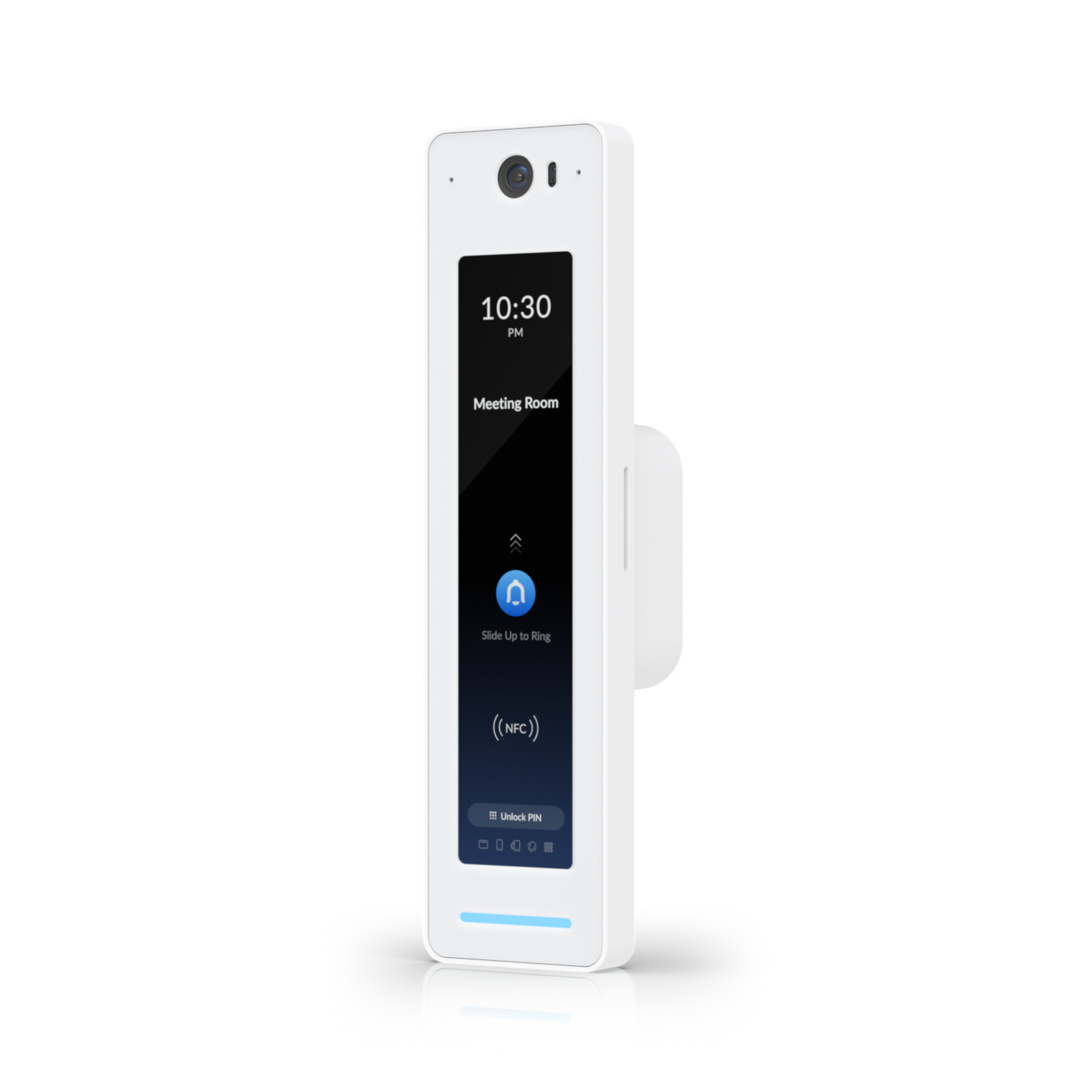

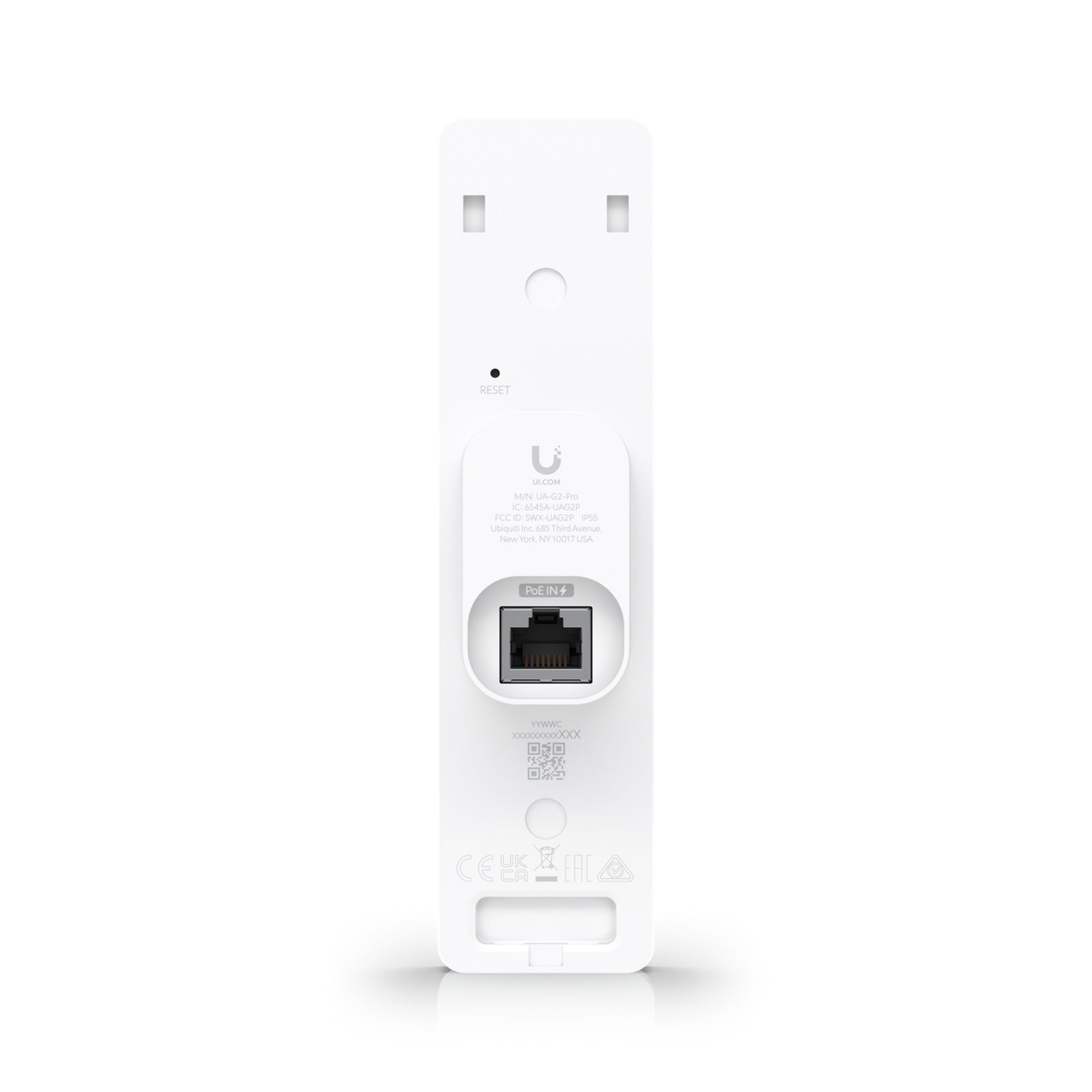

UA-G2-Pro
Mechanical
Dimensions
160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Weight
136 g (4.8 oz)
Enclosure material
Polycarbonate, glass
Mount material
Aluminum alloy
Mounting
Wall, gang box
Weatherproofing
IP55
Hardware
Networking interface
(1) 10/100/1,000 MbE RJ45 port
Connectivity
BLE 4.2
NFC
Power method
PoE
Supported voltage range
48V DC
Max. power consumption
6W
ESD/EMP protection
Air: ±15kV, contact: ±8kV
Sensor
ToF sensor
Camera
4000 x 3000, 12 MP, 30 FPS
Microphone
Yes
Speaker
(1) 4 ohm, 1.5W
LEDs
R/G/B/W
Flash
Button
(1) Factory-reset
NFC frequency
13.56 MHz
NFC read range
< 30 mm
NFC standards
ISO 14443A, 14443B, 15693
NFC technology
NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature
-10 to 45° C (14 to 113° F)
Operating humidity
5 to 90% noncondensing
Certifications
CE, FCC, IC

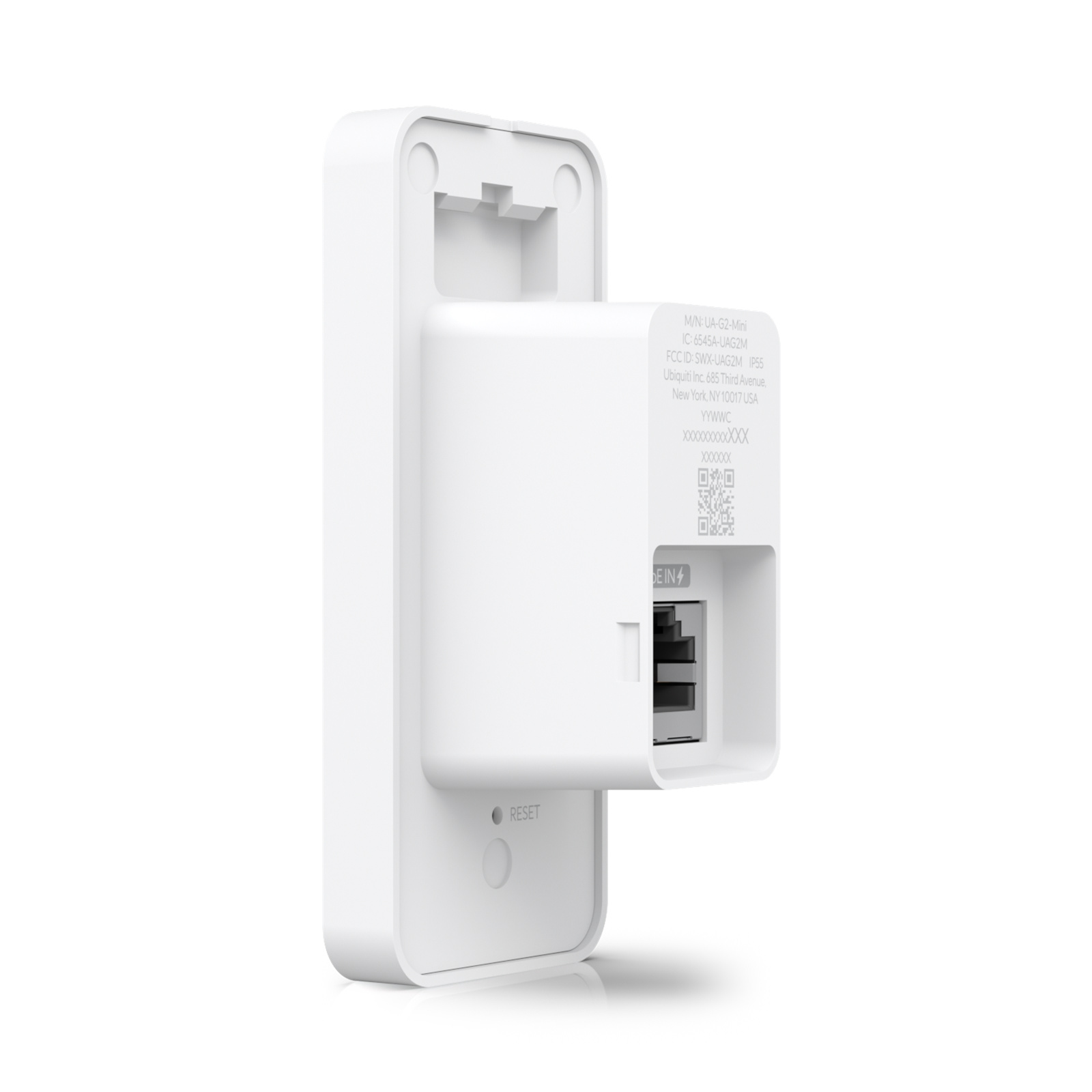

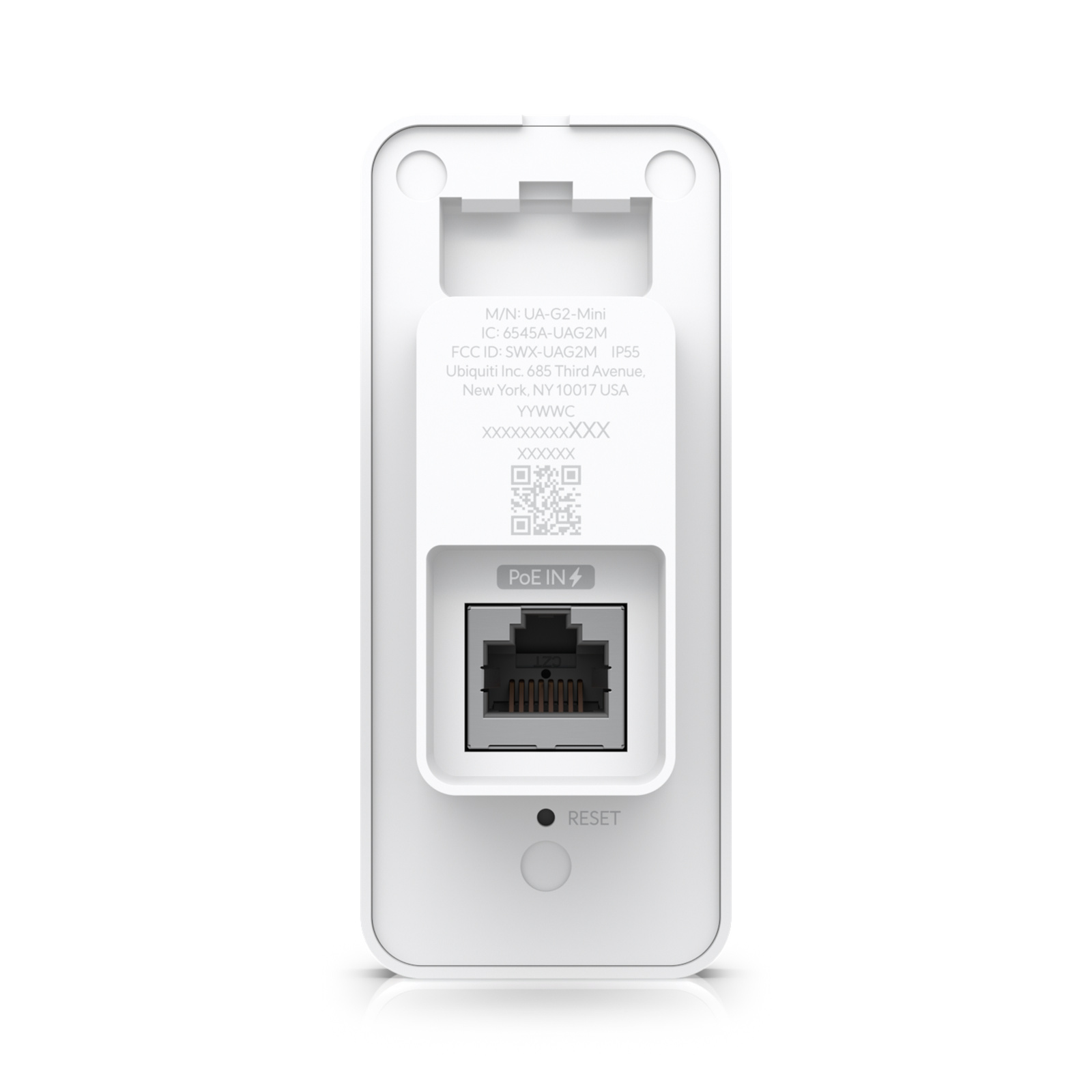

UA-G2
Mechanical
Dimensions
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight
82 g (2.9 oz)
Enclosure material
Polycarbonate, glass
Mounting
In wall, gang box
Weatherproofing
IP55
Hardware
Networking interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1
Power method
PoE
Supported voltage range
48V DC
Max. power consumption
5W
ESD/EMP protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
Speaker
(1) 8 ohm, 0.7W
LEDs
R/G/B/W
Button
(1) Factory-reset
NFC frequency
13.56 MHz
NFC read range
< 30 mm
NFC standards
ISO 14443A, 14443B, 15693
NFC technology
NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature
-30 to 45° C (-22 to 113° F)
Operating humidity
5 to 90% noncondensing
Certifications
CE, FCC, IC

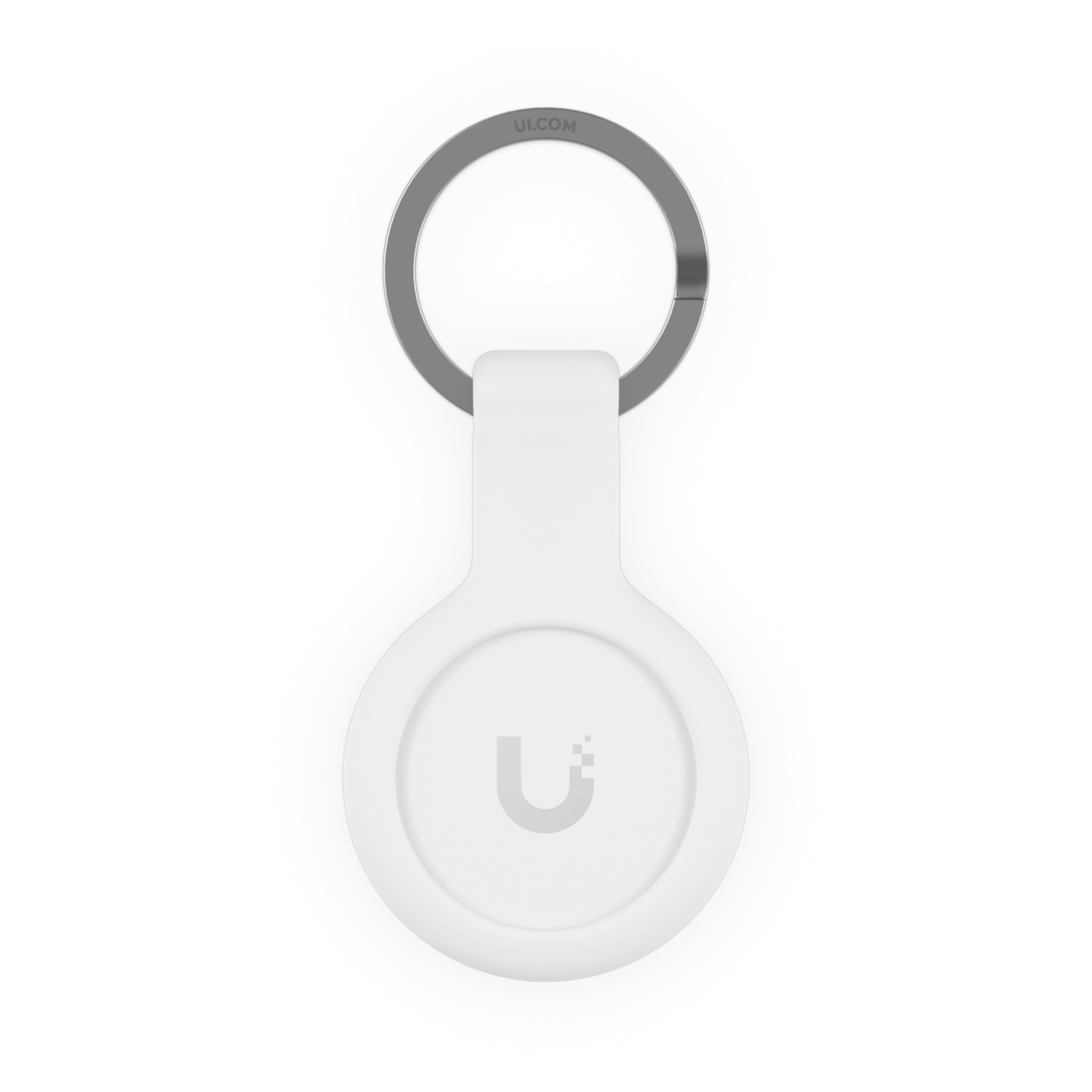

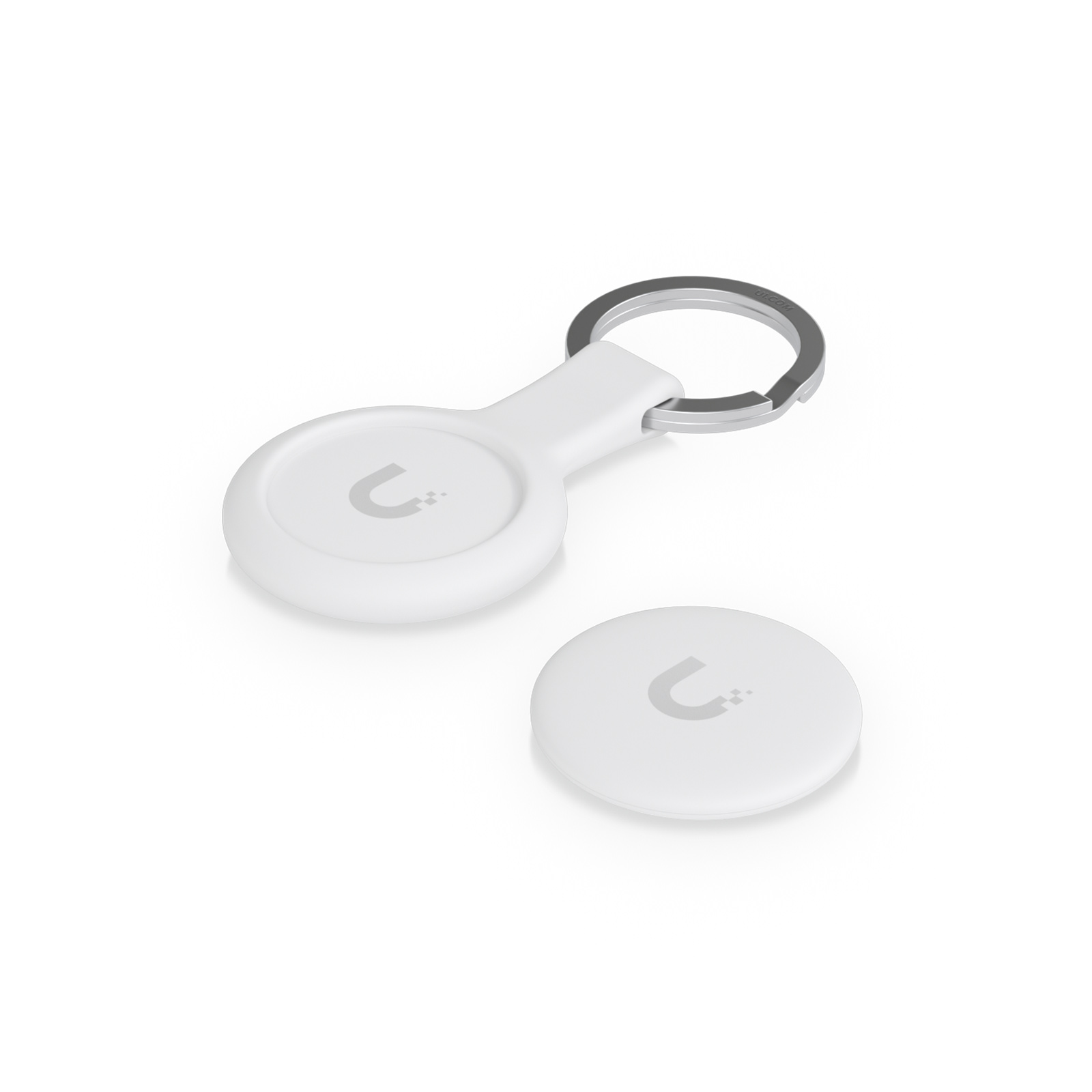

UA-Pocket
Mechanical
Dimensions
84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight
16 g (0.56 oz)
Enclosure material
Polycarbonate, stainless steel
Weatherproofing
IP54
Hardware
NFC frequency
13.56 MHz
NFC technology
ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol
Operating temperature
-10 to 45° C (14 to 113° F)
Operating humidity
10 to 90% noncondensing
Certification
CE
