Cooler Master MasterFrame 360 Stage LCD Limited Edition ATX Gaming Case with LED Screen

PCIe 5.0 Riser & 2x ARGB Spotlight Included - CPU Cooler Support up to 145mm - GPU Support up to 430mm - 360mm Radiator Support - 3.5x PCI (V) - Front I/O: 2x USB - 1x USB-C - HD Audio

PB Tech price
PB Tech price
$ 413 .33
 +GST
$ 475 .33
 inc GST
$413.33  +GST
$475.33

Cooler Master MasterFrame 360 Stage LCD Limited Edition ATX Gaming Case with LED Screen

PCIe 5.0 Riser & 2x ARGB Spotlight Included - CPU Cooler Support up to 145mm - GPU Support up to 430mm - 360mm Radiator Support - 3.5x PCI (V) - Front I/O: 2x USB - 1x USB-C - HD Audio

The Stage for Personal Expression!
  • Brand: Cooler Master
  • MPN: MF360-KHNN-S02
  • Part #: CHACLM10613
  • UPC: 884102135712
NEW ARRIVAL
PB Tech price
$ 413 .33 $ 475 .33
 +GST  inc GST


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships today When will I receive it?
$413.33  +GST
$475.33

Four payments of $120.02 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $5.17 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: Cooler Master
  • MPN: MF360-KHNN-S02
  • Part #: CHACLM10613
  • UPC: 884102135712

Form Factor

ATX

Side Window

Yes

Radiator Support

360mm

Maximum Card Length

430mm

CPU Cooler Height Clearance

145mm

Colour

Black

Dedicated 2.5" Bay

2

2.5" / 3.5" Bays

N/A

Factory Direct Product: Sourced direct from the factory, no middlemen means a lower price for you! Learn more

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Cooler Master MasterFrame 360 Stage LCD Limited Edition ATX Gaming...
Cooler Master MasterFrame 360 Stage LCD Limited Edition ATX Gaming Case with LED Screen PCIe 5.0 Riser & 2x ARGB Spotlight Included - CPU Cooler Support up to 145mm - GPU Support up to 430mm - 360mm Radiator Support - 3.5x PCI (V) - Front I
Total:
$ 630 .92
 +GST
$ 725 .56
Buy together and save $8.96 $10.30
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)

$6.50  +GST

$7.48

You save 5% You save 5%
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox Playstation Smartphone Repair Tools
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox Playstation Smartphone Repair Tools
$56.17 $64.60

$53.67  +GST

$61.72

You save 4% You save 4%
Cooler Master MWE Gold V3 NM FR 750W Power Supply -ATX 3.1 80 Plus Gold Fixed Cable
Cooler Master MWE Gold V3 NM FR 750W Power Supply -ATX 3.1 80 Plus Gold Fixed Cable
$120.87 $139.00

$118.96  +GST

$136.80

Cooler Master MasterFan MF 120 Lite ARGB Black PWM 120mm Case Fan, 3 Pack
Cooler Master MasterFan MF 120 Lite ARGB Black PWM 120mm Case Fan, 3 Pack
$42.61 $49.00

$38.46  +GST

$44.23

You save 9% You save 9%

Features

SHOWCASE WITHOUT COMPROMISE

Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master's signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models - PANORAMA, STAGE LCD, and STAGE MIRROR - the 360 series offers creators a refined platform to build, express, and be seen.​

The PC is no longer just a machine - it's a statement.​



The Stage for Personal Expression

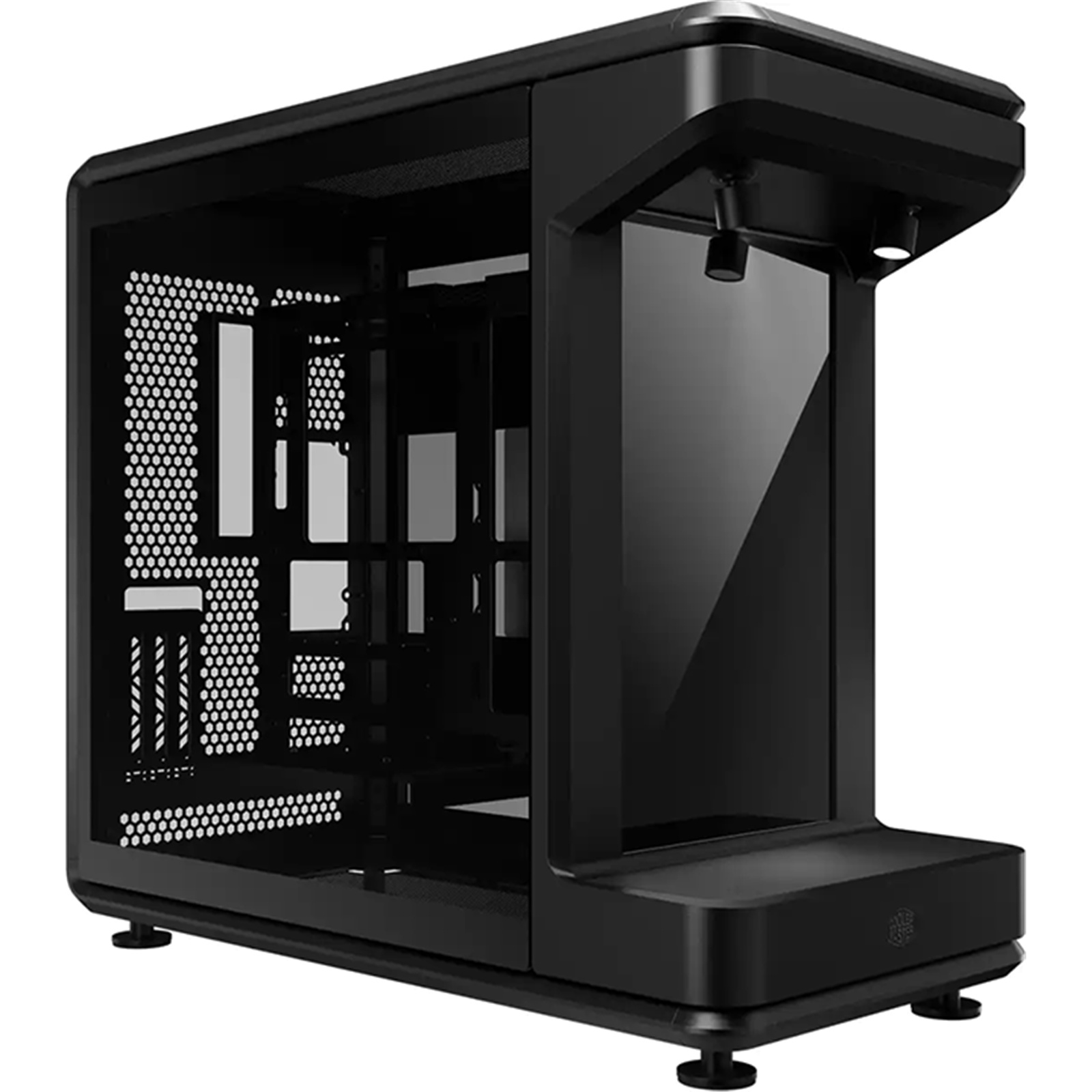

Open-frame design removes traditional enclosure constraints, allowing you to freely position figures, collectibles, and creative accessories without visual or spatial limits.​ Combined with the signature front-facing LCD/mirror, it creates a 360-degree display effect-reflecting every angle in vivid detail. This unique design transforms your build into a personal gallery, where story and style take center stage.​

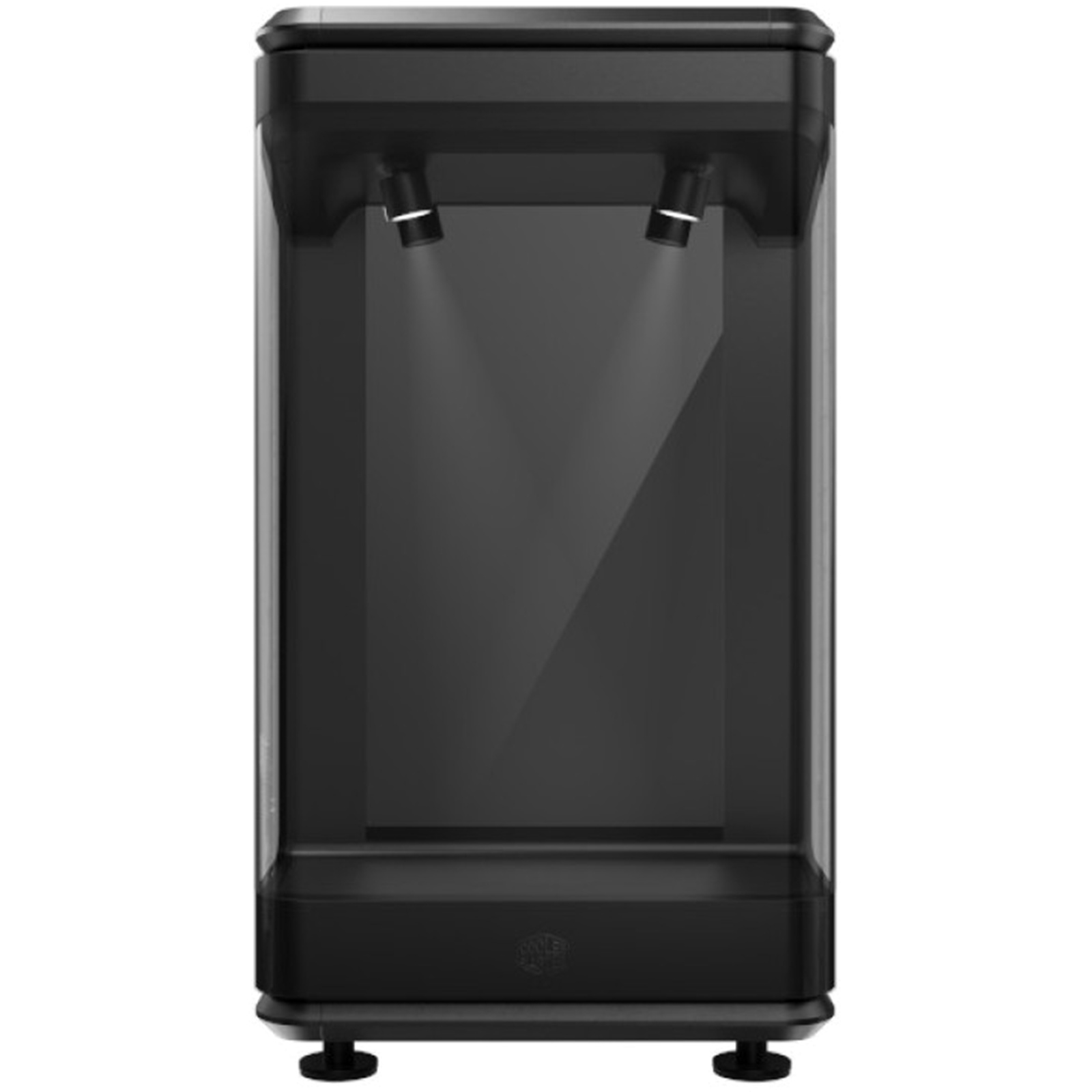

Front Display Panel - MASTERFRAME 360 STAGE LCD



Massive Cooling Compatibility

Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans-six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.



​Wide Component Compatibility ​

Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise.​ Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.​

Features 110 mm of cable routing clearance for a clean and clutter-free showcase.​



MASTERFRAME 360 Series Compare



ENCLOSED & OPEN

[ ENCLOSED DESIGN ]
Features a three-sided tempered glass panoramic structure that provides excellent visual transparency, allowing a full view of the internal setup. Compared with the Stage's open design, its full-cover glass enclosure not only enhances the display effect (for figures, models, or water-cooling systems) but also offers dust and touch protection. It's a practical design that balances aesthetic presentation and functional protection.

[ OPEN DESIGN ]
Features an open layout that's ideal for displaying articulated figures that are frequently handled or posed. It's also perfect for figures with extended parts such as long weapons or wings that go beyond the chassis frame, offering minimal spatial limitations.



MIRROR & LCD

[ MIRROR ]
Perfectly showcases the rear details of the display item, providing a complete 360-degree viewing experience while creating an extended sense of spatial depth.

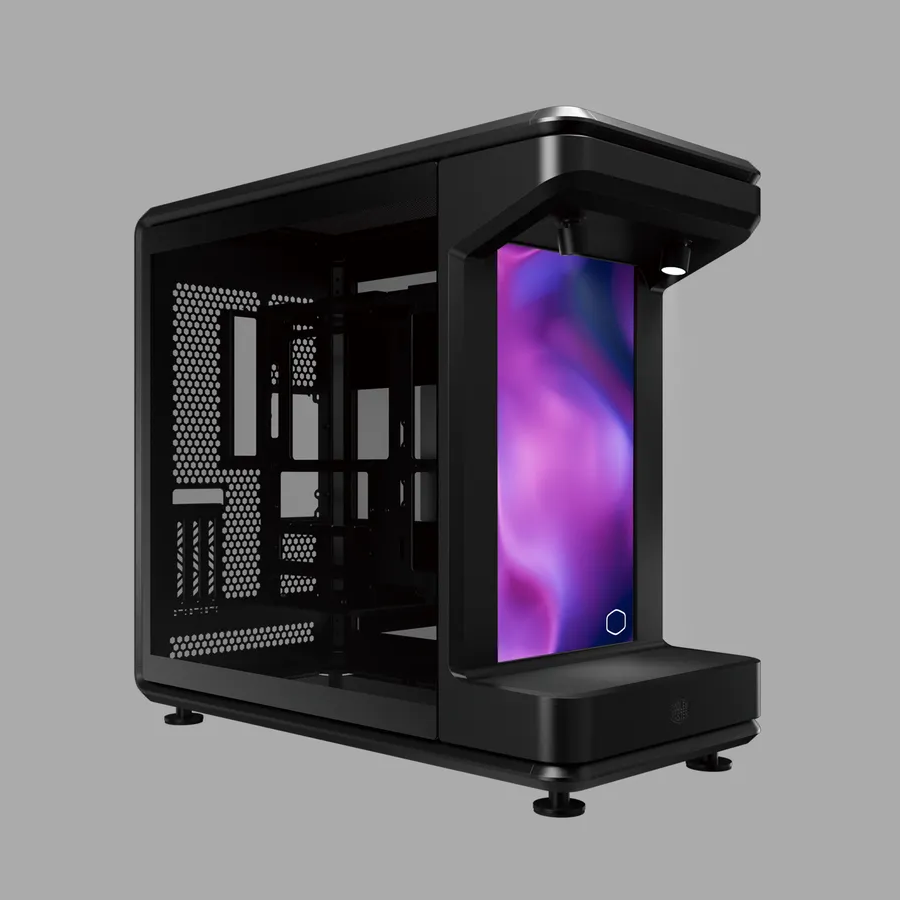

[ LCD ]
By using a 15.6-inch LCD screen to play themed animations and photos, it creates an immersive and visually cohesive display stage - the perfect choice for those who seek highly personalized and creative presentations.



MasterFrame 360 Stage LCD - LCD Screen User Manual





PCIe 5.0 Riser Cable Included

Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.

Specifications

Product Name

MASTERFRAME 360 STAGE LCD

Model Number

MASTERFRAME 360 STAGE LCD: MF360-KHNN-S02

Color(s)

Black

Materials - Exterior

SGCC

Materials - Side panel (Right / Left)

TG / TG​

Dimensions (L x W x H)

549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)

Volume

86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)

Motherboard Support

Mini-ITX, Micro-ATX, ATX, BTF (ATX)

Power Supply Support

ATX

PCI Expansion Slots

3.5

Drive bay support - 3.5" Drive Bays

0

Drive bay support - 2.5" / 3.5" Drive Bays (or SSD)

1x HDD or 2x SSD

Preinstalled Drive bay - 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity)

1x HDD or 2x SSD

I/O Panel - USB Ports

2x USB 3.2 Gen 1 Type-A 5G​, 1x USB 4.0 Gen 2x2 Type-C 20G

I/O Panel - Audio In / Out

1x 3.5mm Headset Jack (Audio+Mic)

Fan Support - Top

6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm

Fan Support - Bottom

6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm

Radiator Support - Top

120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Radiator Support - Bottom

120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Dust Filters

Mesh Only (Removable Filters)

Other electronic components

1x PCI-e 5.0 Riser / 2x ARGB spotlight

Maximum Dimensions for Front Collectibles Display (H x W x D)

328 x 290 x 110 mm

DIY tank & Pump support

Yes (Left side)

Toolbox

Yes

Clearances - CPU Cooler

145 mm

Clearances - Power Supply

210 mm

Clearances - Graphics Card

430 mm

Cable Routing - Behind Motherboard Tray

110 mm

Size

Mid Tower

Series

MasterFrame Series

Manufacturer Part No:
MF360-KHNN-S02
Brand:
Product Type:
Gaming Case
UPC
884102135712
Product Family:
MasterFrame 360
Shipping Weight:
18.14 kg
PB Part No:
CHACLM10613
Product Model:
Stage LCD Limited Edition
Warranty: 12 months *
