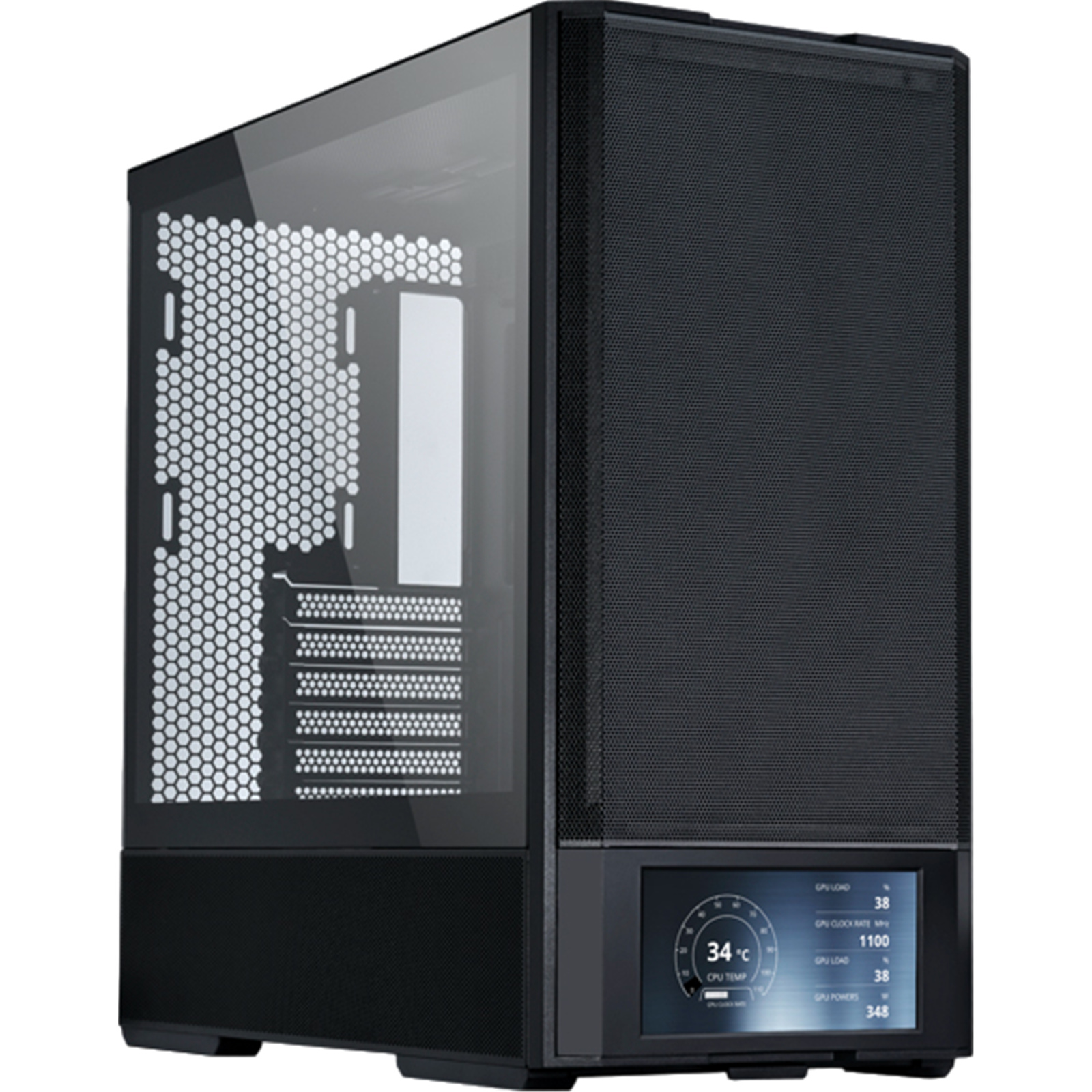

Lian Li Lancool 207 Digital Black ATX MidTower Gaming Case Tempered Glass, 2x140mm Fans, 2x120mm bottom PWM reverse fans , CPU Cooling Support 180mm, GPU Support 375mm, 360mm Radiator Support, 7x PCI Slot, Front I/O: 2xUSB, 1xType C, HD Aud

LANCOOL 207 DIGITAL

The LANCOOL 207 Digital adds a playful touch to the LANCOOL 207, featuring an integrated LCD screen for real-time system monitoring and customizability-all within a sleek and compact M-ATX chassis.

AVAILABLE IN BLACK

The LANCOOL 207 Digital is available in classic black, emphasizing a sense of understated style.

ATX LAYOUT RE-INVENTED

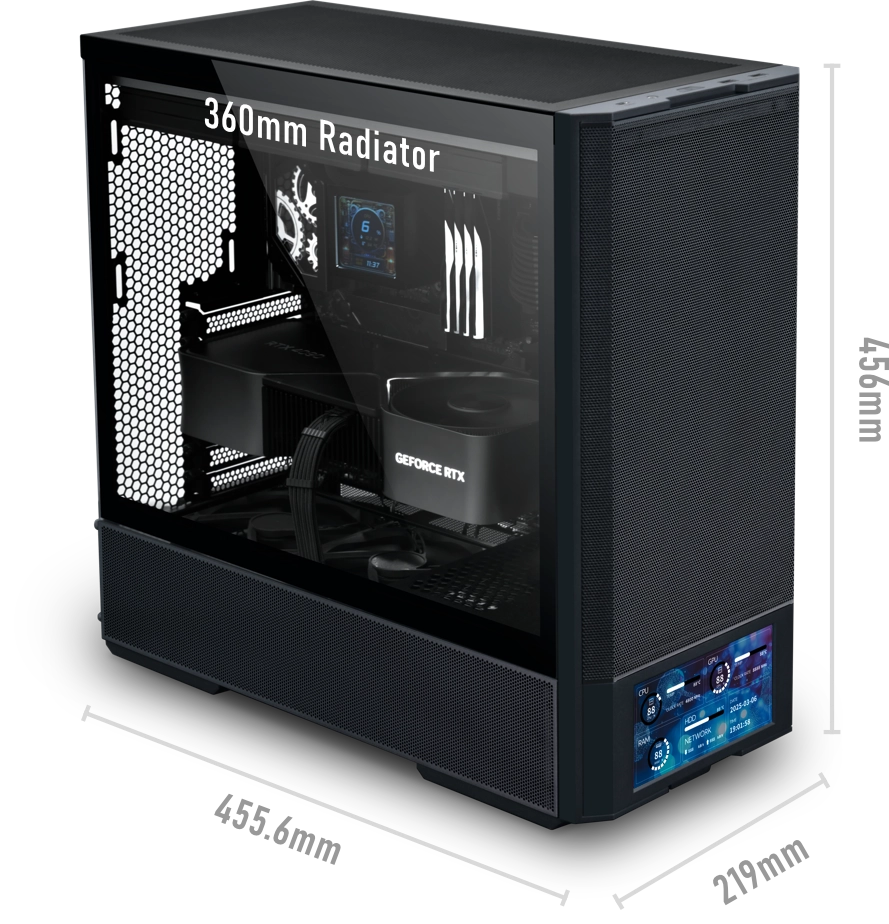

Though compact in size, the LANCOOL 207 Digital offers remarkable compatibility, supporting ATX motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm long, all within its 45.5L chassis.

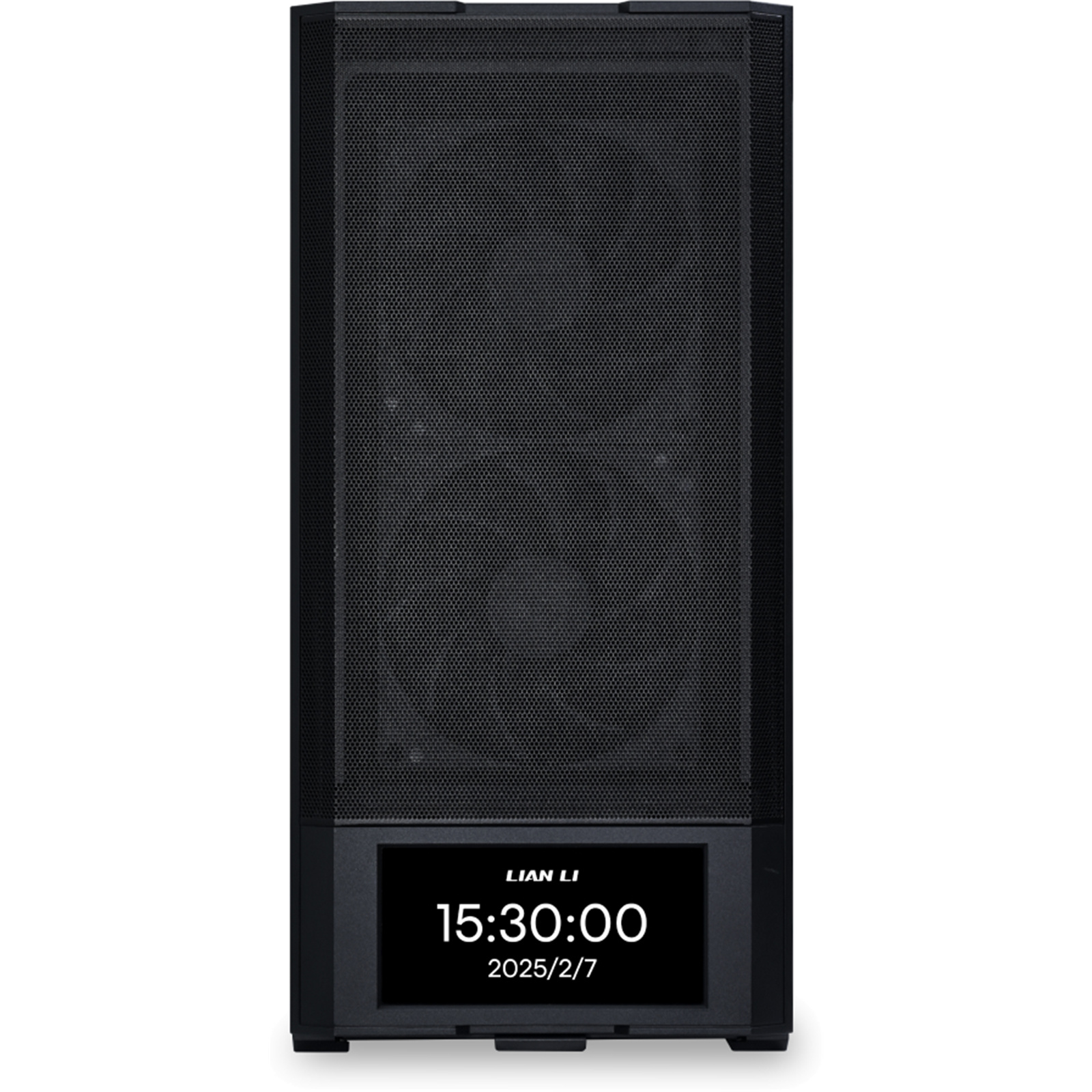

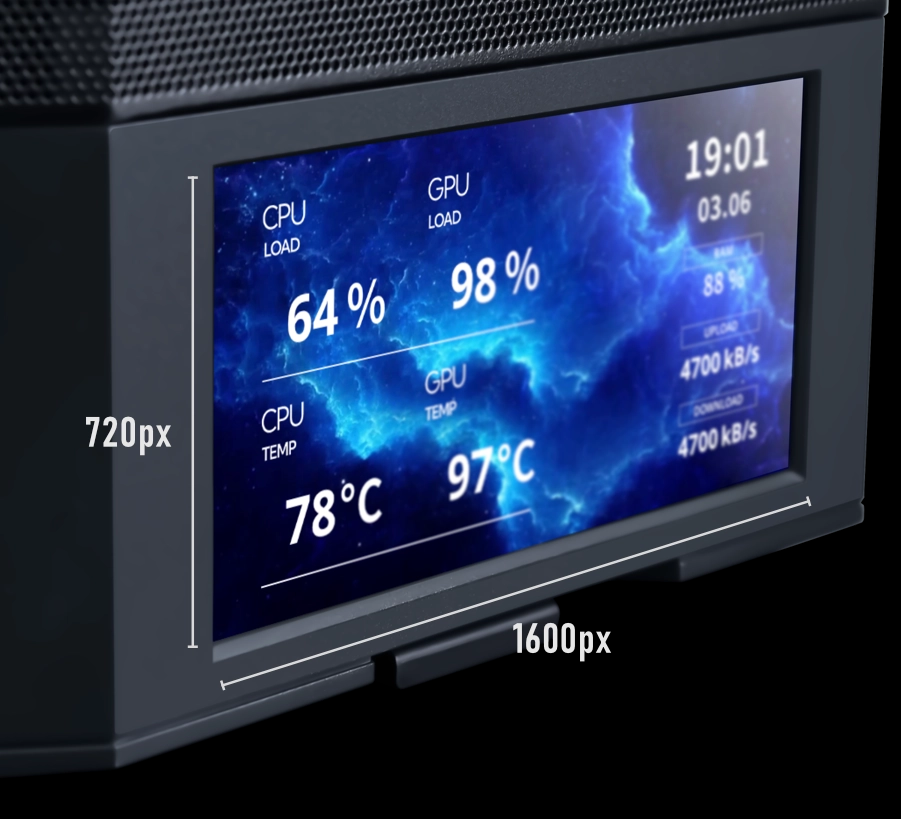

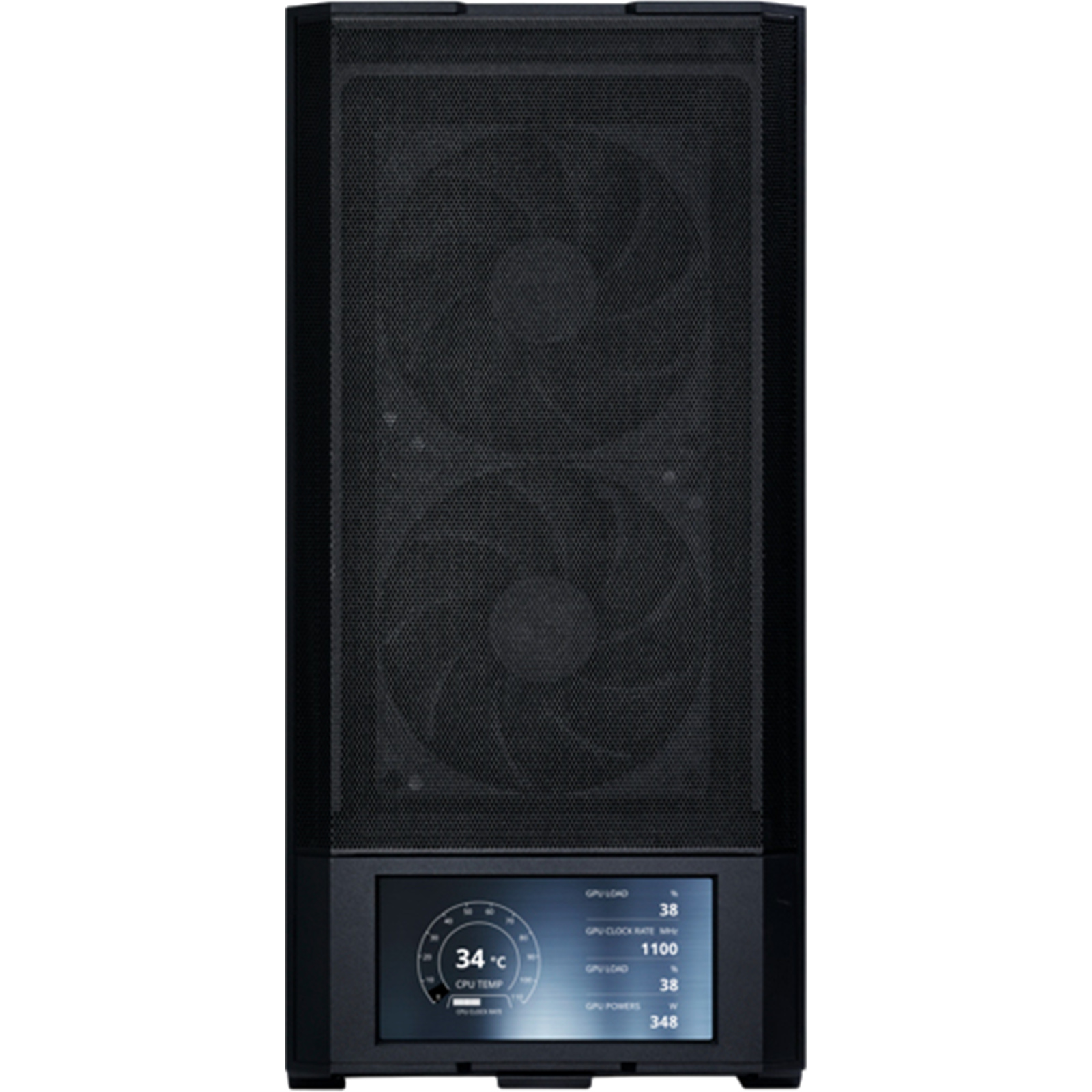

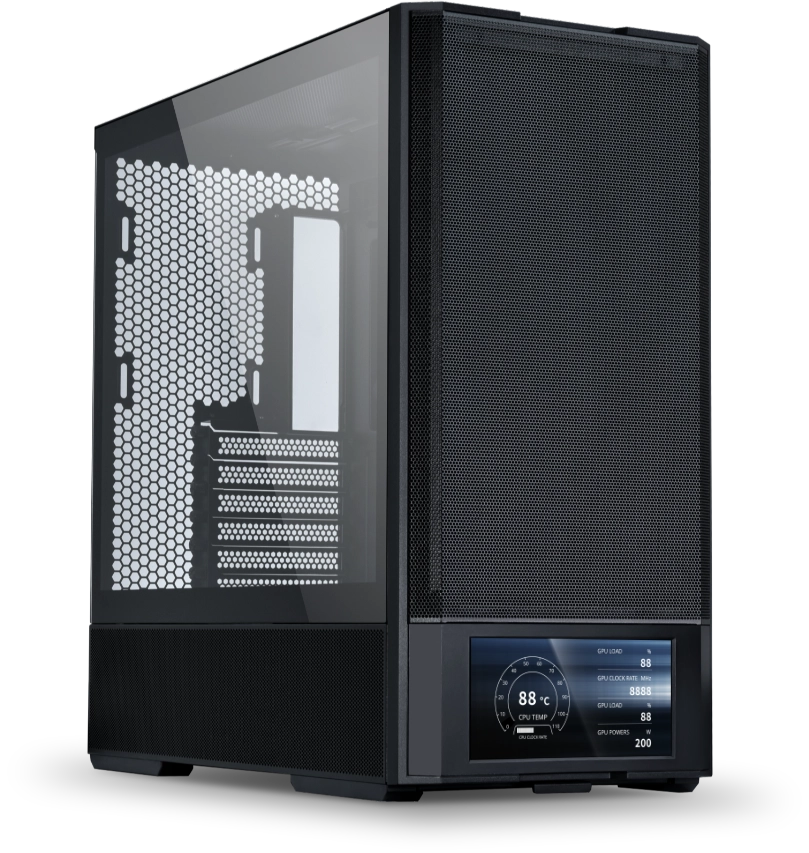

6-INCH LCD SCREEN

This 6" LCD screen features a 60Hz refresh rate, a 720×1600 resolution, and 500 nits of brightness. It offers extensive customization options and can display a wide range of hardware information in real time.

Real-Time Performance, Personalized Display

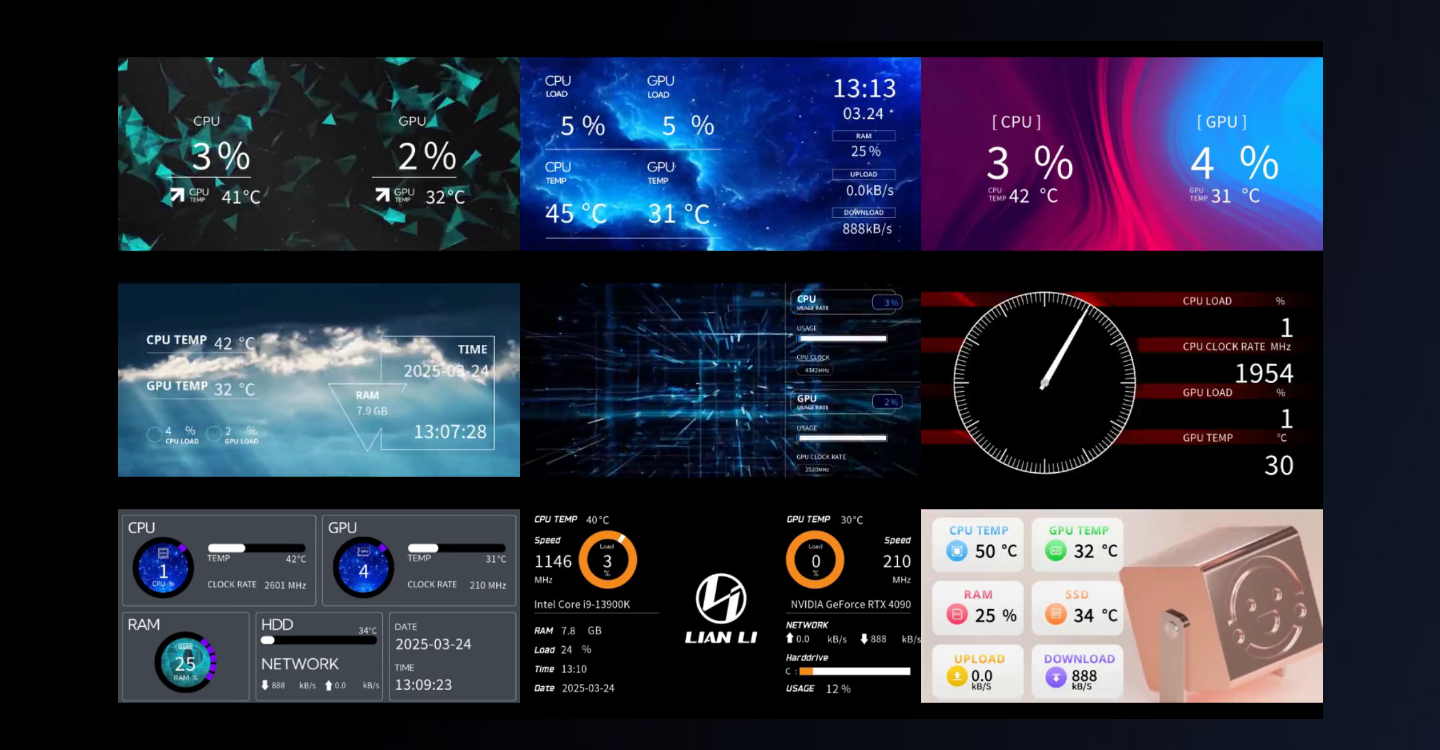

Choose from nearly 30 built-in templates for a quick and polished setup. You can also import "third-party" templates from here

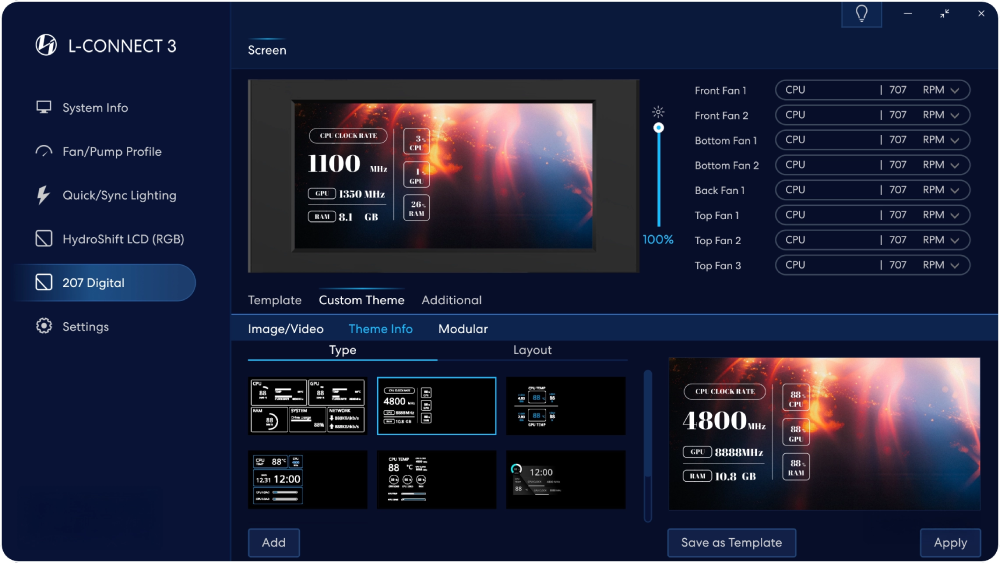

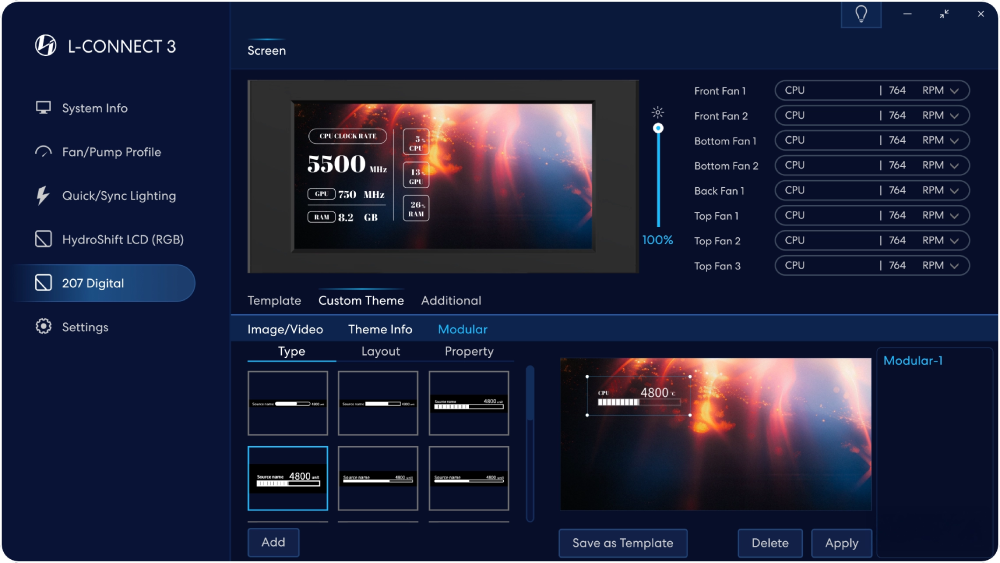

Further Customization with Theme Info / Modular

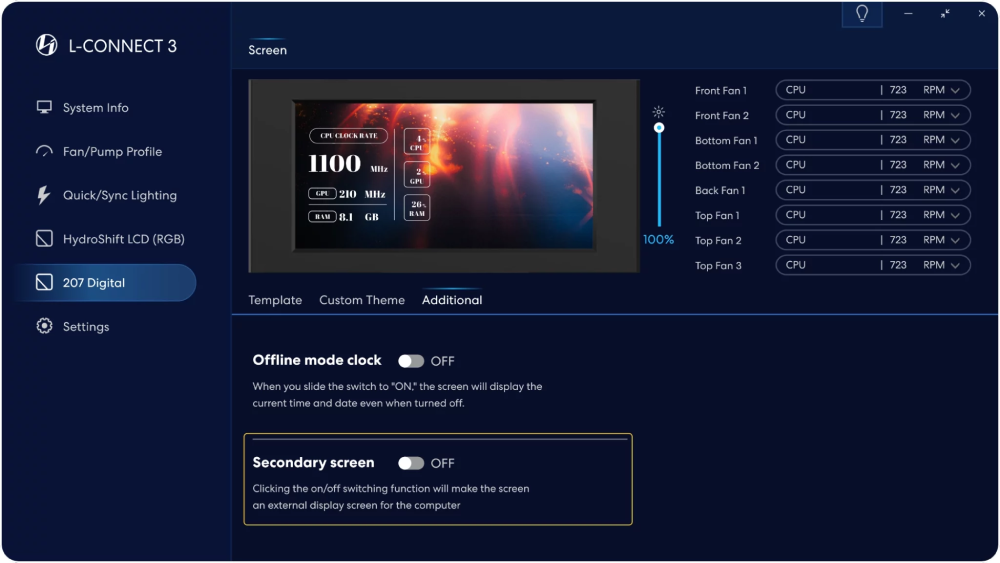

For a fully personalized experience, L-Connect 3 features a powerful built-in canvas tool that lets you design your display your way. Freely arrange modular elements, craft a layout that fits your style, and even upload your favorite images to make your setup truly one of a kind.

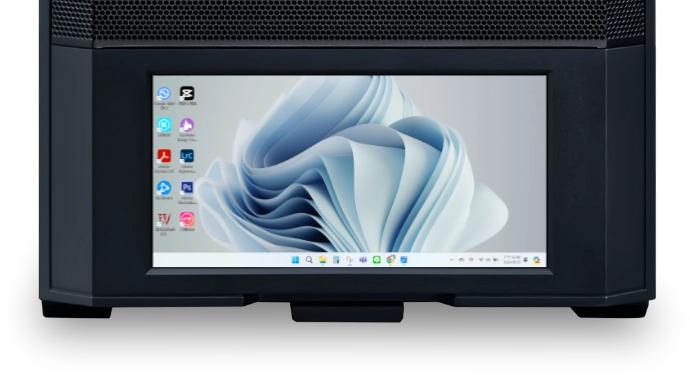

The screen can also function as a 60Hz secondary display, perfect for monitoring or multitasking. Users can easily toggle the secondary screen function ON or OFF directly within the L-Connect 3 interface.

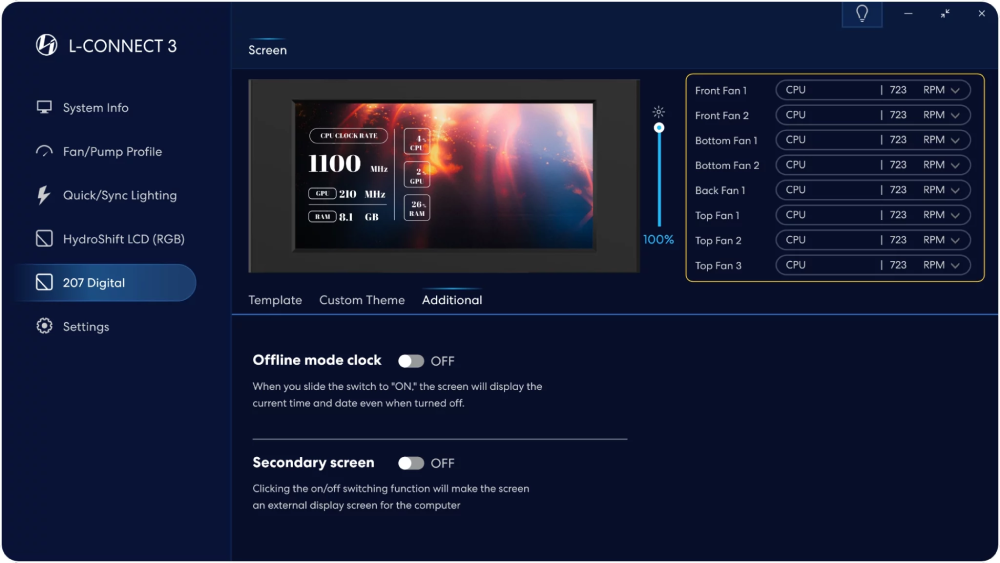

Secondary Screen Function

The screen is also allowed to be as a secondary screen (60hz refresh rate) by L-connect 3 control.

Fan Speed Dashboard Function

The screen function also includes fan speed dashboard. Fans can be custom-named for easy identification, with clearly displayed positions for quick recognition. Real-time RPM and temperature source readings enable precise monitoring and fine-tuning of cooling performance.

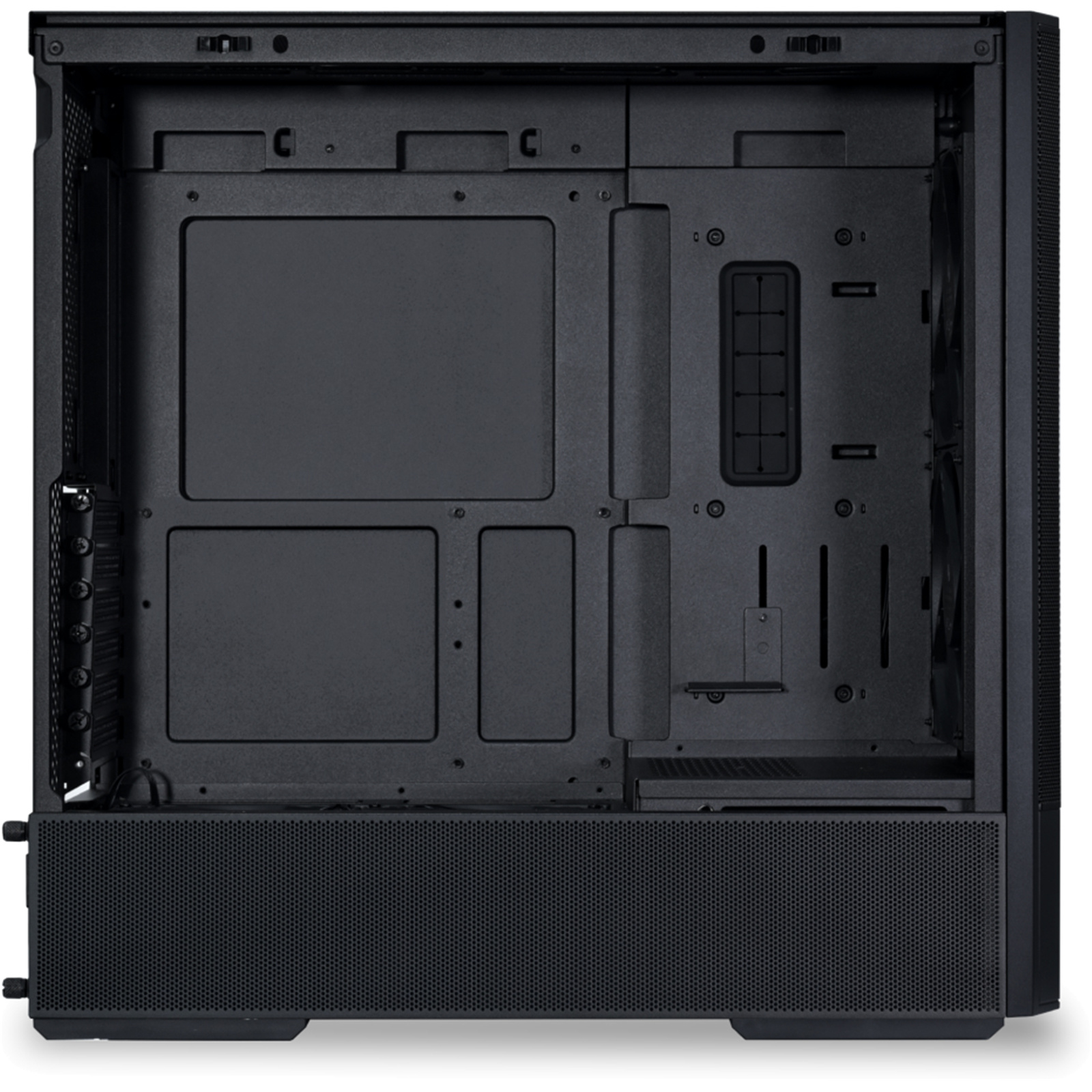

SPACE-SAVING INNOVATIVE LAYOUT

The LANCOOL 207 Digital's unique offset motherboard tray provides a space-efficient solution while improving compatibility and airflow.

Wider for Fan Accomodation
The motherboard tray is positioned closer to the right side panel, allowing for 140mm top fans without expanding the case width.

Lower for Radiator Thickness
Lowering the motherboard tray creates additional clearance for thicker top-mounted radiators, significantly boosting cooling efficiency.

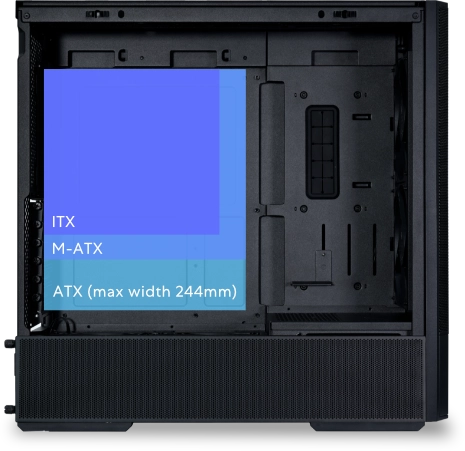

Supports standard ATX (max width 244mm) / M-ATX/ ITX motherboards

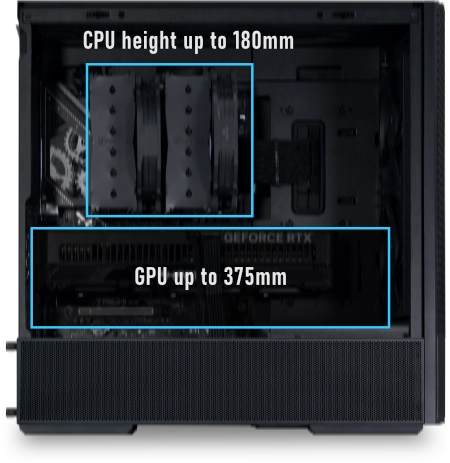

Supports graphics cards up to 375mm long and CPU coolers with heights up to 180mm.

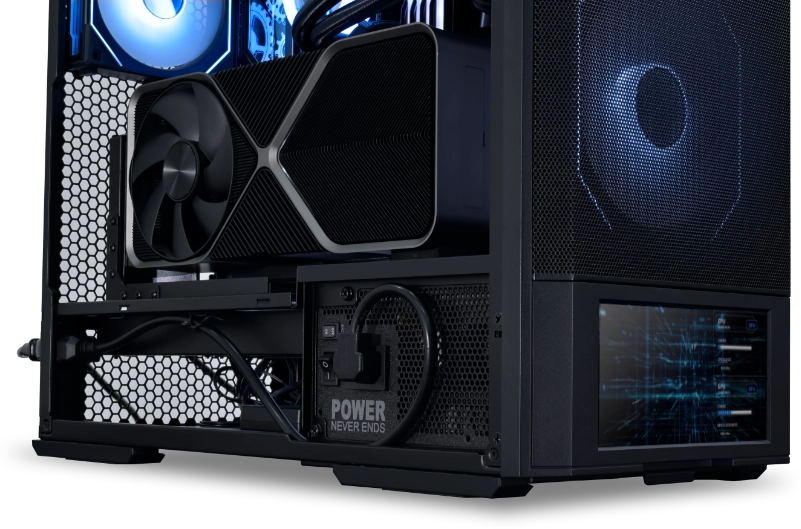

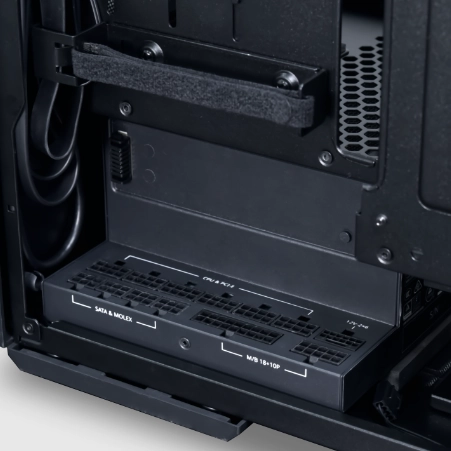

EASY ACCESS FRONT-MOUNTED PSU

The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adaptor extension cable is provided for rear power access.

The LANCOOL 207 offers PSU mounting with the fan oriented either upward or downward.

Note: The PSU must have specific mounting holes to install with the fan facing upward. Reference the LIAN LI Edge PSU when mounting with the fan upward. (Note: The EPS cable may be too short for angled routing in this configuration.)

Note: For traditional PSUs installed with the fan facing downward, the CPU connector ports are usually at the top right corner. For seamless angled cable routing, a 600mm long CPU cable is needed. If your CPU cable is shorter than 600mm.

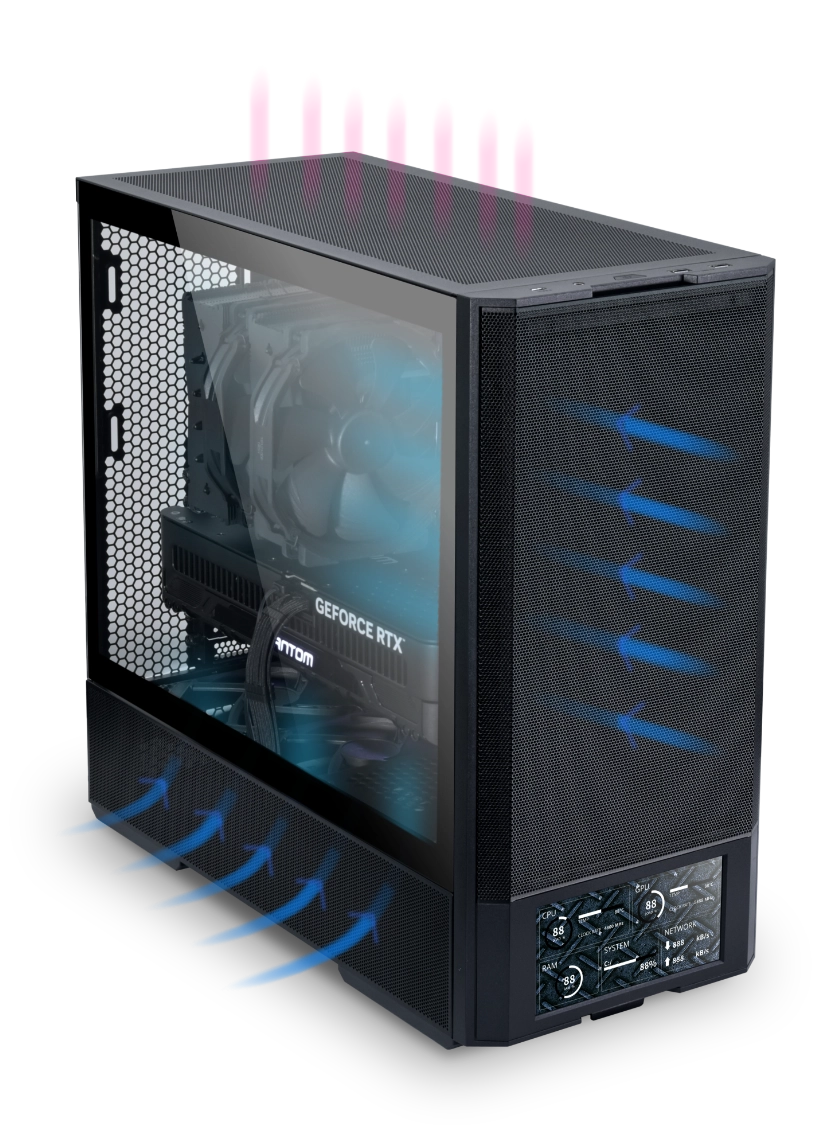

OPTIMAL AIRFLOW DESIGN

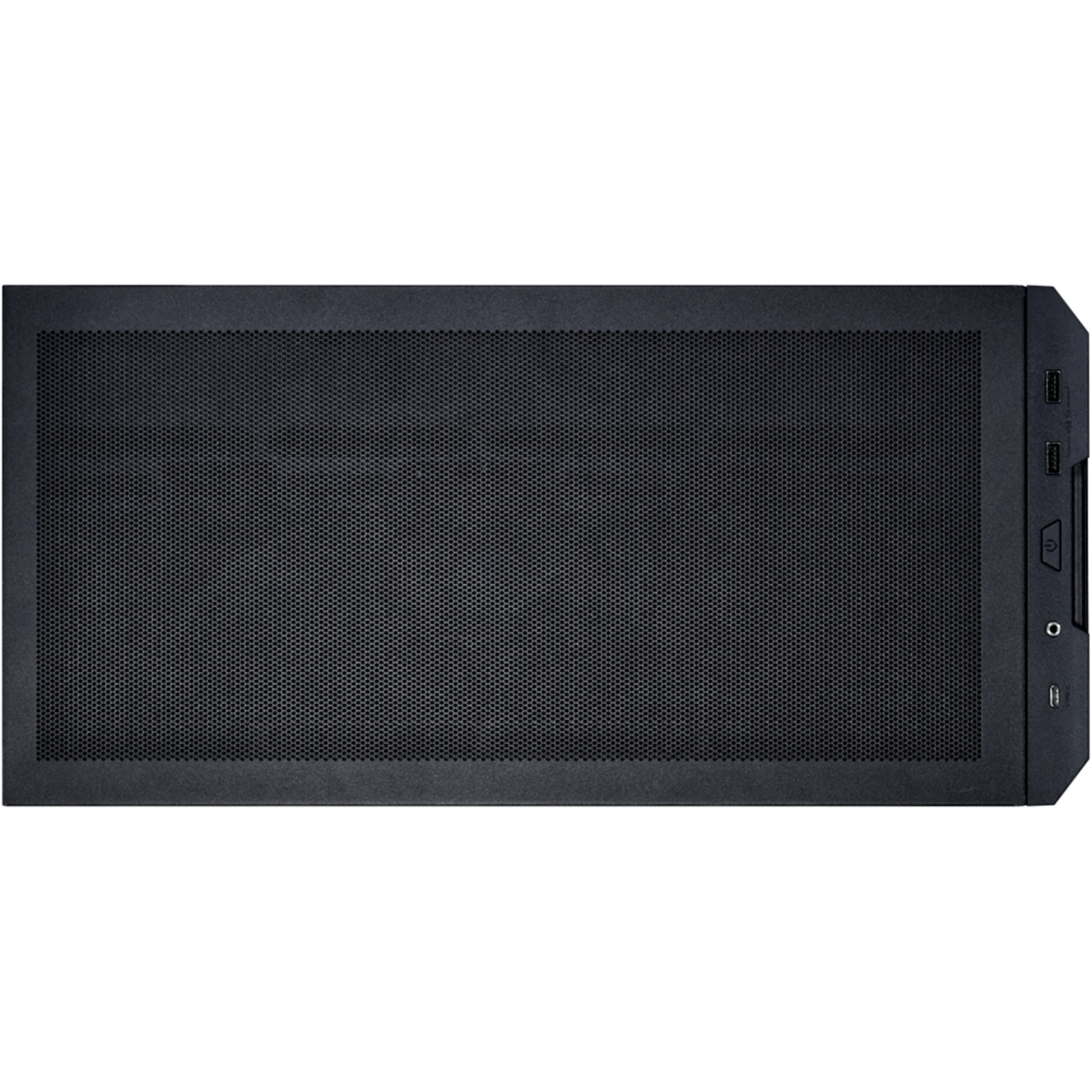

Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 digital comes pre-installed with four high-performance fans for superior out-of-box cooling.

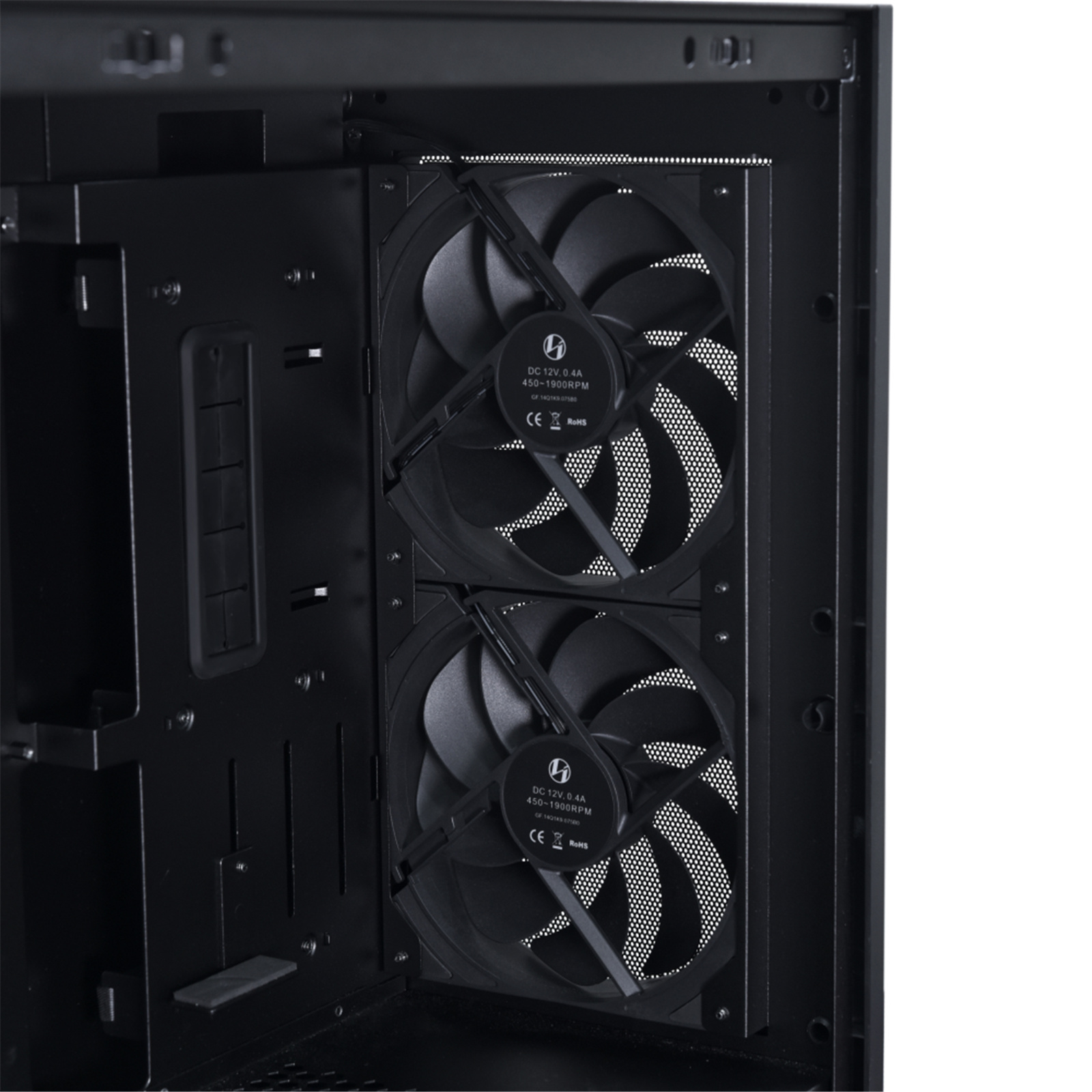

4 PRE-INSTALLED PERFORMANCE FANS

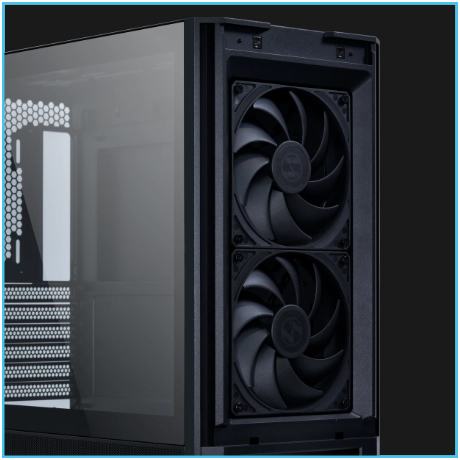

The front top fan provides more direct airflow with a shorter depth

Size: 140x140x30mm
Speed: 450 ~ 1800 RPM
Airflow: 109.47 CFM
Static Pressure: 2.71 mmH20
Noise: 34 dBA

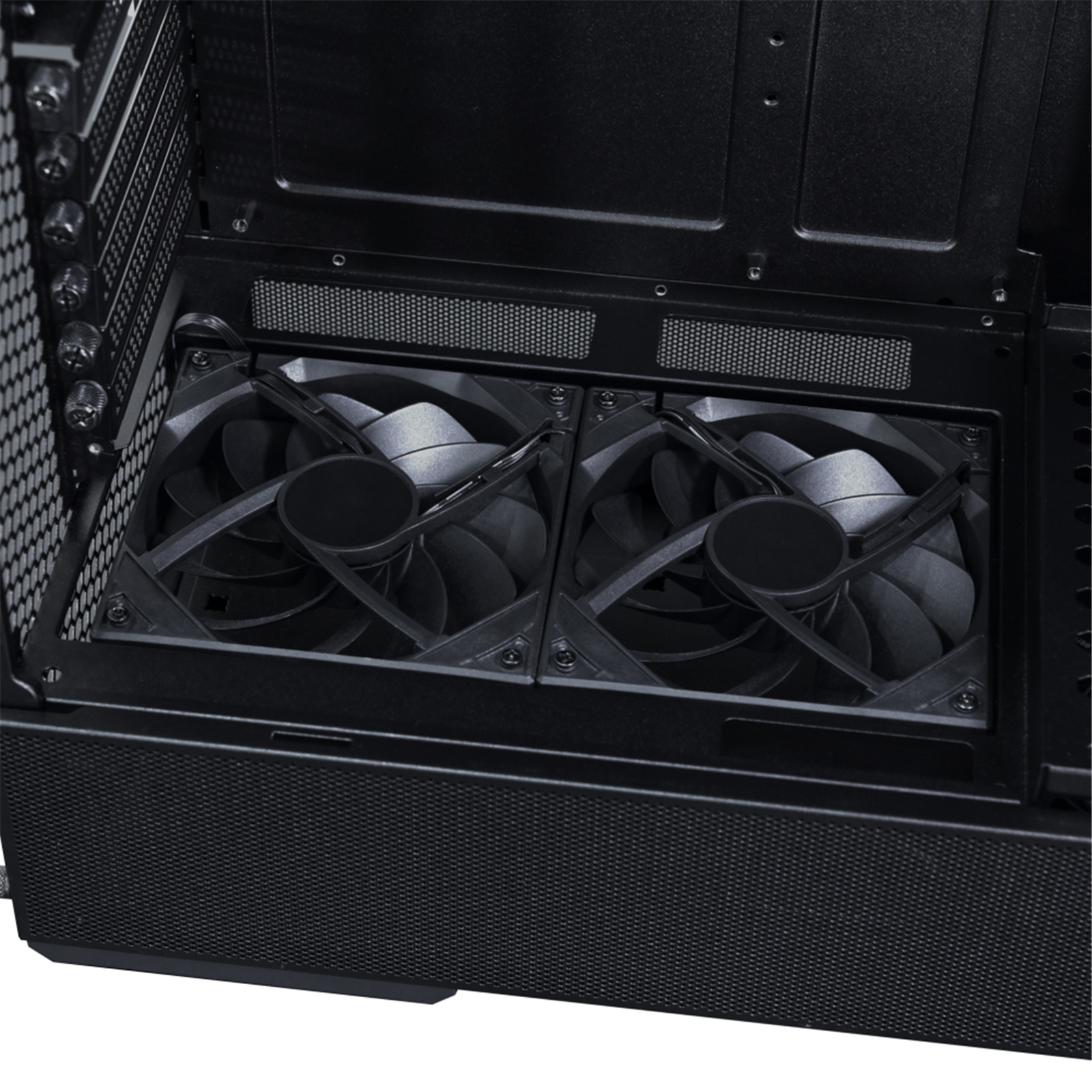

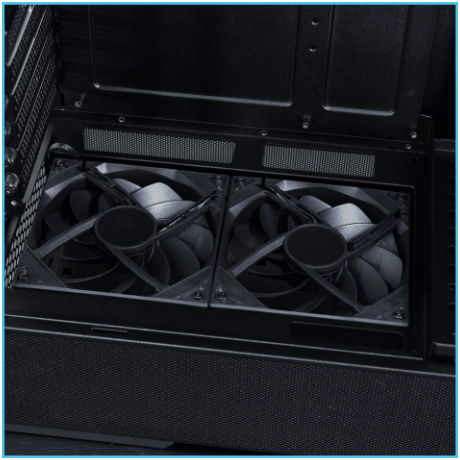

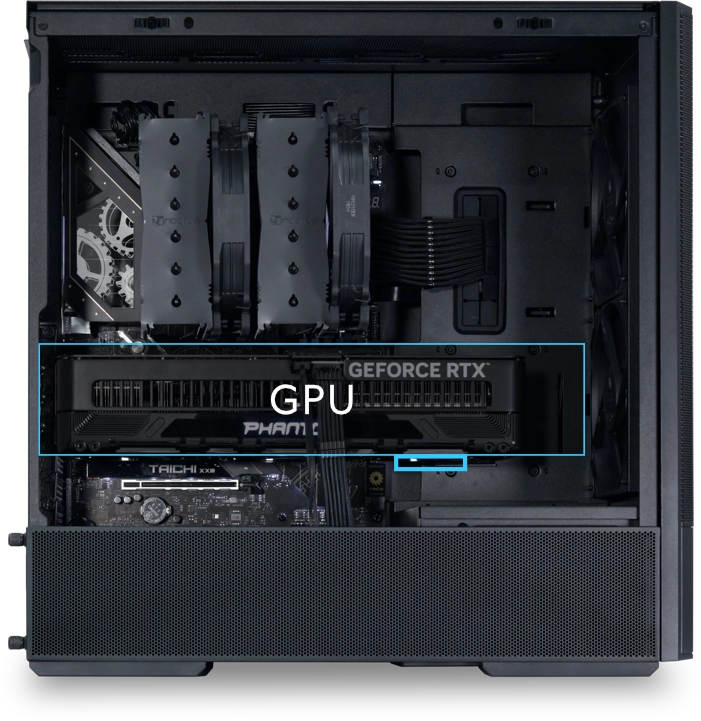

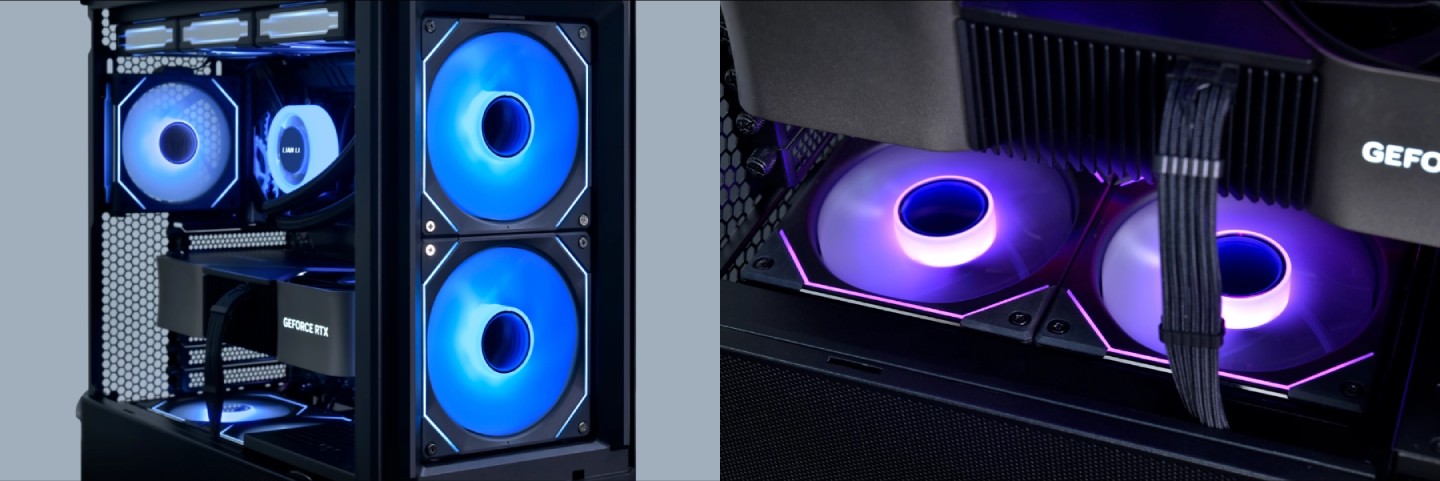

The two bottom fans are placed directly under the GPU for optimal cooling efficiency

Size: 120x120x25mm
Speed: 500 ~ 1950 RPM
Airflow: 71.1 CFM
Static Pressure: 1.99 mmH20
Noise: 30.81 dBA

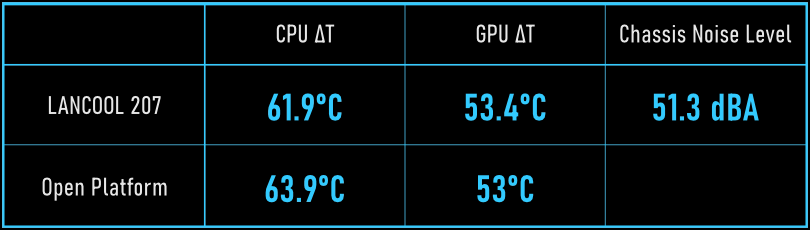

The PPLP Lab testing shows the Lancool 207 Digital is in the top-tier of their ranking, which deliver outstanding thermal performance.This earned it the Level-S Chassis Performance award for exceptional thermal management.

PPLP real-world PC test:

Test Platform:
CPU: Intel i9-13900K (Lock 230W)
MB: MSI MPG B760M EDGE TI WIFI
Cooler: PC Cooler RZ620 BK
GPU: ASUS ROG Strix RTX 3080 12G (Max Load 390W TGP)

Test Software:
AIDA64 FPU+3DMARK stress test with 15 minutes

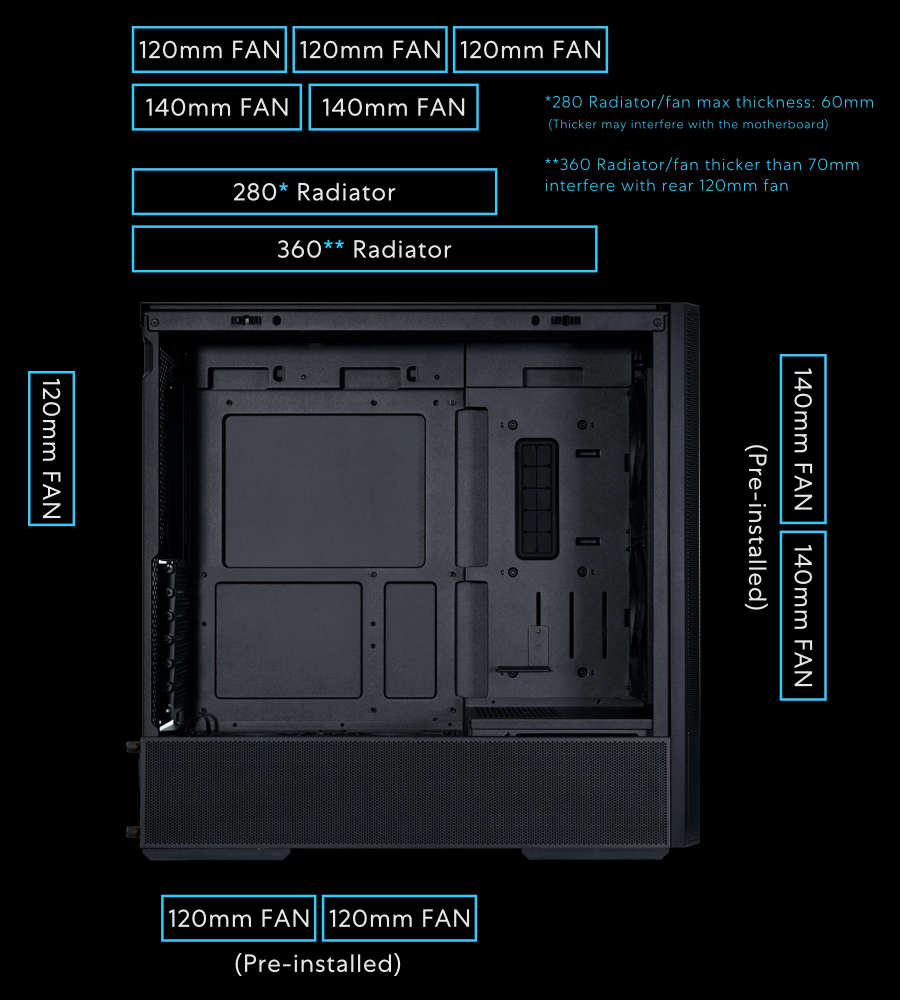

FULL FAN/ RADIATOR SUPPORT

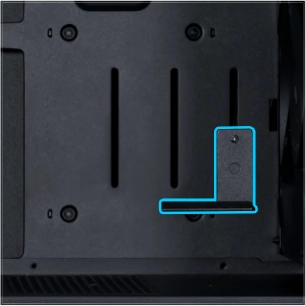

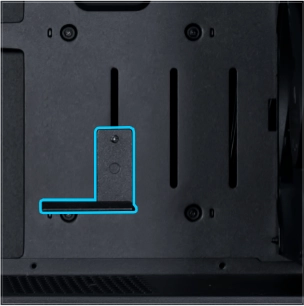

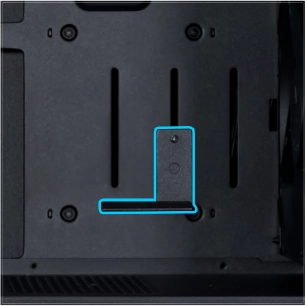

GPU ANTI-SAG BRACKET SUPPORT

The LANCOOL 207 Digital includes an adjustable GPU anti-sag bracket, offering extensive adjustability to fit GPUs of all sizes.

length: 285~315mm

length: 316~345mm

length: 346~375mm

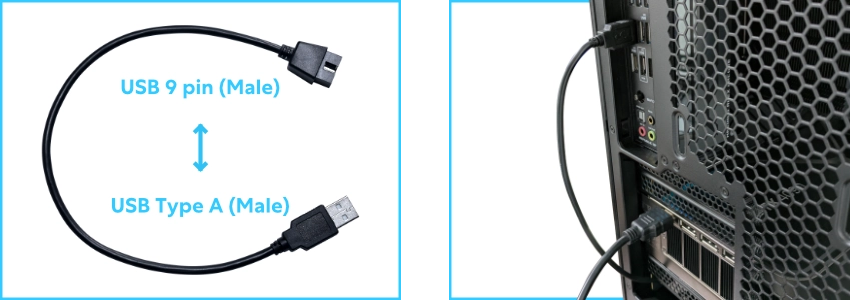

To provide power and signal to the screen, users can either connect to a 9-pin port on the motherboard or use an extension cable to a Type-A port.

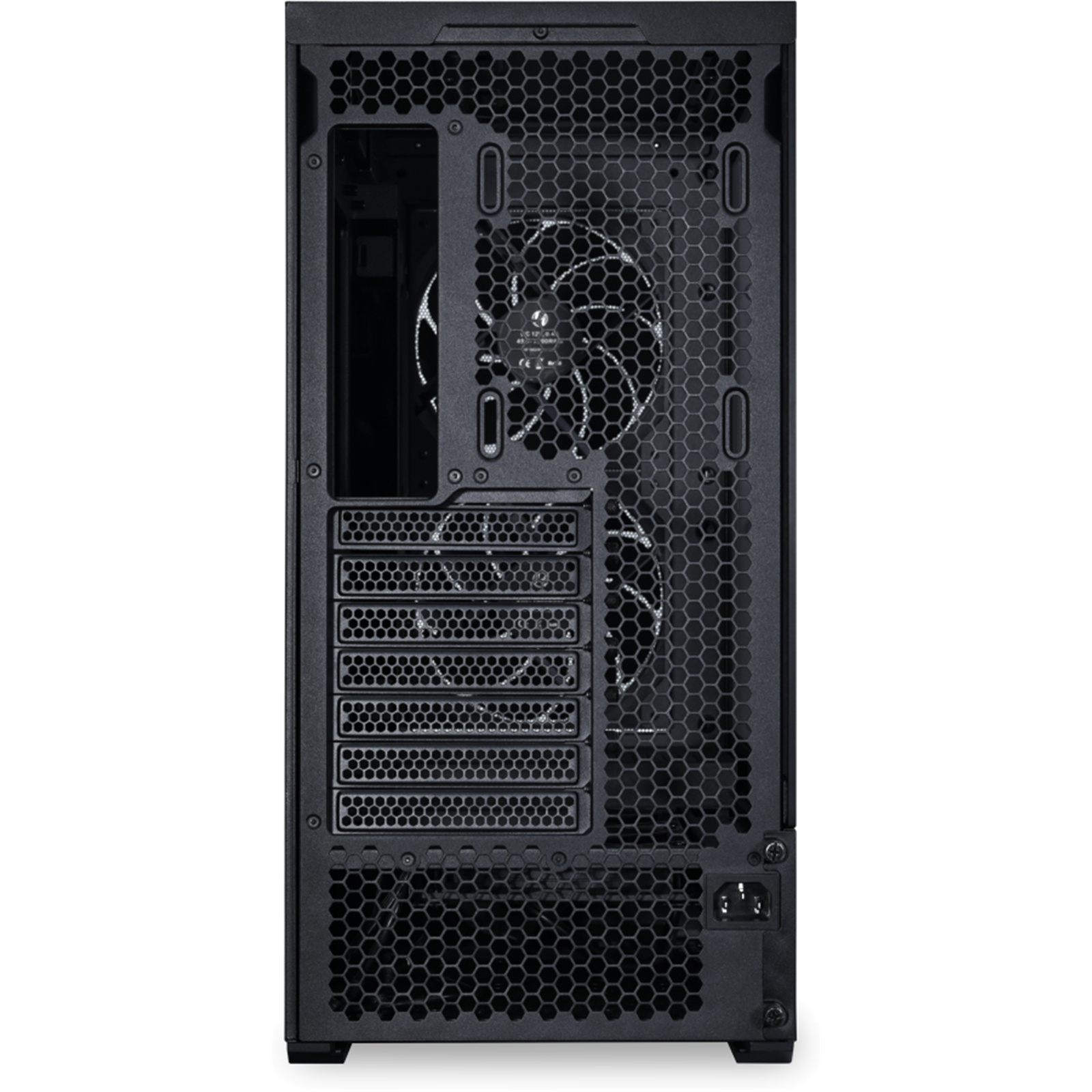

For easier setup, the chassis's rear panel features a dedicated cutout, allowing for clean and convenient cable routing when connecting the screen.

For swapping fans, screws for 25mm and 28mm thickness fans are included in the case.

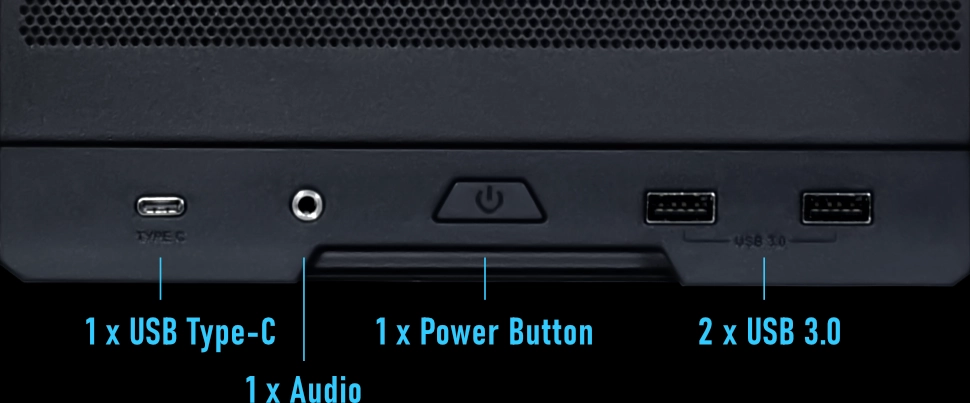

SEAMLESS CONNECTIVITY

The LANCOOL 207 Digital's top-mounted I/O panel offers easy access to essential ports.

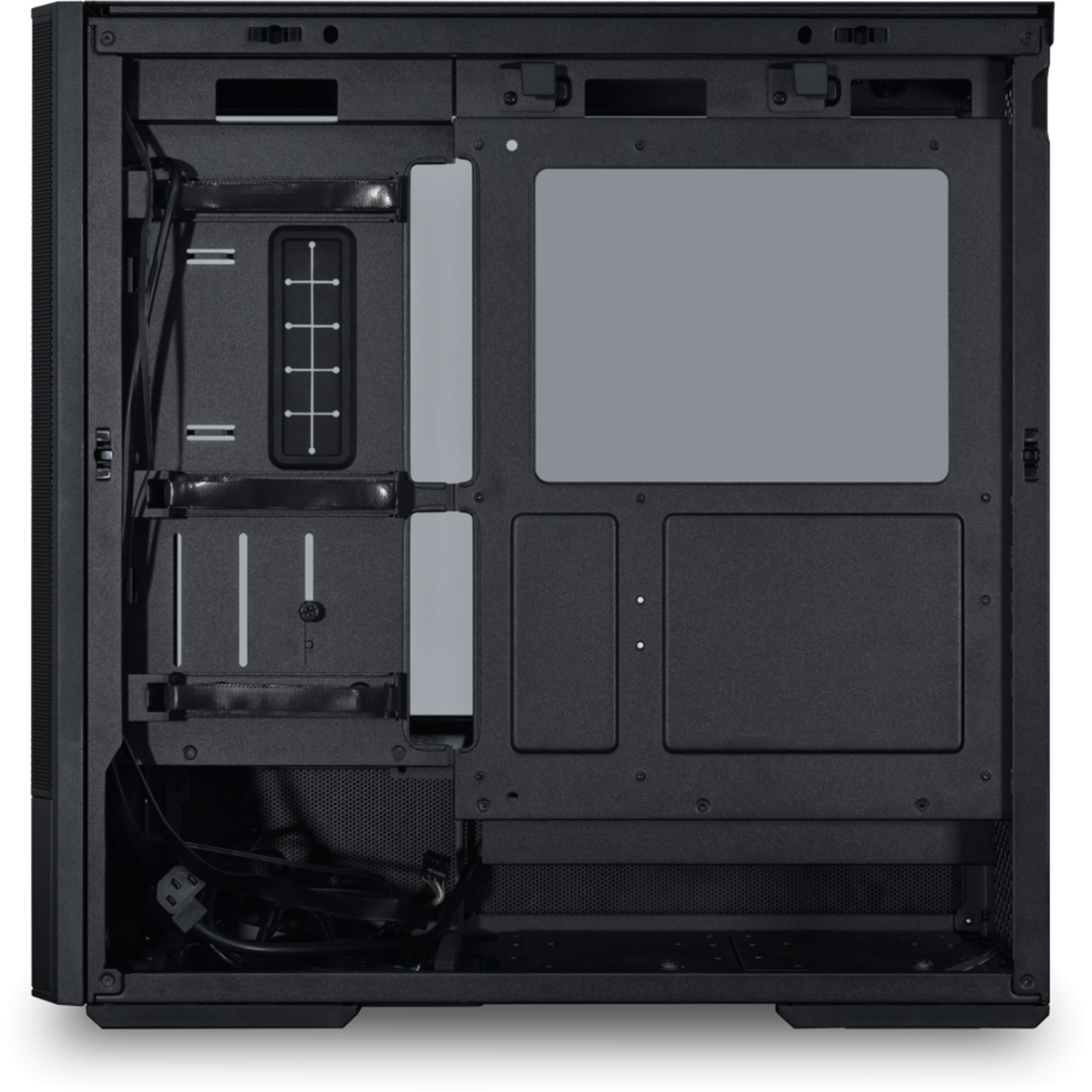

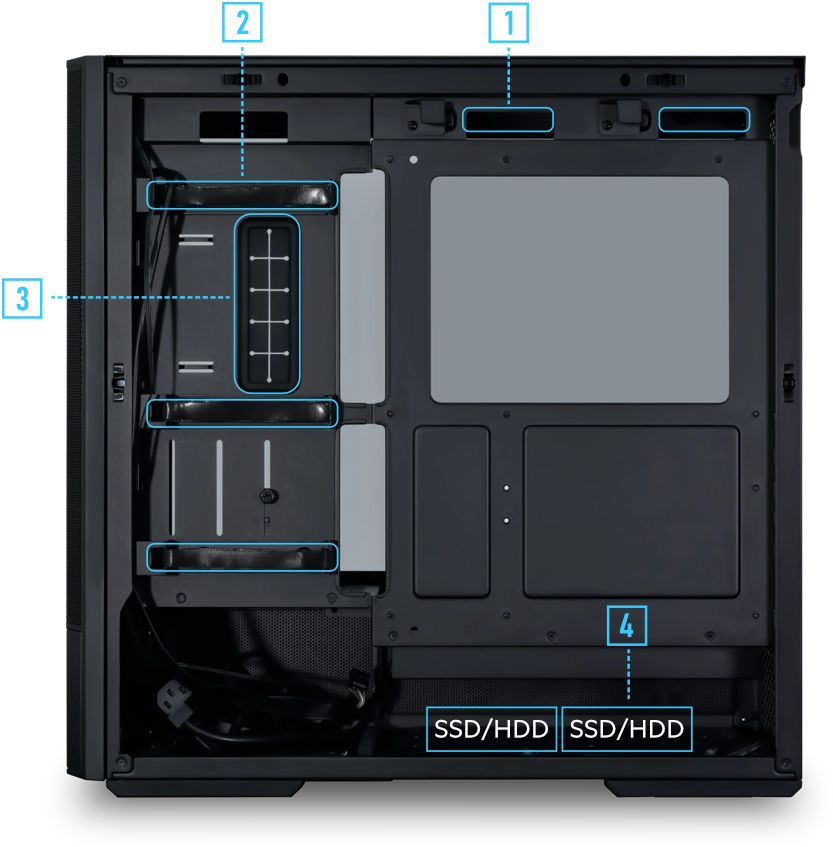

EFFICIENT CABLE MANAGEMENT

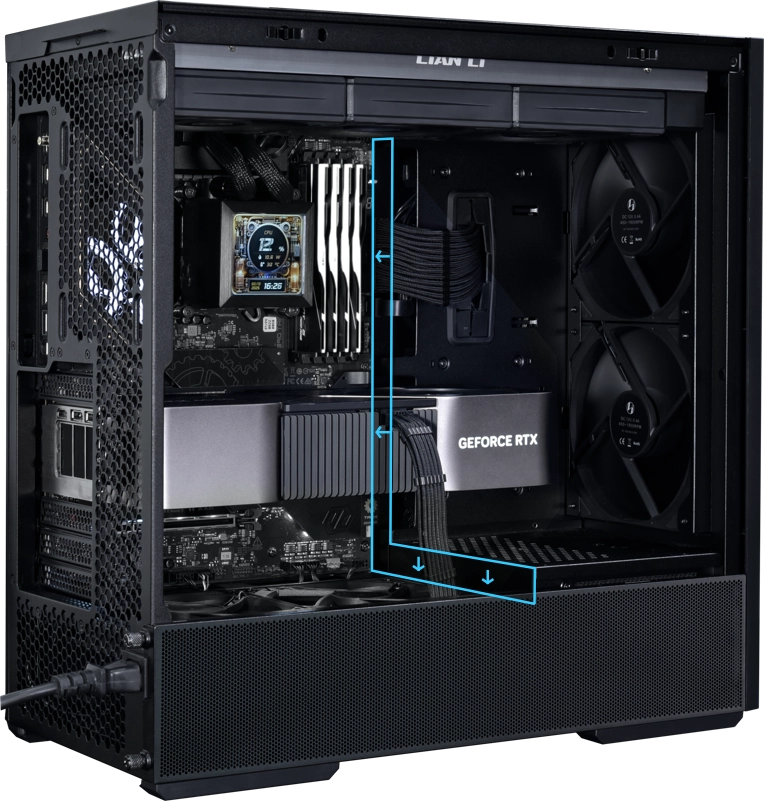

With the innovative layout, the well-organized cable management system is mostly at the front of the 2nd chamber.

1. Routing for EPS cable
2. 3 x Triple Velcro Straps for cable management
3. Grommet for 24-PIN motherboard cable
4. Space for 2 x Hard Drives
