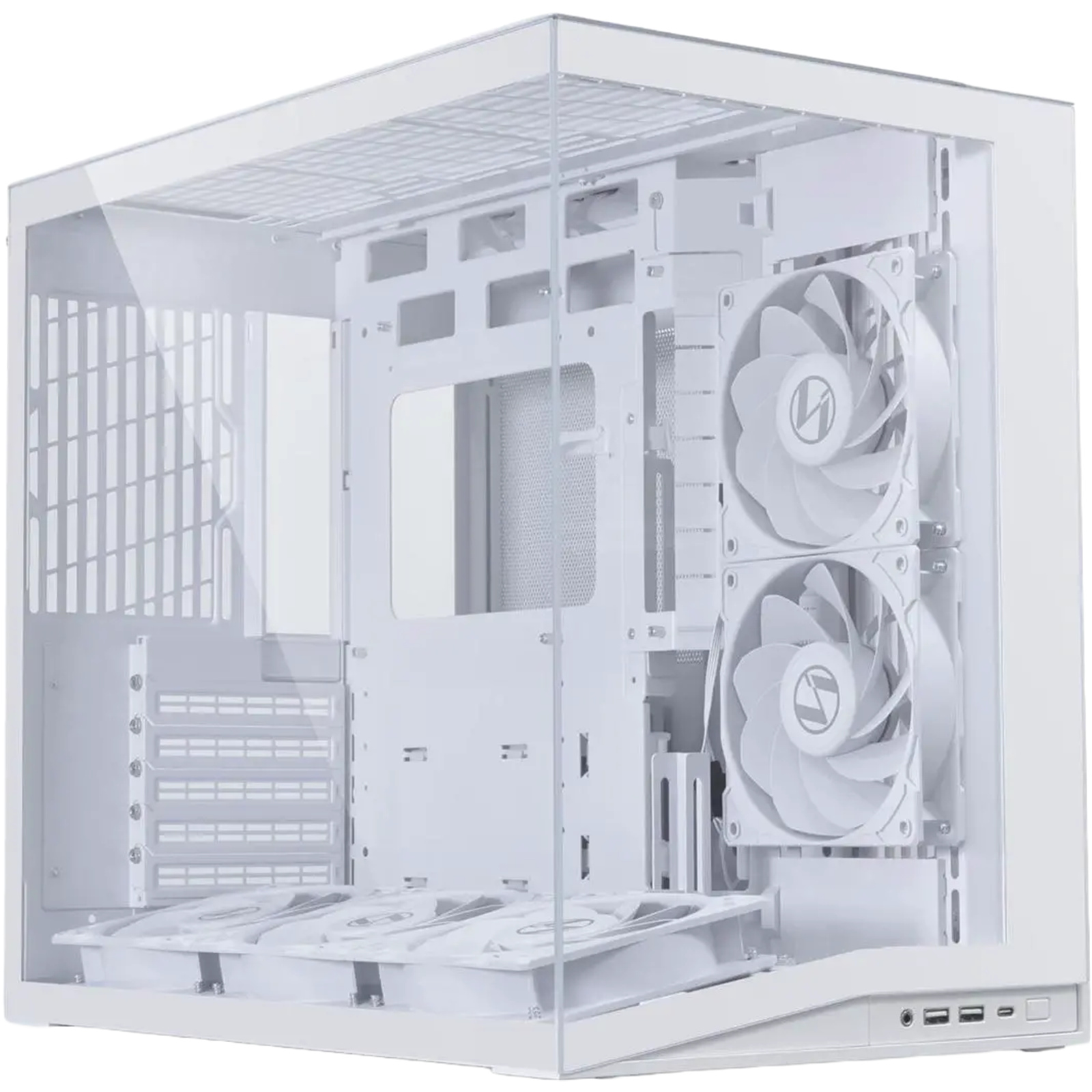

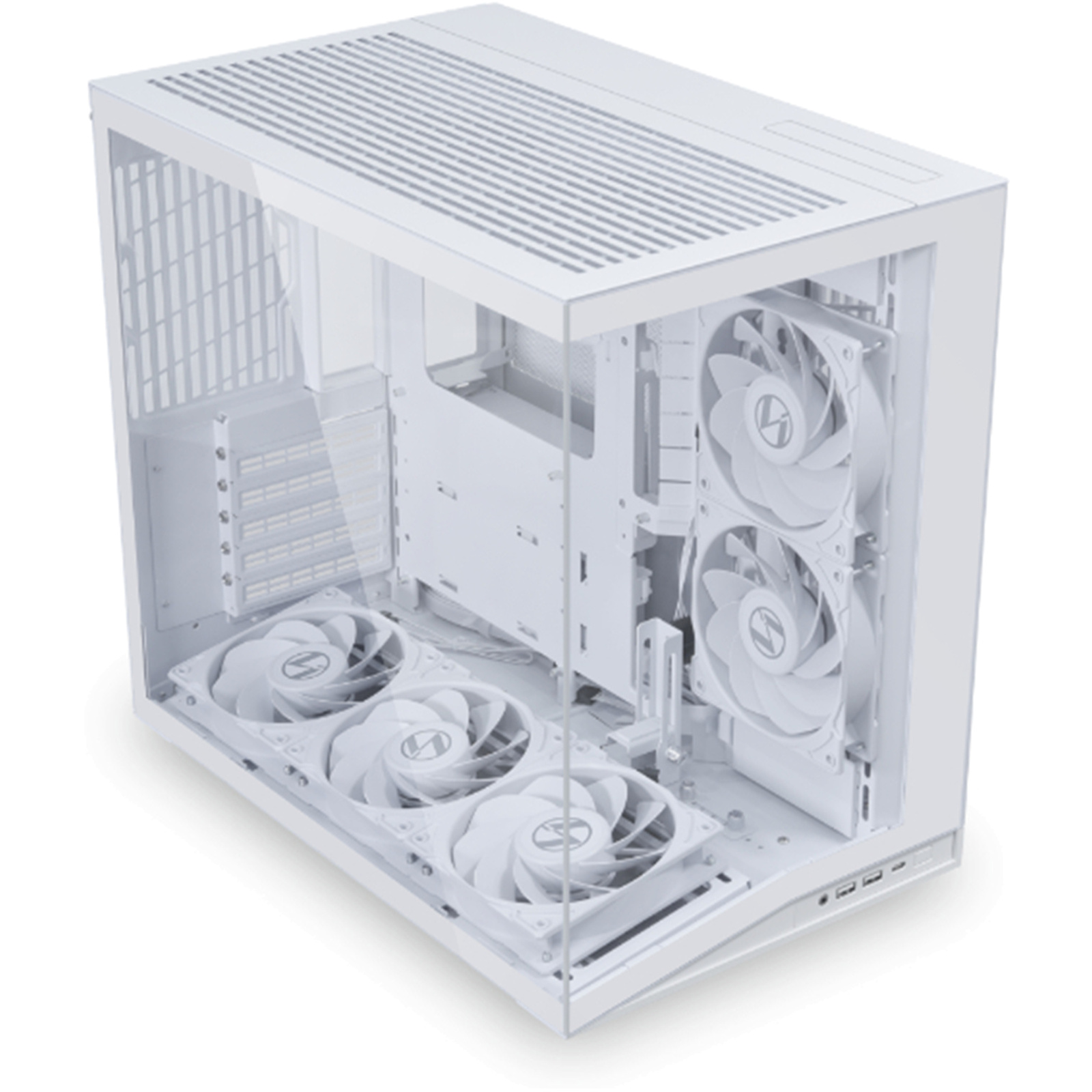

Lian Li O11D MINI V2 Flow White ATX MidTower Gaming Case Tempered Glass, Support ATX/mATX/ITX, CPU Cooler Supports Upto 172mm, GPU Supports Upto 395mm, 7x PCI Slot, 360mm Radiator Supported, 5 X Reverse Fans. Front I/O: 1x Type C, 2x USB, H

O11 DYNAMIC MINI V2 - Precision Resized. Elegantly Efficient

A compact chassis refined for serious performance, offering smart cooling, modular flexibility, and clean aesthetics in one sleek build.

SLIGHTLY BIGGER CASE, WAY MORE CAPACITY

Only 2L larger than the original O11D Mini, but redesigned for greater hardware compatibility and improved airflow.

SIDE MESH EXTENSION FOR A LARGER PSU

An extended side mesh design accommodates ATX PSUs up to 200mm without increasing the case width.

Note: Ensure the  PSU's power socket is at least 12 mm from the edge for a proper fit.

ATX BACK-CONNECT MOTHERBOARD SUPPORT

The case offers broad motherboard support, including standard ATX, M-ATX, and Mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards.

Important Notice: Due to its compact design, the O11D MINI V2 only has 5 slots (first slot left out). So ATX motherboards that require the GPU to be installed in the first slot may not be compatible. For users with such motherboards, use of the included vertical GPU bracket is needed. Additionally, for certain ATX motherboards, the primary PCI-E slot may align with the second expansion slot of the case, requiring a GPU riser cable for proper installation.

ANGLED BASE FOR DIRECT GPU AIRFLOW

A 10° slanted bottom channels cool air directly to the GPU for better cooling performance and a cleaner look.

THE FLOW EDITION IS PRE-INSTALLED WITH FIVE REVERSE-BLADE FANS

Flow versions come with five reverse blade PWM fans-three at the bottom and two on the side, for strong, silent airflow right out of the box.

OPTIMIZED FOR GPU COOLING

The slanted bottom design and pre-installed fans channel airflow directly to the GPU, enhancing cooling efficiency. In thermal testing under identical noise levels, the O11D MINI V2 FLOW achieved significantly better GPU thermals, registering a 3.1°C improvement over the LANCOOL 207, or approximately 6% better GPU cooling performance.

Thermal Test
CPU simulated @350W
GPU simulated @400W
CPU Cooler: Scythe Orochi paired with one Noctua A12x25 SL-PWM fan running at 1200RPM

ADJUSTABLE MOTHERBOARD STANDOFFS FOR RADIATOR FLEXIBILITY

This case features movable motherboard standoffs, allowing vertical adjustment of the M-ATX mounting position. This flexibility enhances compatibility with 280mm radiators, as well as thicker 360mm or 240mm models.

Note: When using M-ATX motherboards with graphics card mounted on the second slot, graphics card thicker than 72mm may interfere with bottom fans.

PREPPED FOR PERFORMANCE, BUILT FOR EASE

Install fans or radiators outside the case, then drop in the entire bracket, simplifying the build process. The removable design also integrates a dust filter, keeping your system clean while making maintenance easy.

Blue - Top fan/radiator bracket is removable, making top-side installation and cable routing much easier.
Orange - The bottom dust filter can be quickly removed from the rear for convenient maintenance and long-term system cleanliness.
Green - Both the top panel and the right side panel feature built-in mesh filters for effortless dust protection. No installation or removal required.

AIRFLOW COVERS FOR PREVENTED PRESSURE LEAK

Tool-less fan cover brackets help seal off unused fan mounts, concentrating airflow where it matters most.

TOP OR BOTTOM I/O FOR FLEXIBLE SETUP

The I/O module supports top or bottom placement, offering flexibility for various build layouts and desk arrangements.

IMPROVED AIRFLOW AND PORTABILITY WITH REMOVABLE BOTTOM I/O AND COVER

With the I/O module relocated to the top, the lower I/O and cover can now be removed to enhance bottom intake airflow. An optimization aimed at improving thermal efficiency and ease of transport.

GPU ANTI-SAG SUPPORT

Horizontal and Vertical GPU brackets are included out of the box, giving users the freedom to choose their GPU orientation.

ADJUSTABLE ANTI-SAG BRACKET FOR VERTICAL GPU

The vertical GPU support bracket features height adjustment to accommodate thick cards and prevent GPU sag.

BUILT-IN 24-PIN CABLE BRACKET FOR A CLEAN, PROFESSIONAL LOOK

This case comes with a built-in cable bracket that holds the 24-pin ATX power cable firmly in place, keeping it aligned and secure. This reduces strain on the connector and helps maintain a neat, organized appearance.

BUILD SMARTER WITH 9 DEDICATED CABLE STRAPS

Thoughtfully positioned for different assembly zones, our cable straps make cable routing simpler and cleaner, even in tight spaces. Whether you're a first-time builder or a seasoned pro, this smart design ensures a faster, neater, and more enjoyable building experience.

DUAL-PURPOSE DRIVE CAGES WITH CABLE STORAGE

Dual-purpose drive cages accommodate 2.5? and 3.5? HDDs or offer dedicated space for cable management, ensuring a clean and tidy build.

DESIGNED FOR TIGHT SPACES, BUILT FOR AESTHETIC EXCELLENCE

Engineered to maximize clearance in compact setups, the bottom cable grommets provide optimized pathways for your cables, ensuring functional flexibility and a seamless, uncluttered build aesthetic.

ALUMINUM FEET FOR STABILITY AND STYLE

Machined aluminum feet enhance case stability while contributing to a refined overall aesthetic.

INCLUDED ACCESSORIES
