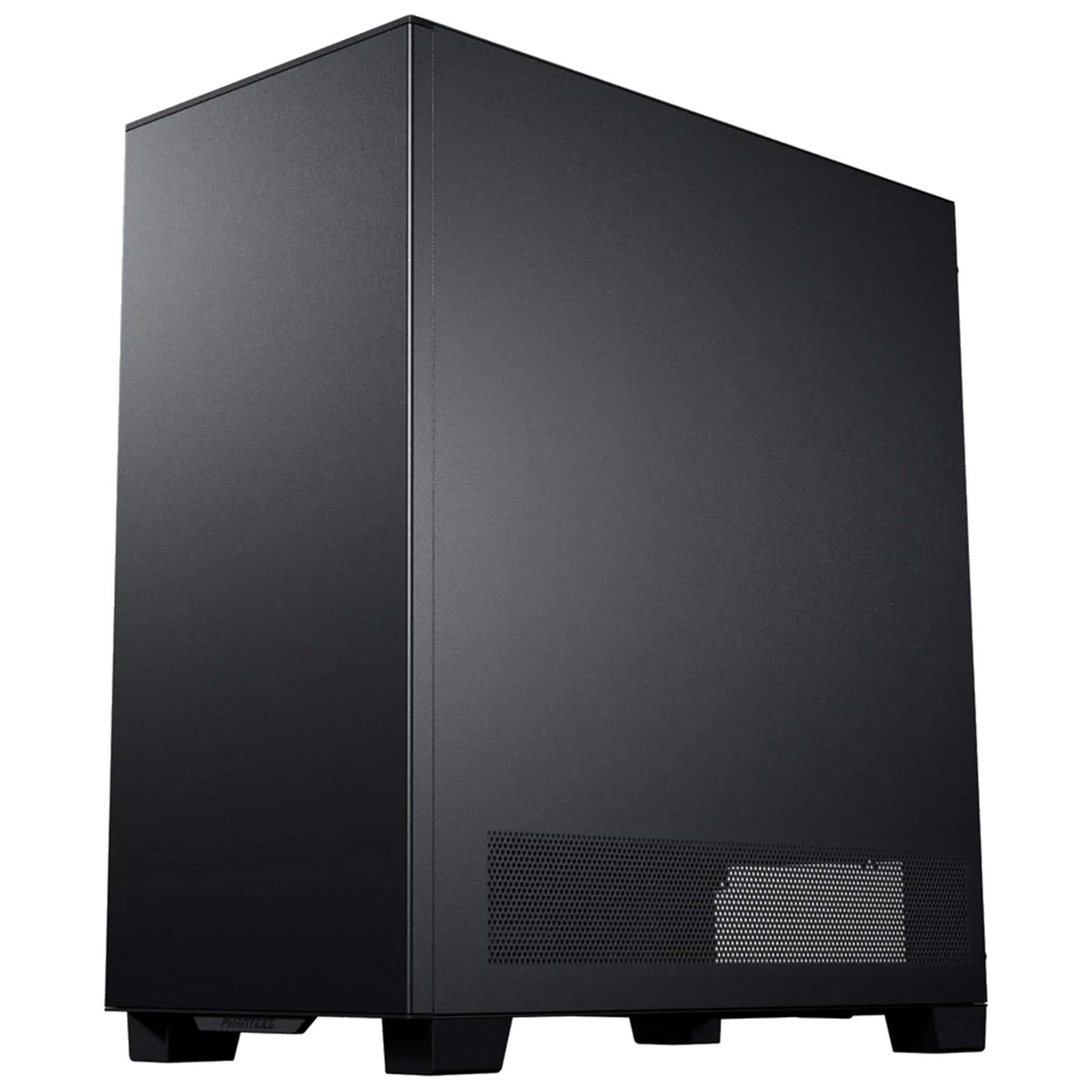

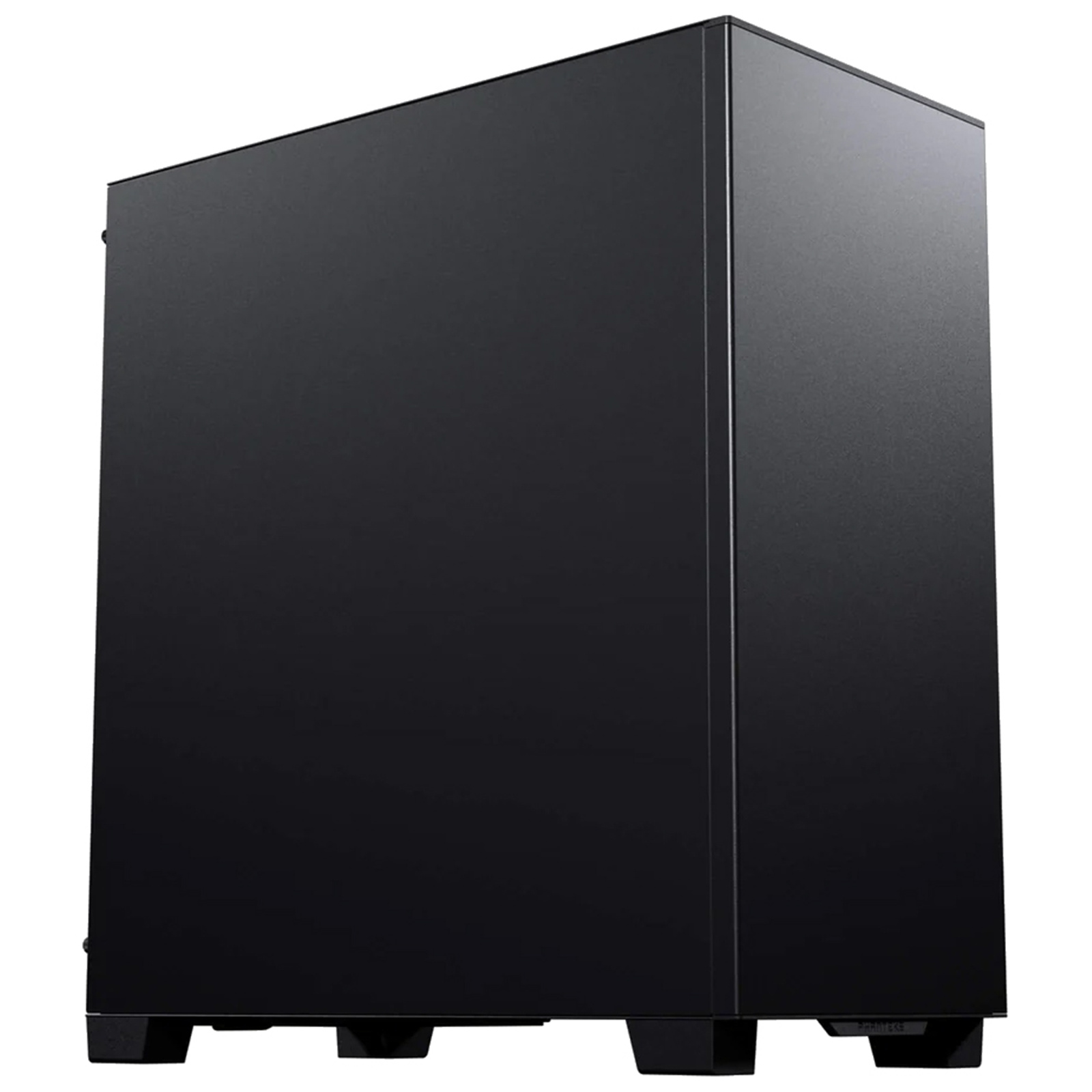

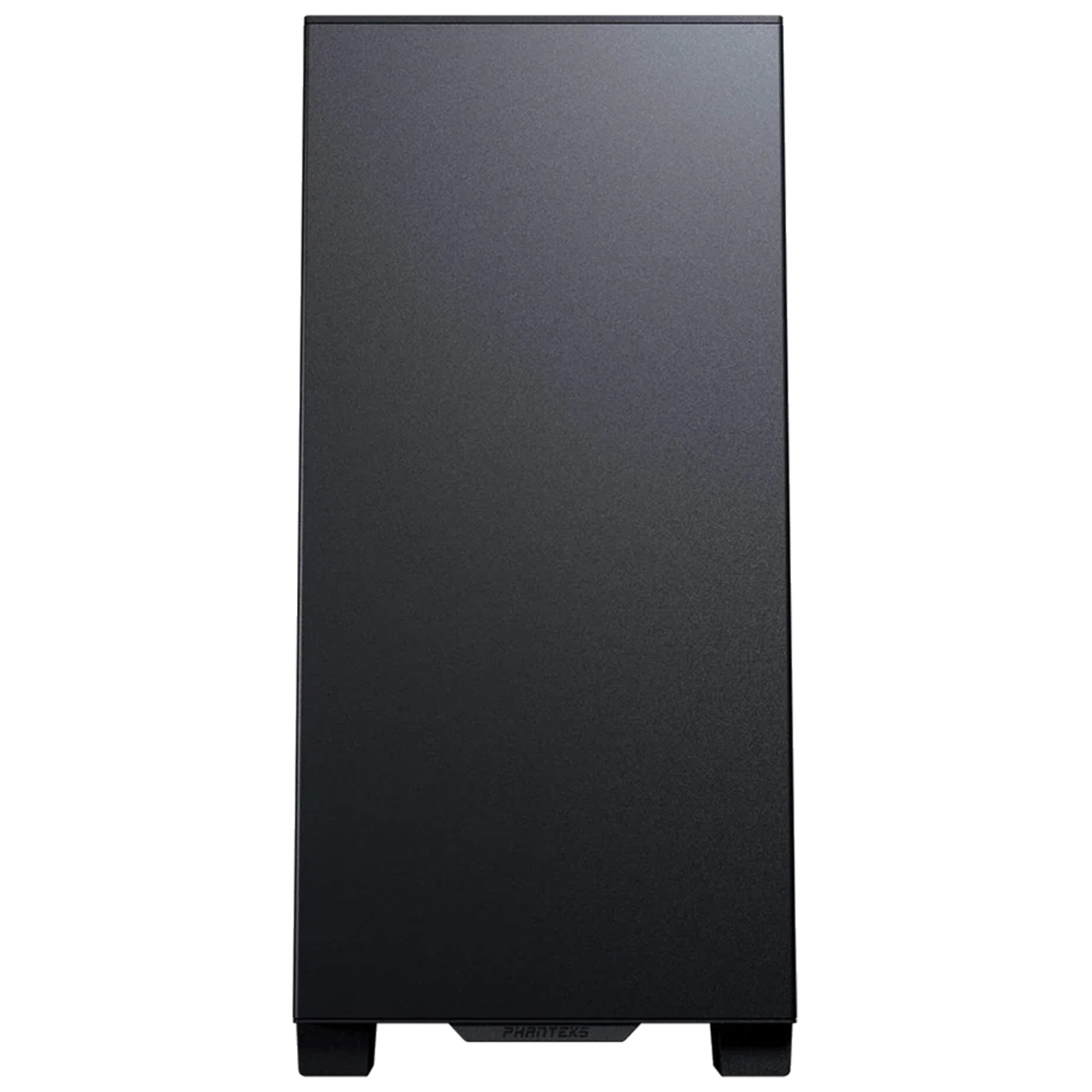

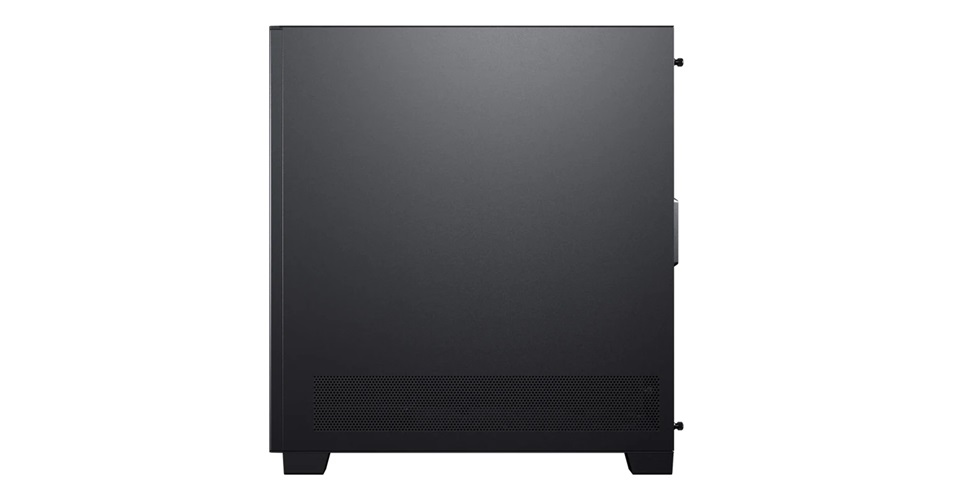

Phanteks XT PRO Ultra Silent ATX Case , 3 X 120MM Fans, CPU Cooler Support Upto 184mm, GPU Support Upto 415mm, 7x PCI, 360mm Radiator Supported - Front: 1x Type C, 1x USB, HD Audio

With promo code $90.00
With promo code $103.50
Save $21
Save $24
$ 111 .23
 +GST
$ 127 .91
 inc GST
$111.23  +GST
$127.91

Phanteks XT PRO Ultra Silent ATX Case , 3 X 120MM Fans, CPU Cooler Support Upto 184mm, GPU Support Upto 415mm, 7x PCI, 360mm Radiator Supported - Front: 1x Type C, 1x USB, HD Audio

Silent dampers on the front and side panels.
  • Brand: Phanteks
  • MPN: PH-XT523PSC_BK01
  • Part #: CHAPHA0100
  • UPC: 886523303541
1
With promo code $90.00
With promo code $103.50
Save $21 with code PBGAMER25
Save $24 with code PBGAMER25
Without promo code
$ 111 .23 $ 127 .91
 +GST  inc GST

Ends in --, while stocks last!


Click & Collect: Available from 4 stores.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$111.23  +GST
$127.91
  • Brand: Phanteks
  • MPN: PH-XT523PSC_BK01
  • Part #: CHAPHA0100
  • UPC: 886523303541

Side Window

No

Form Factor

EATX

Radiator Support

360mm

Maximum Card Length

415mm

CPU Cooler Height Clearance

184mm

Colour

Black

Dedicated 2.5" Bay

5

2.5" / 3.5" Bays

2

What PB Tech customers are saying about this product...

See More Reviews
No

"The case is very minimalistic and clean. The dust filters are a nice touch and the airflow is great."

JO
By: JackO628 03/07/25
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Phanteks XT PRO Ultra Silent ATX Case , 3 X 120MM Fans, CPU Cooler...
Phanteks XT PRO Ultra Silent ATX Case , 3 X 120MM Fans, CPU Cooler Support Upto 184mm, GPU Support Upto 415mm, 7x PCI, 360mm Radiator Supported - Front: 1x Type C, 1x USB, HD Audio
Total:
$ 442 .66
 +GST
$ 509 .06
Buy together and save $8.82 $10.14
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty
$199.13 $229.00

$195.76  +GST

$225.12

Save $40 with code PBGAMER25 Save $46 with code PBGAMER25
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
$109.00 $125.35

$105.00  +GST

$120.75

Save $6 with code PBGAMER25 Save $7 with code PBGAMER25
Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics, Computer and Office Equipment - Ozone Friendly
Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics, Computer and Office Equipment - Ozone Friendly
$12.56 $14.44

$11.54  +GST

$13.27

You save 8% You save 8%

Features

The Phanteks XT Pro Silent mid-tower chassis combines exceptional noise reduction with premium cooling potential, featuring three pre-installed M25 120 mm fans and closed panels to keep your build quiet and efficient. Its spacious interior supports a wide range of components, including E-ATX motherboards and high-performance GPUs, while its USB-C 3.2 Gen2 port offers fast connectivity. Designed for quiet computing, this case provides enhanced airflow with optimized ventilation, ensuring high-end performance without sacrificing silence, making it ideal for powerful yet discreet setups.

Whisper-Quiet Operation

Engineered with sound-dampening materials, the Phanteks XT Pro Silent case ensures ultra-quiet performance without compromising on cooling capabilities. This chassis offers a peaceful environment for productivity, gaming, or content creation, keeping distractions to a minimum so you can stay focused. Ideal for users who value a noise-free setup, it's perfect for home offices, studios, or shared spaces.

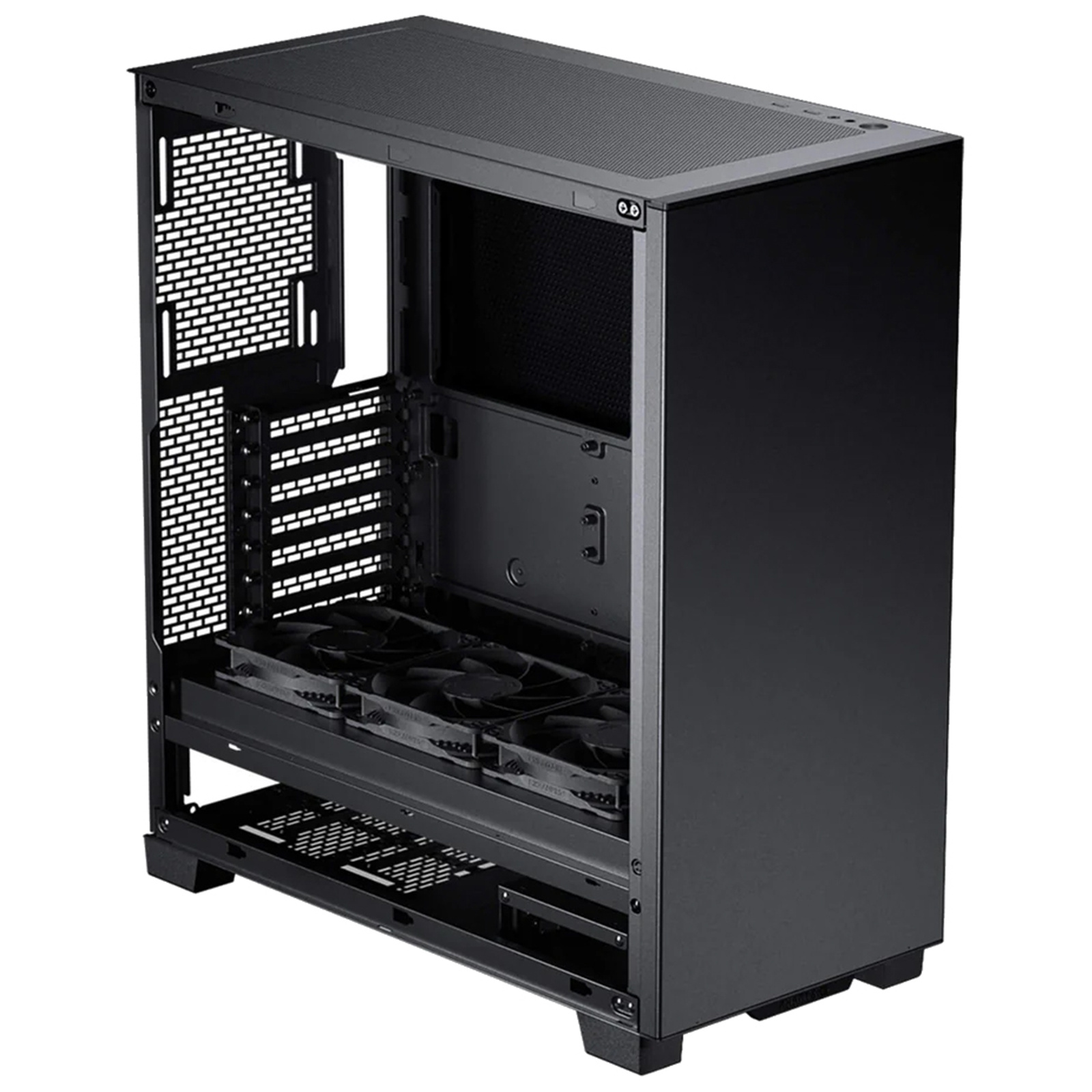

Optimized Airflow with Premium Fans

Equipped with three pre-installed Phanteks M25-120 fans, this case achieves optimal airflow from the moment it's set up. These high-quality 120mm fans are tuned for quiet and efficient cooling, maintaining ideal temperatures even under demanding conditions. Paired with the case's airflow-optimized design, this ensures stable performance for any workload or long gaming sessions.

Next-Gen Connectivity

The front I/O panel includes a USB-C 3.2 Gen 2 port, enabling high-speed data transfer and seamless device connection. Whether you're transferring large files or connecting modern peripherals, this forward-looking feature provides convenient, fast access right at your fingertips, enhancing the overall user experience.

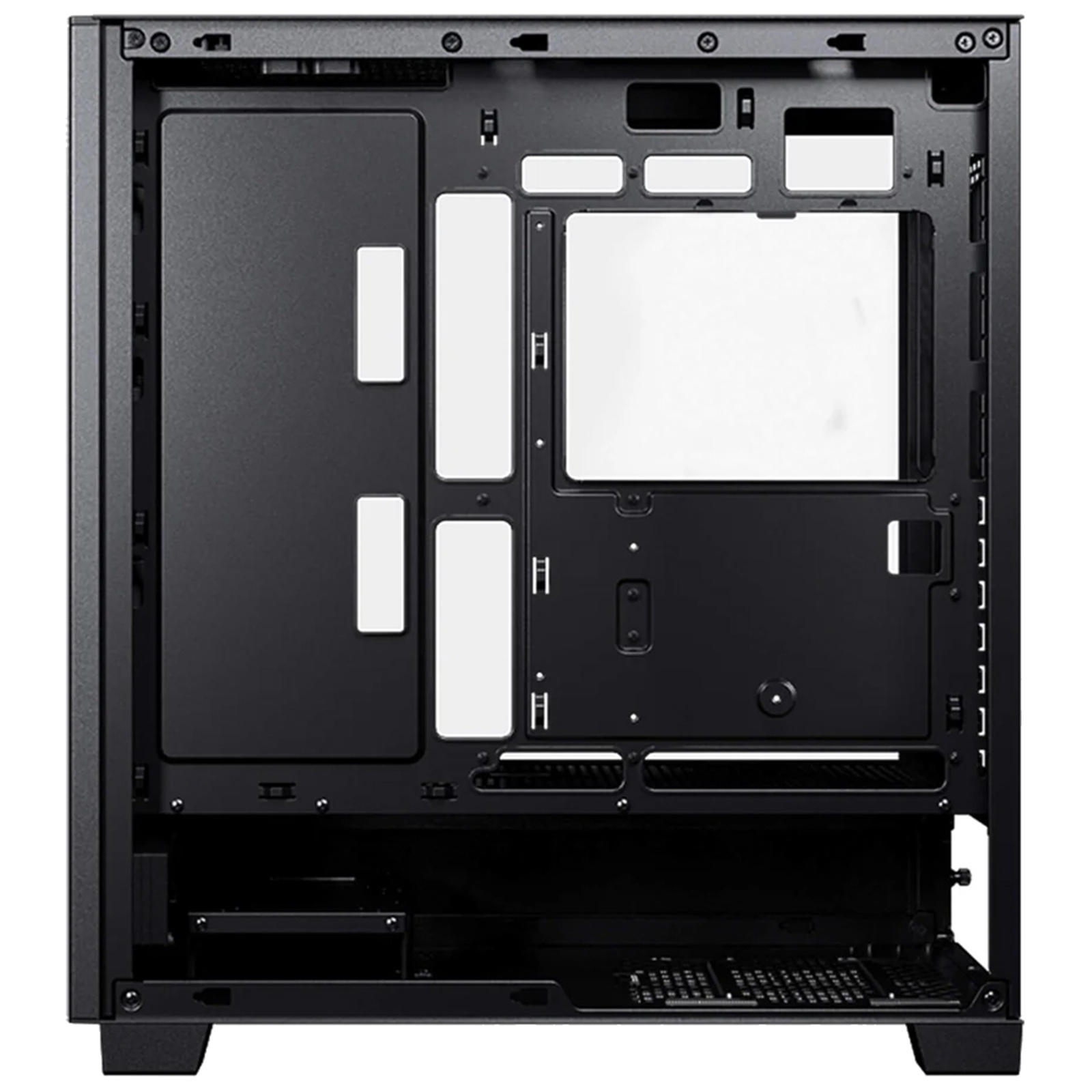

Spacious and Customizable Interior

With ample room for extensive builds, the XT Pro Silent is designed for flexibility. This case supports full-sized graphics cards, larger CPU coolers, and multiple storage configurations, making it suitable for complex builds and future upgrades. Tool-free drive trays and cable management options help keep your setup tidy and organized, regardless of your build's complexity.

Sleek Minimalist Design

The Phanteks XT Pro Silent boasts a refined, minimalist design that seamlessly fits into any setup. Its black, understated finish complements various styles, making it a great choice for both professional workspaces and personal battlestations. Combining aesthetics with function, this case adds a touch of sophistication to any environment.

Specifications

Model Number

PH-XT523PSC_BK01

Dimension

450 x 230 x 500 mm /17.7 x 9.05 x 19.68 in (D x W x H)

Form Factor

Mid-tower

Material(s)

Steel Chassis, ABS plastic

Motherboard Support

ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide), Rear-Side Motherboard Support

Front I/O

1 x USB 3.0, 1 x USB-C 3.2 Gen2, Microphone/Headphone Combo, Power Button, Reset Button

Connectors

Front IO, HD-audio, USB 3.0, USB 3.2 Gen2 Type-E

Window

No, Closed Panels

Expansion & Drive Bays

Expansion slots

7

Vertical GPU support

Yes, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01

Internal 3.5"

2 (2 x included

Internal 2.5"

5 (5 x included)

Fans & Radiators

Top

3 x 120mm fan/2 x 140mm fan

Rear

1 x 120mm fan/1 x 140mm fan

Midplate

3 x 120mm fan

Top

Up to 360 120mm radiator

Rear

Up to 120 120mm radiator

Clearance

Graphic card length

415mm

Graphic card width

184mm

CPU cooler height

184mm

PSU length

270mm

Top 360 Radiator

415 x 138 x 60mm

Rear 120 Radiator

132 x 170 mm

What's Included

Accessory Box

30 x Zip ties
30 x MB/SSD Screw
4 x Thumb Screw
8 x HDD Screw
1 x Standoff Tool
1 x MB stand-off
4 x PSU Screw
12 x 30mm Fan Screw

Manufacturer Part No:
PH-XT523PSC_BK01
Brand:
Product Type:
ATX Case
UPC
886523303541
Product Family:
XT PRO
Shipping Weight:
9.02 kg
PB Part No:
CHAPHA0100
Product Model:
Ultra Silent
Warranty: 12 months *
