Phanteks XT M3 White MATX Case Tempered Glass, CPU Cooler Support Upto 175mm, GPU Support 430mm, 4x PCI Slot, 360mm Radiator Supported, Front I/O: 1x USB, 1x Type C, HD Audio
Phanteks XT M3 White MATX Case Tempered Glass, CPU Cooler Support Upto 175mm, GPU Support 430mm, 4x PCI Slot, 360mm Radiator Supported, Front I/O: 1x USB, 1x Type C, HD Audio
- Brand: Phanteks
- MPN: PH-XT325M_WT01
- Part #: CHAPHA0107
- UPC: 886523303770
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"Very easy case to build from plenty of space at rear for cables i was tossing up between this and the lian li dan case and very happy with results bonus with the sheild covering al ...view more"
COMBO DEALS: Buy Together and SAVE!







DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable -...
$195.76 +GST
$225.12


Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste...
$19.13 +GST
$22.00


Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write -...
$105.00 +GST
$120.75


Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics,...
$11.54 +GST
$13.27
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Mini / Micro Tower Cases





Phanteks XT M3 White MATX Case Tempered Glass, CPU Cooler Support Upto 175mm, GPU Support 430mm, 4x PCI Slot, 360mm Radiator Supported, Front I/O: 1x USB, 1x Type C, HD Audio
- Brand: Phanteks
- MPN: PH-XT325M_WT01
- Part #: CHAPHA0107
- UPC:886523303770

Product URL: https://www.pbtech.co.nz/product/CHAPHA0107/Phanteks-XT-M3-White-MATX-Case-Tempered-Glass-CPU
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 2 | |
Auckland - Penrose | 4 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 2 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 30+ | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 1 |
Features

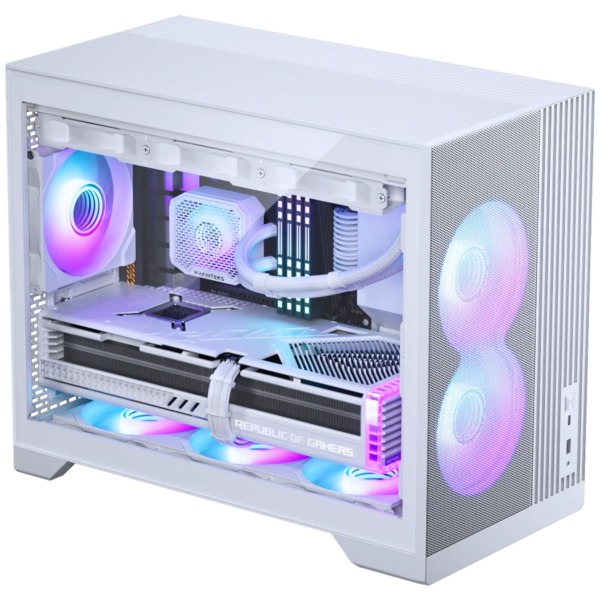

XT M3 - Compact Micro ATX Gaming Chassis
The XT M3 is a powerful yet compact microATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top, provide plenty of cooling options within its sleek and clean appearance.
With its innovative layout and strikingly clean design, the XT M3 is a microATX powerhouse ready for any cooling challenge.
Compact Gaming Chassis
- Supports a total of nine 120 fans for powerful cooling within this compact chassis.
- Dedicated 360 radiator space in the top of the chassis.
- Triple fan locations in the bottom for direct GPU cooling.
Organized by Design
- Spacious cable routing area for clean and efficient management.
- Fully compatible with Rear-Connect mainboards for streamlined builds.

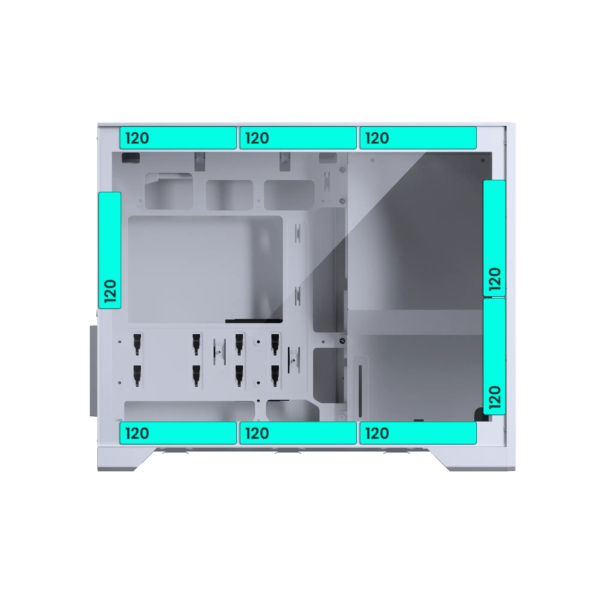

Fan Positions
- 3x 120 mm top fans.
- 2x 120 mm front fans.
- 1x 120 mm rear fan.
- 3x 120 mm bottom fans.

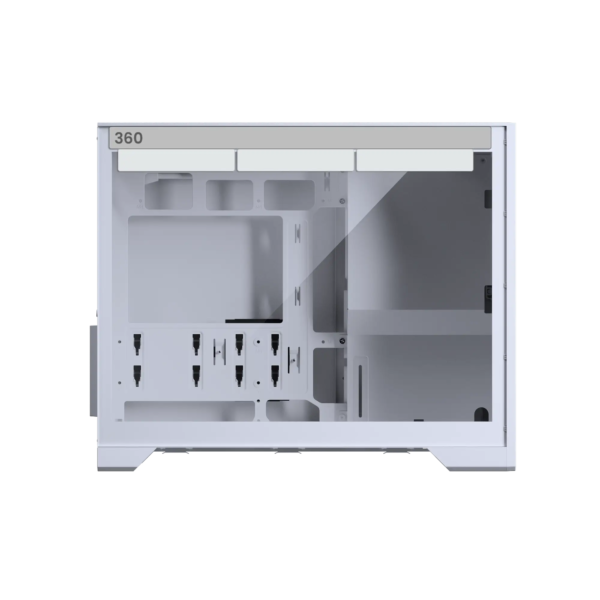

Radiator Positions
- 1x 360 top radiator up to 410 x 122 x 60 mm

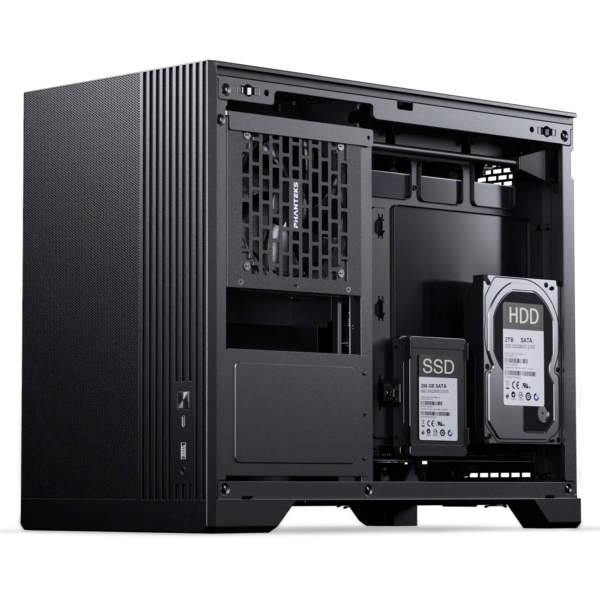

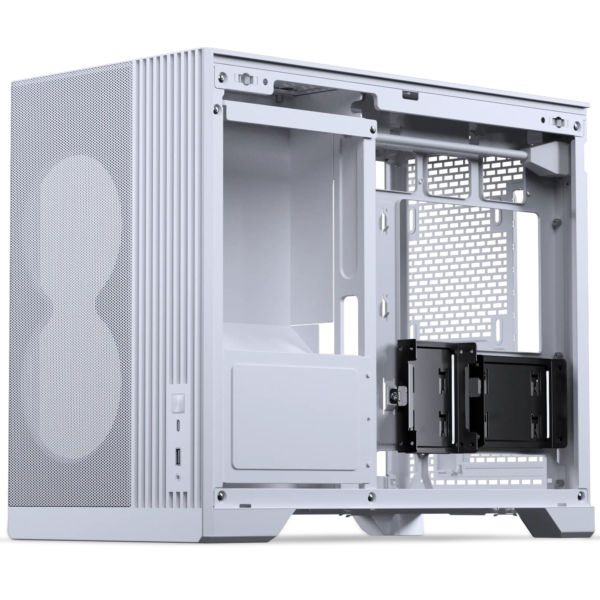

Storage
SSD Storage Bracket
Supports 2x 2.5? SSD drives.
HDD Storage Bracket
Supports 1x 3.5" HDD drive.
Specifications
General
Model No.
PH-XT325M_WT01
Case Dimensions
460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in
From Factor
Compact microATX tower
Mainboard Support
Micro-ATX | Mini-ITX
Materials
Steel chassis | Tempered glass window | ABS plastic
Color
White
Expansion Slots
4
Vertical GPU Support
No
Internal 2.5? Positions
2
Internal 3.5? Positions
1

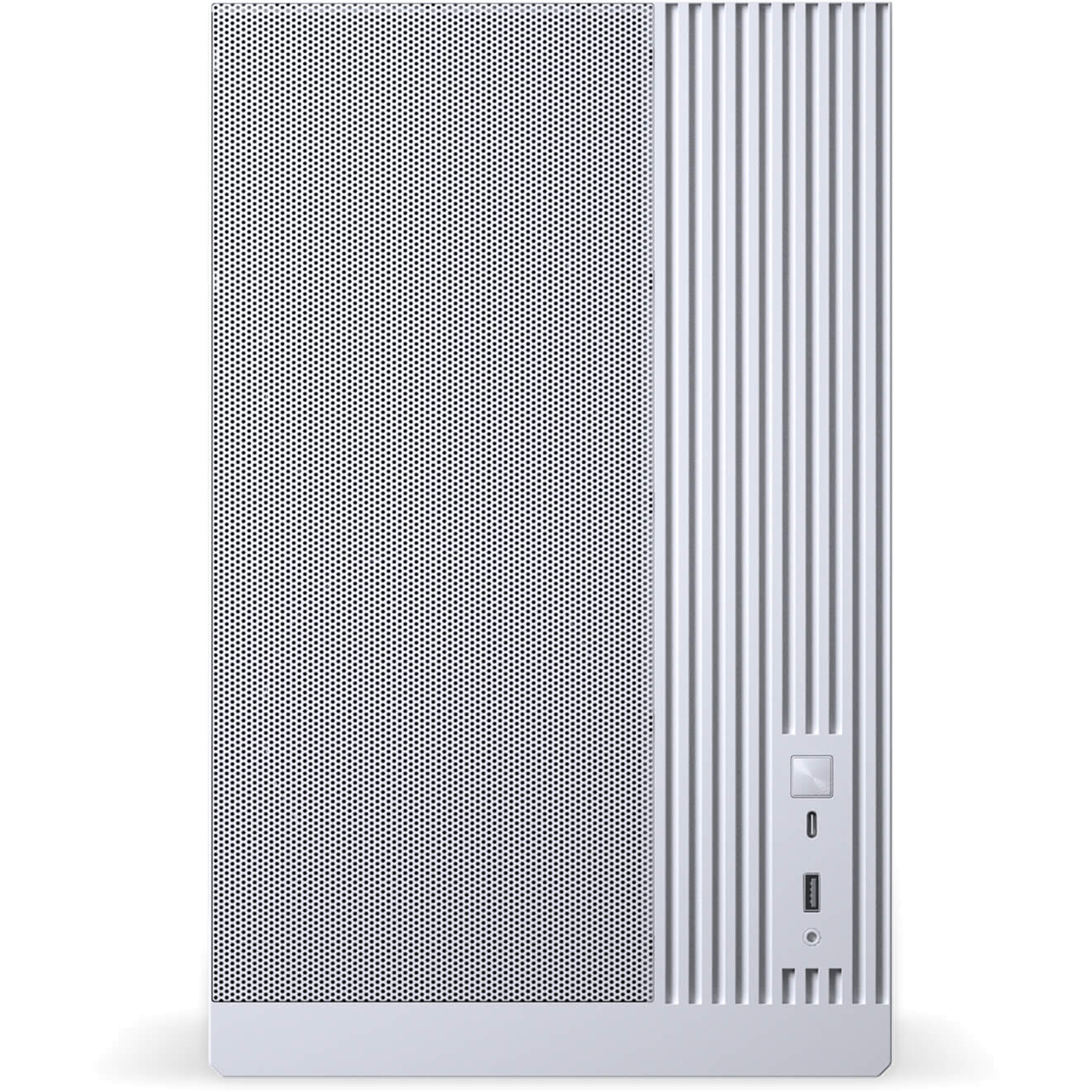

Front I/O
1x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button
Fan Support
Total Fans
9x 120mm
Top
3x 120mm
Front
2x 120mm
Side
-
Rear
1x 120mm
Bottom
3x 120mm
Radiator Support
Top
Max. 360
Front
-
Rear
-
Bottom
-
Clearance
CPU Cooler Height
175 mm | 6.88 in
GPU Length
430 mm | 15.94 in
Without front fans installed
GPU Width
175 mm | 6.88 in
Power Supply
150 mm | 5.90 in
Top 360 Radiator (Length x Width x Height)
410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in
Extra
Net Weight
5.57 kg | 12.28 lbs
Gross Weight
6.90 kg | 15.21 lbs
Scope of Delivery
1x XT M3 chassis
1x SSD bracket Pre-installed
1x HDD bracket Pre-installed
Accessory Box
9x Zip ties
1x Stand-off removal tool
1x GPU support
Screws
17x Mainboard | SSD screws
5x Power supply screws
4x HDD screws
1x Mainboard stand-off
