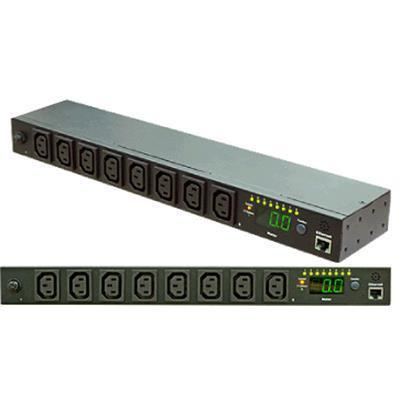

Dynamix RPSW-16A8 8 Port 16A Switched PDU Remote Individual Outlet Control & Overall PDUPower Monitoring. Output 8x 10A IEC C13, Input 1x 16A IEC C20 Socket, 3m 9 to C20 power cord included.
Dynamix RPSW-16A8 8 Port 16A Switched PDU Remote Individual Outlet Control & Overall PDUPower Monitoring. Output 8x 10A IEC C13, Input 1x 16A IEC C20 Socket, 3m 9 to C20 power cord included.
- Brand: Dynamix
- MPN: RPSW-16A8
- Part #: CHSDNX1096
- UPC:
- Brand: Dynamix
- MPN: RPSW-16A8
- Part #: CHSDNX1096
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular PDUs





Dynamix RPSW-16A8 8 Port 16A Switched PDU Remote Individual Outlet Control & Overall PDUPower Monitoring. Output 8x 10A IEC C13, Input 1x 16A IEC C20 Socket, 3m 9 to C20 power cord included.
- Brand: Dynamix
- MPN: RPSW-16A8
- Part #: CHSDNX1096

Product URL: https://www.pbtech.co.nz/product/CHSDNX1096/Dynamix-RPSW-16A8-8-Port-16A-Switched-PDU-Remote-I
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
DYNAMIX 8 Port 16A Switched PDU Remote Individual Outlet Control & Overall PDUPower Monitoring. Output 8x 10A IEC C13, Input 1x 16A IEC C20 Socket, 3m 9 to C20 power cord included.
Switched PDU has a built-in network interface which allows an administrator to access the PDU from a remote terminal and interface with it to turn on or off outlets and control load by web and SNMP. This can be helpful if a remote machine has gone into an unresponsive state and cannot be restarted through normal means. An administrator can connect to the PDU that the machine is plugged into in order to power cycle the machine.
- Current metre - digital true RMS current metre
- Power monitor - remote total power monitoring by metre, web, SNMP, free bundle software
- Protocols - Http, Https, SNMP, DHCP, UDP
- Outlet control - Individual outlet control
- Power Delay - Power On/Off sequence can be defined
- Alarm thresholds - user-defined alarm thresholds for warning and overload
- Event alert - e-mail, trap, audible alarm
- 3M input power cord included
Specifications
GENERAL
Output
(8) IEC 320 C13
Input
(1) IEC320 C20 Inlet; IEC320 C19 to C20 Power Cord 3M
Protection
(1) 16 AMP Circuit Breaker
COMMUNICATION
SSL Indication
(1) Yellow LED
DHCP Indication
(1) Green LED
Output Status
(8) Green LED
Network
(1) RJ45 for Ethernet
Current Meter
3 Digits Seven Segments for True RMS Meter
Range
0A ~ 20 A
Resolution
0.1A
Precision
+/-2%+/-0.1AMP
OPERATION
Nominal Voltage
230V
Voltage
200V~ 240V full range
Frequency
50/60HZ full range
Max. Output Current
16 Amp
Temperature
0 ~ 40 Celsius degree
Humidity
0% ~ 90%
Size
90 x 432 x 44 mm
Weight
3 kg
REGULATORY APPROVALS
REGULATORY
CE, EN 55022 Class A, EN 55024,EN 61000-3-2, EN 61000-3-3 C-Tick AS/NZS CISPR 22: 2006 FCC Part 15 Class A, ICES-003
