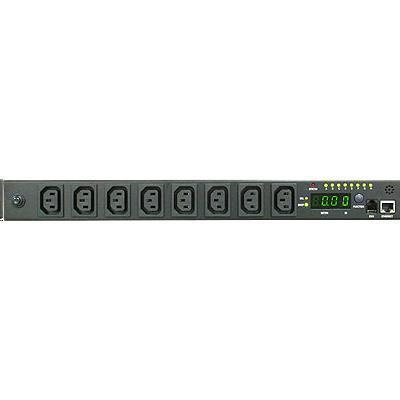

Dynamix RPSK-16A8 8 Port 16A kWh Switched PDU Total Remote Power Monitoring & Outlet Control. Output 8x10A IEC C13 , Input 1x16A IEC C20 Socket 3M C19 to C20 power cord included.
Dynamix RPSK-16A8 8 Port 16A kWh Switched PDU Total Remote Power Monitoring & Outlet Control. Output 8x10A IEC C13 , Input 1x16A IEC C20 Socket 3M C19 to C20 power cord included.
- Brand: Dynamix
- MPN: RPSK-16A8
- Part #: CHSDNX1130
- UPC:
- Brand: Dynamix
- MPN: RPSK-16A8
- Part #: CHSDNX1130
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular PDUs





Dynamix RPSK-16A8 8 Port 16A kWh Switched PDU Total Remote Power Monitoring & Outlet Control. Output 8x10A IEC C13 , Input 1x16A IEC C20 Socket 3M C19 to C20 power cord included.
- Brand: Dynamix
- MPN: RPSK-16A8
- Part #: CHSDNX1130

Product URL: https://www.pbtech.co.nz/product/CHSDNX1130/Dynamix-RPSK-16A8-8-Port-16A-kWh-Switched-PDU-Tota
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
DYNAMIX 8 Port 16A kWh Switched PDU . Total Remote Power Monitoring & Outlet Control. Output 8x 10A IEC C13 , Input 1x 16A IEC C20 Socket to C20 power cord included.
kWh PDU provides advanced remote management features and power information including voltage, current, frequency, power factor, VA and kWh.
- Metre - true RMS current metre, voltage, frequency, power factor, active power, apparent power, total kWh, sub-total kWh
- Power monitor - total power monitoring by metre, web, SNMP, free bundle software
- Protocols - Http, Https, SNMP, DHCP, UDP
- Outlet control - individual, group, schedule, auto ping
- Power delay - power on/off sequence can be defined
- Alarm thresholds - User-defined alarm thresholds for warning and overload
- Event alert - total power monitoring by metre, web, SNMP
- Temp./humidity - optional (RPSK-ENV1)
- 3M input power cord included
Specifications
GENERAL
Output
(8) IEC 320 C13
Input
(1) IEC320 C20 Inlet; IEC320 C19 to C20 Power Cord 3M
Protection
(1) 16 AMP Circuit Breaker
COMMUNICATION
SSL Indication
(1) Yellow LED
DHCP Indication
(1) Green LED
Output Status
(8) Green LED
Circuit Status
(1) Red LED
Network
(1) RJ45 for Ethernet
Temp./Humidity
(1) RJ11 for ENV probe connection
PDU ID
1 Digits Seven Segments for PDU Identification
Meter
3 Digits Seven Segments
OPERATION
Nominal Voltage
230V
Voltage
200V~ 240V full range
Frequency
50/60HZ full range
Max. Output Current
16 Amp
Temperature
0 ~ 40 Celsius degree
Humidity
0% ~ 90%
Size
125 x 432 x 44 mm
Weight
3.5 kg
REGULATORY APPROVALS
CE, EN 55022 Class A, EN 55024,EN 61000-3-2,EN 61000-3-3
FCC Part 15 Class A, ICES-003
