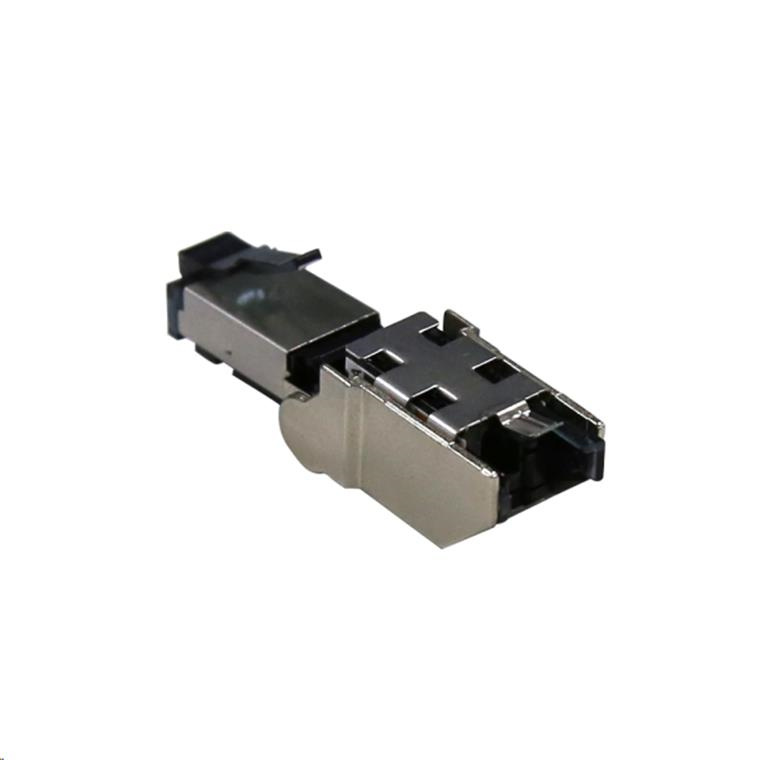

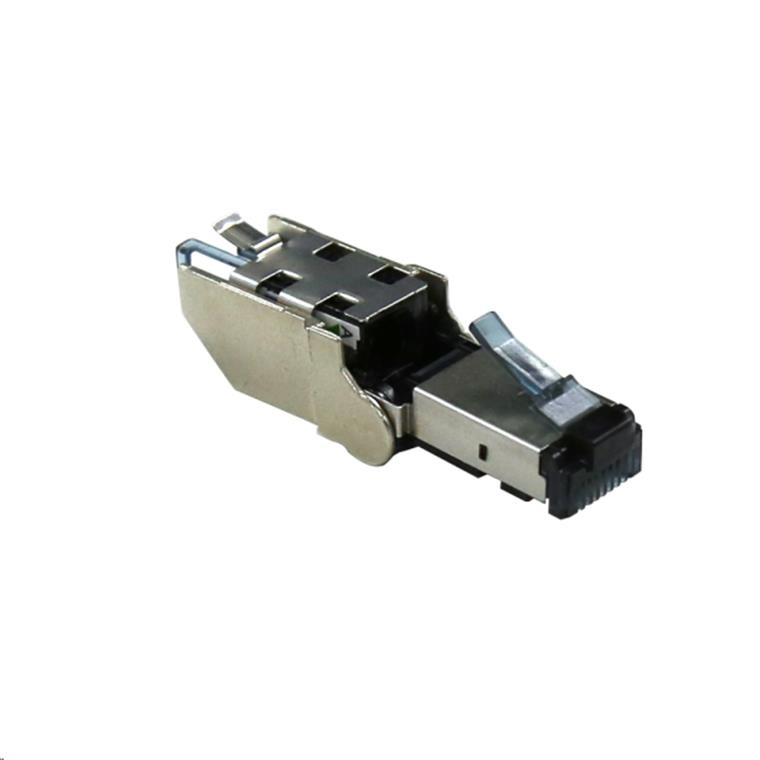

Dynamix RJ-TL6ASTP RJ45 STP Cat6A 10G Tool-less Flexible Plug. Solid Conductor 22-24 AWG
Dynamix RJ-TL6ASTP RJ45 STP Cat6A 10G Tool-less Flexible Plug. Solid Conductor 22-24 AWG
- Brand: Dynamix
- MPN: RJ-TL6ASTP
- Part #: CHSDNX1137
- UPC:
- Brand: Dynamix
- MPN: RJ-TL6ASTP
- Part #: CHSDNX1137
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Modular Connectors
Dynamix RJ-TL6ASTP RJ45 STP Cat6A 10G Tool-less Flexible Plug. Solid Conductor 22-24 AWG
- Brand: Dynamix
- MPN: RJ-TL6ASTP
- Part #: CHSDNX1137
Product URL: https://www.pbtech.co.nz/product/CHSDNX1137/Dynamix-RJ-TL6ASTP-RJ45-STP-Cat6A-10G-Tool-less-Fl
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
DYNAMIX RJ45 STP Cat6A 10G Tooless Flexible Plug. Solid Conductor 22-24 AWG
- Toolless termination
- Increased transmission capacity & bandwidth
- Large cable & conductor acceptance
- Bendable body allowing multi-application in limited space, also reduce stress due to bending of the cable
- Support direct-attach installation, reduce connection points & thus reduce system cost & installation time
- No special crimping tool required
- Crosstalk reduced gold contact arrangement
- Stable contact blade position
- Smart wiring management cap
- Installation within 1 minute
Specifications
Contacts
Gold Plating in Localized Area Over Nickel Undercoat
IDC Terminal
Phosphor Bronze with Nickel Plating
Housing
High Impact Thermal Plastic UL94-V0
Shield
Front SUS301, Back Zamac
Plug Interface Dimensions
Confrom to FCC Part 68 Subpart F
Circuit
FPC UL94-V0
Acceptable Cable OD
4 - 8mm
Conductor Acceptance
22 ~ 24 AWG Solid Conductor with Insulation OD 0.9 ~ 1.27mm
Plug Insertion Cycle
750 Times Max.
IDC Re-Termination Cycle
20 Times Max.
Body Bending Cycle
50 Times Max.
Wiring Colour Code
T568A & T568B
Material
Aluminium
