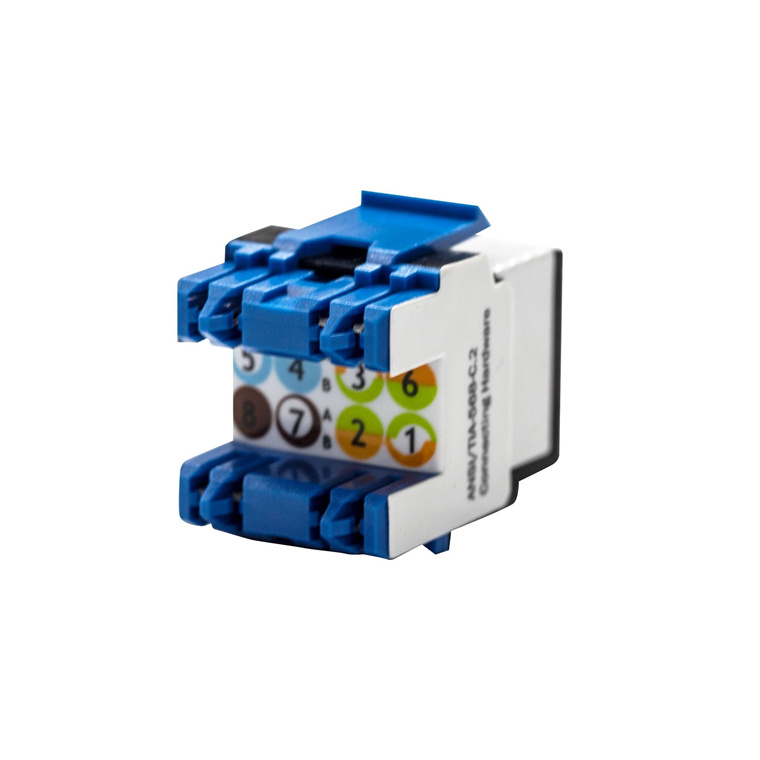

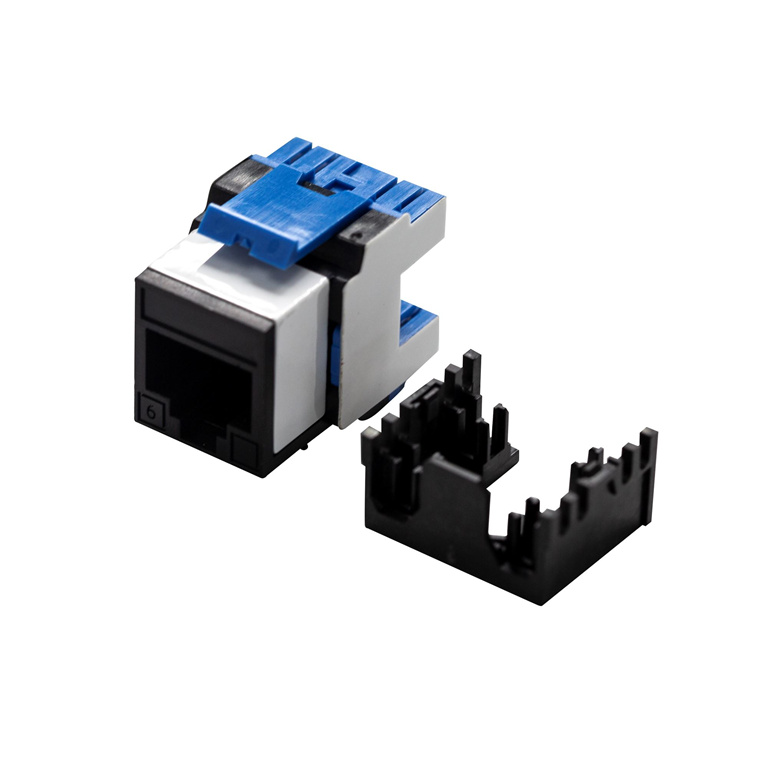

Dynamix FP-C6-180BK Cat6 180 Unshielded Keystone Jack, Dual IDC. Colour Black
Dynamix FP-C6-180BK Cat6 180 Unshielded Keystone Jack, Dual IDC. Colour Black
- Brand: Dynamix
- MPN: FP-C6-180BK
- Part #: CHSDNX1168
- UPC:
- Brand: Dynamix
- MPN: FP-C6-180BK
- Part #: CHSDNX1168
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Keystone Jacks & Clips





Dynamix FP-C6-180BK Cat6 180 Unshielded Keystone Jack, Dual IDC. Colour Black
- Brand: Dynamix
- MPN: FP-C6-180BK
- Part #: CHSDNX1168

Product URL: https://www.pbtech.co.nz/product/CHSDNX1168/Dynamix-FP-C6-180BK-Cat6-180-Unshielded-Keystone-J
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Specifications
Material
Housing
ABS UL94V-0 flame retardancy
Spring Wire
Phosphor bronze 0.35t, plated with 50u" gold at contact area over 60u" nickel undercoat
PCB
FR4
IDC Terminals
Phosphor bronze 0.5t, plated with 100u" nickel
IDC Block
High-impact Polycarbonate UL94V-2 flame retardancy
Solid Wire Range
Conductor Diameter
24AWG - 22AWG
Insulation Diameter
0.8mm - 1.1mm
Cable Diameter
5mm - 9mm
Plug Insertion Life (Mating)
750 cycles with FCC compliant plug
Plug and Jack Contact Force
min. 100g using FCC approved plug
Plug Retention Force
min. 30lbs
Storage Temperature
-40° ~ 68°
Operating Temperature
-10° ~ 60°
Operating Humidity
10% ~ -90%RH
Current Rating
1.5A
Insulation Resistance
min. 500mO
Contact Resistance
max. 20mO
Transmission Performance
10GBase-T
FCC
Part 68
TIA/EIA
568-C.2
UL
1863
ETL Certified
Supports POE+
US PATENT
