StarTech.com RKLCDBK Rack Cabinet LCD Monitor Mount Bracket
StarTech.com RKLCDBK Rack Cabinet LCD Monitor Mount Bracket
- Brand: StarTech.com
- MPN: RKLCDBK
- Part #: CHSSTT2902531
- UPC: 065030834896
Select your store to check availability
- Brand: StarTech.com
- MPN: RKLCDBK
- Part #: CHSSTT2902531
- UPC: 065030834896
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Mounts, Rails & Plinths





StarTech.com RKLCDBK Rack Cabinet LCD Monitor Mount Bracket
- Brand: StarTech.com
- MPN: RKLCDBK
- Part #: CHSSTT2902531
- UPC:065030834896

Product URL: https://www.pbtech.co.nz/product/CHSSTT2902531/StarTechcom-RKLCDBK-Rack-Cabinet-LCD-Monitor-Mount
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 3 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 1 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

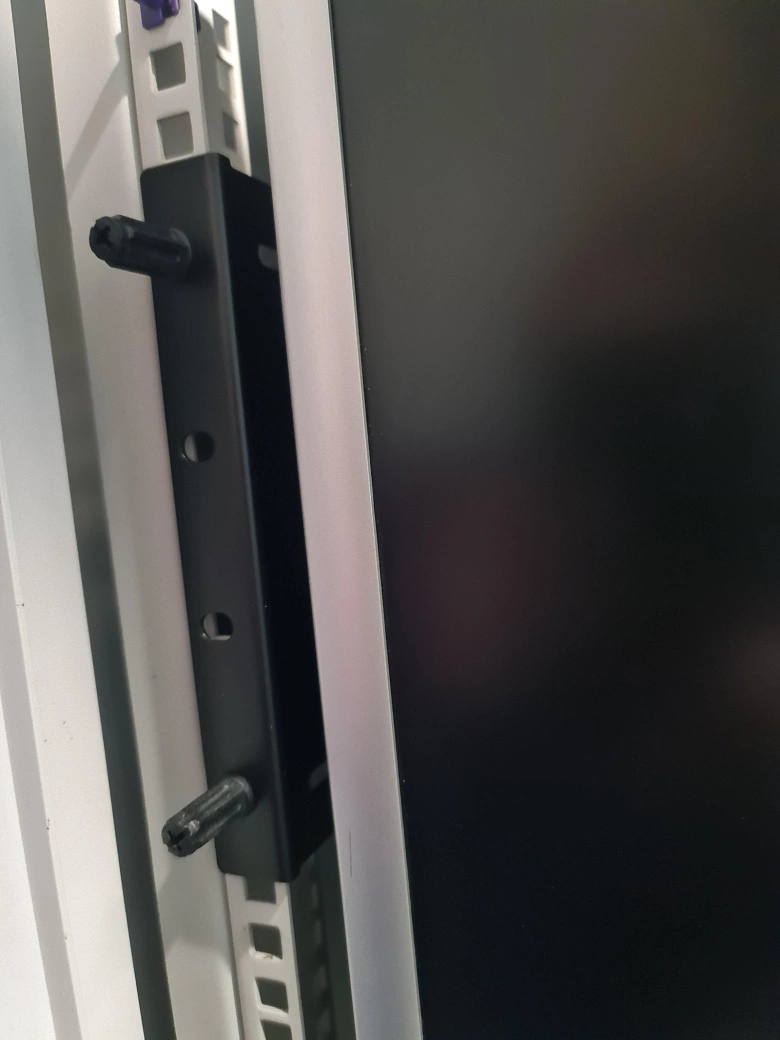

The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Specifications
Frame Type
Steel
Industry Standards
EIA RS310-D
U Height
4U
Physical Characteristics
Color
Black
External Depth
4.2 in [107.5 mm]
External Height
7 in [177 mm]
External Width
19 in [482 mm]
Internal Width
16.7 in [425.3 mm]
Maximum Mounting Depth
3.5 in [88.9 mm]
Minimum Mounting Depth
0 in [0 mm]
Product Weight
3.8 lb [1.7 kg]
What's in the Box
Included in Package
2 - mounting brackets
1 - LCD bracket
8 - M5 cage nuts
8 - M5 screws
4 - M4 x 10mm LCD mounting screws
4 - M5 x 10mm bracket screws
4 - washers
1 - instruction manual
