Features
CPL02-E
- Supports up to 8 addressable RGB light strips or devices.
- Compatible with addressable RGB controller or supported motherboard.
- Supports light strips up to 5V 9A
Colorful world starts from here

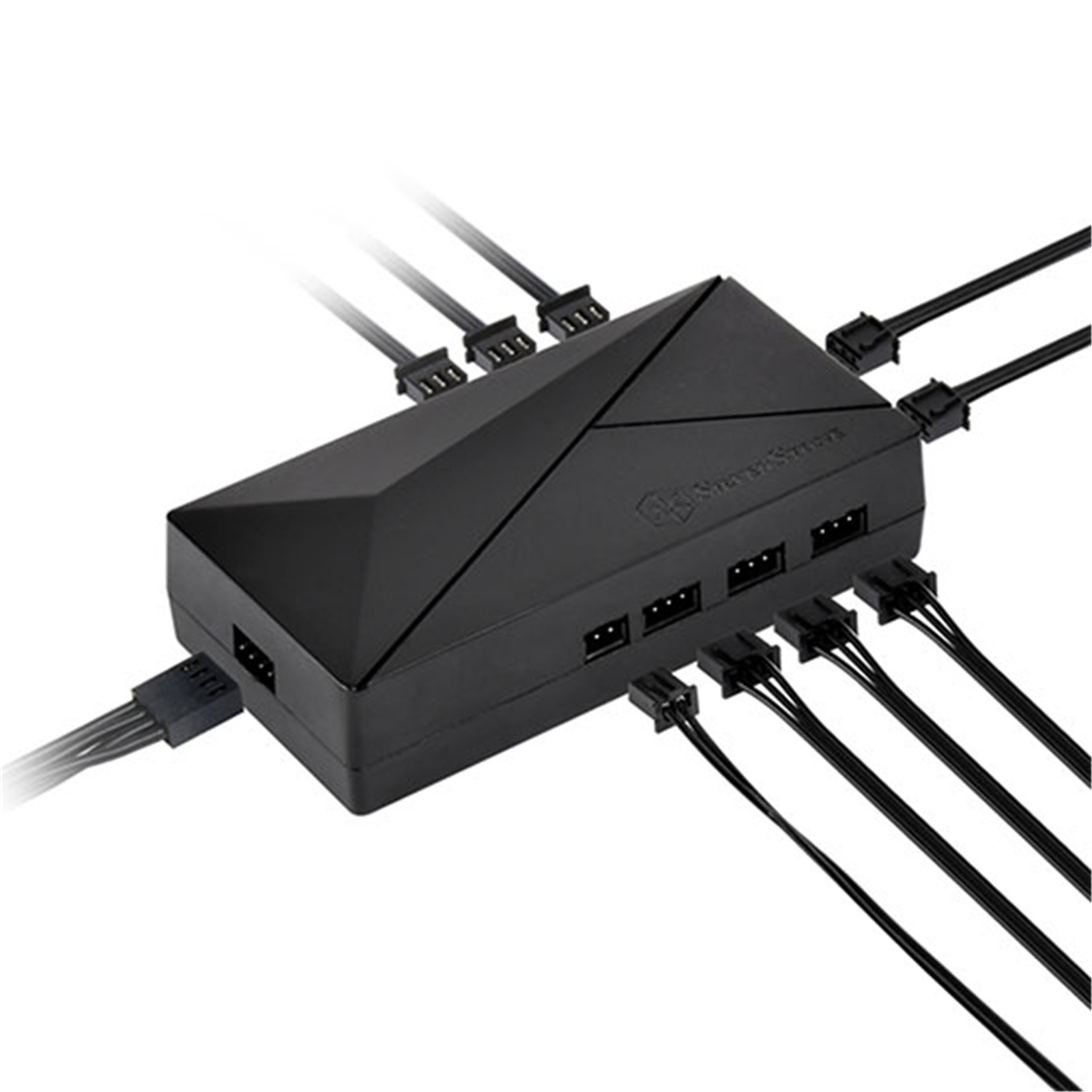

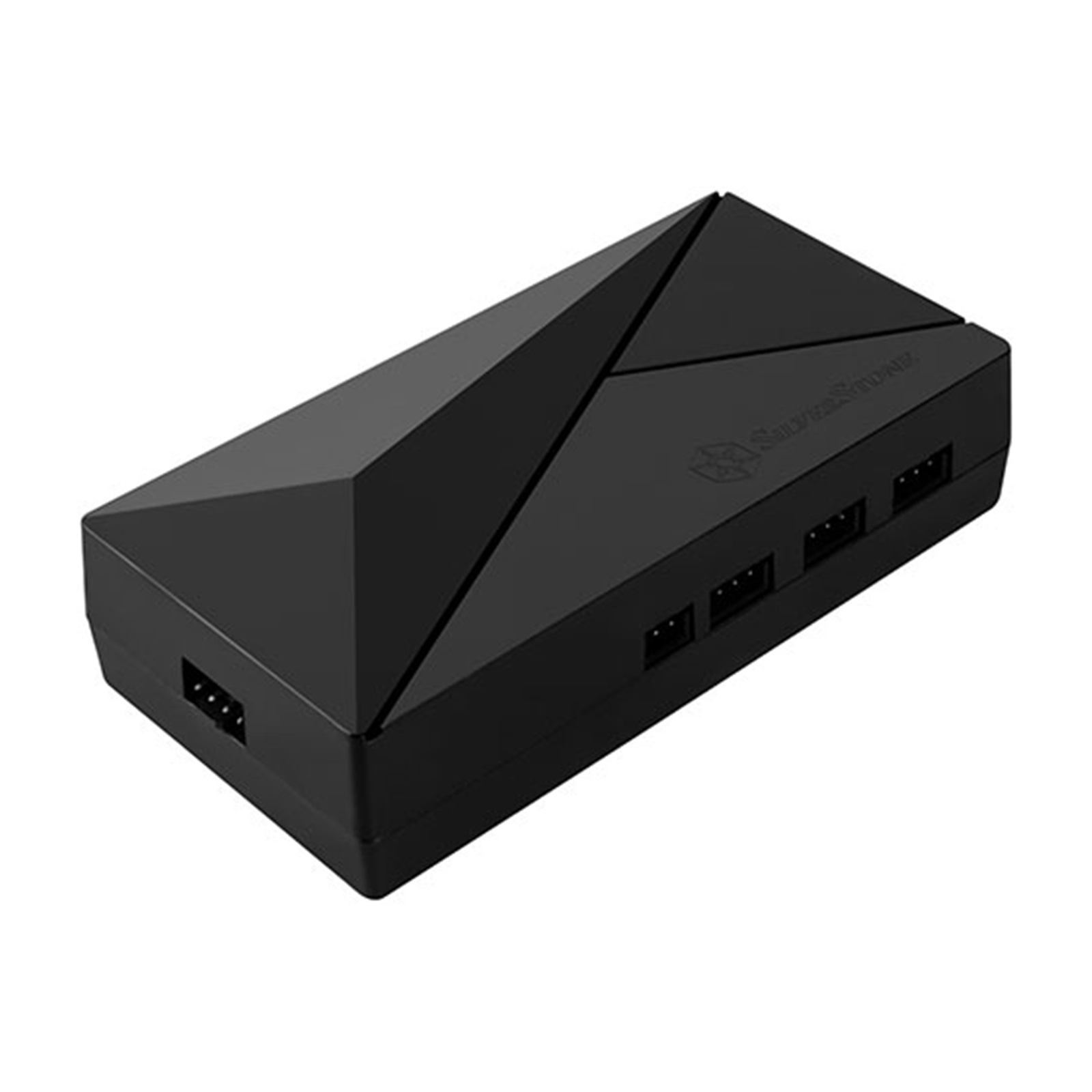

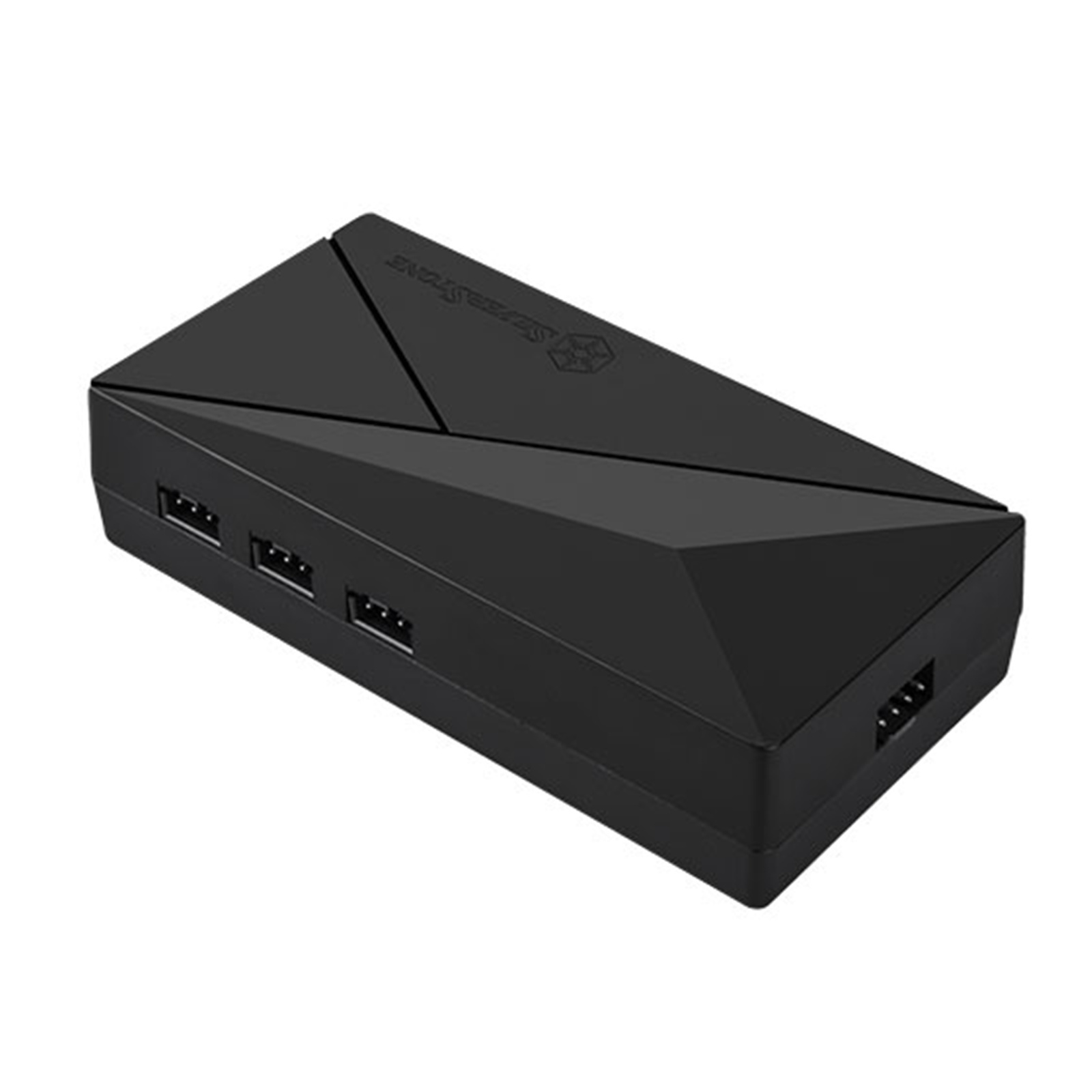

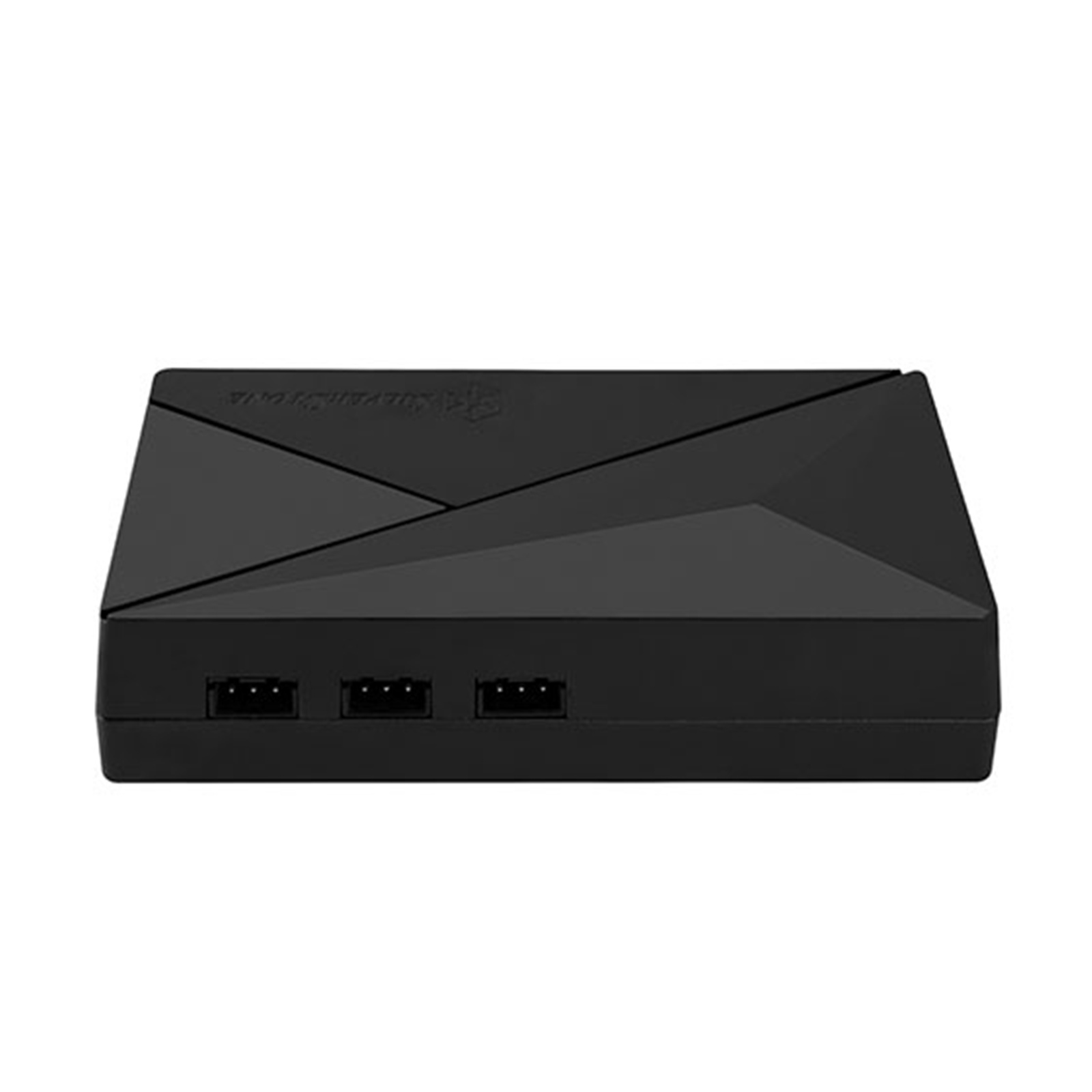

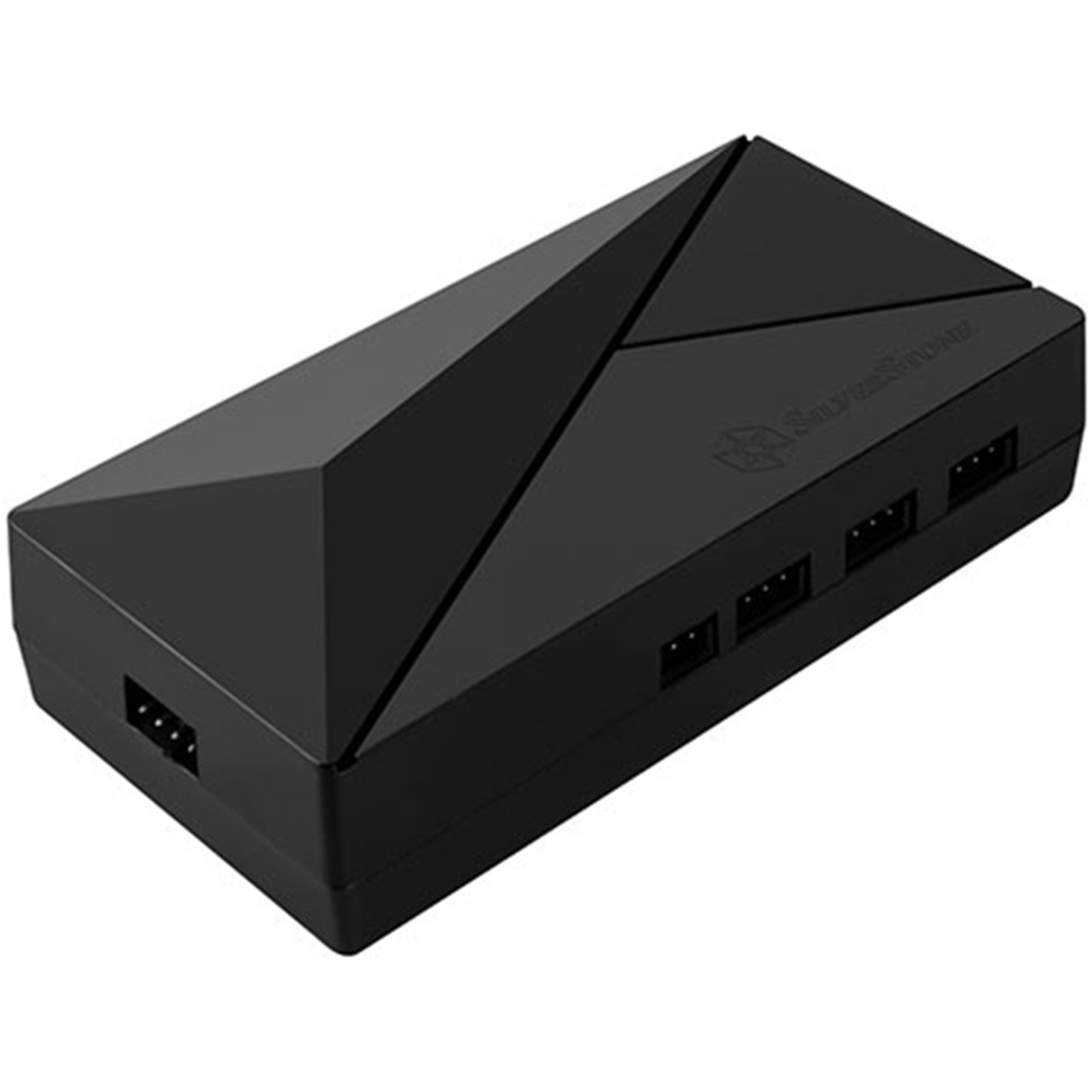

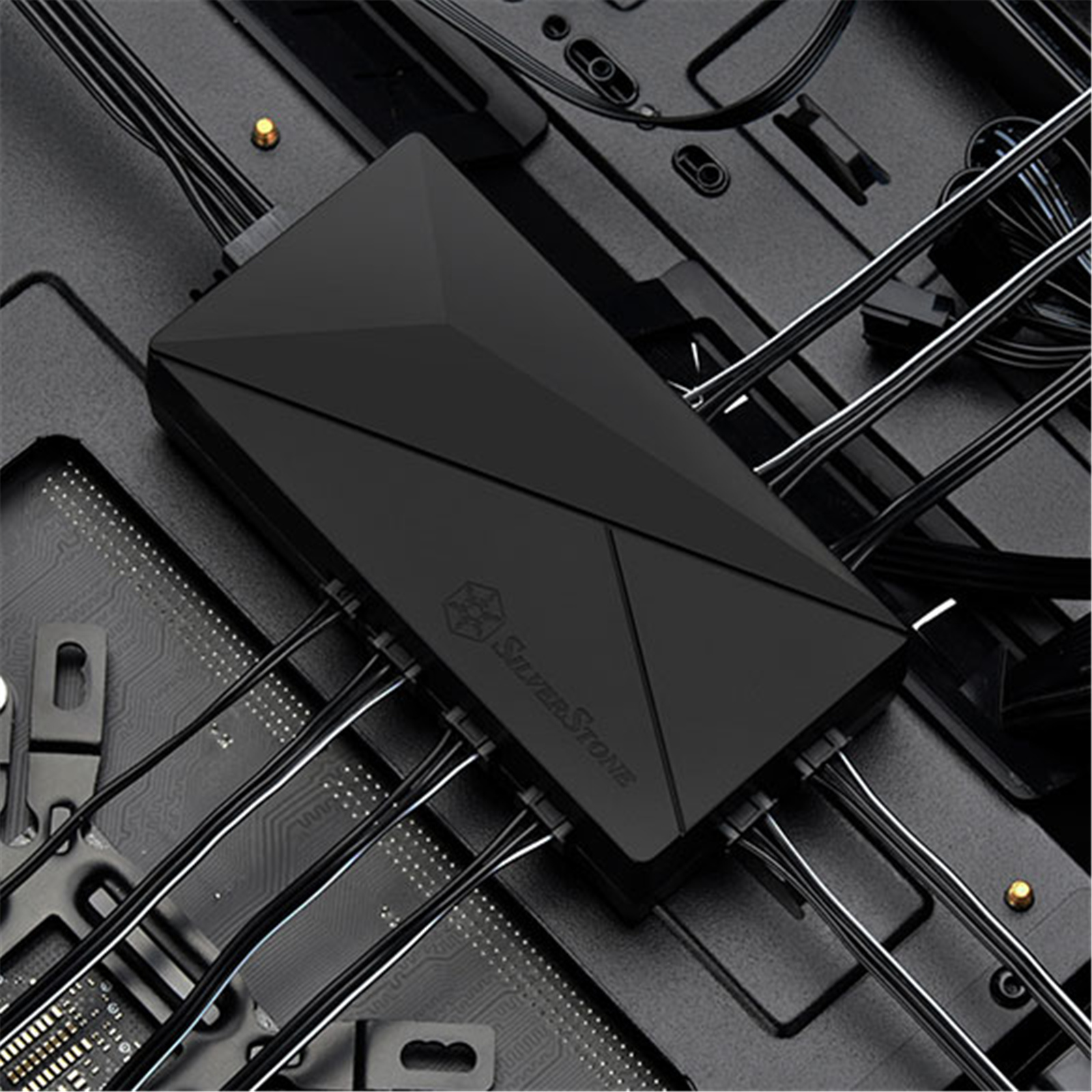

8-in-1 addressable RGB hub
For those looking to add lots of addressable RGB fans or light strips, CPL02-E supports up to 8 addressable RGB light strips or devices

Motherboard or ARGB controller is your palette

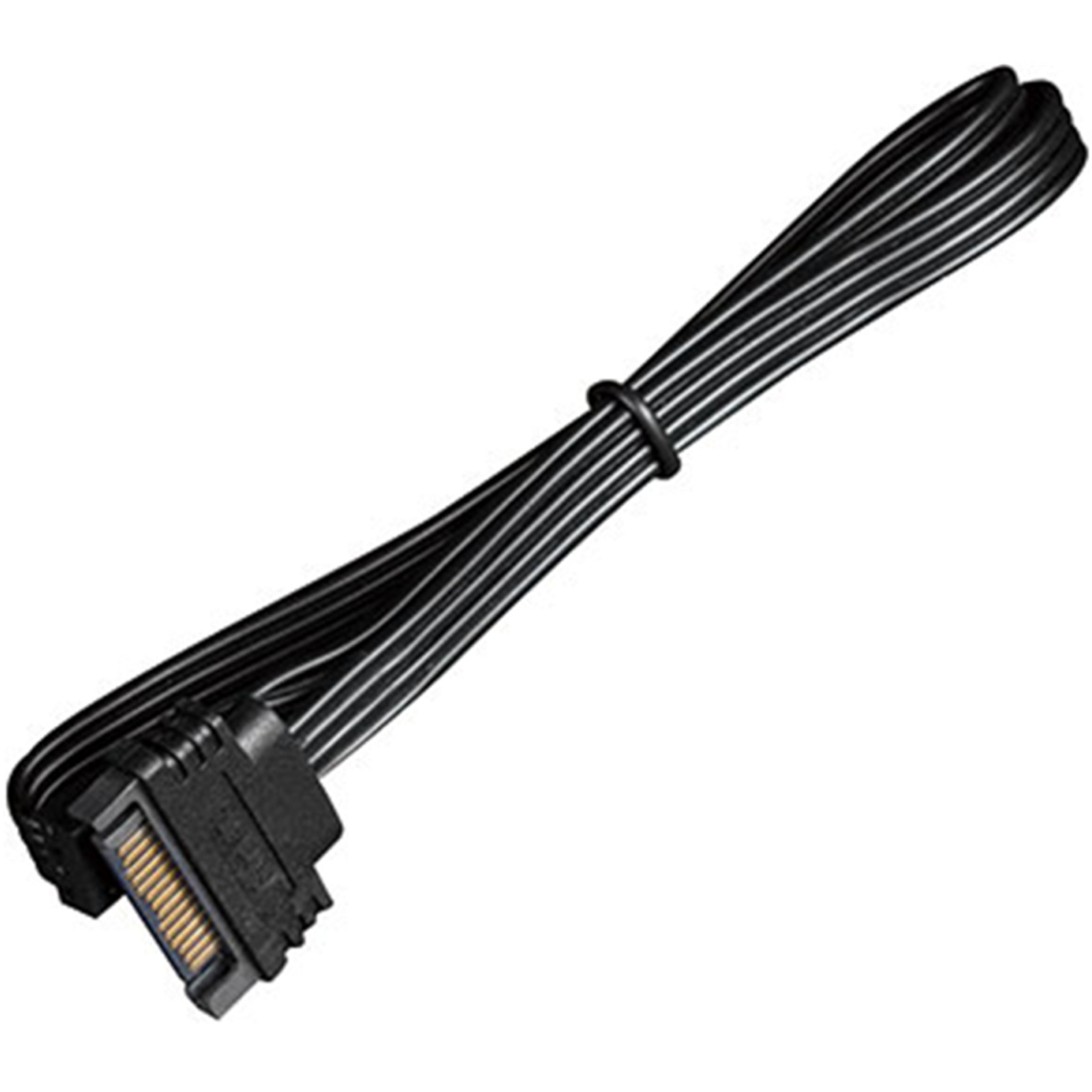

SATA power adapter cable
SATA power adapter cable provides more convenience along with plenty of stable power to drive addressable RGB devices

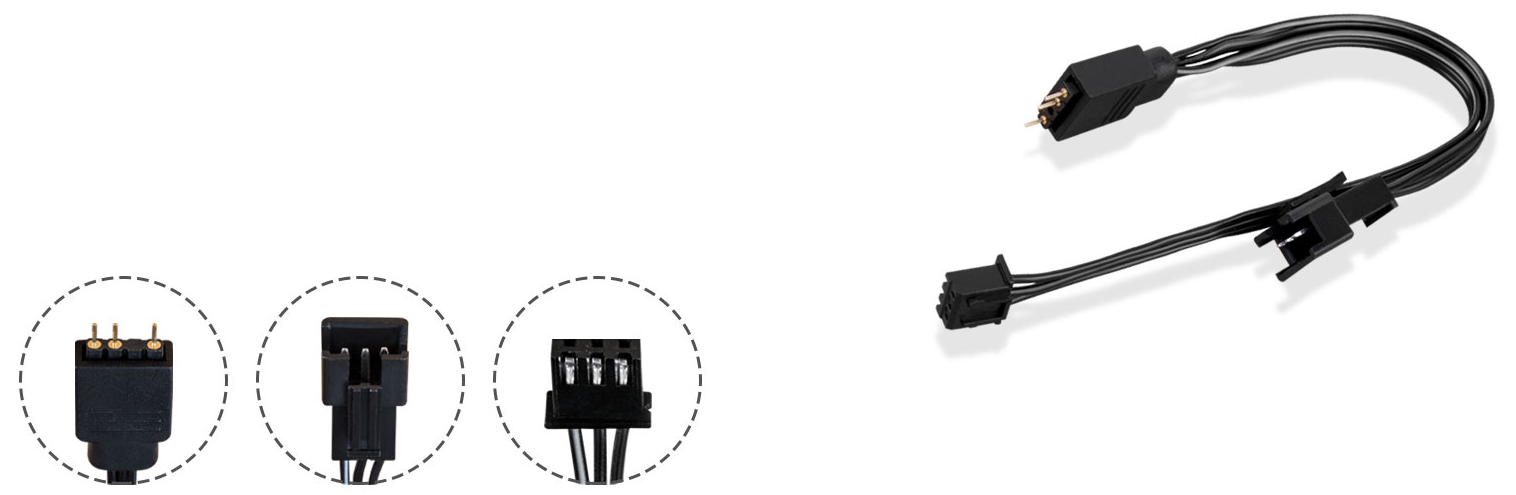

Compatible with addressable RGB standards
Cables included allow for connection of SilverStone or standard addressable RGB devices

Specifications
Model No.
SST-CPL02-E
Material
Plastic Shell
Signal input
Standard addressable RGB 3Pin + 5V, D, G*
Motherboard addressable RGB 4pin + 5V, D, NP, G*
Signal output
Standard addressable RGB 3pin + 4-1pin x 8
Power Input
SATA 15pin
Output limitation (each channel)
5V 9A (4.5A+4.5A)**
Dimension
103mm (L) x 52mm (W) x 27mm (H)
Extra
Standard addressable RGB 3pin + 4-1pin x 8
SATA power cable x 1

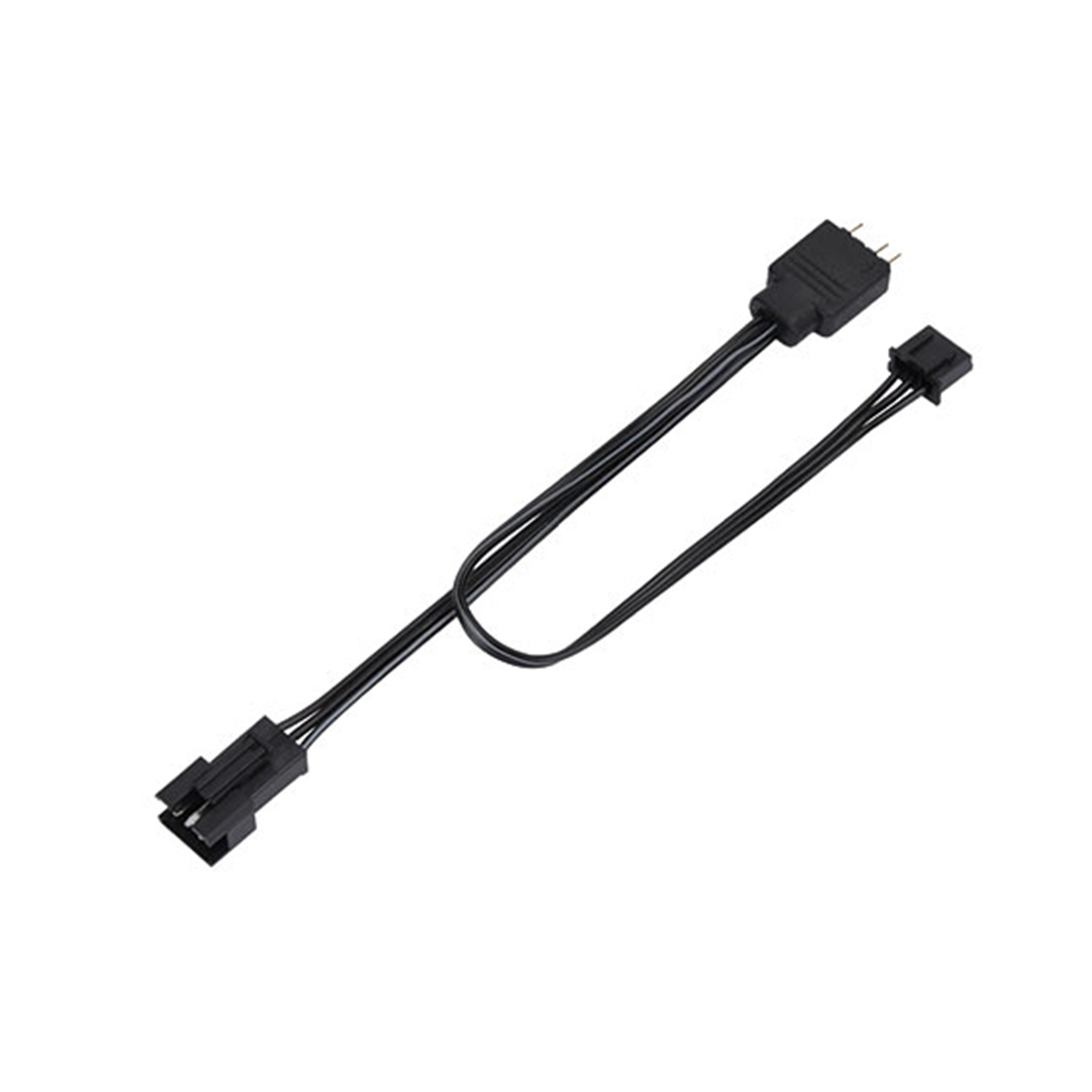

Input signal cable x 1
Notes
* Please check the signal source's control box and pin header that you want to connect is the same as CPL02-E's pin definition.
** The power output circuits for ports on the left and the right side are independent, please ensure to evenly distribute power draw when connecting devices.
