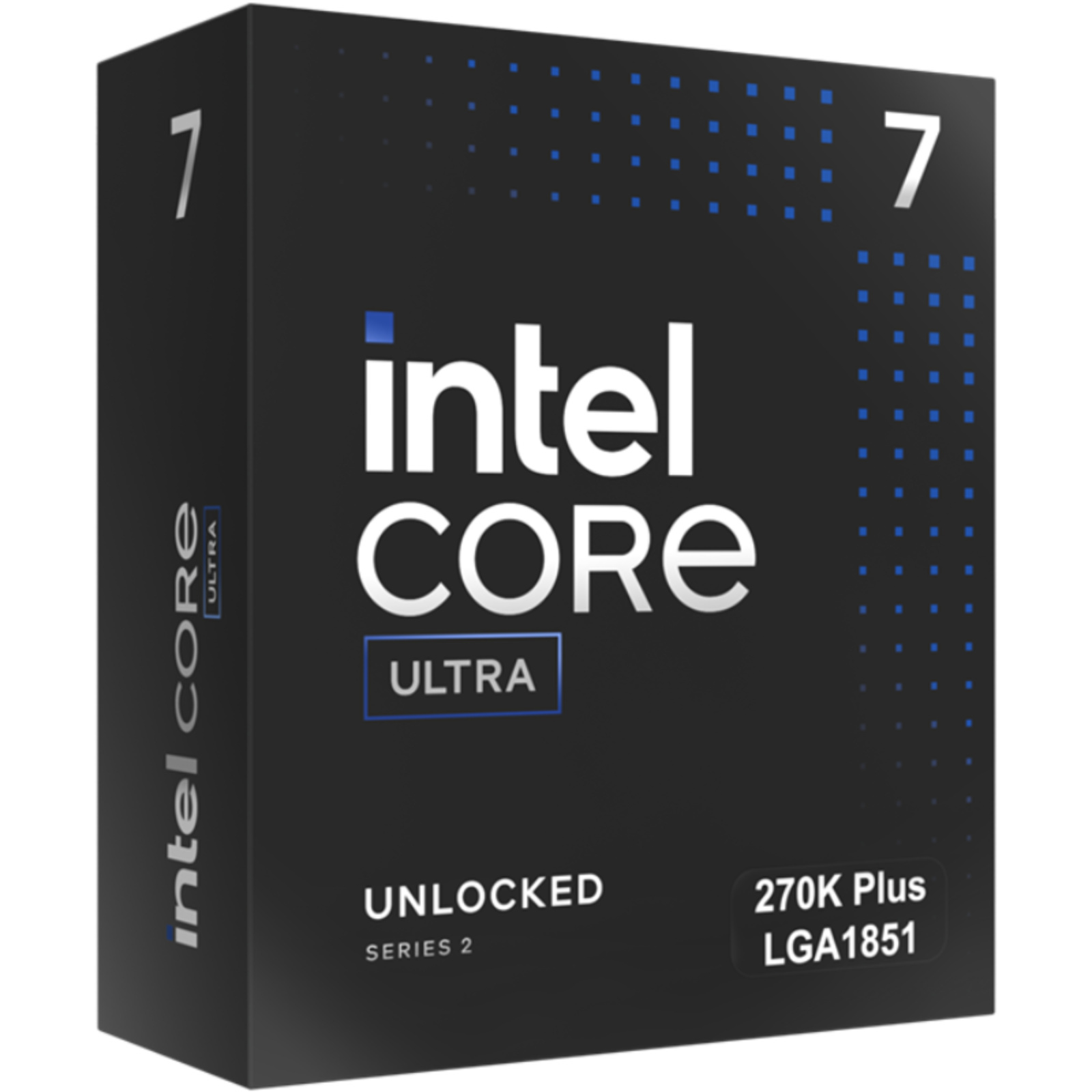

Intel Core Ultra 7 270K Plus CPU
24 Cores - 36MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required, Heatsink Required
Intel Core Ultra 7 270K Plus CPU
24 Cores - 36MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required, Heatsink Required
- Brand: Intel
- MPN: BX80768270K
- Part #: CPUIT157270K
- UPC:
- Brand: Intel
- MPN: BX80768270K
- Part #: CPUIT157270K
- UPC:
COMBO DEALS: Buy Together and SAVE!
PB Motherboard + CPU BIOS Update Service, order must contain both CPU + Motherboard together
$13.04 +GST
$15.00
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write -...
$266.66 +GST
$306.66
Gigabyte Z890 GAMING X WIFI7 ATX Motherboard For Intel LGA1851 - Z890 Chipset - PCIe 5.0, 4x M.2, 4x...
$399.00 +GST
$458.85
Crucial 16GB DDR5 for AMD EXPO / Intel XMP Desktop UDIMM RAM - 5600Mhz - CL46
$346.66 +GST
$398.66
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Intel Desktop CPUs
Intel Core Ultra 7 270K Plus CPU 24 Cores - 36MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required, Heatsink Required
- Brand: Intel
- MPN: BX80768270K
- Part #: CPUIT157270K
Product URL: https://www.pbtech.co.nz/product/CPUIT157270K/Intel-Core-Ultra-7-270K-Plus-CPU-24-Cores---36MB-C
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Nelson | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Intel® Core™ Ultra 7 270K Plus CPU





Specifications
Essentials
Product Collection
Intel® Core™ Ultra Processors (Series 2)
Code Name
Products formerly Arrow Lake
Vertical Segment
Desktop
Processor Number
270K Plus
Overall Peak TOPS (Int8)
36
CPU Specifications
Total Cores
24
# of Performance-cores
8
# of Efficient-cores
16
# of Low Power Efficient-cores
0
Total Threads
24
Max Turbo Frequency
5.5 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency
5.5 GHz
Performance-core Max Turbo Frequency
5.4 GHz
Efficient-core Max Turbo Frequency
4.7 GHz
Performance-core Base Frequency
3.7 GHz
Efficient-core Base Frequency
3.2 GHz
Cache
36 MB Intel® Smart Cache
Total L2 Cache
40 MB
Processor Base Power
125 W
Maximum Turbo Power
250 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU
Yes
AI Software Frameworks Supported by CPU
OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography
TSMC N3B
Supplemental Information
Embedded Options Available
No
Use Conditions
PC/Client/Tablet, Workstation
Memory Specifications
Max Memory Size (dependent on memory type)
256 GB
Memory Types
Up To DDR5 7200 MT/s
Max # of Memory Channels
2
ECC Memory Supported
Yes
GPU Specifications
GPU Name
Intel® Graphics
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
2 GHz
GPU Peak TOPS (Int8)
8
Graphics Output
eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores
4
Max Resolution (HDMI)‡
4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)
7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP)
7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)
3840 x 2400 @ 120Hz
DirectX* Support
12
OpenGL* Support
4.5
OpenCL* Support
3
H.264 Hardware Encode/Decode
Yes
H.265 (HEVC) Hardware Encode/Decode
Yes
AV1 Encode/Decode
Yes
Intel® Quick Sync Video
Yes
# of Displays Supported
4
Device ID
0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU
Yes
AI Software Frameworks Supported by GPU
OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
NPU Specifications
NPU Name
Intel® AI Boost
NPU Peak TOPS (Int8)
13
Sparsity Support
Yes
Windows Studio Effects Support
Yes
AI Software Frameworks Supported by NPU
OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision
4
Max # of DMI Lanes
8
Intel® Thunderbolt™ 4
Yes
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
1x16+2x4, 2x8+2x4, 1x8+4x4
Max # of PCI Express Lanes
24
Package Specifications
Sockets Supported
FCLGA1851
Max Operating Temperature
105 °C
Package Size
45 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator
3.5
Intel® Thread Director
Yes
Intel® Speed Shift Technology
Yes
Intel® Turbo Boost Max Technology 3.0
Yes
Intel® Turbo Boost Technology
2.0
Intel® Hyper-Threading Technology
No
Intel® 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Volume Management Device (VMD)
Yes
Security & Reliability
Intel vPro® Eligibility
Intel vPro® Enterprise
Intel® Threat Detection Technology (TDT)
Yes
Intel® Active Management Technology (AMT)
Yes
Intel® Standard Manageability (ISM)
Yes
Intel® Remote Platform Erase (RPE)
Yes
Intel® One-Click Recovery
Yes
Intel® Secure Key
Yes
Intel® Control-Flow Enforcement Technology
Yes
Intel® Total Memory Encryption - Multi Key
Yes
Intel® AES New Instructions
Yes
Intel® Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel® OS Guard
Yes
Intel® Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel® Stable IT Platform Program (SIPP)
Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp)
Yes
Intel® Virtualization Technology (VT-x)
Yes
Intel® Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® VT-x with Extended Page Tables (EPT)
Yes
