iBASE SI-18 Digital Signage Player (DS), Ultra Compact Embedded System with EB900, T56N 1.65GHz APU, 2GB DDR3 SO-DIMM, 320GB 2.5" SATA HDD, 60W power adapter, (RoHS)

iBASE SI-18 Digital Signage Player (DS), Ultra Compact Embedded System with EB900, T56N 1.65GHz APU, 2GB DDR3 SO-DIMM, 320GB 2.5" SATA HDD, 60W power adapter, (RoHS)
PB Tech price: PB Tech price:
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

iBASE SI-18 Digital Signage Player (DS), Ultra Compact Embedded System with EB900, T56N 1.65GHz APU, 2GB DDR3 SO-DIMM, 320GB 2.5" SATA HDD, 60W power adapter, (RoHS)

iBASE SI-18 Digital Signage Player (DS), Ultra Compact Embedded System with EB900, T56N 1.65GHz APU,...

Features

SI-18 Signature Book - an ultra-compact digital signage player powered by the AMD Embedded G-Series APU.


The AMD Embedded G-Series APU, packs two (2) CPU cores and eighty (80) GPU cores on one piece of silicon. It supports applications DirectX® 11, Direct Compute 11, OpenCLTM 1.1 and OpenGL 3.2. Also included is AMD's UVD3 hardware video decoder which handles full HD playback of MPEG2, MPEG4, H.264, WMV9 and VC-1 video streams.

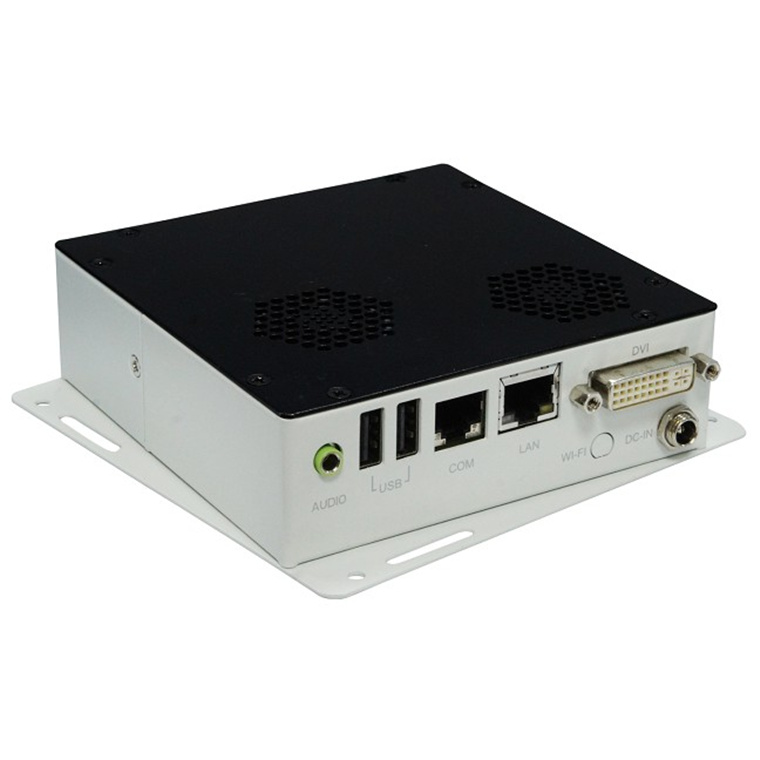

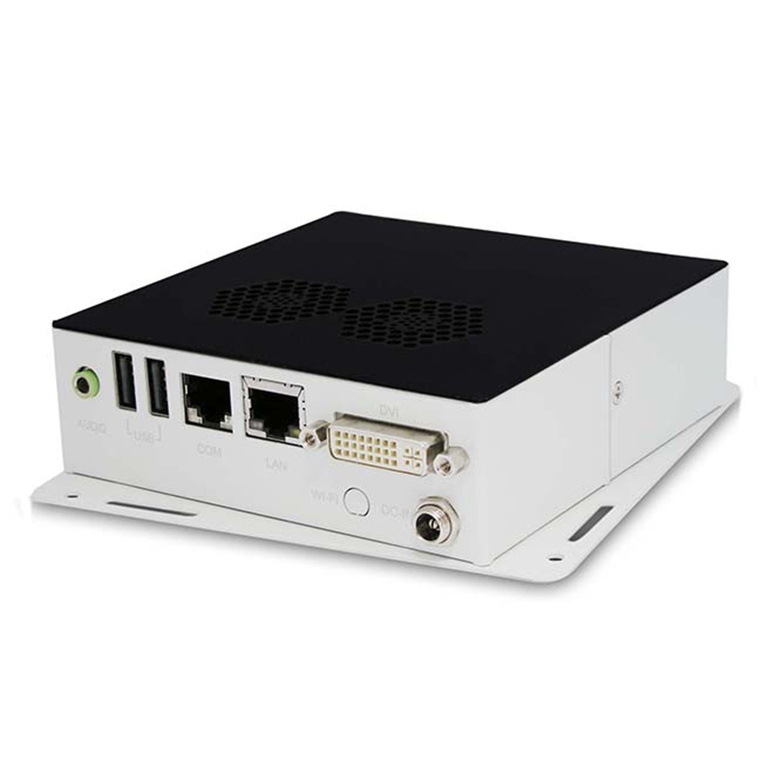

The SI-18 measures 4.9" x 4.9" x 1.3" and features an industrial grade all metal chassis with integrated mounting brackets. Near universal display compatibility is ensured by the Hybrid-DVI connector supporting DVI, HDMI and VGA displays. SI-18 systems come standard with an AMD Embedded G-Series T56N processor, 2GB of DDR3 memory, 160GB of hard drive storage and gigabit Ethernet Maximum power consumption is an efficient 25 Watts.

Specifications

System Mainboard

EB900-16C-SI

CPU Type

AMD G-Series Dual-Core APU (T56N=1.65GHz @ 18W TDP)

CPU Package

413-BGA

Chipset

AMD A50M

Memory

DDR3 1333MHz SO-DIMM memory, Max. 4GB

Graphics

AMD Radeon™ HD6320 series graphics processing system integrated in APU
DirectX 11
Direct Compute 11
Open GL 4.0
OpenCL 1.1

UVD3 Hardware Video Decoder -

MPEG2, MPEG4, H.264, VC-1, WMV9

Hybrid-DVI connector

supporting CRT, DVI, or HDMI

LAN

1x Realtek RTL8111C PCI-E Gigabit LAN controller

Expansion Slots

1x Mini PCI-E (Half-size) for Wi-Fi or Bluetooth options

I/O Interface

1x Hybrid-DVI (VGA/ DVI/ HDMI with audio)
2x USB 2.0 ports
1x RJ45 for Gigabit LAN
1x RJ45 for RS232 serial port
1x Microjack audio connector for Line-out

Auto Control and Monitoring Watchdog Timer:

256 segments, 0, 1, 2...255 (sec/min)

On / Off scheduler:

2 time slots

Power Requirement

+12V DC-in

Construction

SGCC

Weight

0.8Kg (1.76lbs)

Chassis Color

Black & White

Storage

1x 2.5" HDD drive bay

Power Supply

60W power adaptor

Mounting

Slim design with wall mounting holes

Dimensions

125mm(W) x 125mm(D) x 36mm(H)
4.92"(W) x 4.92"(D) x 1.42"(H)

Operating Temperature

0°C~ 40°C (32°F~104°F)

Storage Temperature

-20°C ~ 80°C (-4°F~176°F)

Relative Humidity

5~90% @ 45°C, (non-condensing)

Vibration SSD:

5 grms / 5~500Hz / random operation

HDD:

0.25 grms / 5~500Hz / random operation

Certification

CE, FCC class B & CCC

Operating System Support

Windows® 7 (32/64-bit), Windows 8.1† (32/64-bit)
Window Embedded Standard 7 (32/64-bit),
Window Embedded Standard 8 (32/64-bit)
Linux Closed Source (64-bit), Linux Open Source (64-bit)

Manufacturer Part No: SI-18 Brand: iBASE Product Type: Digital Signage Player
UPC - Product Family: - Shipping Weight: 1 kg
PB Part No: DGSIBA18 Product Model: SI-18

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
