Maxhub Raptor Gen3 138" 1.5pp AIO LED
- Brand: Maxhub
- MPN: LX138V07
- Part #: DGSMHB41383
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Digital Signage





Maxhub Raptor Gen3 138" 1.5pp AIO LED
- Brand: Maxhub
- MPN: LX138V07
- Part #: DGSMHB41383

Product URL: https://www.pbtech.co.nz/product/DGSMHB41383/Maxhub-Raptor-Gen3-138-15pp-AIO-LED
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 1 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

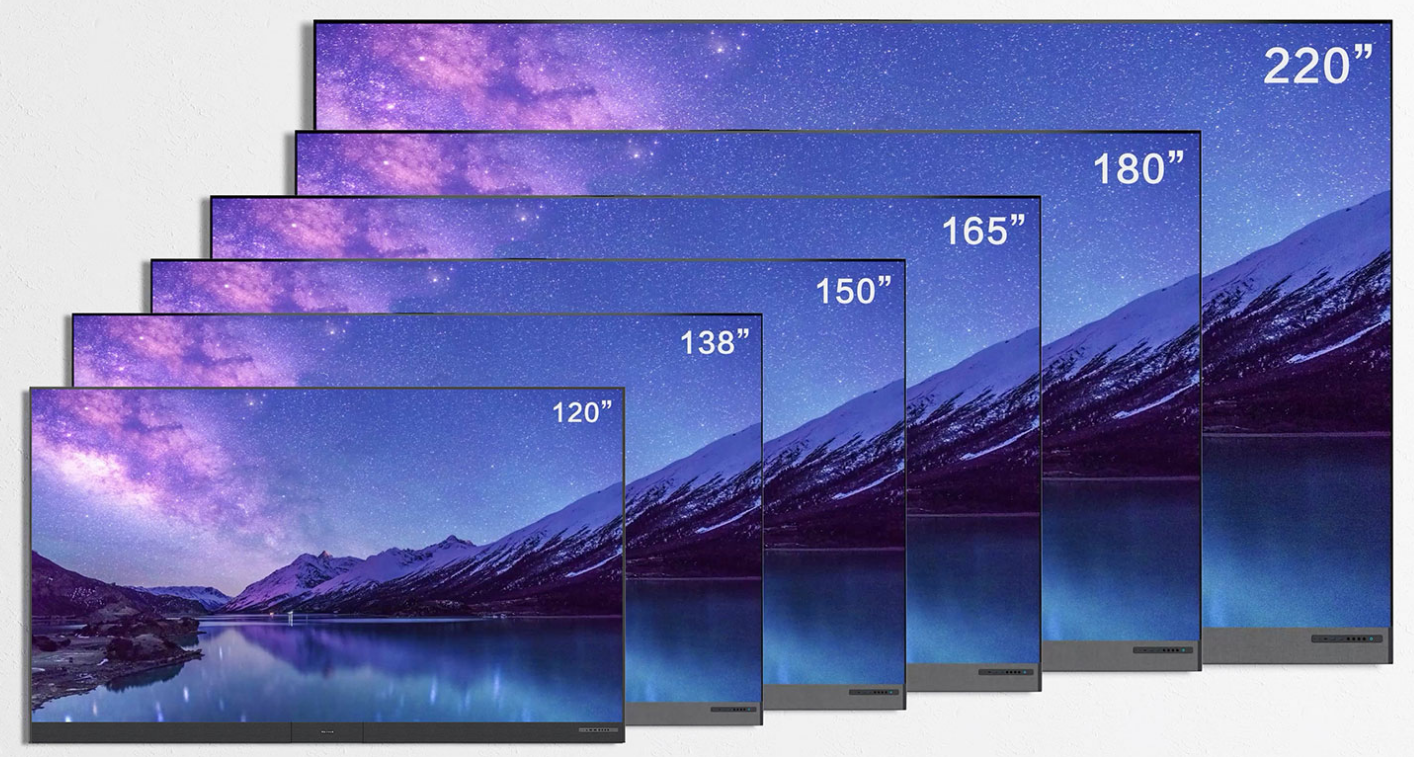

EXPLORE A RANGE OF SUPERIOR VISUAL QUALITY OPTIONS FOR YOUR ROOM
The options available range from 120" to 220", offering versatility to accommodate various room sizes and viewing preferences.

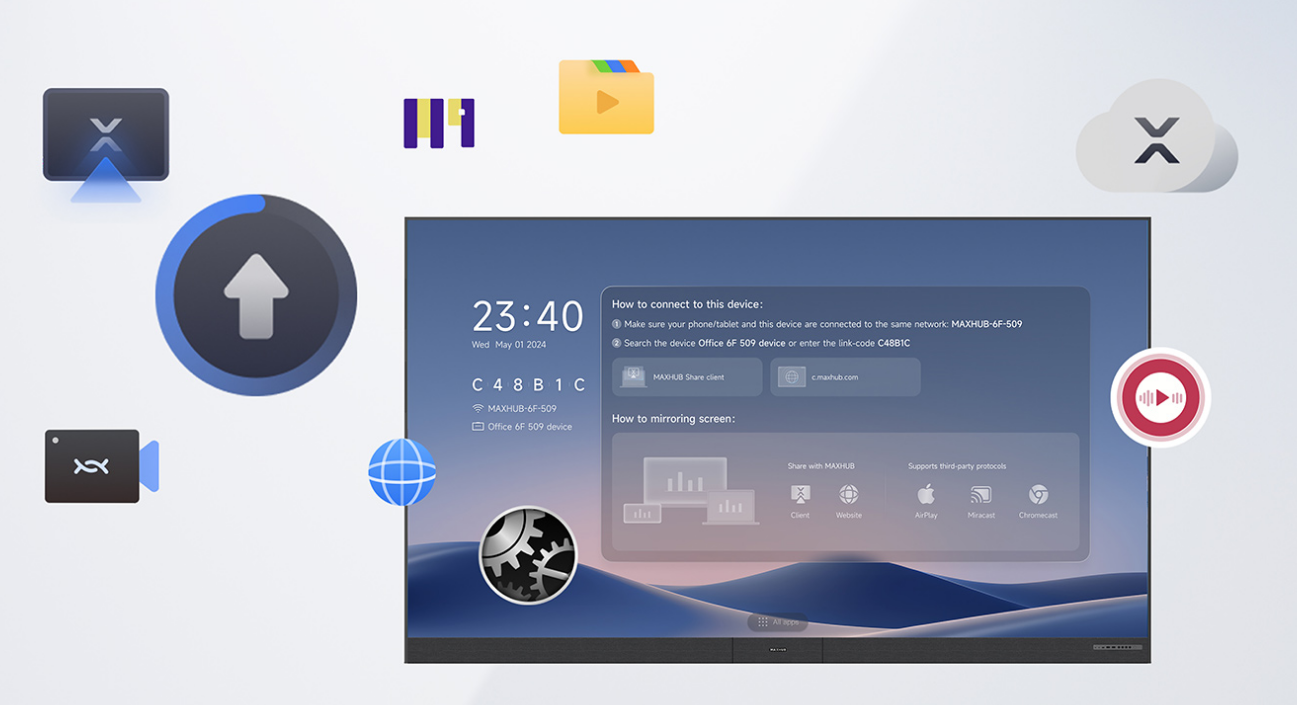

BUILT-IN ANDROID 13 SYSTEM
Experience more than just a display; with numerous built-in applications, transform your room into a versatile space.
OPTIONAL BUILT-IN PC
With high compatibility, this option is compatible with a variety of devices and protocols needed for different display scenarios.
VERSATILE VIDEO CONFERENCING SOFTWARE COMPATIBILITY
The System supports a reange of platforms such as Teams, Zoom, Webex and Google Meet.
COMPATIBLE WITH MAXHUB MICROSOFT TEAMS ROOMS ECO SYSTEM
Featuring wake on sync and Microsoft Teams Rooms PC wake on with raptor this system allows for effortless preparation of your meeting room, freeing your hands for other tasks.

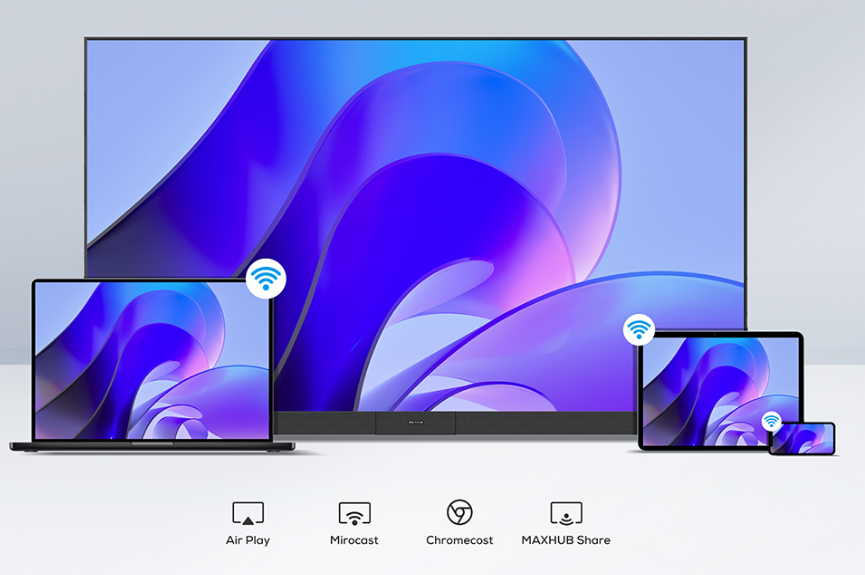

WIRELESS SCREEN SHARING CAPABILITIES
Wireless screen sharing is seamlessly facilitated through platforms such as MAXHUB Share, Miracast, Chromecast, and AirPlay.

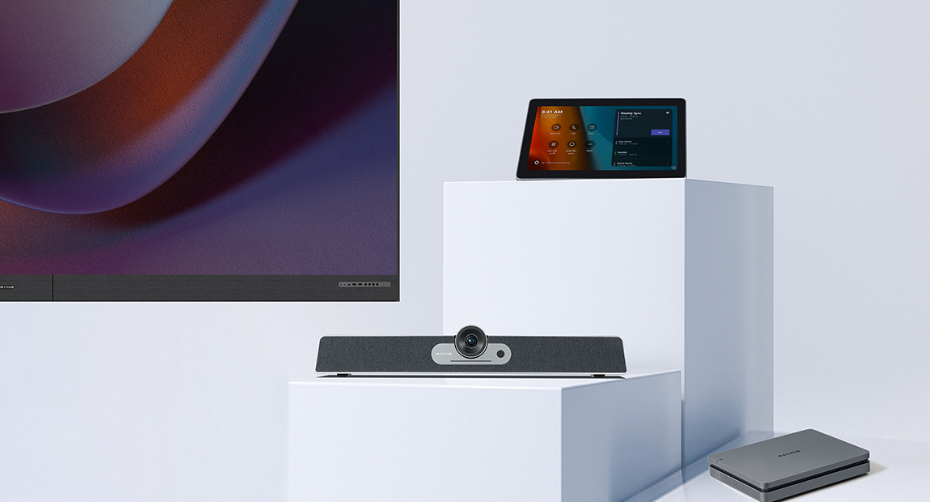

BYOM
Support wireless use the MAXHUB UC products connected to the devices

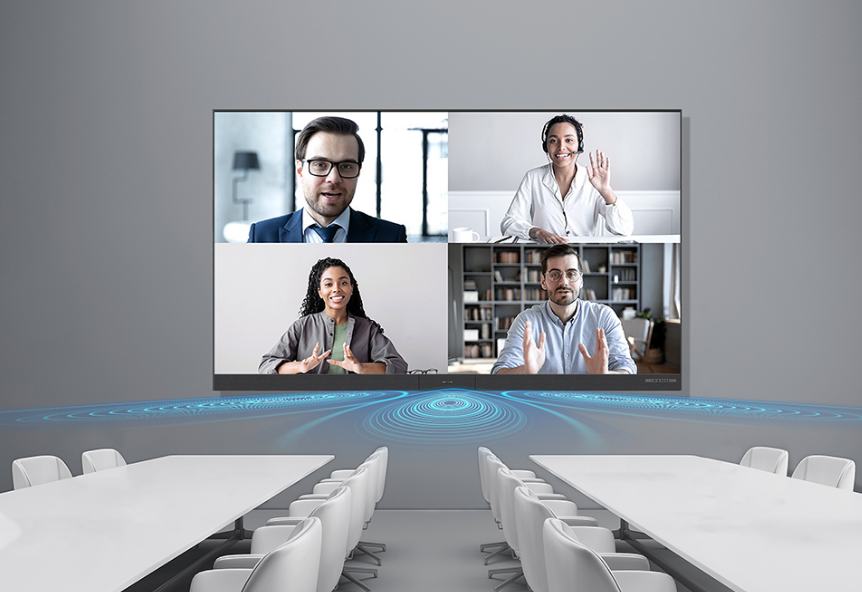

IMMERSIVE AUDIO SYSTEM CLEAR VOICE FOR LARGE SPACE
4.2-channel audio, with front gap sound emission.

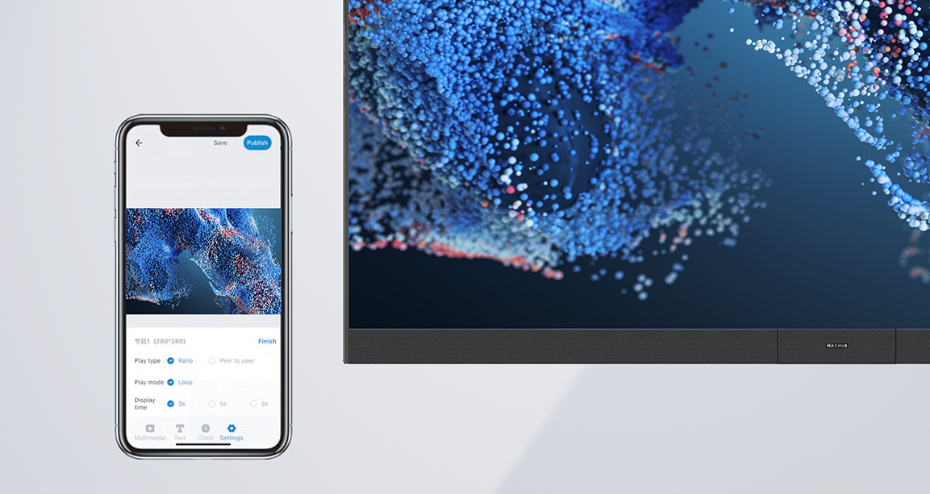

EFFORTLESS DEVICE CONTROL
Enjoy effortless device management with our MAXHUB touch control panel and self-developed app for mobile device control.

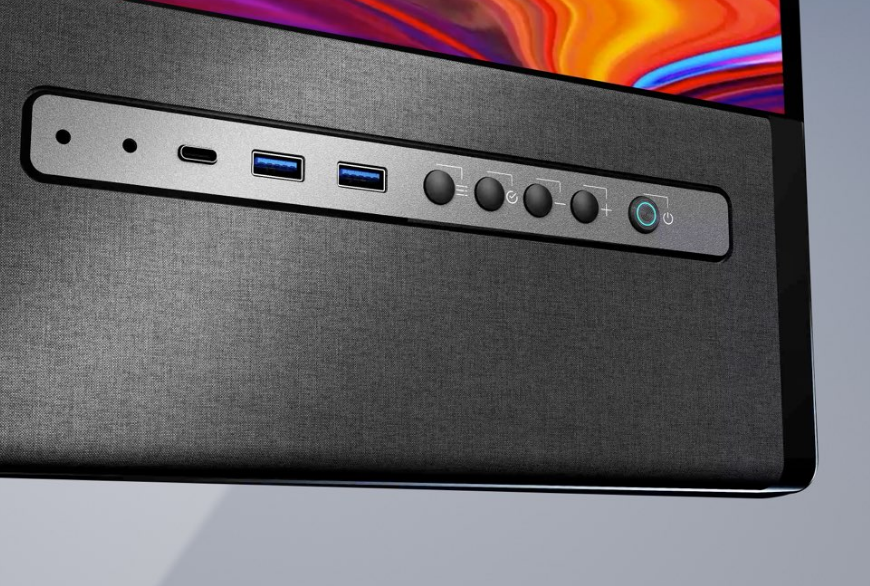

AMPLE I/O PORTS
High potential to set up your meeting room with different components
3RD PARTY CONTROL INTEGRATION
Seamlessly integrated with 3rd party control system such as Q-SYS, Extron, and more.

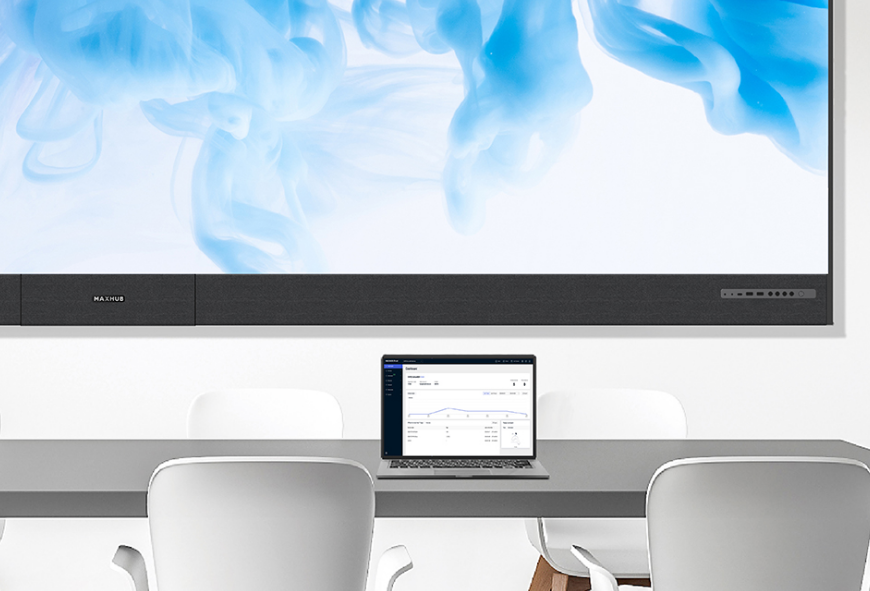

SUPPORT MAXHUB PIVOT
Better to know your device and prepare a good meeting experience remotely
Specifications
Physical Spec.
LED type
SMD
Size
138"
Aspect Ratio
16:9
Pixel Pitch(mm)
1.5
Resolution
1920x1080
Overall Size (L*H)(mm)
3080 x 1840
Display Area (L*H)(mm)
3050 x 1715
Screen Thickness
28 mm
Net Weight (Wall-mounting bar and stand not included)
122 kg (269 lbs.)
Gross Weight (Including Wall-mounting bar)
232 kg (512 lbs.)
Recommended Viewing Distance
=3.2 m(10.5 ft.)
Maintenance Mode
Front Access
Installation Mode
Mobile stand, Stand, Wall-mounting
Screen And Module Dimension (Wooden Box)(W*H*D)
1 pc:1900×760×1215 mm (6.23 x 2.49 x 4 ft.)
Lower Frame And Wall-mounting Bar Packing Dimension
(wooden box)(W*H*D)
1 pc: 2064×556×497 mm (6.78 x 1.82 x 1.63 ft.)
Electrical Parameter
Operation Voltage
100~240VAC 50/60Hz
Standby Power
=0.5W
Average Power
Consumption of Overall Unit
0.49KW
Maximum Power
Consumption of Overall Unit
1.45KW
Audio
Sound Channel
4.2
Speaker Output
4*30W
System Parameter
Operating System
Android 13.0
CPU
Four Cortex-A76+ four Cortex-A55,
frequency 2.4GHz
RAM
8GB
Storage
64GB
Media Format
Support mainstream video format such as
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,
H.265,VC-1,VP9,VP8,MVC,AV1;
Support audio formats such as
MP3; Support JPG, JPEG, BMP, PNG,
GIF and other image format.
Environmental Parameter
Operation Temperature
-10?~40?
Operation Humidity
10%~80%RH No condensation
Conectivity
HDMI IN(HDMI2.0 *1,HDMI1.4 *3)
4 (2 internal, 2 external)
HDMI OUT
1 (external)
POE
1 (internal) - Up to 30W
USB 2.0
1 (internal) - Host
USB 3.0
2 (external) - Host
Type C
1 (external)
3.5 Audio Output
2 (1 internal, 1 external)
3.5 Audio Input
1 (external)
RS232(RJ45)
1 (internal)
USB Out
1 (external) - After connecting to a PC,
the PC can access
the LED front USB port.
LAN
2 (internal)
Light Sensor
1: intelligent space sensing,
allowing for automatic
brightness adjustment
Bluetooth
5.3
Wi-Fi
WiFi 6, AP and STA modes, and WiFi 6 dual-band 2.4G/5G are available
