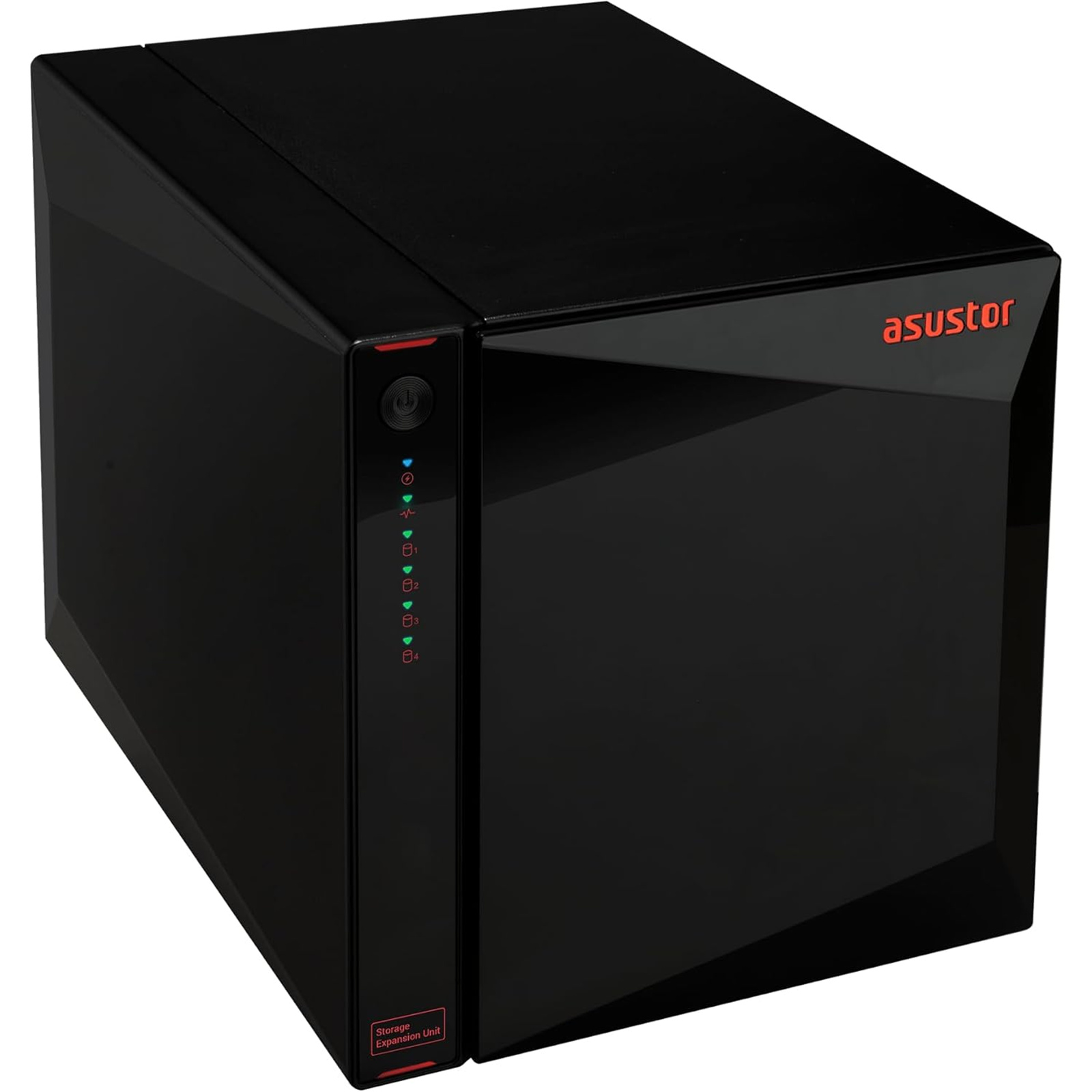

Asustor Xpanstor AS5004U 4-Bay Expansion Unit, 4x 3.5" /2.5" Bays, Tower, 1x Type C Includes Cable, 3 Years Warranty, for use with Asustor NAS Only

PB Tech price
PB Tech price
$ 523 .00
 +GST
$ 601 .45
 inc GST

Out of stock

Asustor Xpanstor AS5004U 4-Bay Expansion Unit, 4x 3.5" /2.5" Bays, Tower, 1x Type C Includes Cable, 3 Years Warranty, for use with Asustor NAS Only

  • Brand: Asustor
  • MPN: AS5004U
  • Part #: ENCAST5004
  • UPC:
NEW ARRIVAL
PB Tech price
$ 523 .00 $ 601 .45
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

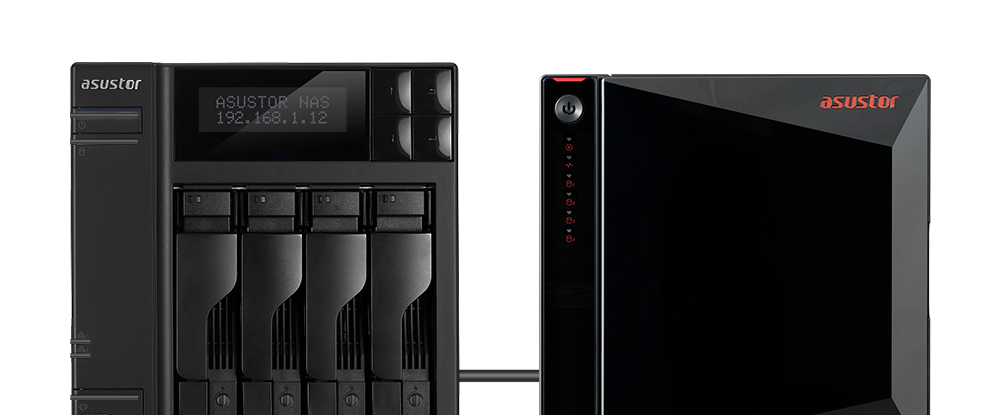

NAS Storage Capacity Expander

- Plug and play online expansion
- USB 3.2 Gen 2 Type C interface for 10 Gbps speed
- Compatible with high capacity 22TB hard disks
- Smart power sync helps to save power
- Smart fan for temperature control
- Supports MyArchive cold backup technology

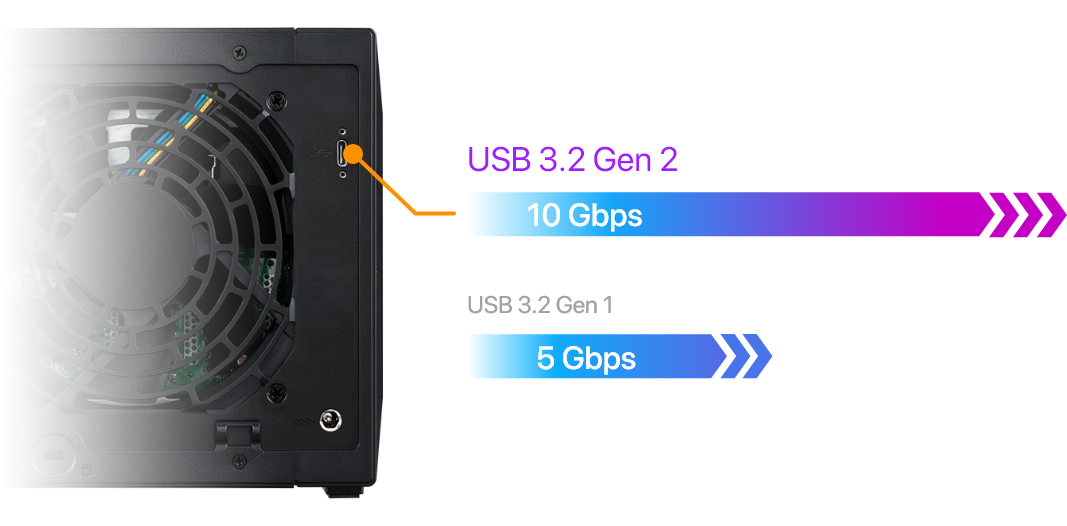

Faster and Easier!

The all-new Xpanstor 4 adopts USB 3.2 Gen 2 with a Type-C socket. USB 3.2 Gen 2 transfers files even faster with the ability to transfer of up to 10 Gbps. The Xpanstor is also backward compatible with ASUSTOR NAS devices that support USB 3.2 Gen 1 and will operate at the 5 Gbps maximum those devices support. Use the Xpanstor to expand the capacity of your NAS to grow your workflow as needed.

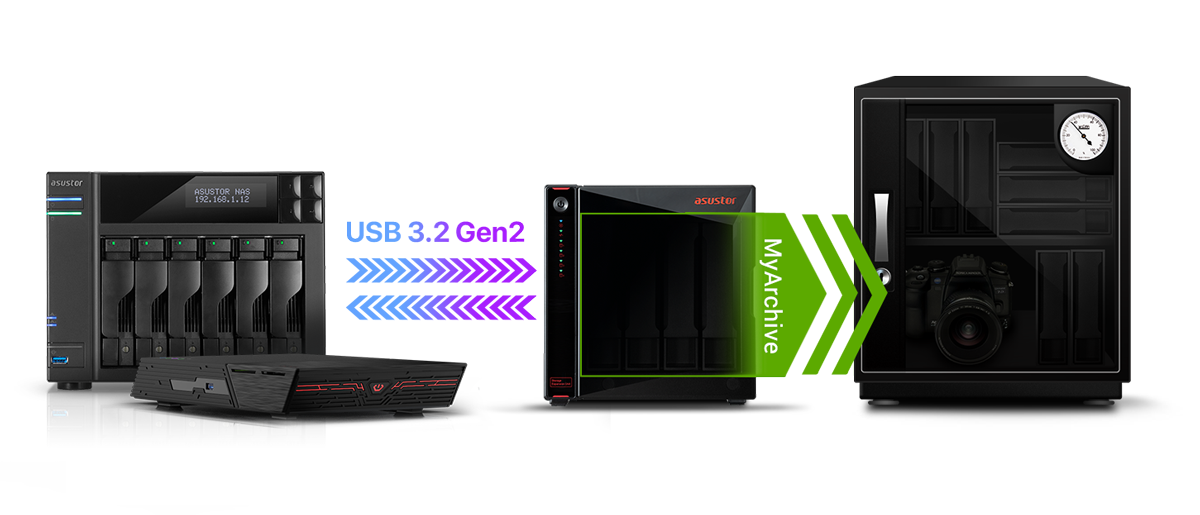

MyArchive Welcome!

The Xpanstor 4 supports MyArchive cold storage technology. Directly insert a MyArchive hard drive into an available bay to access data, making data access extremely convenient. Use MyArchive to also set up schedules for backing up with automatic mounting and unmounting, making your backups simpler and more convenient.

Sleeps When Your NAS Sleeps

When a connected NAS enters sleep mode or shuts down, the Xpanstor will enter sleep mode simultaneously to save energy and hardware longevity. LED brightness in the Xpanstor 4 also synchronizes with your NAS, ensuring no bright lights when your NAS is off.

Operation

Disk Hibernation

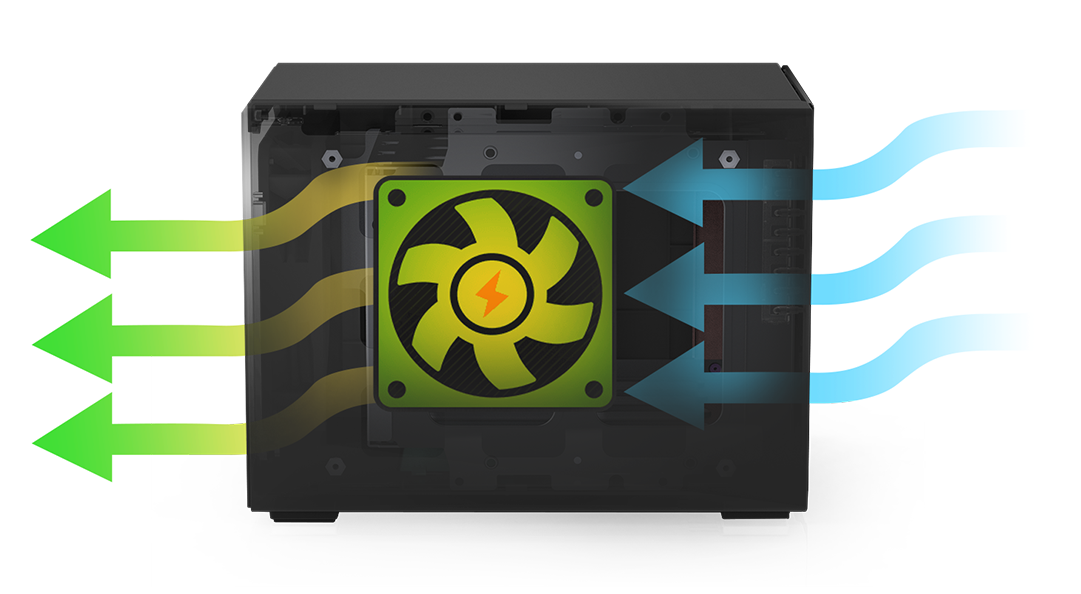

Cool and Quiet

The internal fan found inside the Xpanstor 4 automatically adjusts its speed according to hard drive temperatures and maintains a balance between sound and performance.

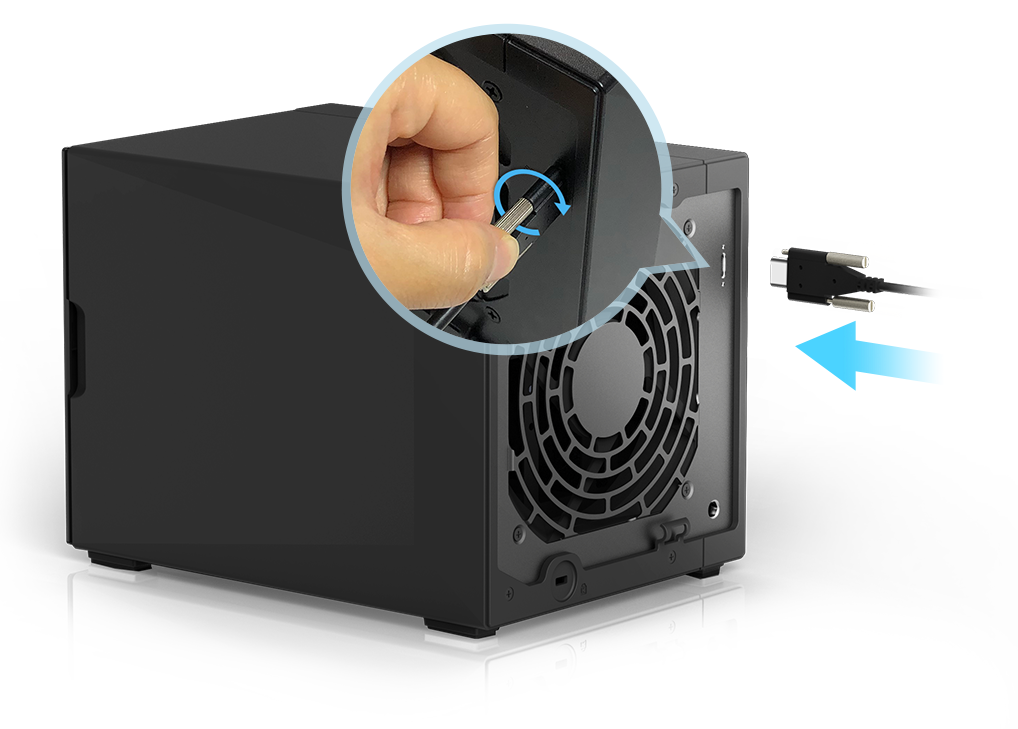

Stable USB Connection

The Xpanstor 4 has a specially designed USB-C connector and cable. The cable included with your Xpanstor 4 locks in with your expansion unit with two screws on each side of the cable to lock it into the expansion unit to prevent it from being accidentally disconnected.

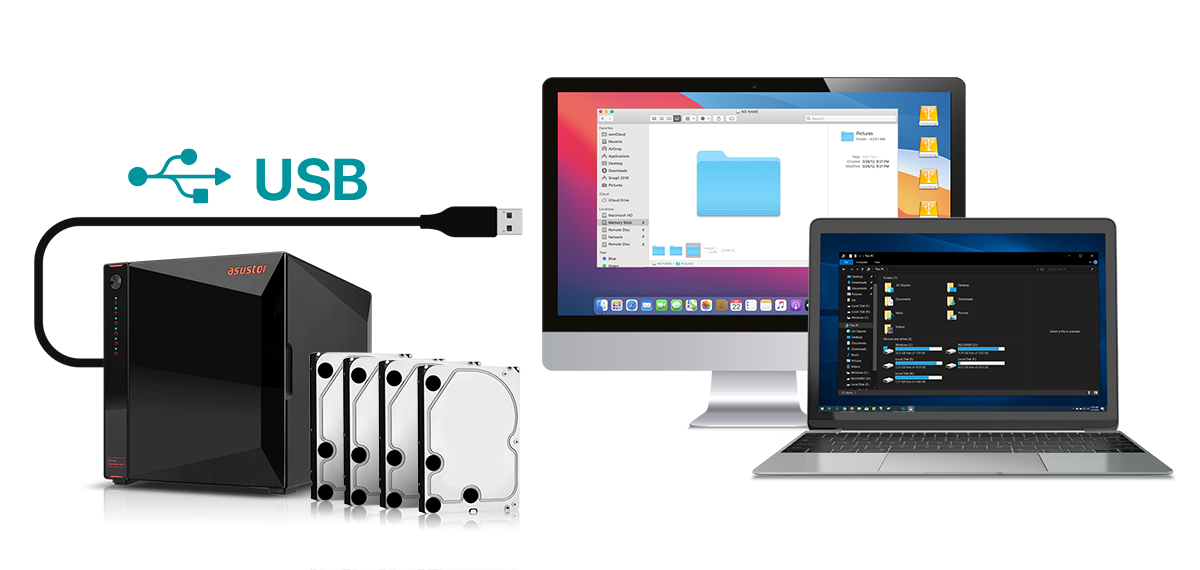

PC-Friendly!

The Xpanstor 4 works well as a DAS solution as well. Plug an Xpanstor into a computer to access up to four independent drives that can be used by a Windows, Mac or Linux machine for applications that include, but are not limited to storage, drive cloning and diagnostics.

Specifications

Hardware

Flash Memory

32MB Flash

Expansion

USB 3.2 Gen 2 (10Gbps) Type C

HDD

4 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD

Maximum Internal Raw Capacity

88 TB  (22 TB HDD x 4, Capacity may vary by RAID types)

Supports

Hot Swappable Drives

System Fan

120mm x1

Power Supply Unit / Adapter

90W x1

Input Power Voltage

100V to 240V AC

Certification

FCC, CE, VCCI, BSMI, C-TICK, BIS, KCC, EAC

Applied Models

AS31, 32, 40, 61, 62, 63, 64, Nimbustor, Nimbustor Gen2, Drivestor, Drivestor Pro, Drivestor Lite, Drivestor Pro Gen2, Lockerstor, Lockerstor Gen2, Lockerstor Pro, Flashstor

Operation

Power Consumption

Operation: 24.68 W
Disk Hibernation: 6.02 W

Operation Temperature

0°C~40°C (32°F~104°F)

Humidity

5% to 95% RH

Software & Features

Operating System

ADM 4.2.4 Onwards

File System

Internal Disk: EXT4, Btrfs

Size and Weight

Size

174(W)x170(H)x230(D) mm

Weight

2.03 kg / 4.48 lbs

Storage Management

Support

Multiple Volumes with Spare Drives
Support for Online RAID Level Migration
Support for RAID Capacity Expansion
Hard drives in an expansion unit cannot be combined with NAS drives in the same RAID array.

Volume Type

Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Manufacturer Part No:
AS5004U
Brand:
Product Type:
4-Bay Expansion Unit,
UPC
-
Product Family:
Xpanstor
Shipping Weight:
5 kg
PB Part No:
ENCAST5004
Product Model:
AS5004U
Warranty: 36 months *
