Dockcase Explorer Edition Pocket Smart 2230 M.2 NVMe SSD Enclosure - Matte Black 1.33" Screen, 3 Sec Power Loss Protection, 10Gbps USB-C 3.2 G2, D-Key Button, Up to 2TB, Aluminum Alloy with Tempered Glass case

With promo code $75.85
With promo code $87.23
Save 14%
Save $14
$ 88 .47
 +GST
$ 101 .74
 inc GST
$88.47  +GST
$101.74

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Dockcase Explorer Edition Pocket Smart 2230 M.2 NVMe SSD Enclosure - Matte Black 1.33" Screen, 3 Sec Power Loss Protection, 10Gbps USB-C 3.2 G2, D-Key Button, Up to 2TB, Aluminum Alloy with Tempered Glass case

  • Brand: Dockcase
  • MPN: DSWC1M-3B
  • Part #: ENCDOC22301
  • UPC:
CLEARANCE
With promo code $75.85
With promo code $87.23
Save 14% with code CLEARANCE
Save $14 with code CLEARANCE
Without promo code
$ 88 .47 $ 101 .74
 +GST  inc GST

Part of Clearance Zone
For a limited time only, while stocks last!


Click & Collect: Available from 5 stores.
Select your store to check availability
Delivery: Order now and it ships on 15 Sep When will I receive it?
$88.47  +GST
$101.74
  • Brand: Dockcase
  • MPN: DSWC1M-3B
  • Part #: ENCDOC22301
  • UPC:

Drive Bays

1 Bay

Tool Free

No

Features

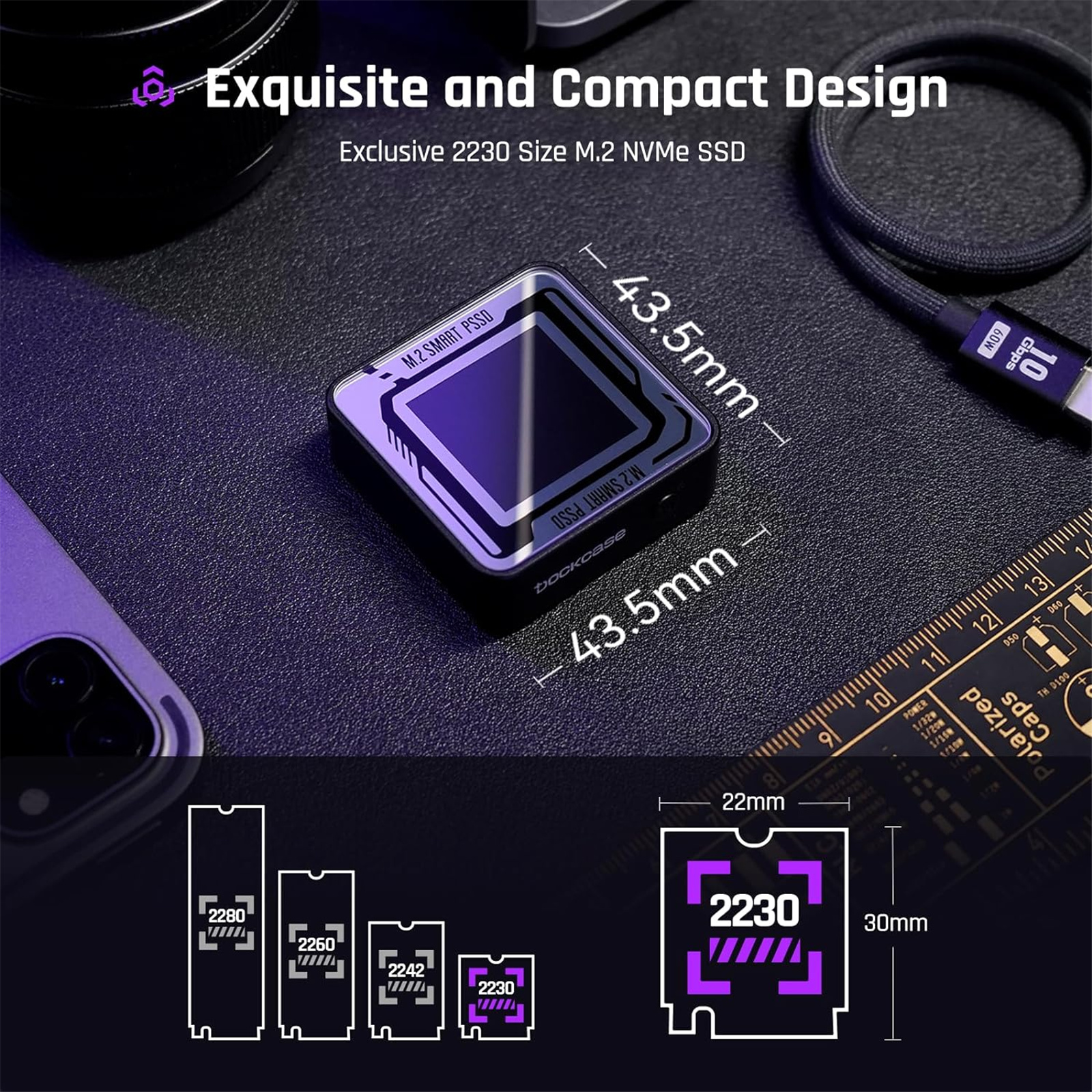

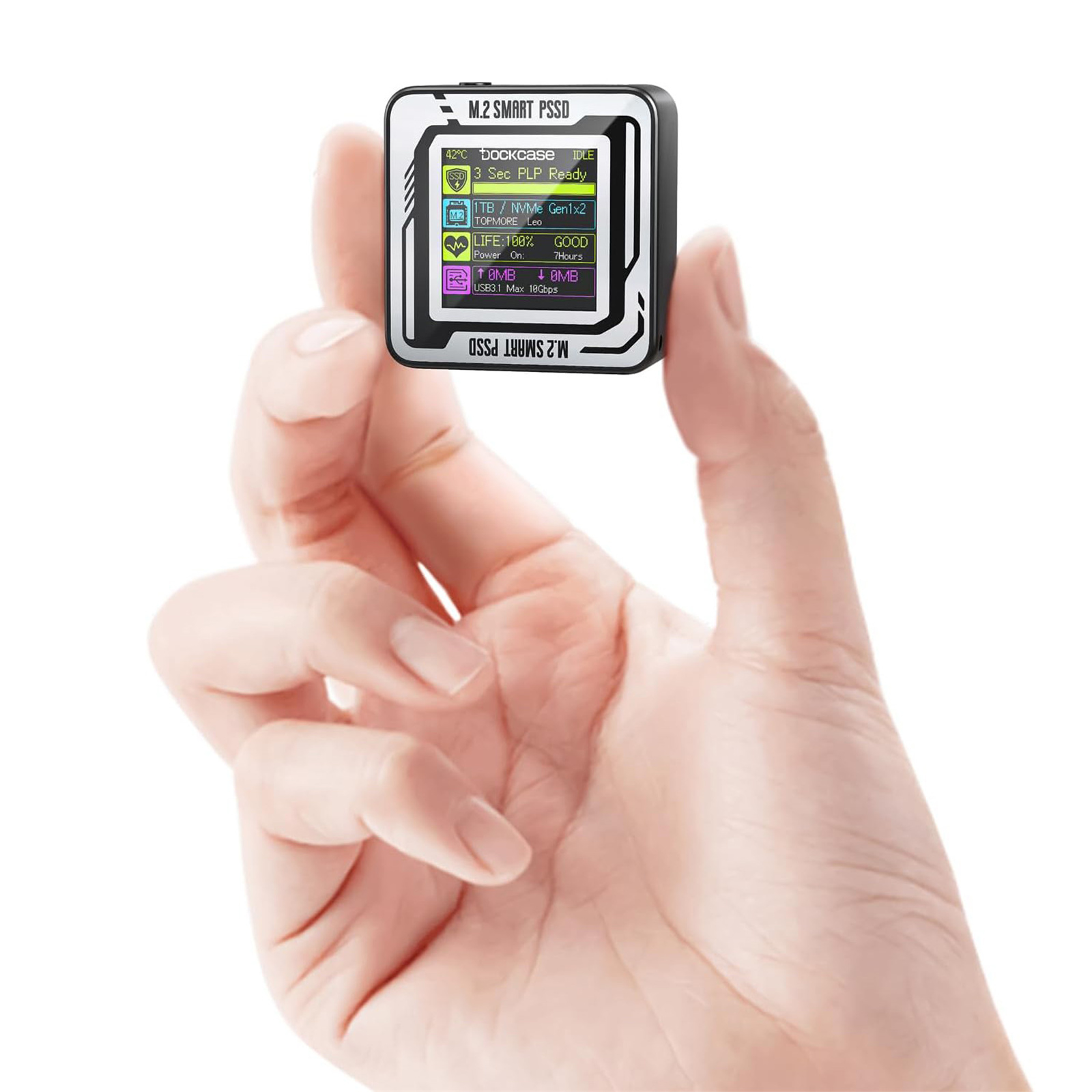

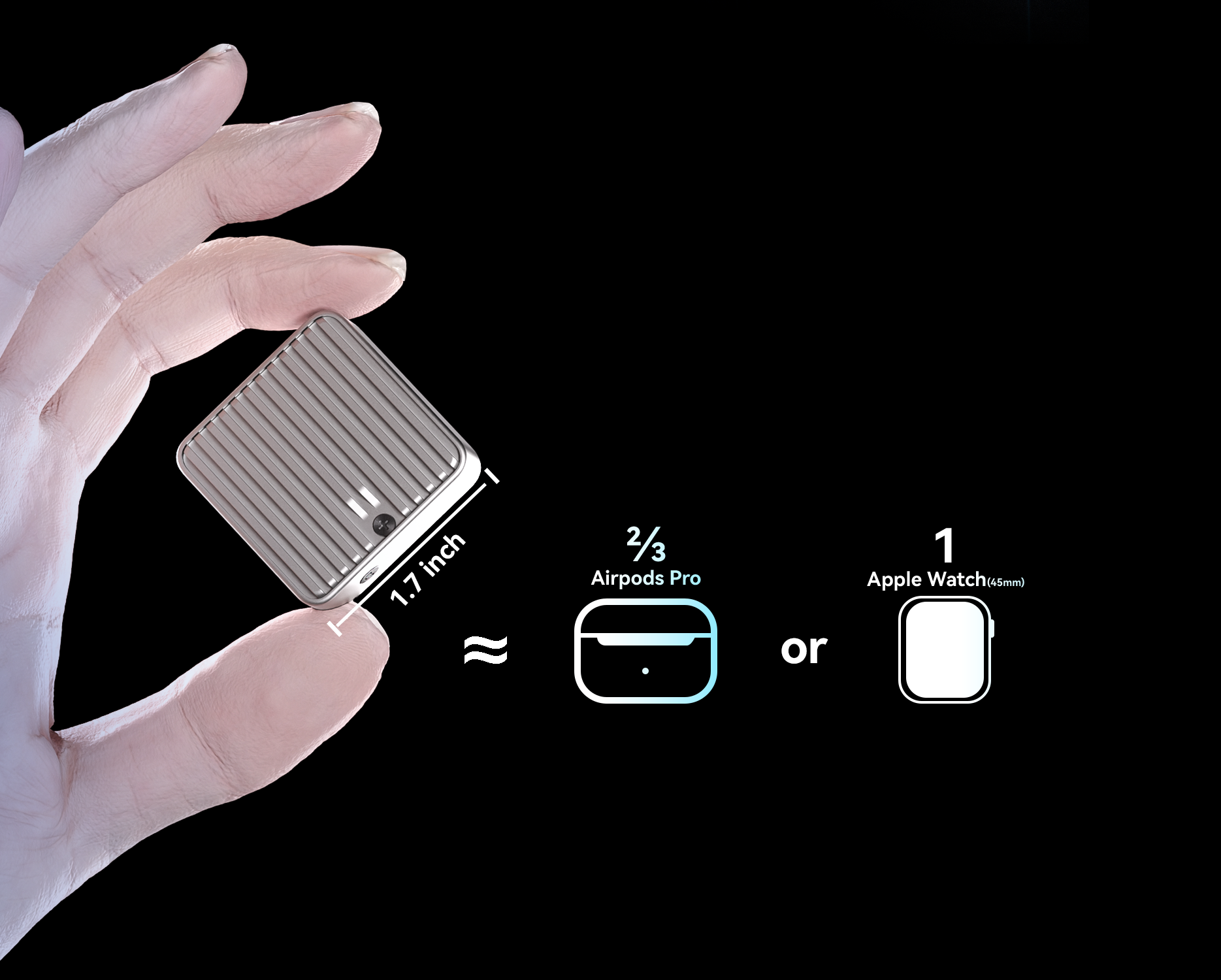

Small Size, Big Power

Crafted with premium materials and a minimalist design, Dockcase provides a neat look that elevates any workplace.The compact size allows for easy portability, making it the perfect companion for on-the-go storage needs.

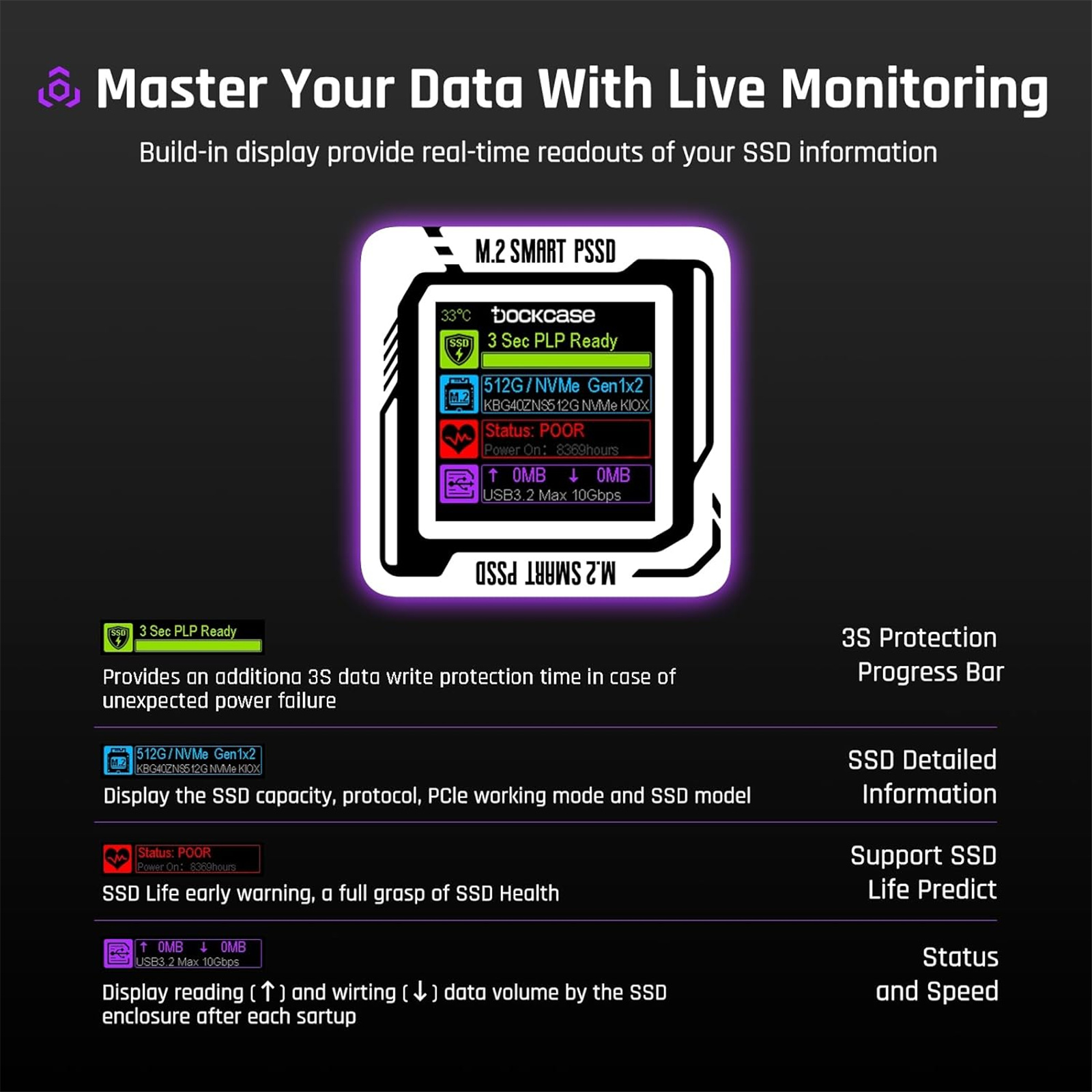

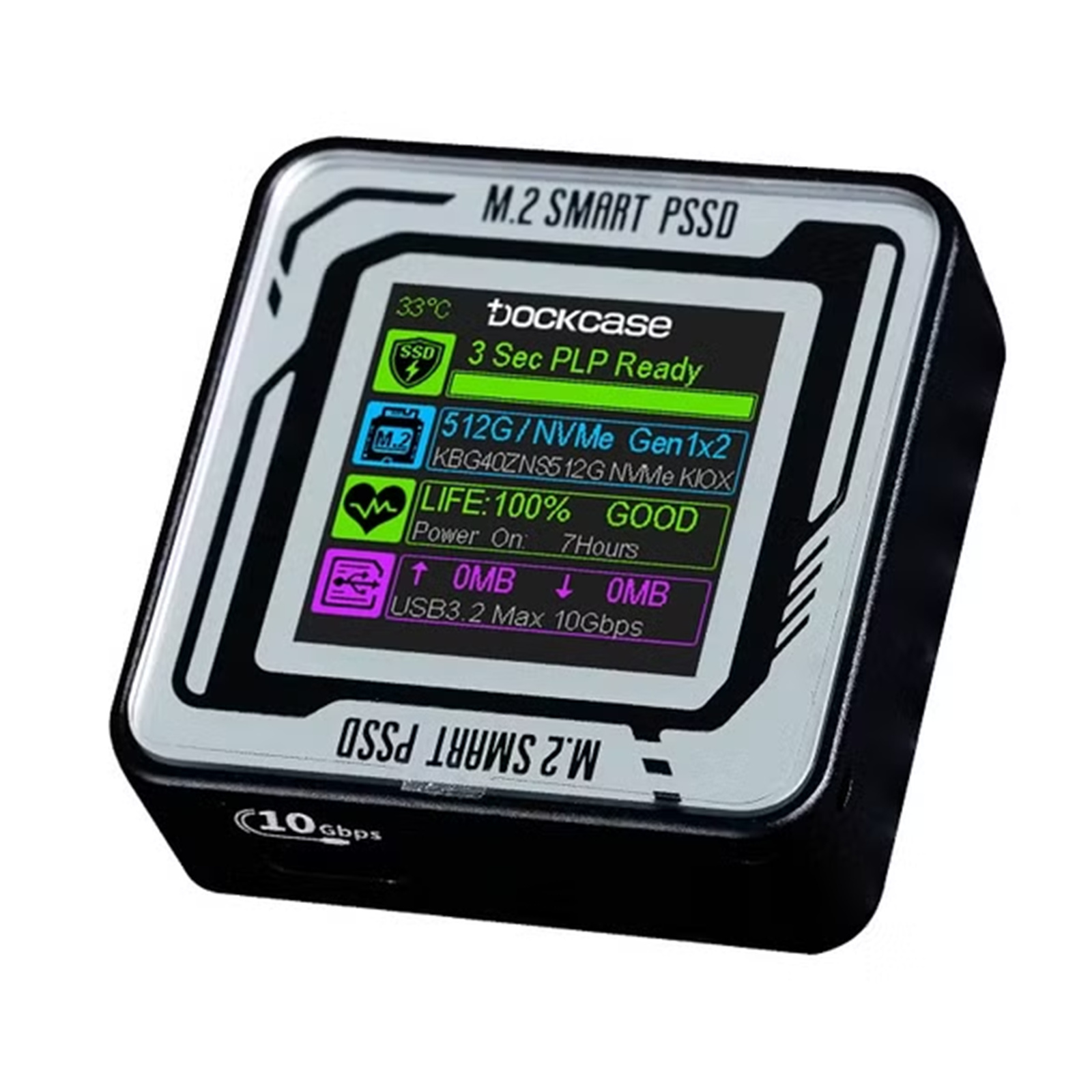

Master Your Data with Live Monitoring

Built-in display provides real-time readouts of your data transfer speeds, storage capacity and SSD temperature,etc, giving you instant access to vital information without having to open your software.

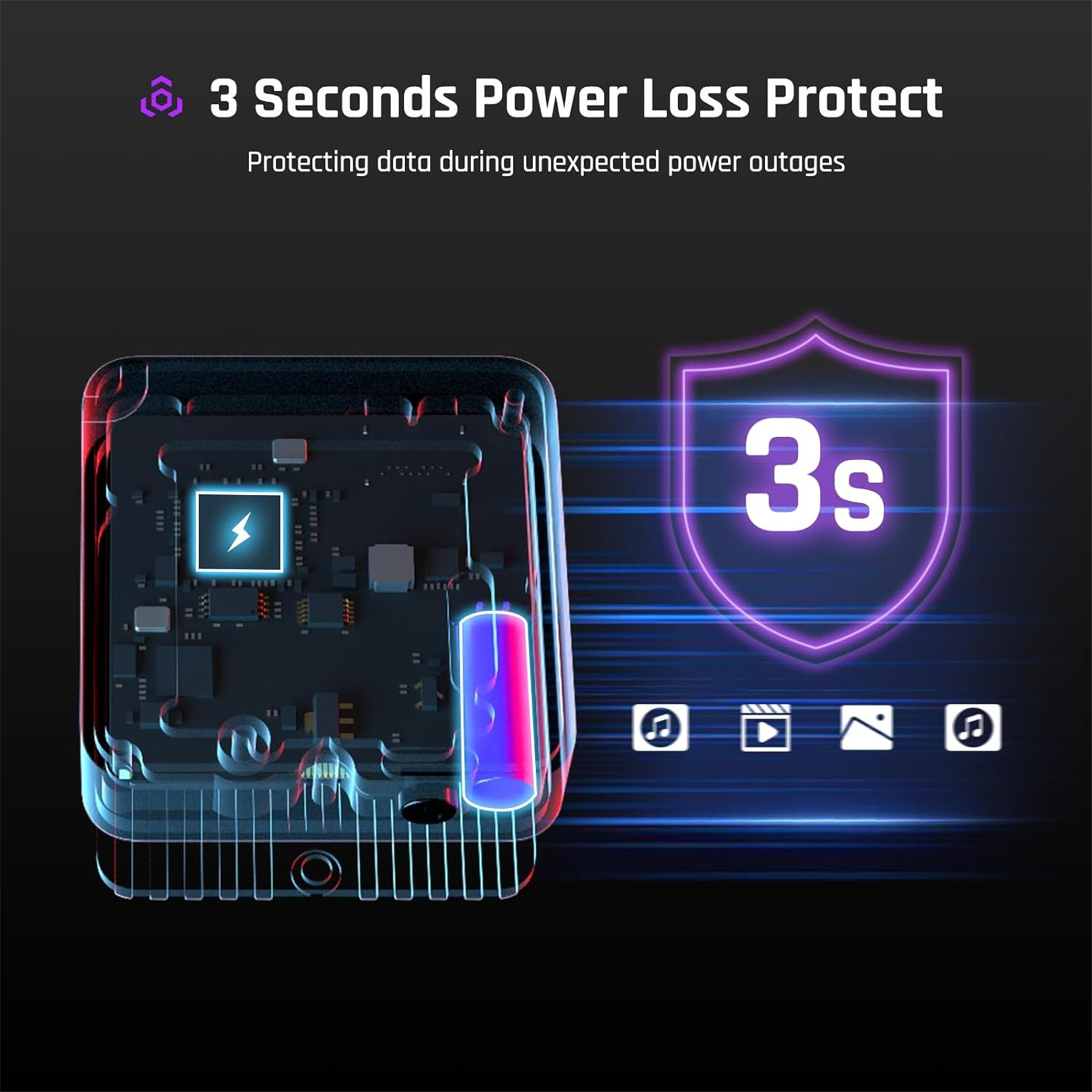

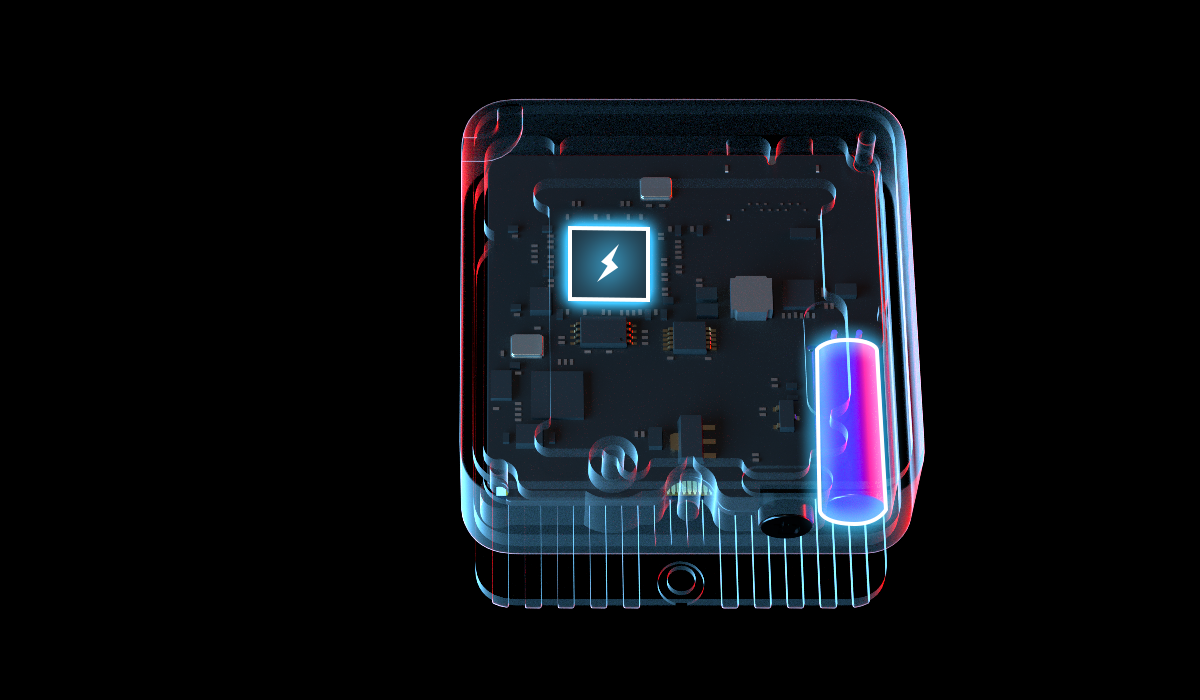

Dual Data Protection

With 3 Seconds Power Loss Protection, never worry about losing data due to unexpected power outages or surges. 3s PLP allows 2TB SSD data is safely stored and protected, even in the event of a power loss.

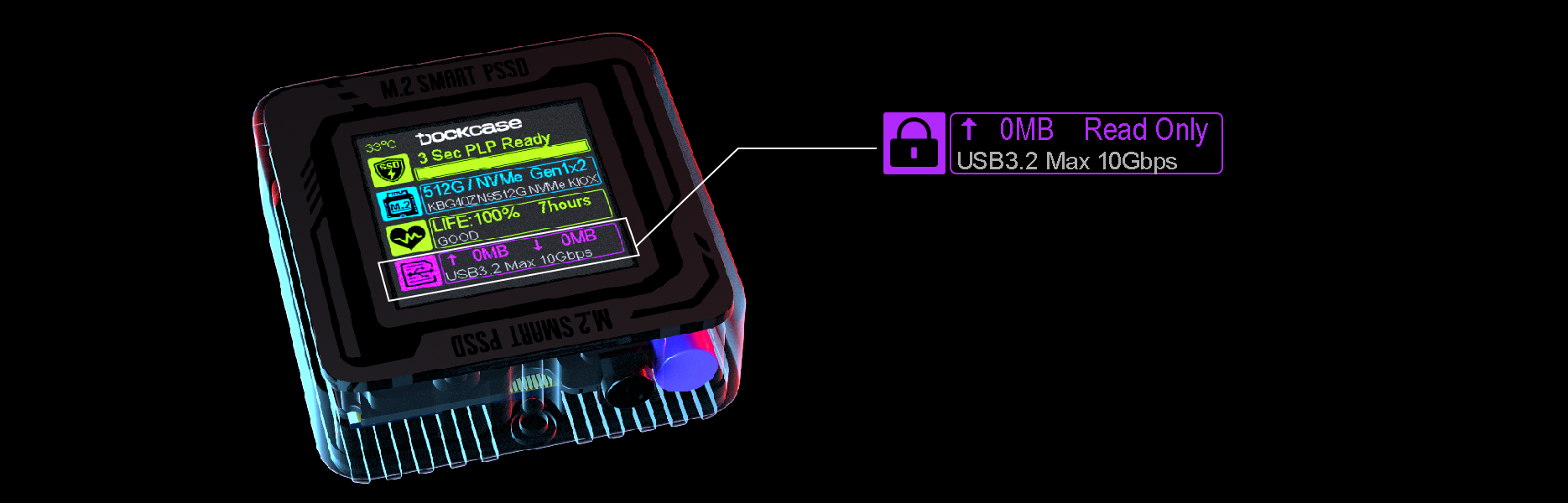

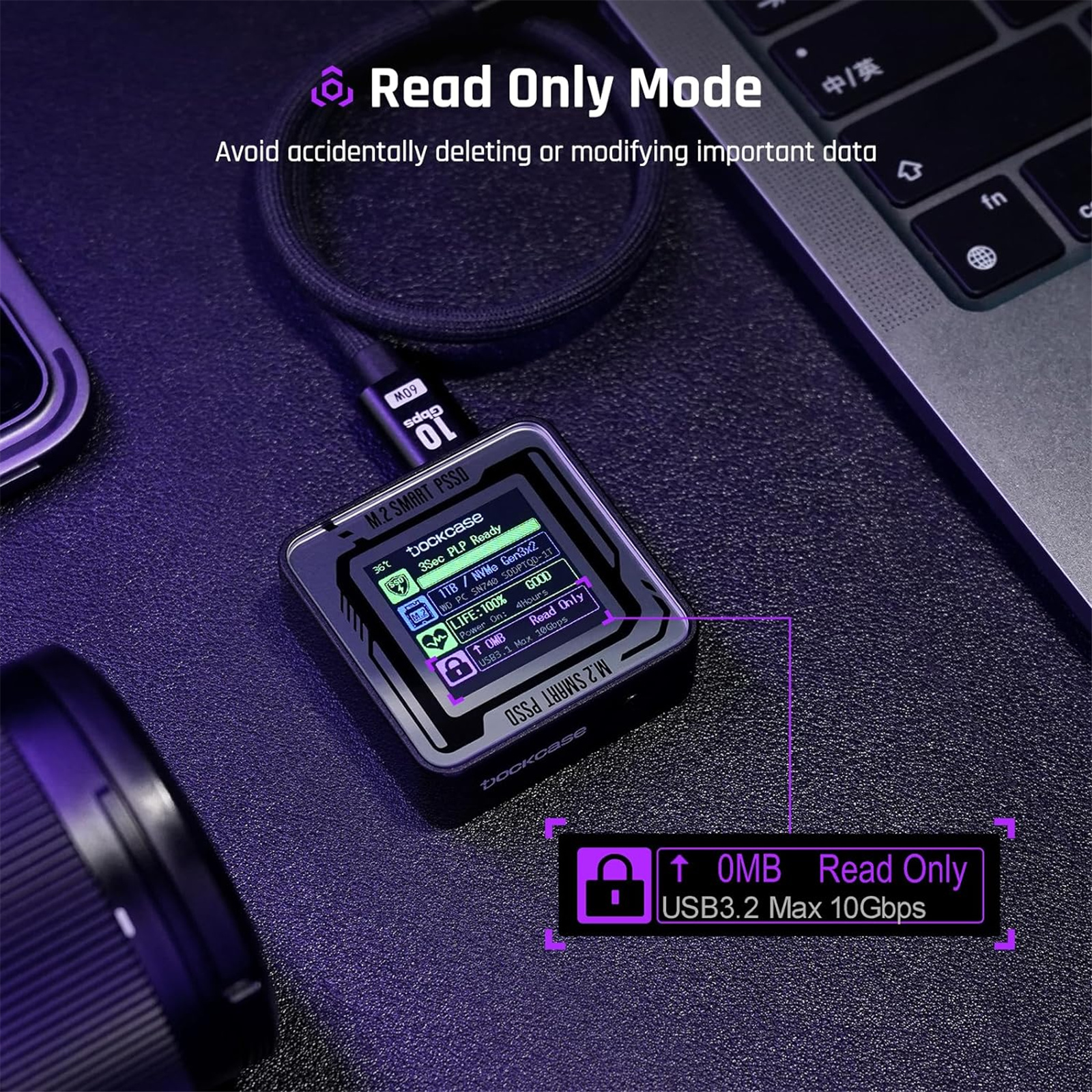

Read Only Mode

provides an extra layer of security by preventing accidental deletion or modification of important data. This is especially useful for sensitive information that needs to be kept secure and unaltered.



Transfer In A Flash

Transfer massive files in seconds with the incredible speed of USB 3.2 Gen 2, embedded PCle® NVMe™ achieve soaring sequential read/write speeds of up to 1,024MB/s, transfer huge files instantly even during heavier workflows.



20% Boost in Cooling Efficiency

Aluminum alloy fins cover maximizes the heat dissipation area and airflow, combined with graphite thermal pad cools down by 20% from inside out, ensuring stablity and longevity to the greatest extent.

Specifications

Model

DSWC1M-3B

Color

Matte Black

Screen

1.33" 240*240 IPS-LCD

Power Loss Protection

Typical 3 Seconds

Capacitor Life

Minimum charge and discharge of capacitor 500,000 times

Supported SSD Type

M Key M.2 (NVMe/PCle), B&M Key M.2(NVMe/PCle)

Supported SSD Length

2230

Supported SSD Capacity

2230

Interface Type

USB 3.2 Gen 2(10Gbps) Type-C*1

Power Requirement

DC 5V±0.25V=3A

Master Chip

RTL9210

Supported SSD Protocols & Upper Speed Limit

NVMe/PCle 3.0 x2 @10Gbps

Supported SSD Model

Western Digital PC SN530, Western Digital PC SN740, Kioxia BG4, Hynix BC711, Samsung PM991a...

Supported Operating System

Windows 7/8.1/10/11, MacOS 10.14.6 or later, iPadOS 12.4 or later, Linux, Android, Harmony

Material

Aluminum alloy, tempered glass

Size/ Weight

43.4*43.4*15.0mm, 44g

Manufacturer Part No:
DSWC1M-3B
Brand:
Dockcase
Product Type:
Pocket Smart 2230 M.2 NVMe SSD Enclosure - Matte Black
UPC
-
Product Family:
-
Shipping Weight:
0.15 kg
PB Part No:
ENCDOC22301
Product Model:
Explorer Edition
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
