Dockcase Photography Edition Pocket Smart 2230 M.2 NVMe SSD Enclosure - Matte Black 1.33" Screen, 3 Sec Power Loss Protection, 10Gbps USB-C 3.2 G2, D-Key Button, Up to 2TB, Aluminum Alloy with Tempered Glass case

With promo code $88.57
With promo code $101.86
Save $14
Save $16
$ 103 .30
 +GST
$ 118 .80
 inc GST
$103.30  +GST
$118.80

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Dockcase Photography Edition Pocket Smart 2230 M.2 NVMe SSD Enclosure - Matte Black 1.33" Screen, 3 Sec Power Loss Protection, 10Gbps USB-C 3.2 G2, D-Key Button, Up to 2TB, Aluminum Alloy with Tempered Glass case

  • Brand: Dockcase
  • MPN: DSWC1M-BK
  • Part #: ENCDOC22303
  • UPC:
CLEARANCE
With promo code $88.57
With promo code $101.86
Save $14 with code CLEARANCE
Save $16 with code CLEARANCE
Without promo code
$ 103 .30 $ 118 .80
 +GST  inc GST

Part of Clearance Zone
For a limited time only, while stocks last!


Click & Collect: Available from 9 stores.
Select your store to check availability
Delivery: Order now and it ships on 16 Sep When will I receive it?
$103.30  +GST
$118.80
  • Brand: Dockcase
  • MPN: DSWC1M-BK
  • Part #: ENCDOC22303
  • UPC:

Drive Bays

1 Bay

Tool Free

No

Features



Boundless Creativity, Reliable Control

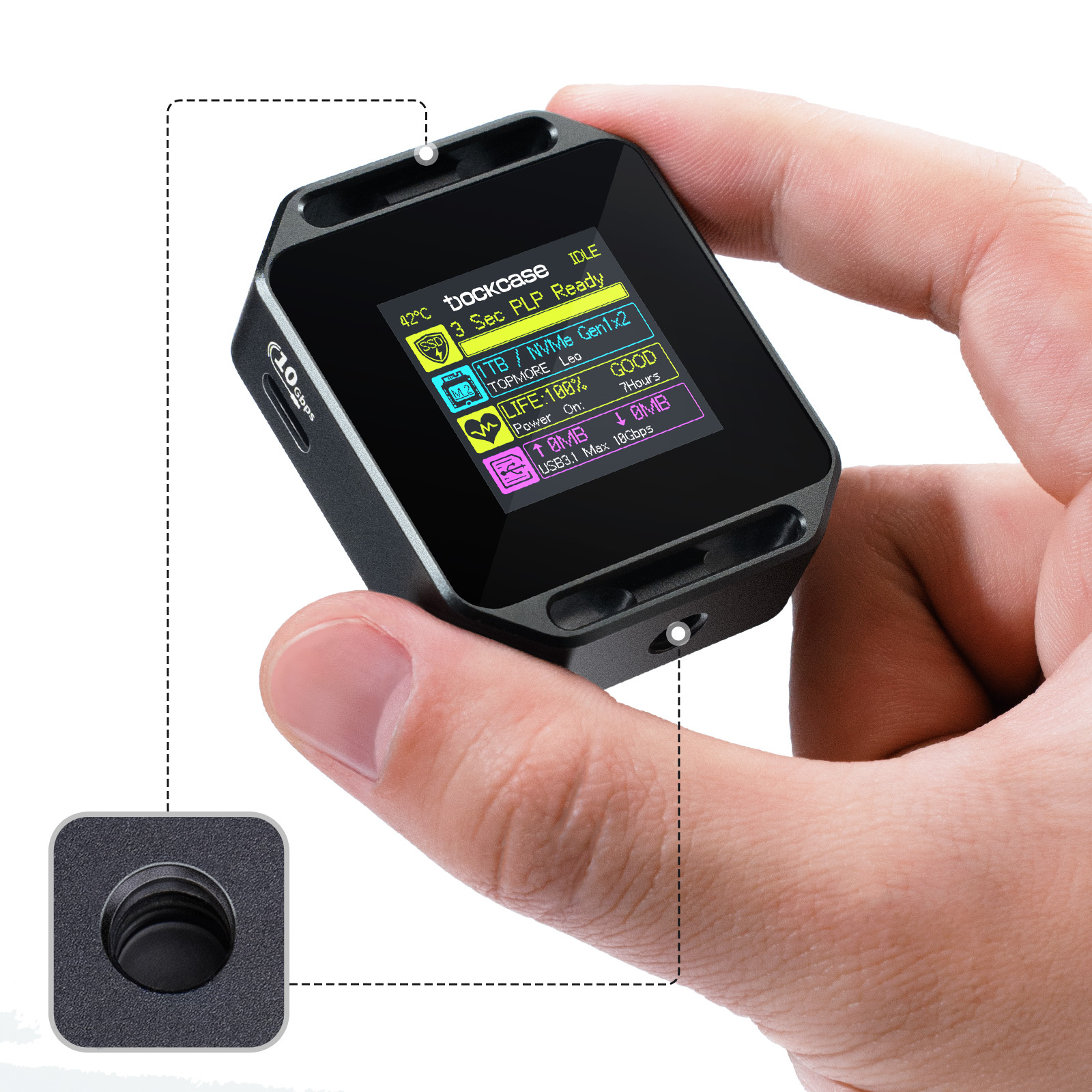

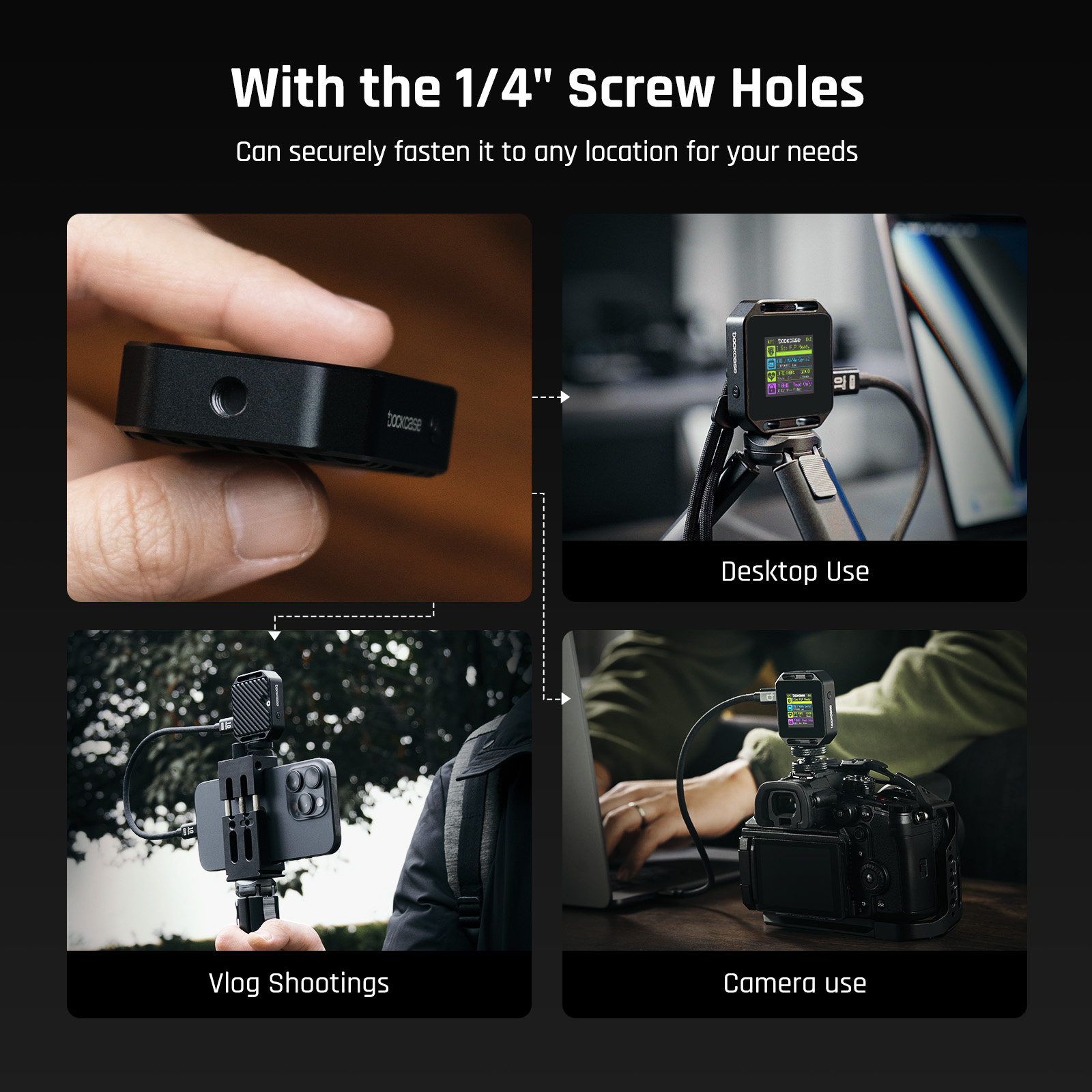

Directly connected to iPhone 15 Pro/ Pro Max or camera for stable shooting and seamless data storage during capture. The design of 1/4" screw holes on both sides lets you switch things up reliable when the moment demands it.

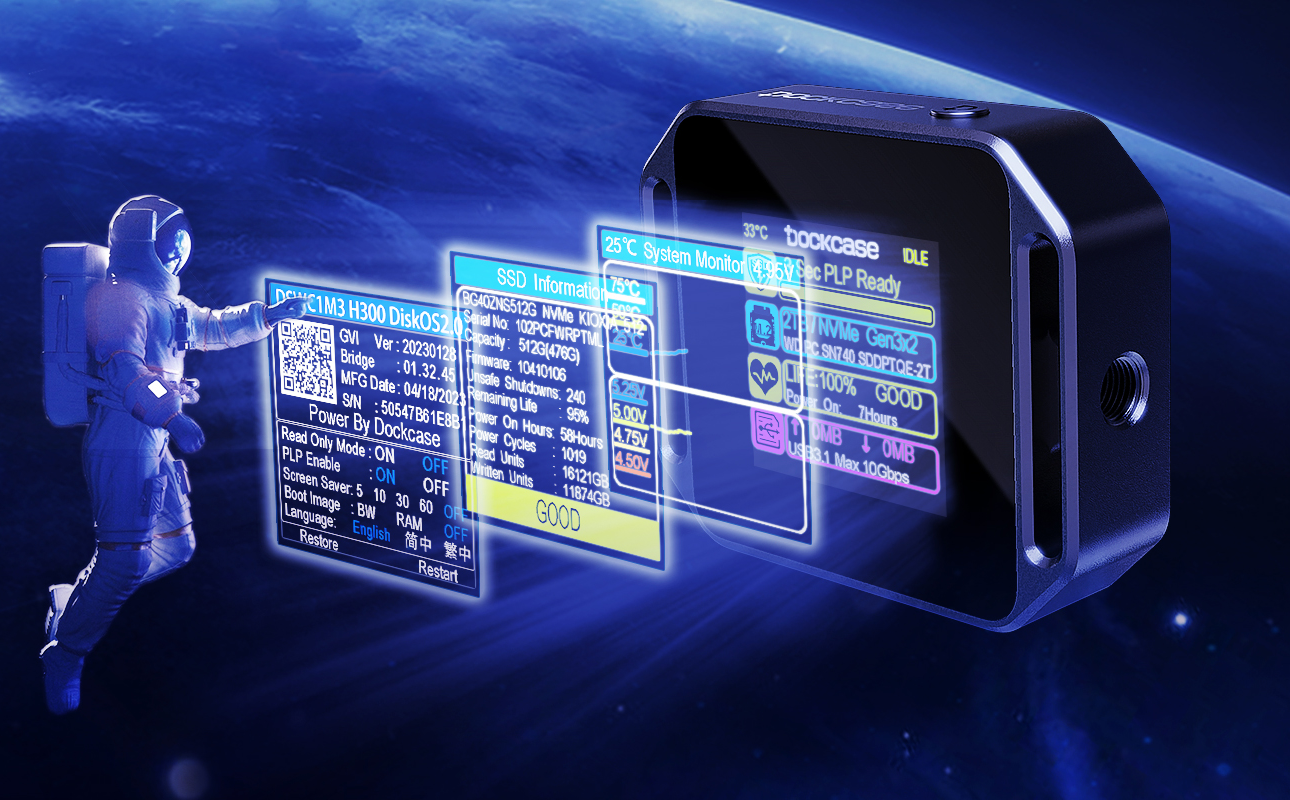

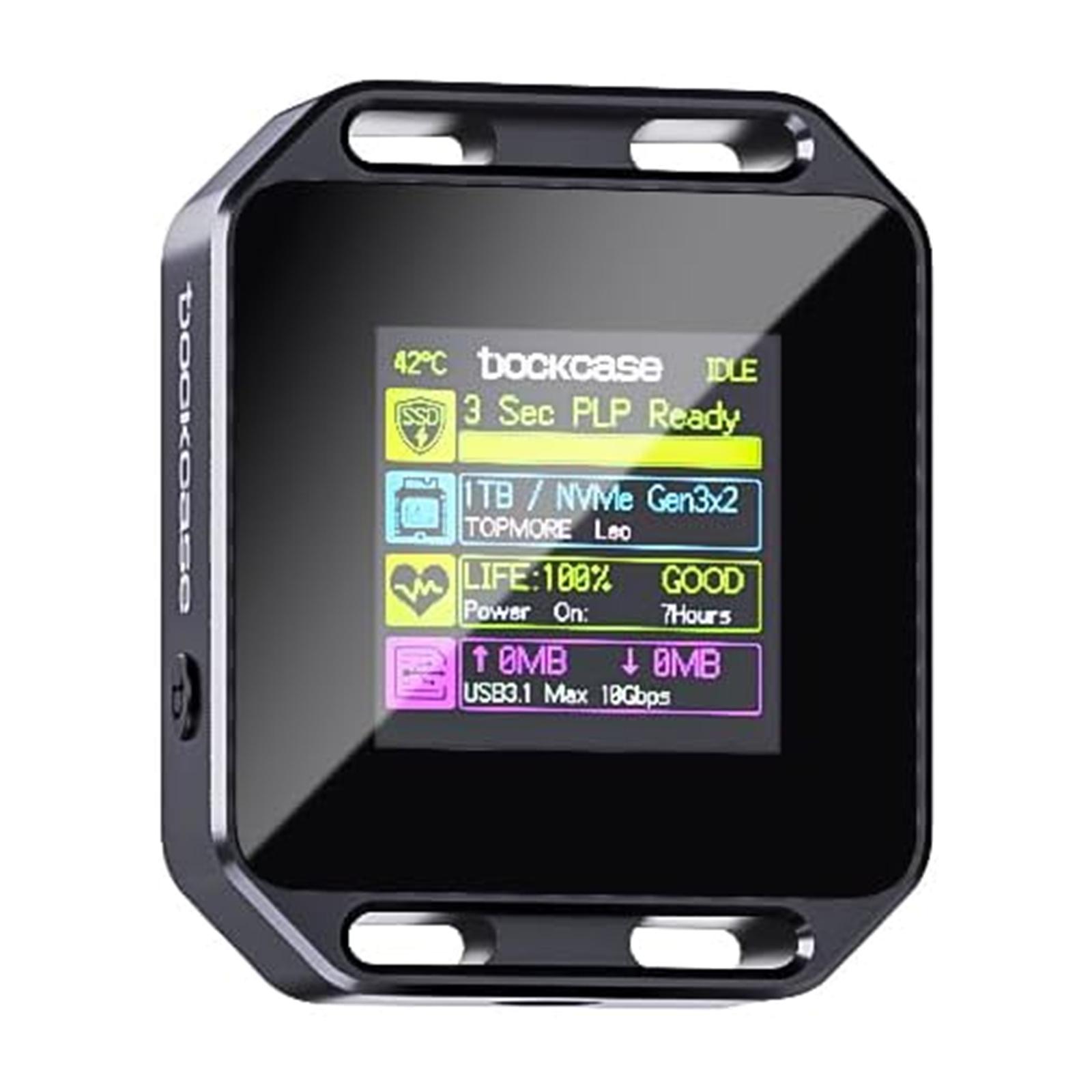

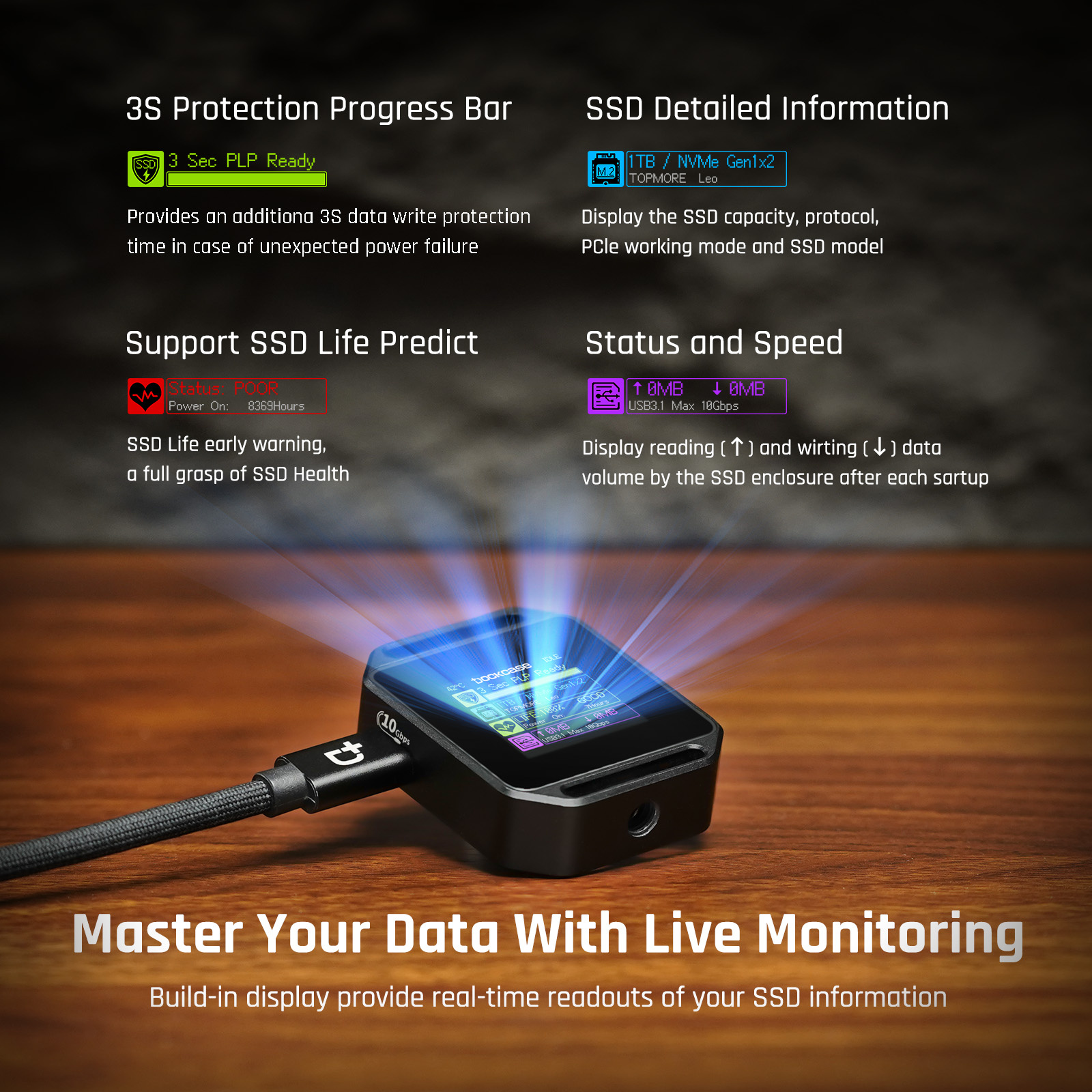

Live in the Now

Built-in display provides real-time readouts of your data transfer speeds, storage capacity and SSD temperature, etc. Stay in control of your data and effortlessly streamline your workflow with D-Key.

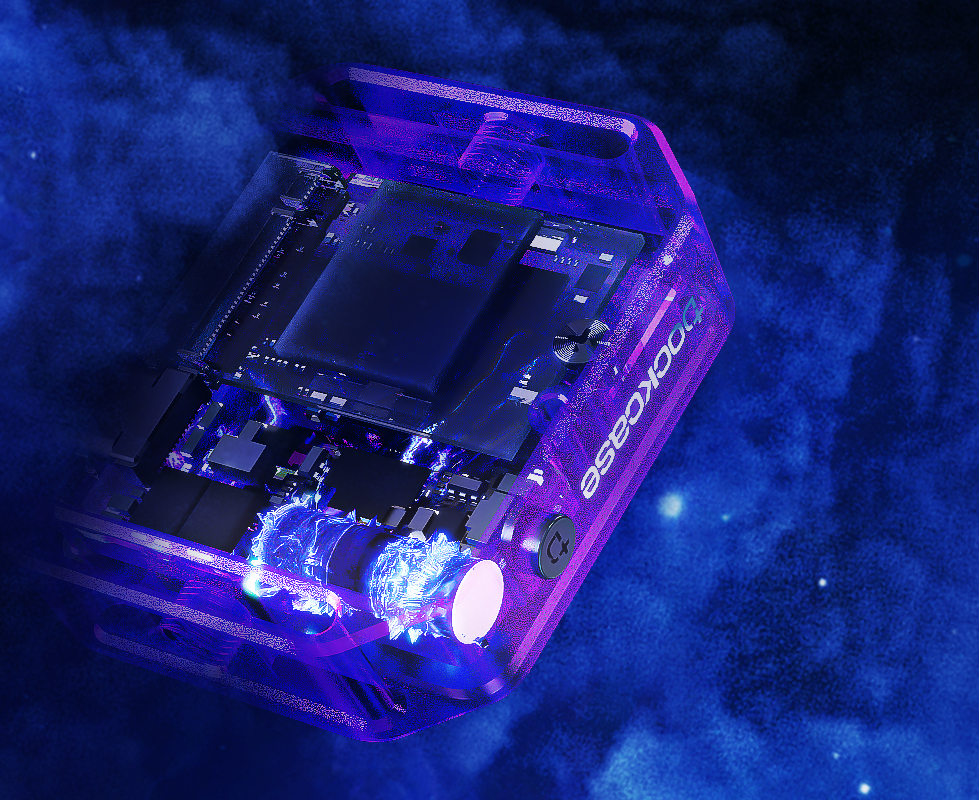

Dual Data Protection

Read Only Mode provides an extra layer of security by preventing accidental deletion or modification of important data. You can rest assured that your critical files and confidential documents remain unaltered, providing ultimate data integrity and protection.



With Power Loss Protection, never worry about losing data due to unexpected power outages or surges. 3s PLP allows for the safe storage and protection of up to 2TB of SSD data, granting you peace of mind like never before.

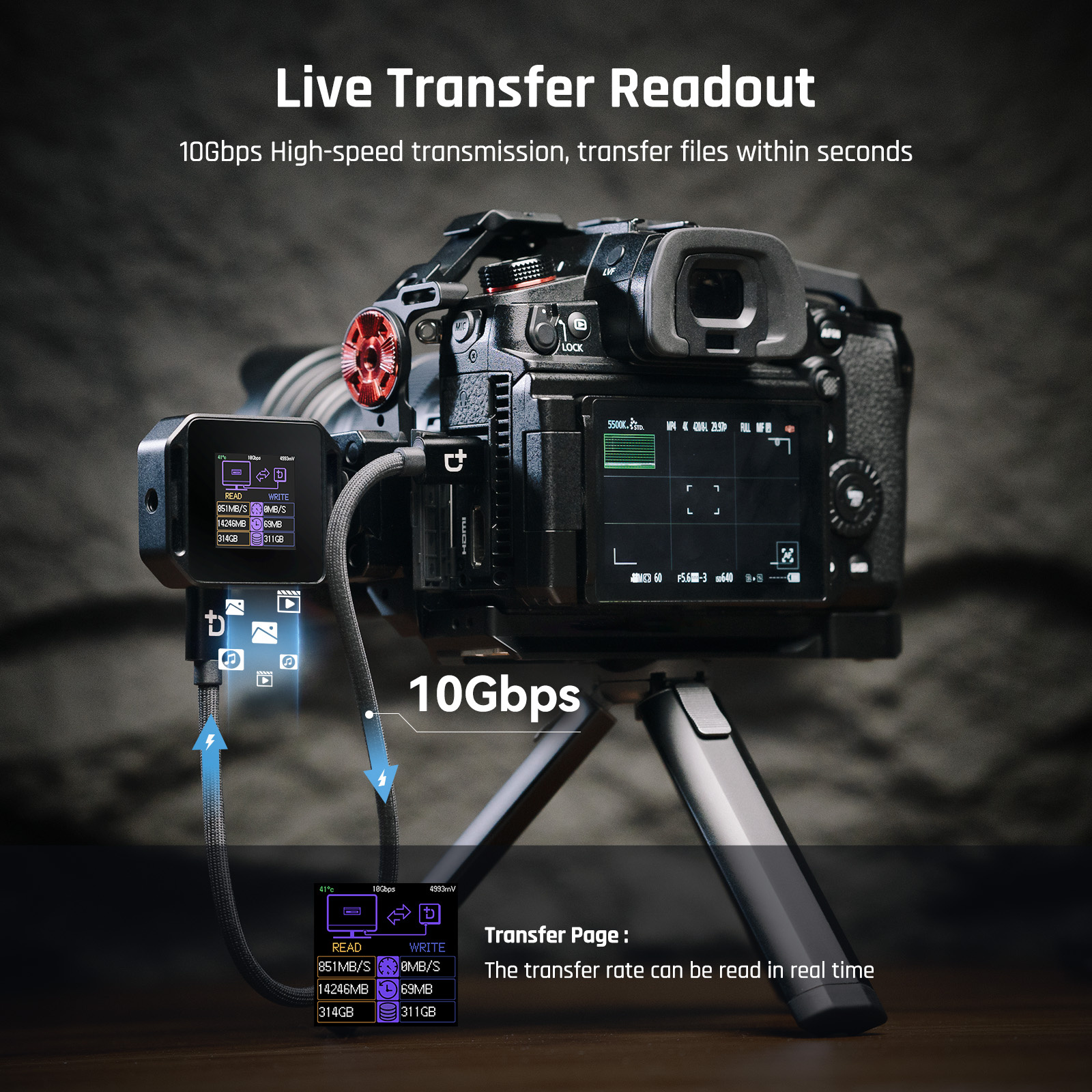

A Boost When Transfer

Experience lightning-fast file transfers with the remarkable speed of USB 3.2 Gen 2. You can transfer massive files effortlessly, making your workflow smoother and more efficient.

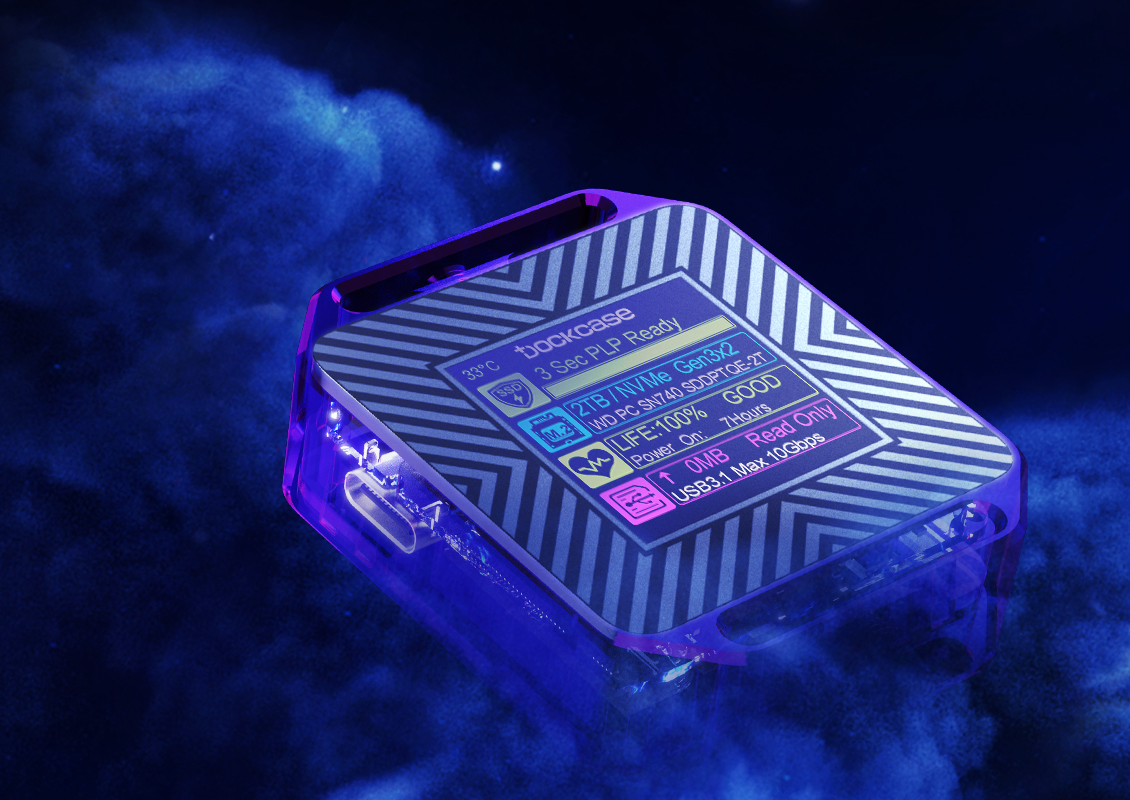

Crufted with Precision

With aluminum alloy body, the sleek look and smooth, solid feel make it a truly eye-catching device, whether it's on your desk or on the go.

Specifications

Model

DSWC1M-BK

Colour

Matte Black

Screen

1.33" 240*240 IPS-LCD

Power Loss Protection

Typical 3 Seconds

Capacitor Life

Minimum charge and discharge of capacitor 500,000 times

Supported SSD Type

M Key M.2 (NVMe/PCle), B&M Key M.2(NVMe/PCle)

Supported SSD Length

2230

Supported SSD Capacity

Max 2??

Interface Type

USB 3.2 Gen 2(10Gbps) Type-C*1

Power Requirement

DC 5V±0.25V=3A

Master Chip

RTL9210

Supported SSD Protocols & Upper Speed Limit

NVMe/PCle 3.0 x2 @10Gbps

Supported SSD

Western Digital PC SN530, Western Digital PC SN740, Kioxia BG4, Hynix BC711, Samsung PM991a

Supported Camera (Tested by Dockcase)

Panasonic GH6, BMPCC 6K

Qualified Camera (Not Tested by Dockcase)

BMPCC 4K, BMPCC URSA Mini Pro 12K, SIGMA fp/fp L, Z-CAM E2 Series, AJA

Supported Operating System

Windows 7/8.1/10/11, macOS 10 or later, iPadOS 12.0.1 or later, Linux, Android, Play Station5, ChromeOS, Harmony

Material

Aluminum Alloy, Tempered Glass

Size/ Weight

53.0*43.4*15.0mm/50g

Manufacturer Part No:
DSWC1M-BK
Brand:
Dockcase
Product Type:
Pocket Smart 2230 M.2 NVMe SSD Enclosure - Matte Black
UPC
-
Product Family:
-
Shipping Weight:
0.15 kg
PB Part No:
ENCDOC22303
Product Model:
Photography Edition
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
