QNAP QDA-UMP Drive Adapter 1x M.2 2280 NVMe to 1x U.2 2.5" SFF-8639 for PC & NAS
- Brand: QNAP
- MPN: QDA-UMP
- Part #: ENCQNP103
Product URL: https://www.pbtech.co.nz/product/ENCQNP103/QNAP-QDA-UMP-Drive-Adapter-1x-M2-2280-NVMe-to-1x-U
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
QDA-UMP

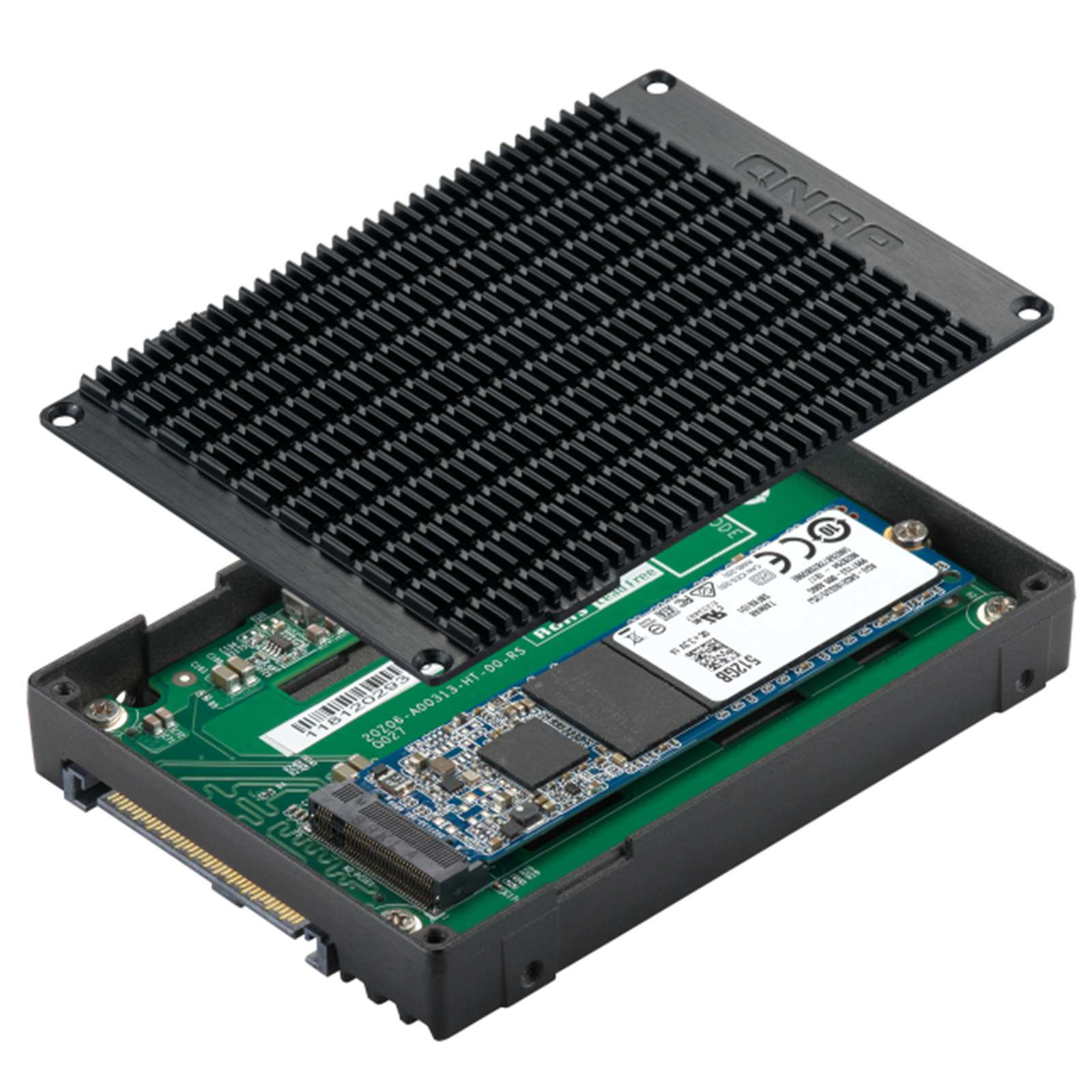

Use an M.2 PCIe NVMe SSD in a U.2 PCIe NVMe SSD drive bay for PC and NAS
The QDA-UMP can accommodate an M.2 PCIe 3.0 x4 NVMe SSD within a 2.5-inch U.2 (SFF-8639) PCIe 3.0 x4 NVMe SSD drive bay. No software driver is required for the QDA-UMP, and it can be installed in a PC/workstation (Windows®, Linux®) or QNAP NAS to replace an expensive U.2 SSD with a more-affordable M.2 SSD.
- Use an M.2 2280 (M key) PCIe NVMe SSD in a U.2 PCIe NVMe SSD drive bay (M.2 SSD sold separately).
- Up to PCIe 3.0 x4 file transfer speeds.

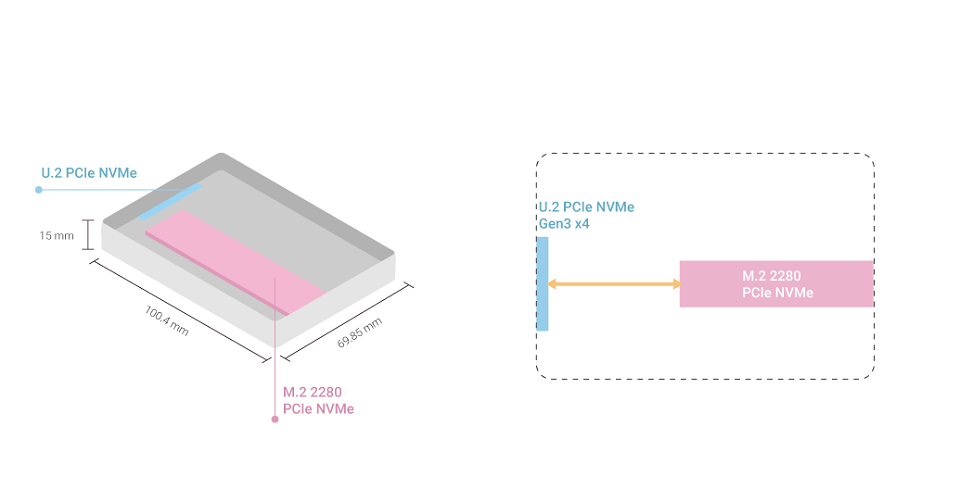

Architecture diagram

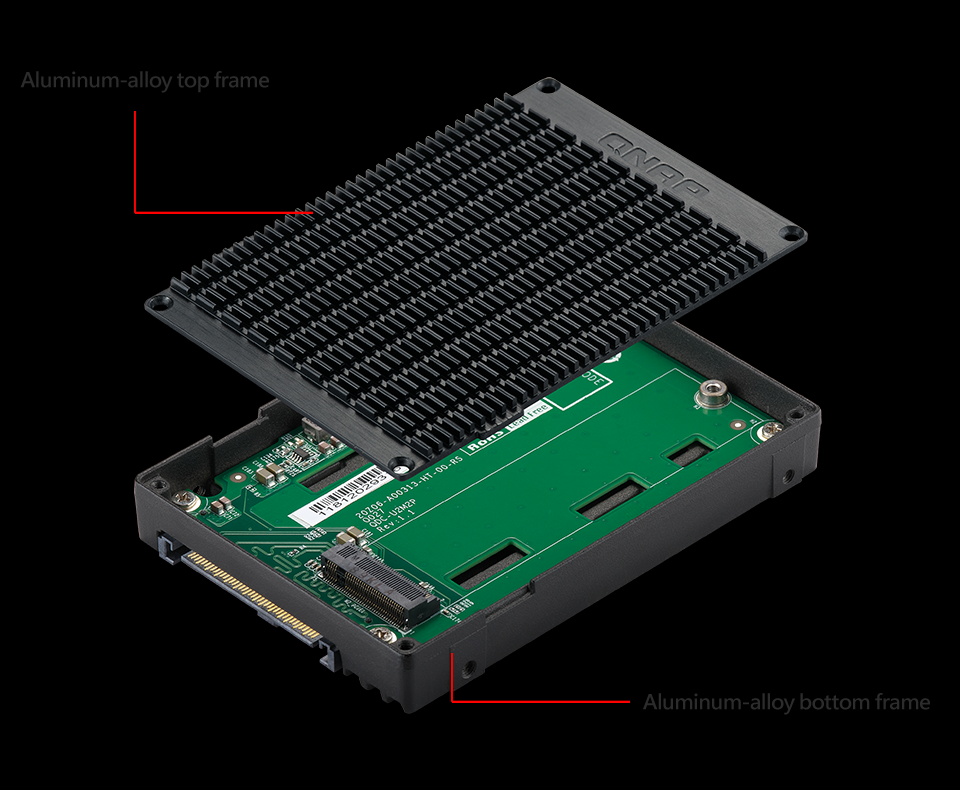

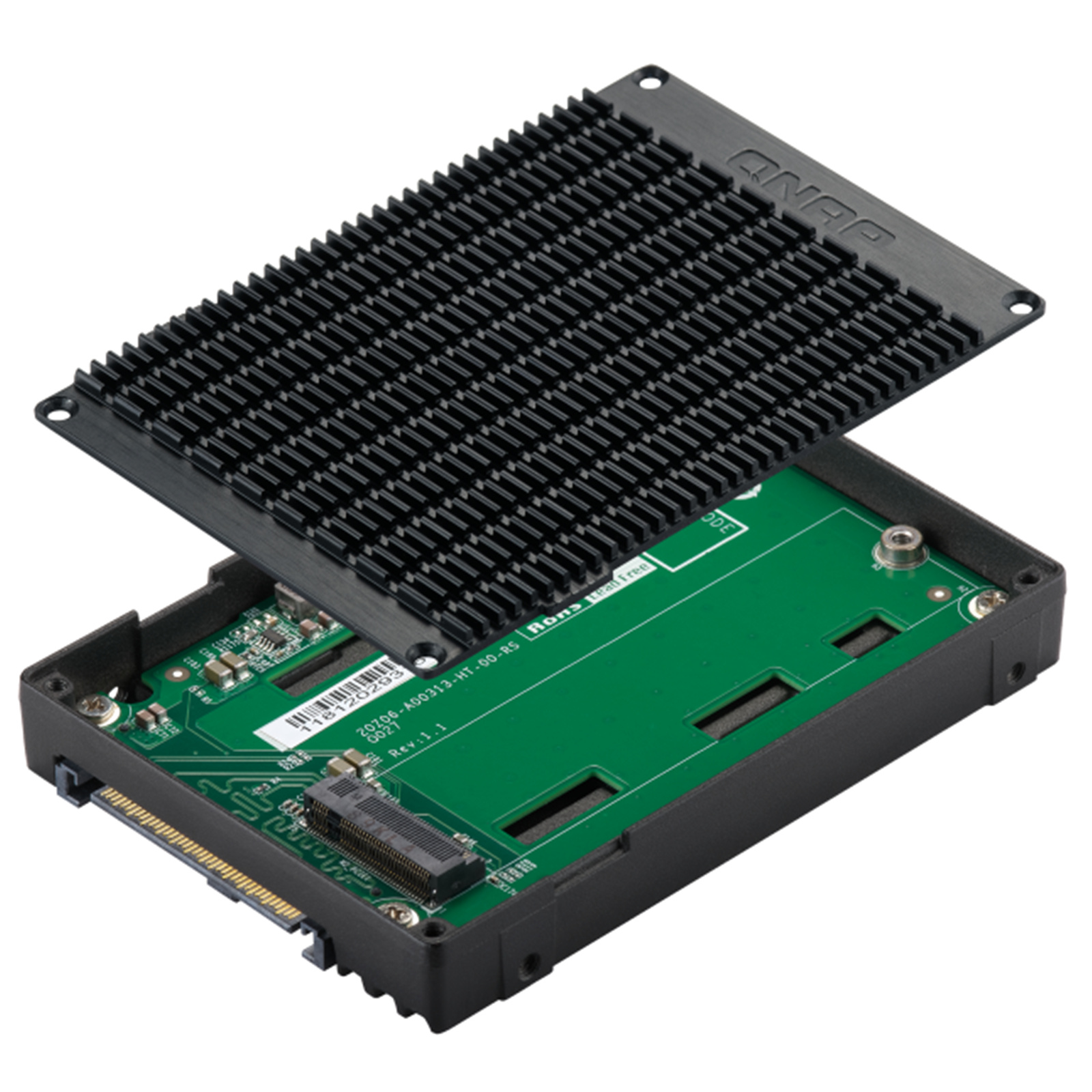

High-quality construction for better heat dissipation

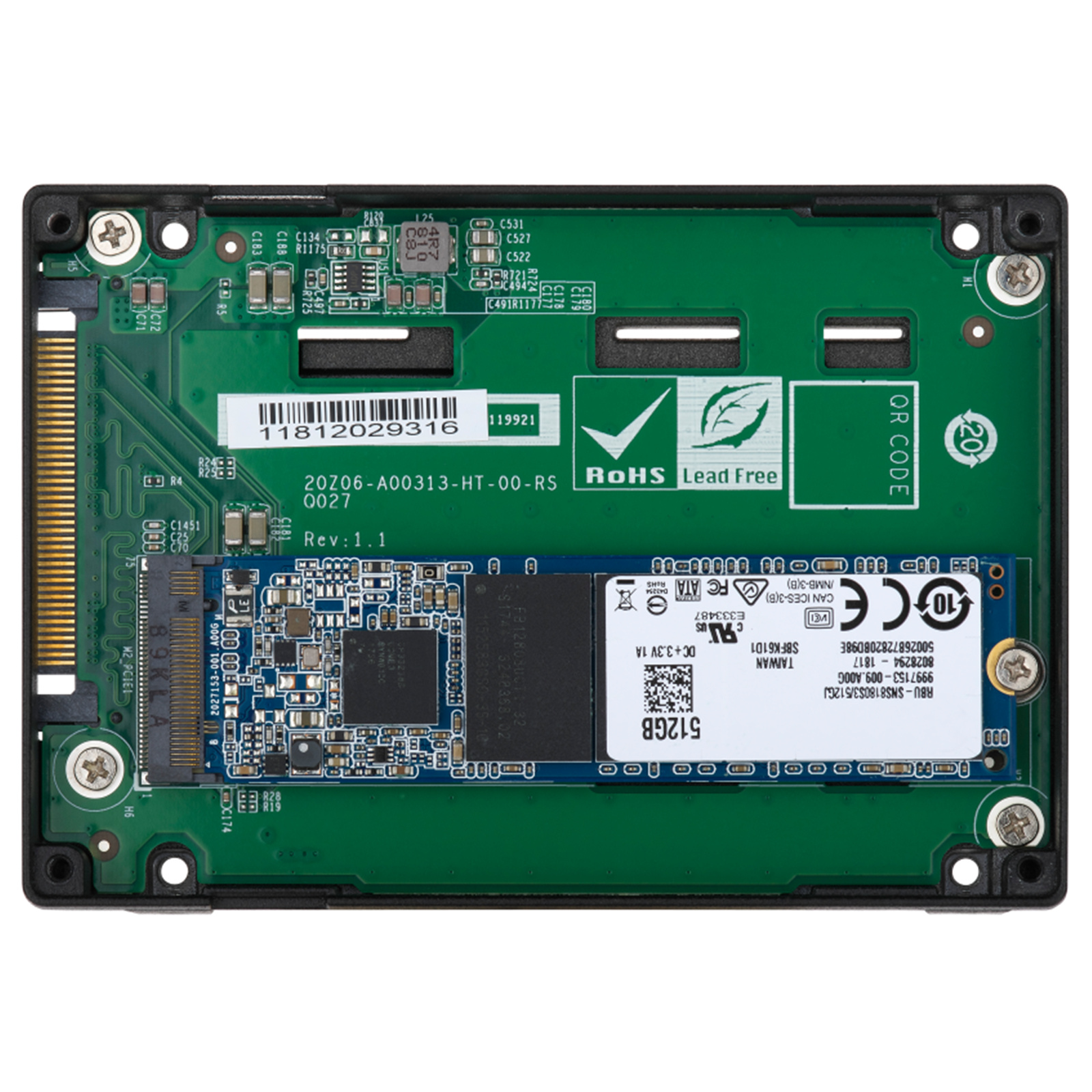

The M.2 SSD thermal pads and aluminum-alloy metal frame assist in dissipating heat from the M.2 SSD to ensure high performance.

Install in a PC/workstation for higher performance with lower costs
Use the QDA-UMP to install a M.2 SSD in the 2.5-inch U.2 SSD tray of a high-end PC/workstation (Windows® or Linux®), and easily deal with tasks that require intensive data transmission (such as on-the-fly video editing, server-grade applications, or online gaming). Users can use utilities from their SSD manufacturer or third-party providers (for example: CrystalDiskInfo) to view the health status of the installed SSD.
*Consult your PC system provider if the PC operating system supports U.2 NVMe SSD.

Maintain high performance with cost savings
Use the QDA-UMP to replace U.2 NVMe SSD with M.2 NVMe SSD and maintain high-level performance.
Specifications
Supported Drives
1 x M.2 2280 PCIe 3.0 x4 NVMe SSD
Host Interface
U.2 (SFF-8639) PCIe 3.0 x4
Supported Operating Systems
1. QTS 4.4.1 (or later)
2. Windows: Windows 7, 8.1, 10, Windows Server 2012 R2
3. Ubuntu
Dimensions (L x W x H)
100.4 × 69.85 × 15 mm
Weight
0.1045 kg
Note
*Consult your PC system provider if the PC operating system supports U.2 NVMe SSD.
