Razer Core X V2 Thunderbolt 5 External Graphics Card Enclosure, For Windows Laptops with Thunderbolt 4 & 5, ATX PSU & Video card required .
- Brand: Razer
- MPN: RC21-02270200-R3M1
- Part #: ENCRAZ2270200

Product URL: https://www.pbtech.co.nz/product/ENCRAZ2270200/Razer-Core-X-V2-Thunderbolt-5-External-Graphics-Ca
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
MOBILITY MEETS DESKTOP PERFORMANCE
Prime your laptop for desktop graphics and gaming performance with the Razer Core X V2-a next-gen external graphics enclosure powered by the latest Thunderbolt™ connectivity. Designed to house the latest NVIDIA® and AMD graphics cards, and standard ATX power supplies, tap into a new source of power that supercharges your mobile or work setup.
DESKTOP-GPU READY Connect Full-Sized Graphics Cards
Designed to fit PCIe desktop graphics cards* up to 4 slots wide, give your laptop a massive boost in power by connecting the latest NVIDIA® GeForce® and AMD Radeon™ GPUs. View full compatibility list. Windows 10 RS5 / Windows 11 or later required. Graphics card and power supply not included.
NEXT-GEN THUNDERBOLT™ 5 PERFORMANCE Up to 2x the Bandwidth of Thunderbolt™ 4
Featuring an ultra-fast bandwidth of up to 80 Gbps, enjoy the smoothest performance with a Thunderbolt™ 5 connection that manages your most demanding creative apps and AAA games with ease.

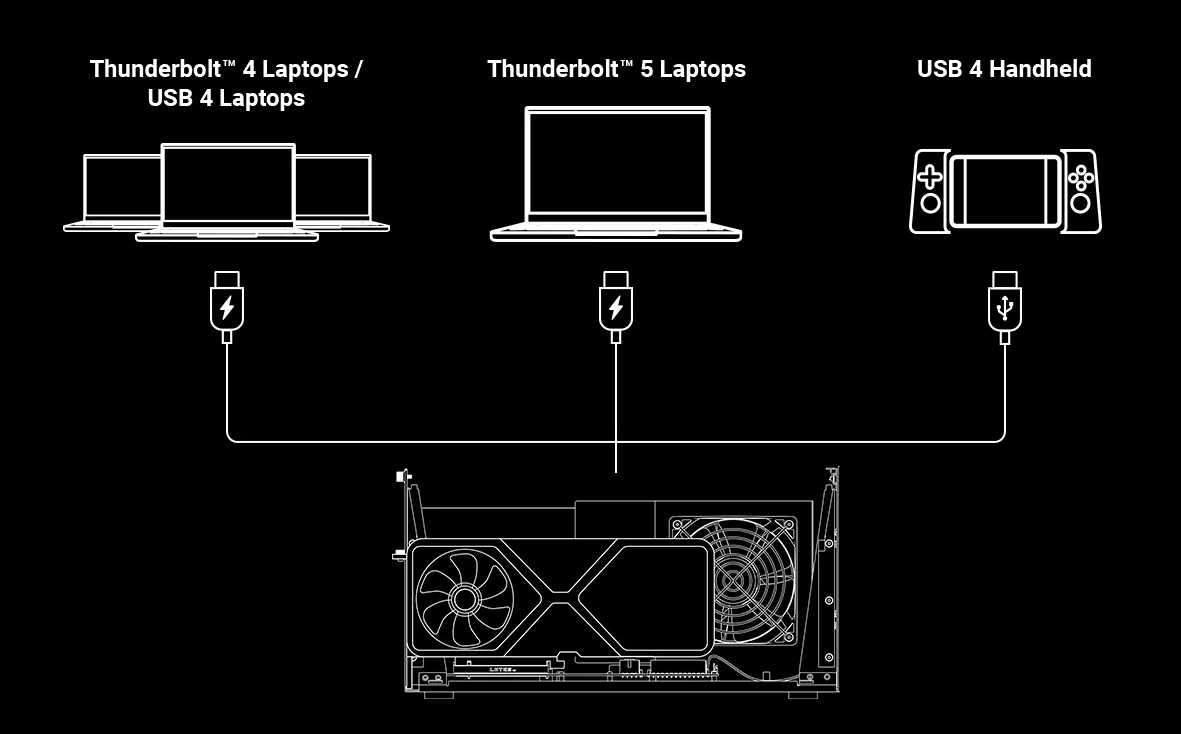

MULTI-DEVICE COMPATIBILITY Thunderbolt™ Laptops, USB 4 handhelds, and More
From Thunderbolt™ 4 and Thunderbolt™ 5 laptops to USB 4 gaming handhelds, integrate the Razer Core X V2 eGPU seamlessly with your setup and turn your portable device into a gaming or creation powerhouse instantly.
ONE CONVENIENT TYPE C CONNECTION Simple, Hassle-Free Setup
Use it anywhere simply by connecting the Razer Core X V2 to your device* via an included Thunderbolt™ 5 cable. Get a graphical boost from this external GPU enclosure the second you need it and simply unplug when you're done.

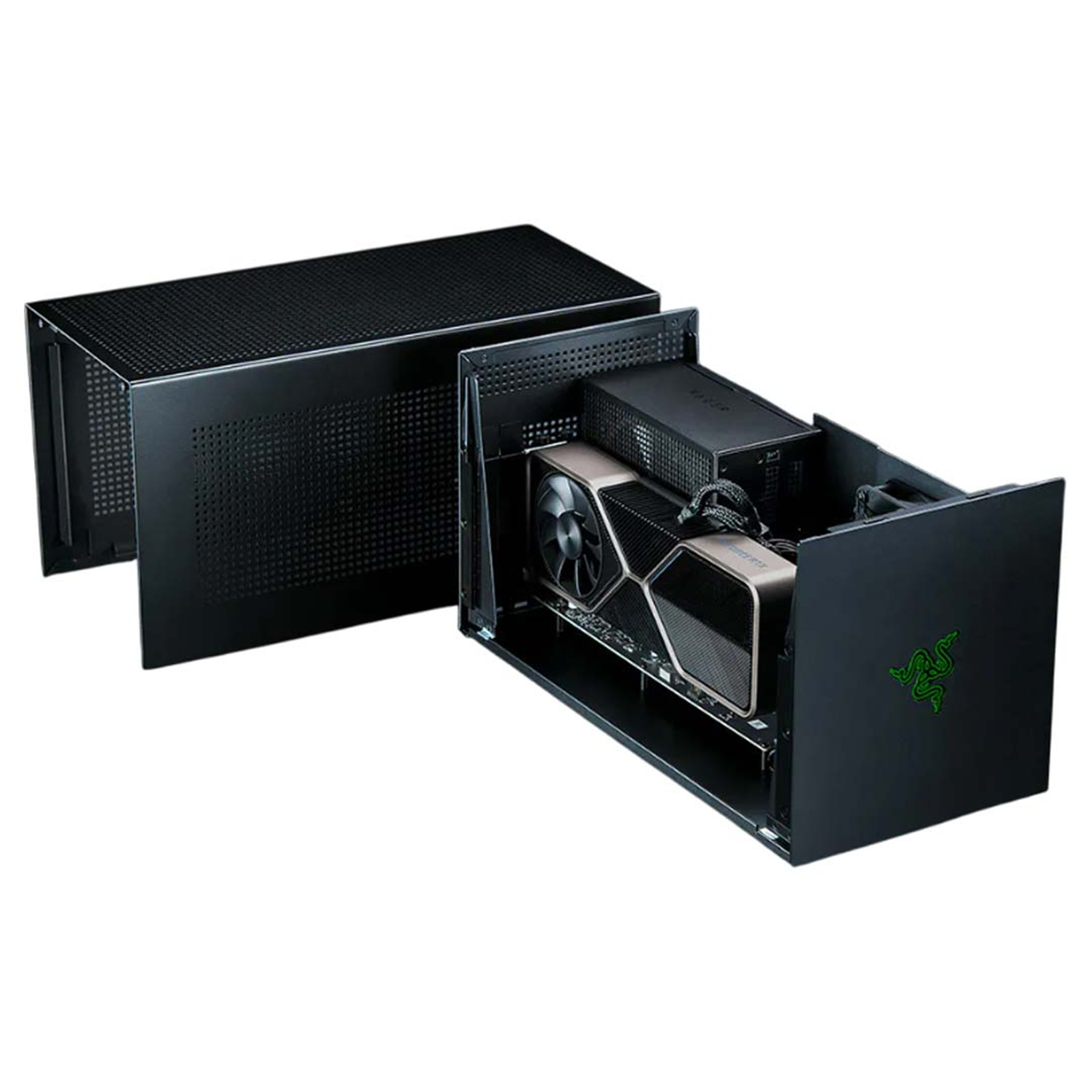

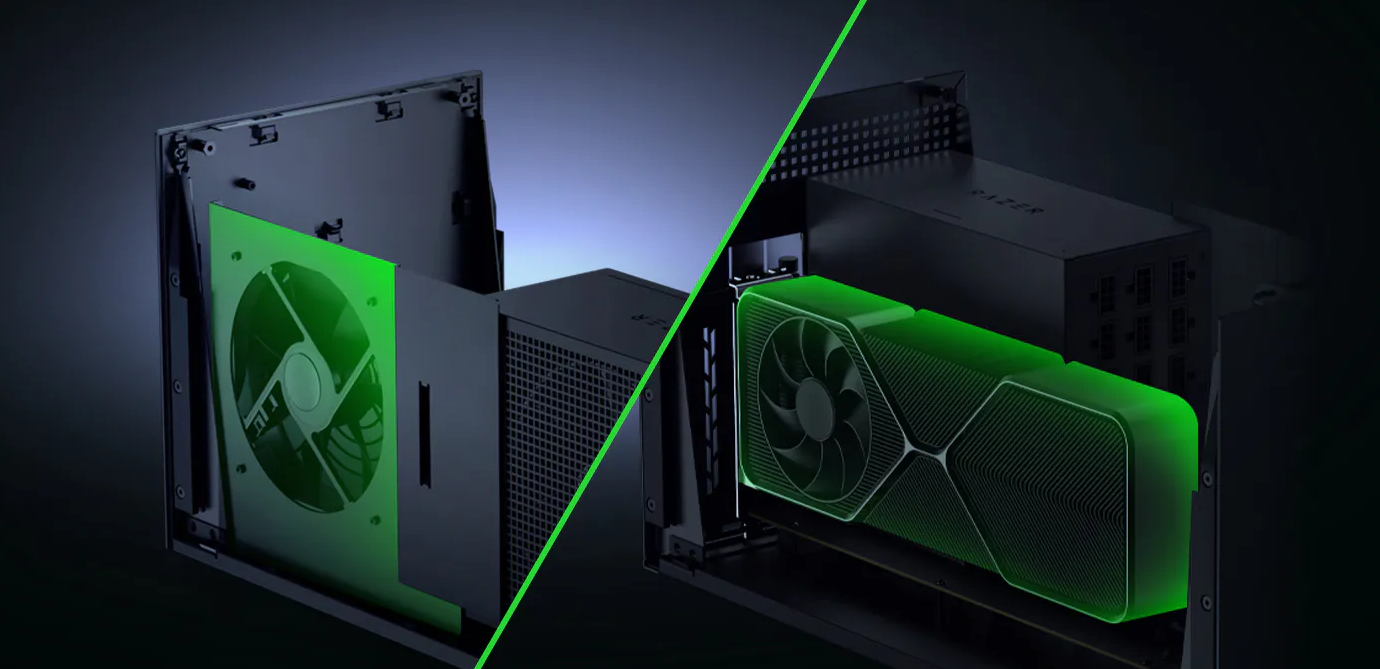

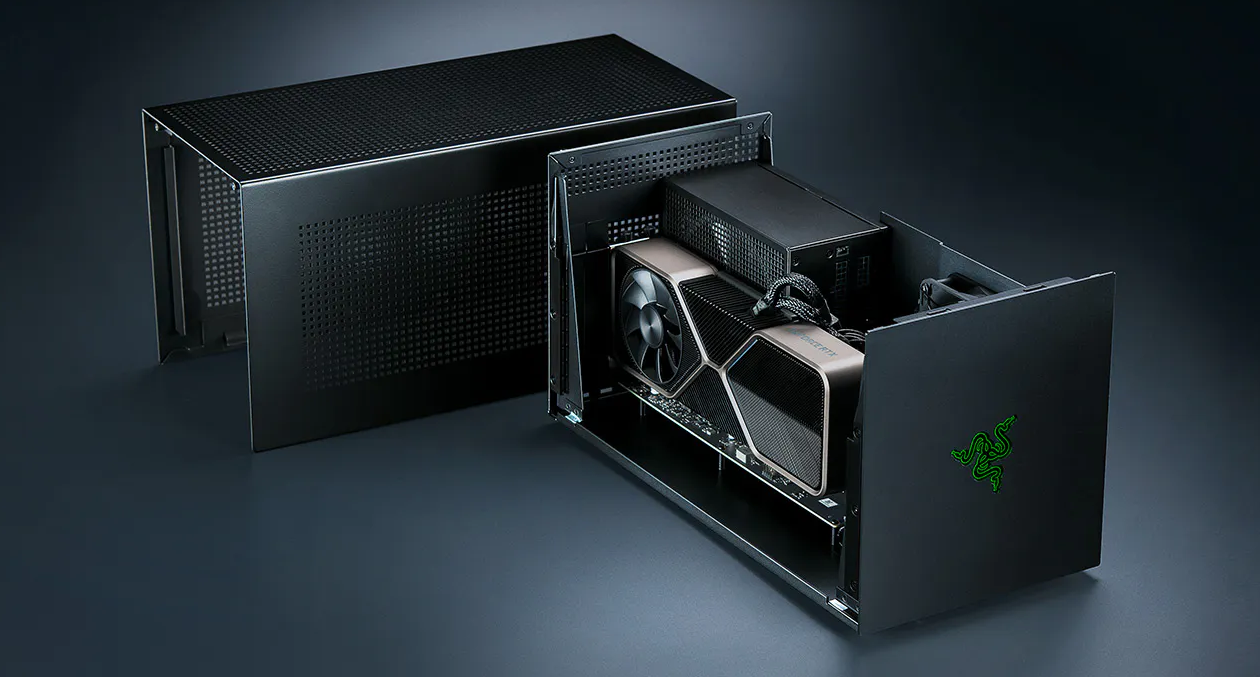

MODULAR GPU & POWER SUPPLY SUPPORT Future-Proof Your Setup
Upgrade with the latest GPU and ATX PSU-or upcycle an older card with PCIe Gen 4 support. A quick, tool-free installation with included thumbscrews keeps your system up to date and going strong.

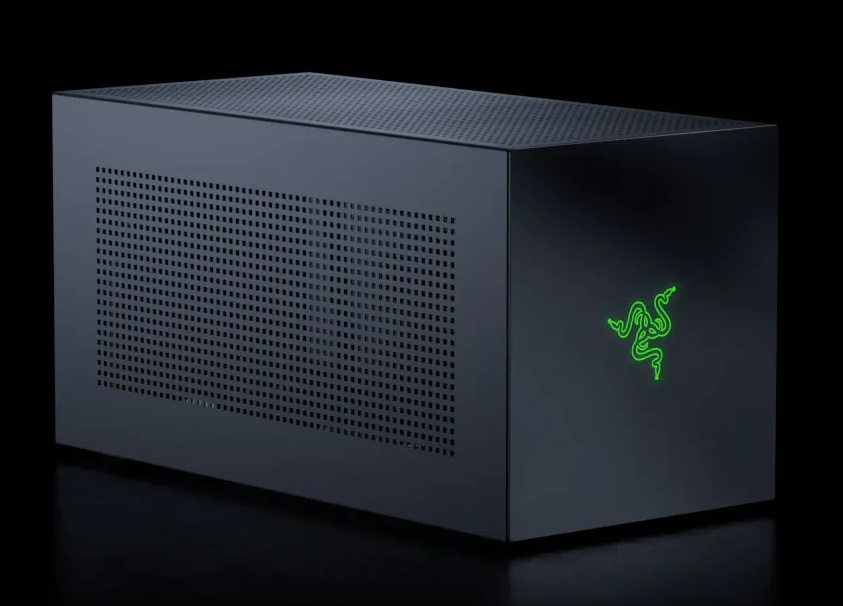

VENTED STEEL CHASSIS WITH ACTIVE COOLING
Sustain maximum performance with a built-in 120 mm fan that automatically ramps up during heavy loads or customize the fan curve to achieve your ideal noise-to-cooling ratio.
Specifications
Razer Core X V2 Approx. Dimensions
Length: 421 mm / 16.59 in
Height: 216 mm / 8.51 in
Width: 197 mm / 7.76 in
Weight (approximate)
3.9 kg / 8.64 lbs
Connection to PC
Thunderbolt™ (USB-C) using included Thunderbolt™ 5 cable
Compatible Laptops
Laptops and other devices require a Thunderbolt™ 4, Thunderbolt™ 5 or USB 4 port with external graphics support.
Please check with your laptop or device manufacture to confirm if your laptop supports external graphics.
Razer Core X V2 Max Inner Dimensions
Length: 362.7 mm
Height: 82 mm
Width: 185.1 mm
* Height measured from top of PCIe connector to the bottom of the locking pin ramps.
System Requirements
Windows® 11 OS and Thunderbolt™ 4, Thunderbolt™ 5 or USB 4 port and eGPU compatibility
See following graphics card compatibility list for compatible devices.
GPU Support (Graphics Card Not Included)
GPU Type:
Supports up to 4-Slot wide, full-length, PCI-Express x16 graphics card.
Graphics card (GPU) sold separately
Windows 11 compatible graphics chipsets:
Graphics cards use varied designs based around a common graphics chip. Please ensure the GPU selected meets all size, power, and additional requirements.
Qualified NVIDIA® GeForce® graphics chipsets
Qualified AMD Radeon™ graphics chipsets
Graphics Output:
Based on capabilities of installed graphics
Expansion Slot
PCIe 4.0 x 4
Input & Output
Thunderbolt™ (USB C) for connection to compatible Thunderbolt™ 5, Thunderbolt™ 4 or USB 4 device
Internal Power Supply
Desktop ATX Power Supply sold separately
Laptop Power Delivery
Up to 140 Watts via USB-C
Included Cables
Thunderbolt™ 5 cable
Thunderbolt™ Cable Length
1 m
