StarTech.com HSB4SATSASBA 4 Bay Hot Swap Mobile Rack Backplane
StarTech.com HSB4SATSASBA 4 Bay Hot Swap Mobile Rack Backplane
- Brand: StarTech.com
- MPN: HSB4SATSASBA
- Part #: ENCSTT2784044
- UPC: 065030859547
- Brand: StarTech.com
- MPN: HSB4SATSASBA
- Part #: ENCSTT2784044
- UPC: 065030859547
What PB Tech customers are saying about this product...
See More Reviews
"Quality of build is great. Used for my DIY NAS, works as expected.
edited 4 years later:
some doors have issues, popping open / wont's stay closed. Seems common problem for the ...view more"
"Well pirced easy to add to a box for expanded storage"
"Solid build quality and simple to install. Supplied screws were very helpful as I misplaced my normal screw box that day as well."
Features
Specifications
Reviews
Do you own this product?
These bays say they handle SATA III/SAS II ; however they seem to be able to do better than that, bare in mind I am no hardware expert - but running a test between the two servers on my network I seem to be getting better than just SAS II. My 9361-8i is reporting the drives attached as being SAS III and transferring 9GB across my network I am getting write speeds of 200MBps on a single JBOD HGST 4Tb drive - that is damned impressive. As I said I am no expert when is comes to SAS but while this may not claim to be a SAS III interface it seems at least in my case to be handling it beautifully - I can't wait to see what a Raid 6 array can do...view more
Great
Quality of build is great. Used for my DIY NAS, works as expected.
edited 4 years later:
some doors have issues, popping open / wont's stay closed. Seems common problem for these units. Apart from that, all good.
Fantastic for expanding nas box
Well pirced easy to add to a box for expanded storage
Noisy Fans
This sets a new standard of how noisy a fan can be, and the provided screws couldn't secure the rack in my case.
Otherwise, it works. I guess its OK, but not amazing.
Solid and easy
Solid build quality and simple to install. Supplied screws were very helpful as I misplaced my normal screw box that day as well.
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Other Drive Enclosures
UGREEN Digital Storage EVA Case Bag for Hard Disk Drive & Power...
M.2 B-Key NGFF SSD & Msata SSD to SATA 3 Convertor Card Board...
StarTech.com Thunderbolt 3 PCIe Expansion Chassis w/ DisplayPort ...
StarTech.com HSB4SATSASBA 4 Bay Hot Swap Mobile Rack Backplane
StarTech.com SAT2IDEADP SATA to 2.5/3.5 IDE Hard Drive Adapter
StarTech.com HSB4SATSASBA 4 Bay Hot Swap Mobile Rack Backplane
- Brand: StarTech.com
- MPN: HSB4SATSASBA
- Part #: ENCSTT2784044
- UPC:065030859547
Product URL: https://www.pbtech.co.nz/product/ENCSTT2784044/StarTechcom-HSB4SATSASBA-4-Bay-Hot-Swap-Mobile-Rac
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 15 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

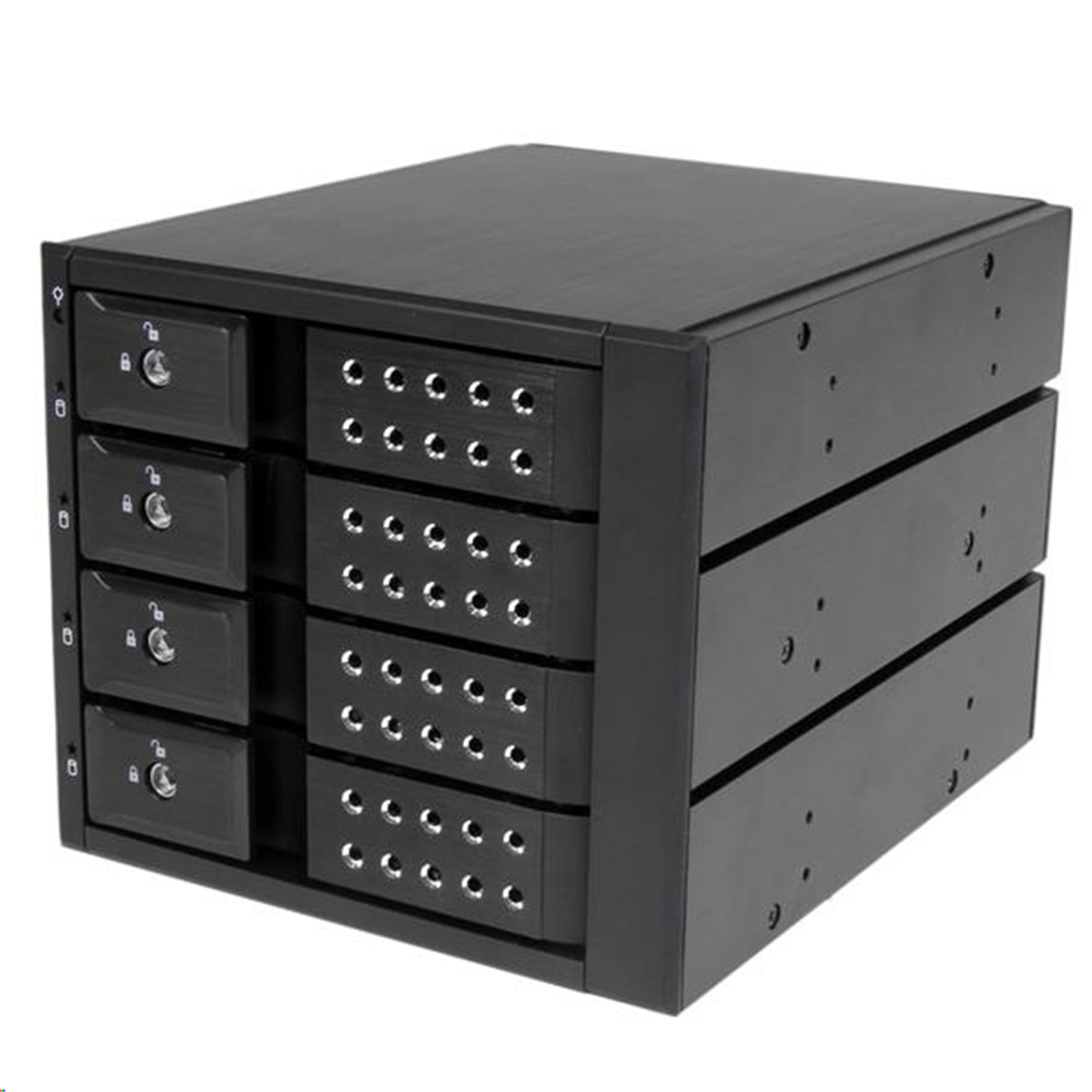

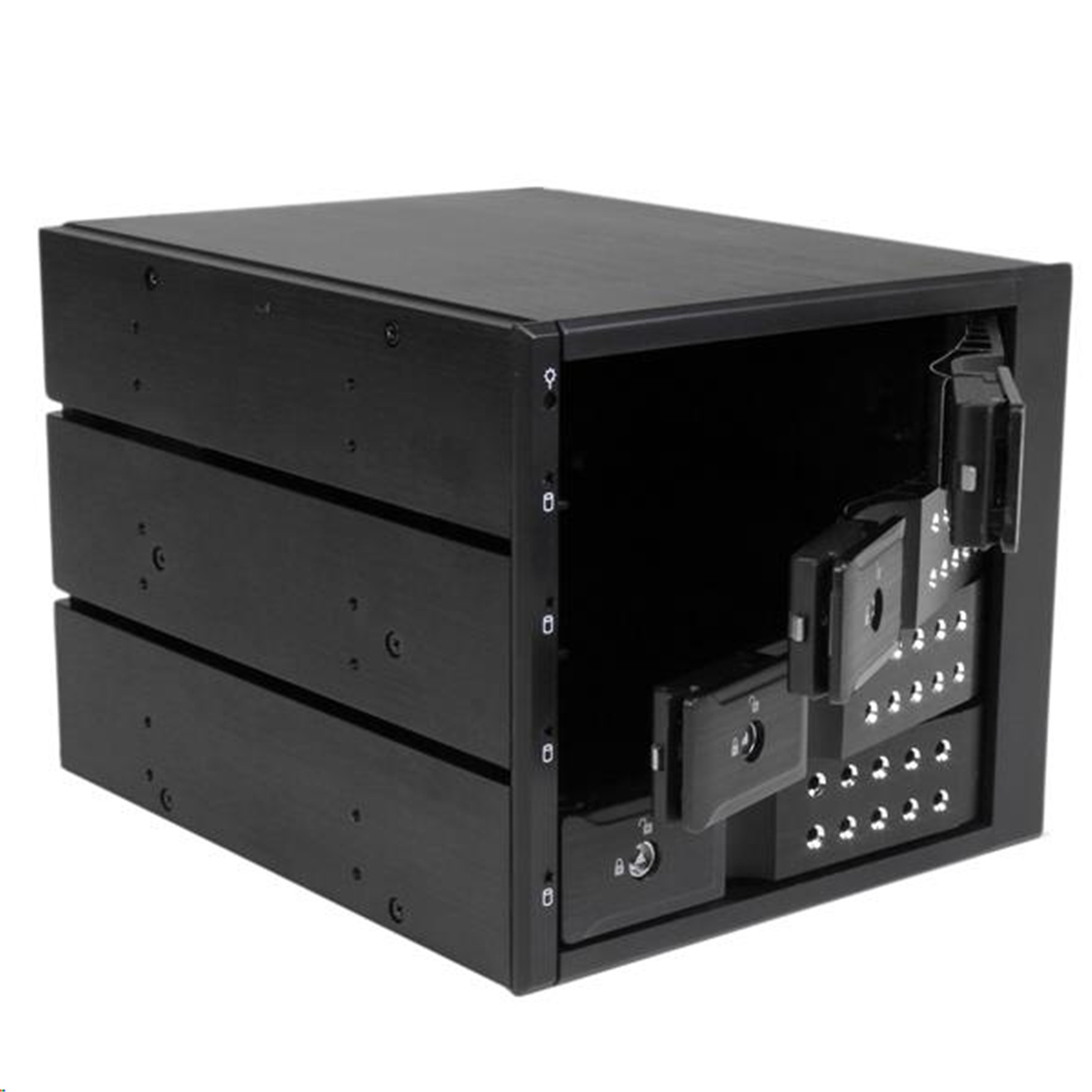

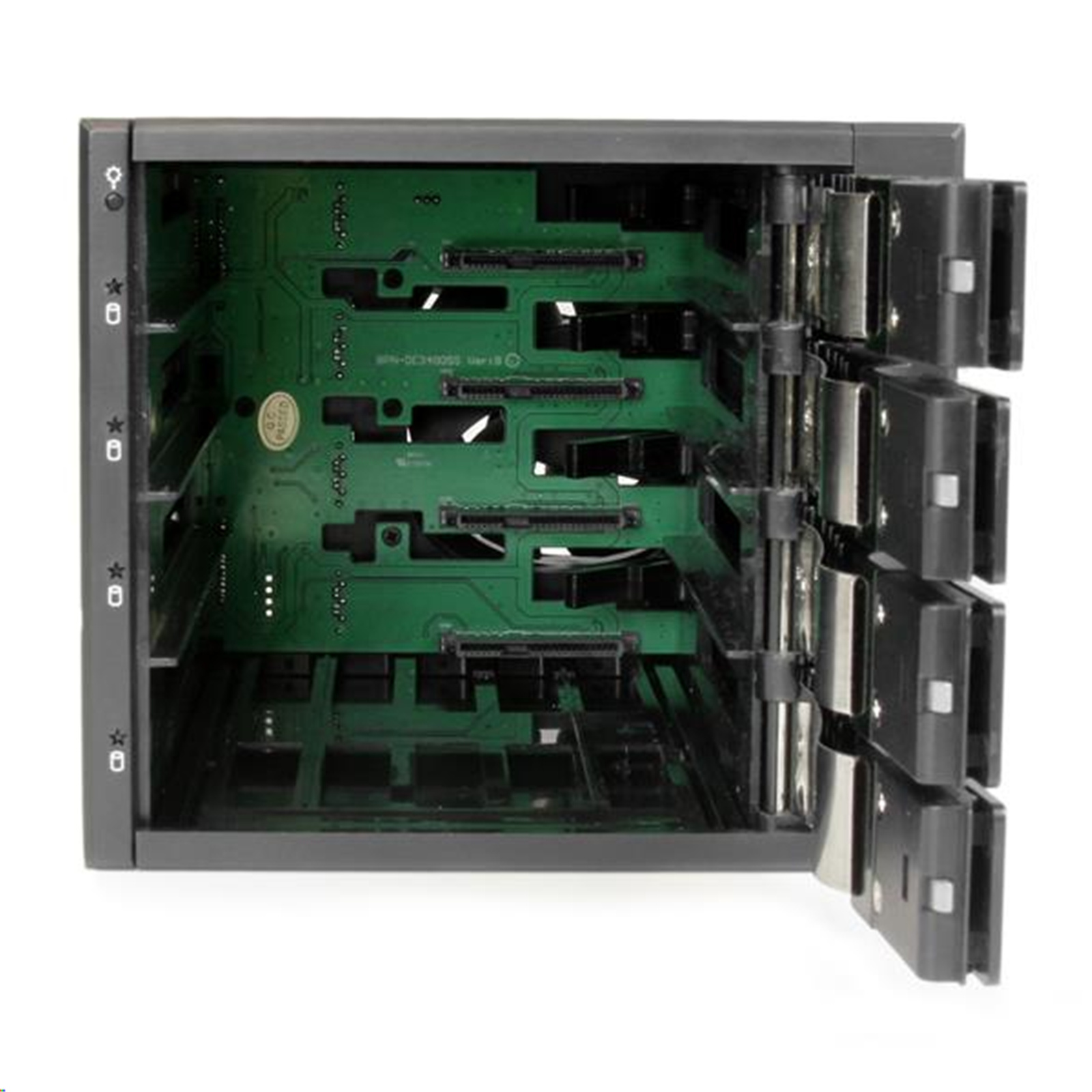

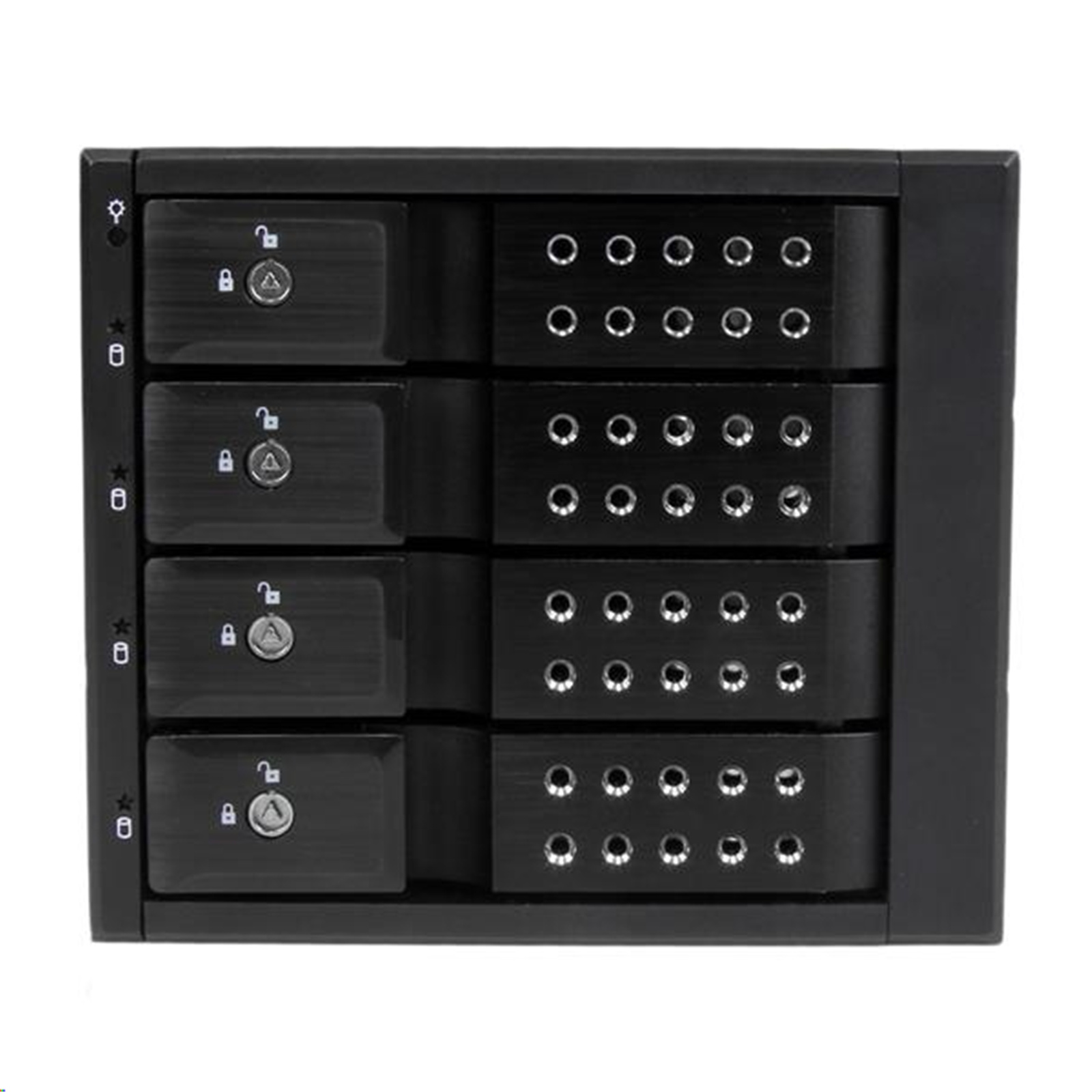

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD). For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure. The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces
- Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan
Specifications
SAS & SATA
Drive Installation
Removable
Drive Size
3.5in
Fan Bearing Type
Sleeve Bearing
Fan(s)
Yes
Fans
1 - 70 mm
Interface
SATA
SAS
Key Lock
Yes
Number of Drives
4
Number of internal 3.5 inch bays
4
Max Drive Capacity
Currently tested with up to 6TB 7200 RPM hard drives
Maximum Data Transfer Rate
6 Gbit/s

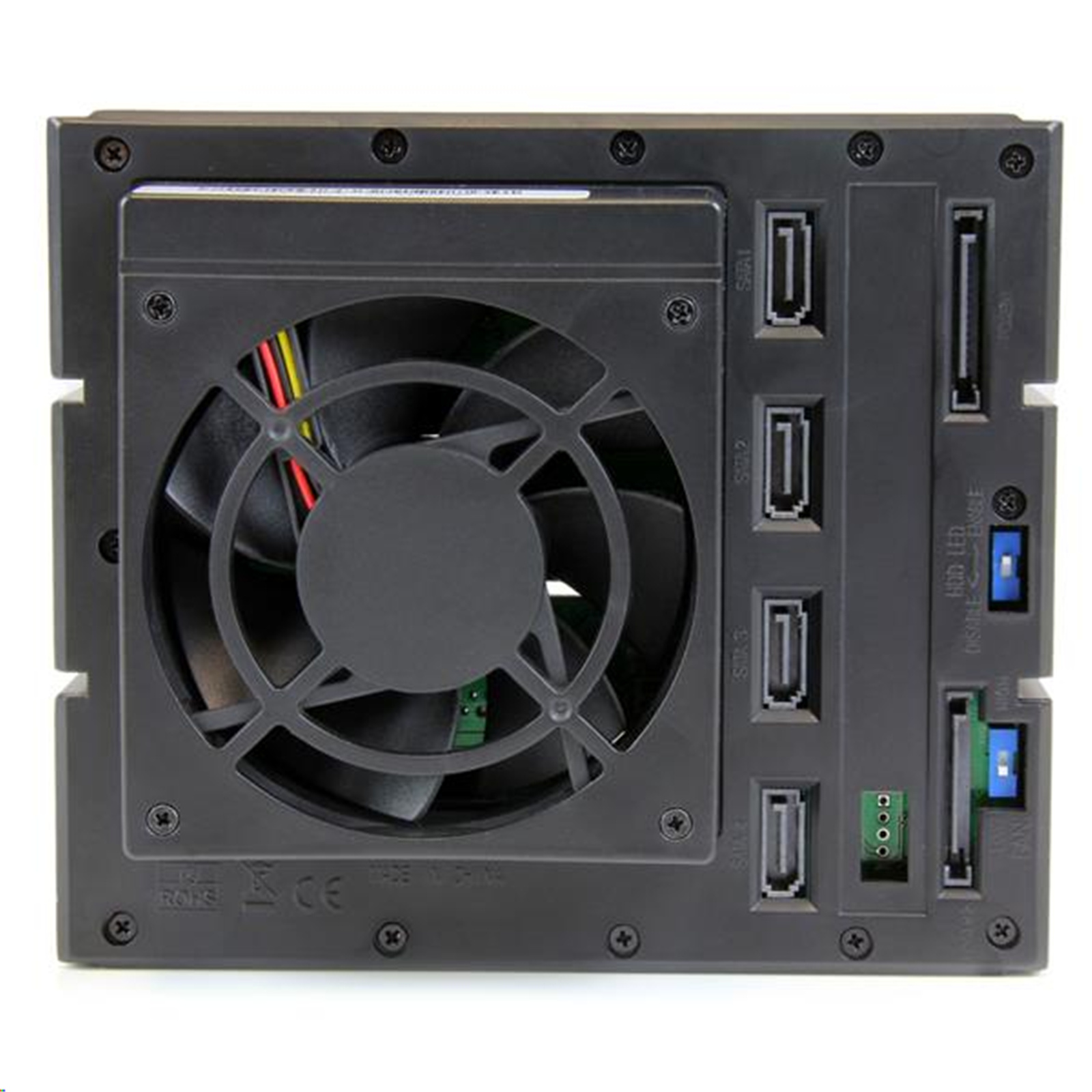

Drive Connectors
4 - SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle
Host Connectors
2 - SATA Power (15 pin) Receptacle
4 - SATA (7 pin, Data) Receptacle
OS Compatibility
OS independent; No software or drivers required
System and Cable Requirements
Flammability rating: UL94 - V0
LED Indicators
1 - Power LED
1 - Drive 1 Activity LED
1 - Drive 2 Activity LED
1 - Drive 3 Activity LED
1 - Drive 4 Activity LED

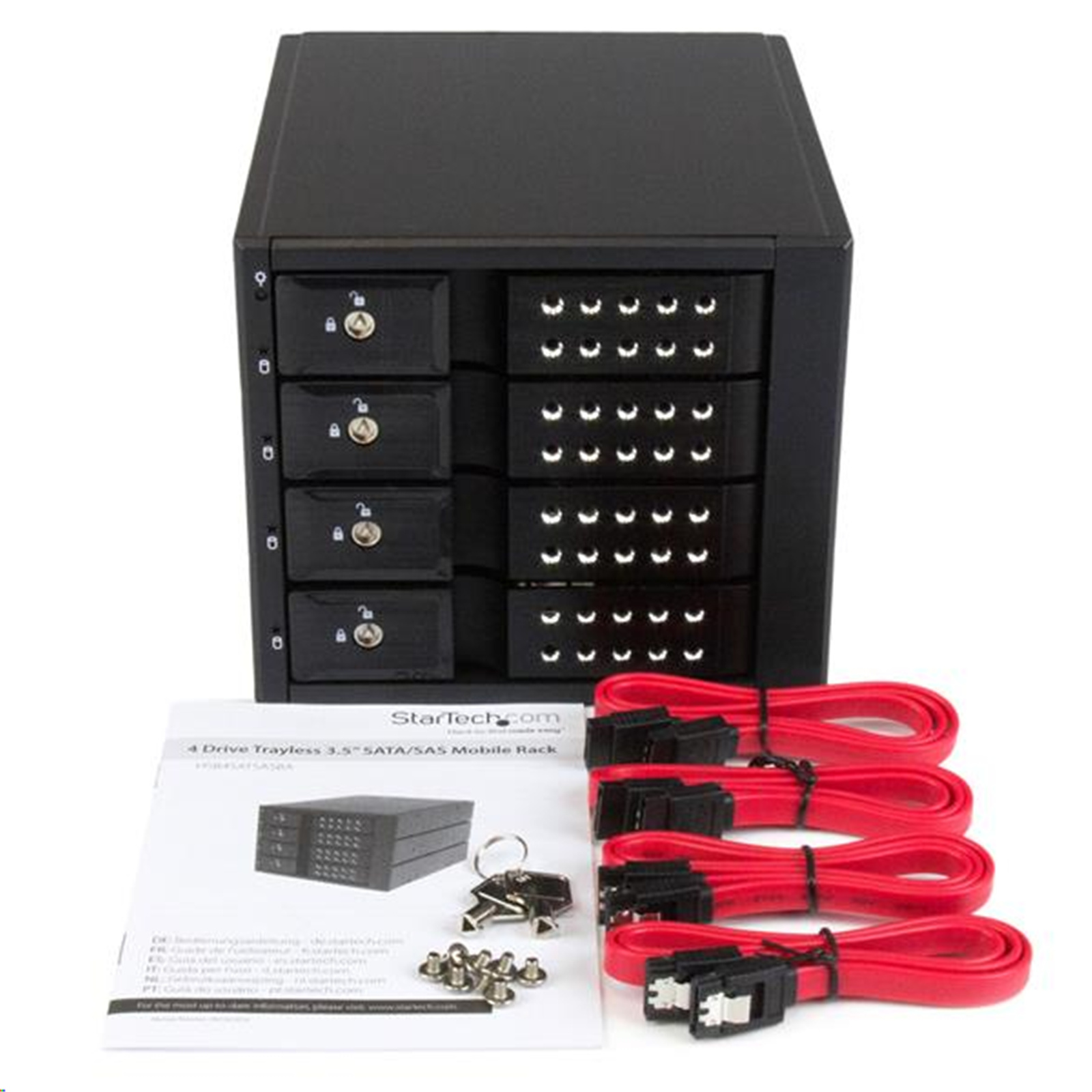

Included in Package
1 - 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
8 - Installation screws
2 - Drive bay keys
4 - SATA cables
1 - Instruction manual
