StarTech.com 25S22M2NGFFR Dual M.2 SATA Adapter with RAID - 2x M.2 SSDs to 2.5" SATA 6Gbps RAID Adapter Converter with TRIM Support

PB Tech price
PB Tech price
$ 73 .04
 +GST
$ 84 .00
 inc GST
$73.04  +GST
$84.00

StarTech.com 25S22M2NGFFR Dual M.2 SATA Adapter with RAID - 2x M.2 SSDs to 2.5" SATA 6Gbps RAID Adapter Converter with TRIM Support

  • Brand: StarTech.com
  • MPN: 25S22M2NGFFR
  • Part #: ENCSTT3153187
  • UPC: 065030863315
1
PB Tech price
$ 73 .04 $ 84 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 07 Oct When will I receive it?
$73.04  +GST
$84.00
  • Brand: StarTech.com
  • MPN: 25S22M2NGFFR
  • Part #: ENCSTT3153187
  • UPC: 065030863315

Tool Free

No

Drive Bays

2 Bays

What PB Tech customers are saying about this product...

See More Reviews

"Does exactly what it says on the tin.

I thought that by a ...view more"

SM
By: SimonM584 29/06/20
Verified Owner

Features

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5" drive bay and configure a powerful RAID array.


Build a RAID array to enhance system performance


The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.


|Maximize file transfer speeds


The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives. The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.


Get dependable drive protection

The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.

Specifications

Hardware

Chipset ID
ASMedia - ASM1092R
Compatible Drive Types
M.2 SATA (NGFF, B-Key)
Drive Installation
Fixed
Drive Size
22m - M.2 NGFF
Interface
SATA
Number of Drives
2

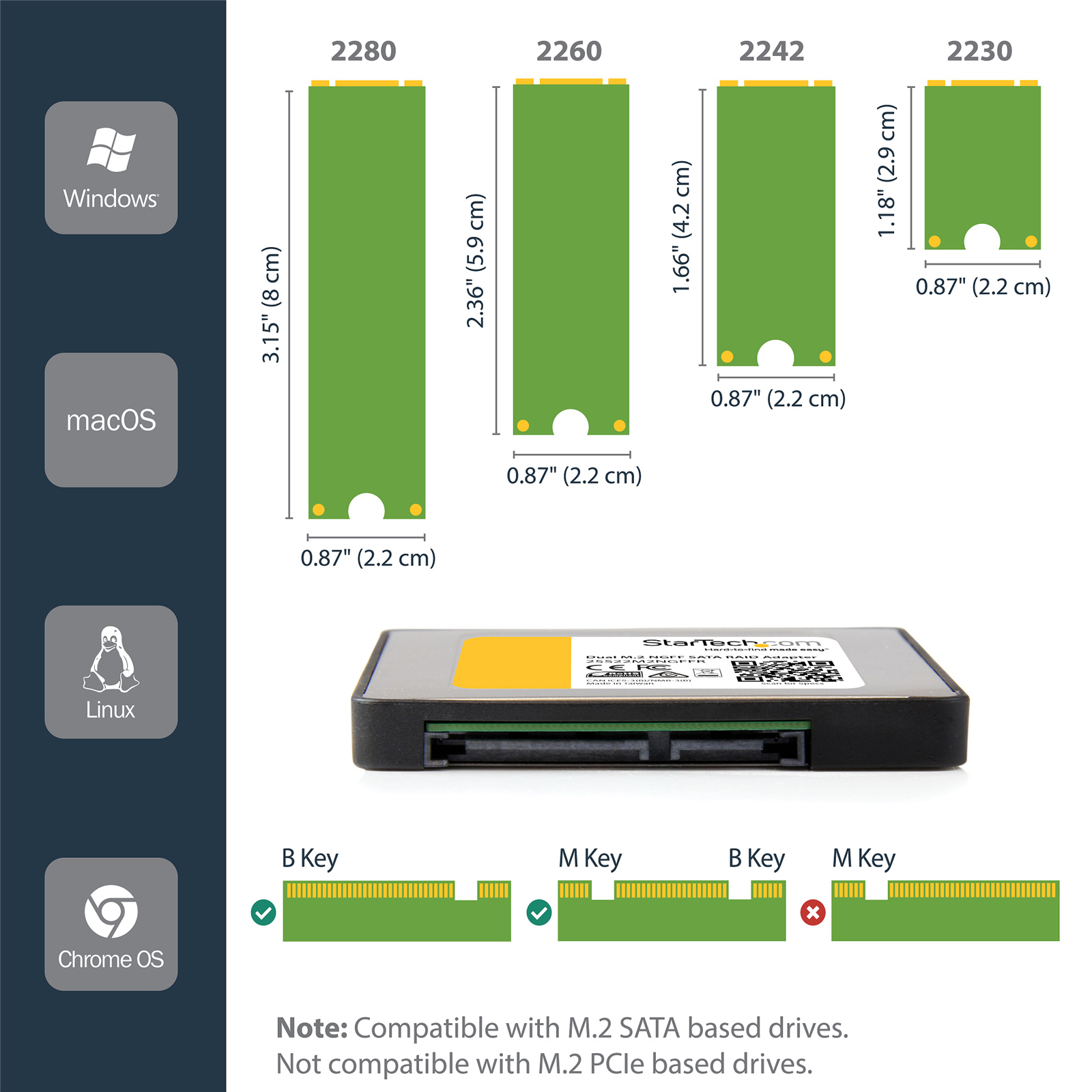

Supported Drive Height(s)
2230
2242
2260
2280

Performance


General Specifications
Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Maximum Data Transfer Rate
6Gbps
MTBF
500000
Port Multiplier
Yes
RAID
Yes
Supported RAID Modes
RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
JBOD - (Just a Bunch of Disks)
BIG (Spanning or Concatenation)
Type and Rate
SATA III (6 Gbps)

Connector(s)


Drive Connectors
1 - SATA Data & Power Combo (7+15 pin) Female
Host Connectors
2 - M.2 SATA (NGFF, B-Key) Male

LED Indicators
2 - Drive Error

Environmental

Humidity
5% ~ 95% RH
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-10°C to 85°C (14°F to 185°F)

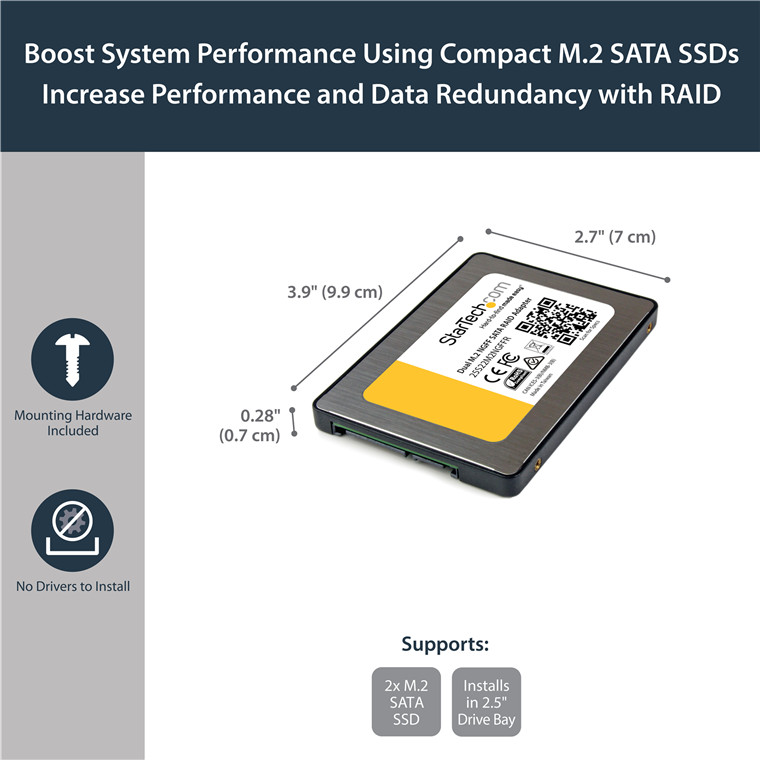

Physical Characteristics


Color
Black & Silver
Enclosure Type
Steel and Plastic
Product Height
0.3 in [8 mm]
Product Length
3.9 in [99 mm]
Product Weight
1.9 oz [55 g]
Product Width
2.8 in [70 mm]

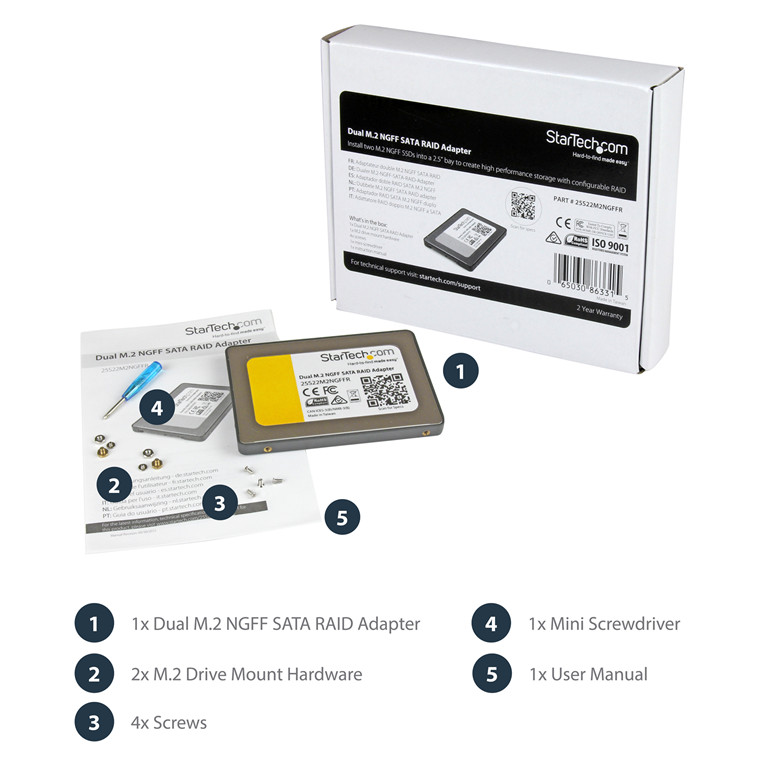

Included in Package
1 - dual M.2 NGFF SATA RAID adapter
2 - M.2 drive mount hardware
4 - screws
1 - mini screwdriver
1 - quick start guide
Manufacturer Part No:
25S22M2NGFFR
Brand:
Product Type:
-
UPC
065030863315
Product Family:
-
Shipping Weight:
0.212 kg
PB Part No:
ENCSTT3153187
Product Model:
25S22M2NGFFR
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4 out of 5 Stars Based on 1 review
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Pretty good for a very specific use case

Does exactly what it says on the tin.

I thought that by adding two M.2 SSDs in RAID 0 into this enclosure, I could get a 2.5" SSD that completely saturated a SATA 3 link at 6Gbps.
What I actually ended up with was a slightly more expensive than usual, mostly run-of-the-mill SSD similar to a Samsung EVO 2.5" SSD.
The random read was a little better but that was the only difference I could find.

It has a few modes that are hardware configurable. i.e. RAID 0, RAID 1, SPAN and, JBOD (Just a Bunch Of Disks).
If your use case is data integrity in a small form factor, then running a RAID 1 is 2.5" is pretty good but, as far as I can tell it...view more

SM
By: SimonM584 29/06/20
Verified Owner
4 out of 4 users found this review helpful
Did you find it helpful?
