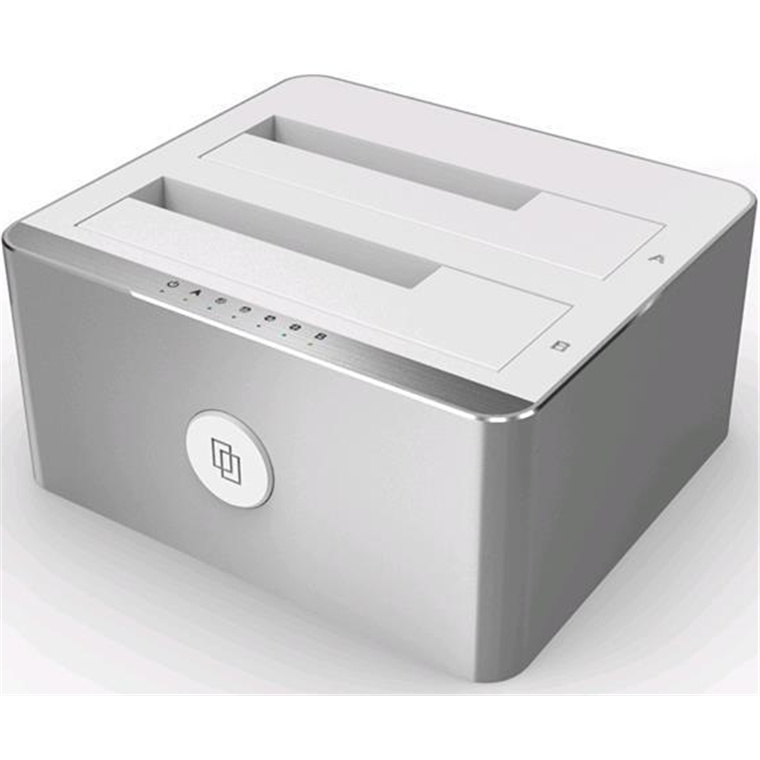

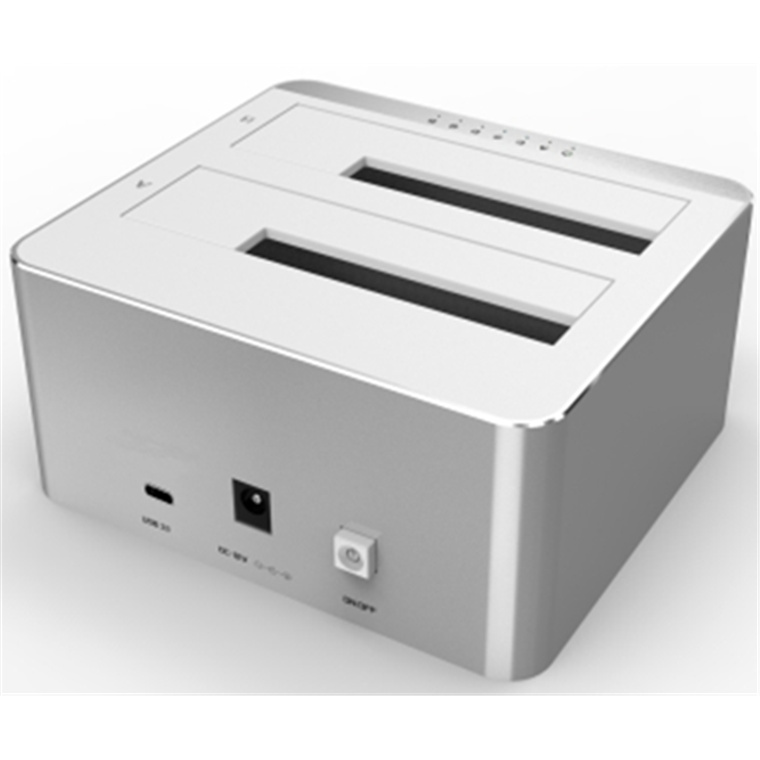

Unitek Y-3027 USB 3.1 GenII, USB-C to SATA 6G Docking Station with offline function with 12V 2A power adapter

When it works it works well. Full SCSI pass-through (raw access) which is nice for block-level management.

If you intend to attach higher capacity drives (>=8TB) be wary of the maximum power draw as the included AC adapter only supplies 36W (12V3A).
Certain OEM WD drives (EZAZ, EMAZ) can hit peak power draws of just over 20W which means this will fail if you attempt to use two at a time. It seems to increment UDMA CRC Error Count in S.M.A.R.T data when this happens which isn't great.

It manifests at spurious USB disconnects and I/O errors.
When using only one of these drives it works pretty much flawlessly which is good (5Gbps).

Ex...view more When it works it works well. Full SCSI pass-through (raw access) which is nice for block-level management.

If you intend to attach higher capacity drives (>=8TB) be wary of the maximum power draw as the included AC adapter only supplies 36W (12V3A).
Certain OEM WD drives (EZAZ, EMAZ) can hit peak power draws of just over 20W which means this will fail if you attempt to use two at a time. It seems to increment UDMA CRC Error Count in S.M.A.R.T data when this happens which isn't great.

It manifests at spurious USB disconnects and I/O errors.
When using only one of these drives it works pretty much flawlessly which is good (5Gbps).

Example of USB disconnect:
```
[75156.403854] usb 2-2: USB disconnect, device number 16
[75156.404136] xhci_hcd 0000:10:00.0: WARN Set TR Deq Ptr cmd failed due to incorrect slot or ep state.
[75156.404539] sd 6:0:0:1: [sdc] tag#11 uas_zap_pending 0 uas-tag 1 inflight: CMD
[75156.404543] sd 6:0:0:1: [sdc] tag#11 CDB: Inquiry 12 01 b9 00 04 00
[75156.404547] sd 6:0:0:0: [sdb] tag#20 uas_zap_pending 0 uas-tag 2 inflight: CMD
[75156.404548] sd 6:0:0:0: [sdb] tag#20 CDB: Read capacity(16) 9e 10 00 00 00 00 00 00 00 00 00 00 00 20 00 00
[75156.404593] sd 6:0:0:1: [sdc] 1 512-byte logical blocks: (512 B/512 B)
[75156.404597] sd 6:0:0:1: [sdc] 0-byte physical blocks
[75156.404599] sd 6:0:0:0: [sdb] Read Capacity(16) failed: Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
[75156.404603] sd 6:0:0:0: [sdb] Sense not available.
[75156.404611] sd 6:0:0:0: [sdb] Read Capacity(10) failed: Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
[75156.404612] sd 6:0:0:0: [sdb] Sense not available.
[75156.404616] sd 6:0:0:0: [sdb] 0 512-byte logical blocks: (0 B/0 B)
[75156.404618] sd 6:0:0:0: [sdb] 4096-byte physical blocks
[75156.404624] sdb: detected capacity change from 15628053168 to 0
[75156.404652] sd 6:0:0:0: [sdb] Attached SCSI disk
[75156.530549] sdc: detected capacity change from 15628053168 to 1
[75156.530601] device offline error, dev sdc, sector 0 op 0x0:(READ) flags 0x0 phys_seg 1 prio class 2
[75156.530605] Buffer I/O error on dev sdc, logical block 0, async page read
[75156.530617] device offline error, dev sdc, sector 0 op 0x0:(READ) flags 0x0 phys_seg 1 prio class 2
[75156.530619] Buffer I/O error on dev sdc, logical block 0, async page read
[75156.530623] ldm_validate_partition_table(): Disk read failed.
```

When using two of my drives at once these errors are reproducible across different USB controllers, motherboards, CPUs, RAM, etc.

Pay attention to the max power draw on drive datasheets. A 12V5A AC adapter may be able to rectify this but I haven't got one handy. There is no obvious indication about exceeding power draw on the unit (LEDs) or firmware messages from the ASM1156 controller.
This review is 2-stars (Poor) and not 3-stars (Average) because the description states "It supports all 2.5" and 3.5" SATA I, II, and III HDD and SSD up to any capacity" which is misleading for very high capacity drives where power usage is increased. It's wise to have a fan blowing on the drives too.

---

I cannot leave a 2-star review because PB Tech requires an account for that, but I did not purchase this device using one.

I use these with both Linux and windows machines. Clones everything I have tried so far, and I run all of my HD's (except the boot drive) on these rather than plugged into the motherboard. Enables easy swapping of disks between computers by moving the USB plug, without rebooting. Acceptably fast for my usage, although I am not a state-of-the-art gamer. No problem playing 4k video. Use both SSD's and conventional HD's. Clones the boot drive successfully without a computer (both windows and linux), worth buying for this feature alone. I now always clone the boot disc before an OS update, has saved me from a disaster more than once. It is best...view more I use these with both Linux and windows machines. Clones everything I have tried so far, and I run all of my HD's (except the boot drive) on these rather than plugged into the motherboard. Enables easy swapping of disks between computers by moving the USB plug, without rebooting. Acceptably fast for my usage, although I am not a state-of-the-art gamer. No problem playing 4k video. Use both SSD's and conventional HD's. Clones the boot drive successfully without a computer (both windows and linux), worth buying for this feature alone. I now always clone the boot disc before an OS update, has saved me from a disaster more than once. It is best to clone identical discs. Cannot clone from large to small obviously, small to large works, but the larger disc "becomes" the same size as the smaller one.
Several years use with these ( I run 4 full time), only had one failure, and the disk survived. Highly recommended.

Easy to use with old & new drives and clear out my data spread across too many drives (Small Capacity) to newer faster drives.
Basic but very useful Easy to use with old & new drives and clear out my data spread across too many drives (Small Capacity) to newer faster drives.
Basic but very useful

Was a bit fiddly to use, but after a PC restart it started working just fine. Was expecting to have to get a USB to USB-C adapter, but the USB-C side is the side that goes into the dock and the USB goes into the computer. Was a bit fiddly to use, but after a PC restart it started working just fine. Was expecting to have to get a USB to USB-C adapter, but the USB-C side is the side that goes into the dock and the USB goes into the computer.

Bought to replace my old tired 32bit docking bay that couldn't see over 2TB. This one sees all my drives at full size including a 4TB. Runs as fast as it claims to. Does what it should.

One issue however, when inserting or removing the second disk both drives go offline and restart. So once you have a transfer going you can't remove or add the other drive until it's finished. A minor issue, but something to be aware of.
Comes with USB-C male to USB-A male cable which wasn't stated in the description. Bought to replace my old tired 32bit docking bay that couldn't see over 2TB. This one sees all my drives at full size including a 4TB. Runs as fast as it claims to. Does what it should.

One issue however, when inserting or removing the second disk both drives go offline and restart. So once you have a transfer going you can't remove or add the other drive until it's finished. A minor issue, but something to be aware of.
Comes with USB-C male to USB-A male cable which wasn't stated in the description.

Have more than one of these similar devices. This one appears to be robust, performs well and is a good design.
Only thing not there is a push button to eject the disks from the drive. It not needed though so is not a big negative. Have more than one of these similar devices. This one appears to be robust, performs well and is a good design.
Only thing not there is a push button to eject the disks from the drive. It not needed though so is not a big negative.

This unit has been a god send when it comes to v
Backing up & duplicating backups. The cradle has a snug
Fit which helps a lot with keeping the drive connectivity. Iv had
A couple in the past that drives slightly move around causing backups to fail which is a no go. Already affordable easy backup solution. This unit has been a god send when it comes to v
Backing up & duplicating backups. The cradle has a snug
Fit which helps a lot with keeping the drive connectivity. Iv had
A couple in the past that drives slightly move around causing backups to fail which is a no go. Already affordable easy backup solution.

Works as described, although I haven't tried cloning hard drives. It's been great to plugin old external drives lying around the office that failed due to their enclosures and get some use out of them rather than throwing them all out. It's not the prettiest unit sitting next to my iMac with the hard drives sticking out of it, but it does the job Works as described, although I haven't tried cloning hard drives. It's been great to plugin old external drives lying around the office that failed due to their enclosures and get some use out of them rather than throwing them all out. It's not the prettiest unit sitting next to my iMac with the hard drives sticking out of it, but it does the job

It's not flashy but it works as advertised. I don't plan on using a lot but it's loaded every disk I've put in there so far without a problem and it seems reasonably fast It's not flashy but it works as advertised. I don't plan on using a lot but it's loaded every disk I've put in there so far without a problem and it seems reasonably fast
