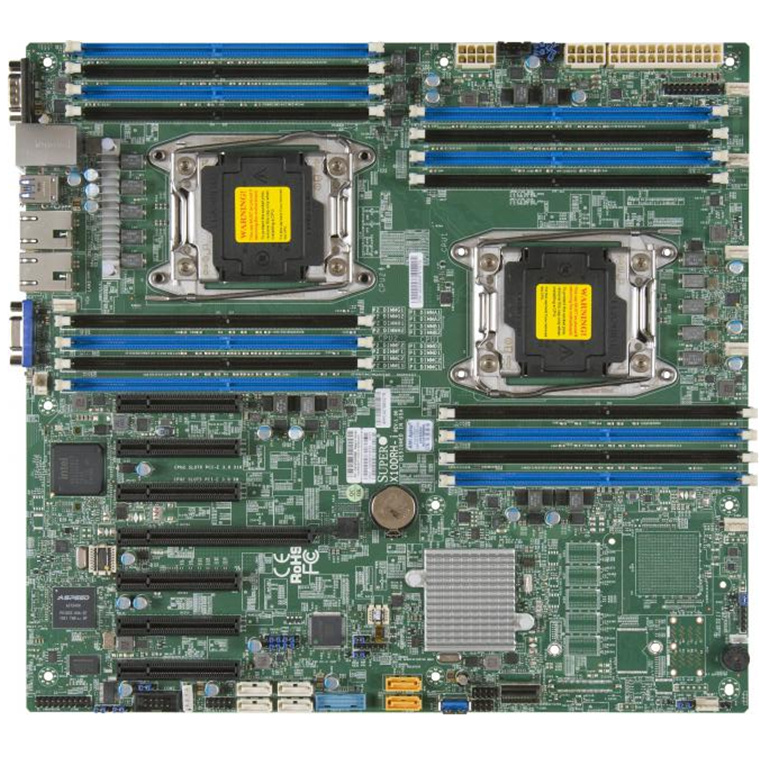

Supermicro Remanufactured X10DRH-iT E-ATX Server Board, 2x LGA2011-3, 8 DIMM, 2x 10GbE X540, 10x SATA, 5x USB3.0 /PB 6 mths warranty

Supermicro Remanufactured X10DRH-iT E-ATX Server Board, 2x LGA2011-3, 8 DIMM, 2x 10GbE X540, 10x SATA, 5x USB3.0 /PB 6 mths warranty
PB Tech price: PB Tech price:
$765 00  +GST $879 75  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

Supermicro Remanufactured X10DRH-iT E-ATX Server Board, 2x LGA2011-3, 8 DIMM, 2x 10GbE X540, 10x SATA, 5x USB3.0 /PB 6 mths warranty

REMANUFACTURED

Supermicro Remanufactured X10DRH-iT E-ATX Server Board, 2x LGA2011-3, 8 DIMM, 2x 10GbE X540, 10x...

  • Brand: Supermicro
  • MPN: EXMBDSPMX10207
  • Part #: EXMBDSPMX10207
  • UPC:
  • MB Socket:Intel LGA2011
  • Wi-Fi:No
  • Chipset:N/A
  • Form Factor:EATX
  • Multi GPU Support:None
  • Memory Type:DDR4
  • PCIE x16 Slots:1
  • PCIE x8 Slots:6
  • View more
PB Tech price: PB Tech price:
$765 00 $879 75
 +GST  inc GST
Hurry, only 1 unit left!

Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
Shop in-store: Check store stock levels

Five easy payments of $181.23 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Six easy payments of $151.02 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Finance from $8.24 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

- Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s
- Intel C612 chipset
- Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
- 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
- Intel X540 Dual port 10GBase-T
- 10x SATA3 (6Gbps) ports w/ Intel
- C612 controller; RAID 0, 1, 5, 10
- Integrated IPMI 2.0 and KVM with Dedicated LAN
- 5x USB 3.0 and 4x USB 2.0 ports

Specifications

Form Factor

E-ATX

Dimensions

30.5cm x 33.2cm (12" x 13")

CPU

Intel Xeon processor E5-2600 v3 family (up to 145W TDP)
Dual Socket R3 (LGA 2011)

Cores / Cache

Up to 18 Cores / Up to 45MB Cache

System Bus

QPI up to 9.6 GT/s

Memory Capacity

16x 288-pin DDR4 DIMM slots
Up to 1TB ECC LRDIMM, 1TB ECC RDIMM

Memory Type

2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

RDIMM: 64GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB

Memory Voltage

1.2 V

Error Detection

Corrects single-bit errors

Chipset

Intel® C612 chipset

AHCI SATA

SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA

SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers

Intel X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)

Video

ASPEED AST2400 BMC

SATA

10x SATA3 (6Gbps) ports

LAN

2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port

USB

5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)
4x USB 2.0 ports (2 rear + 2 via header)

Video

1x VGA Connector

Serial Port / Header

2x Fast UART 16550 serial
2x COM Ports (1 rear, 1 header)

DOM

2x SuperDOM (Disk on Module) ports

TPM

1x TPM 1.2 20-pin Header

PCI-Express

1x PCI-E 3.0 x16
6x PCI-E 3.0 x8

BIOS Type

128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

Plug and Play (PnP)
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1

Software

Intel Node Manager 3.0
IPMI 2.0
SPM
SUM
SuperDoctor 5
NMI
Watch Dog

Power Configurations

ACPI / APM Power Management
Power-on mode for AC power recovery

PC Health Monitoring

Voltage
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
6 Phase-switching voltage regulator
FAN
8x 4-pin fan headers (up to 8 fans)
8x fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 8x Fan Connectors
Thermal Monitor 2 (TM2) support
PECI

LED

CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID

Other Features

Chassis intrusion detection
Chassis intrusion header
SDDC Support
RoHS

Operating Temperature Range

10 C - 35 C (50 F - 95 F)

Non-Operating Temperature Range

-40 C - 70 C (-40 F - 158 F)

Operating Relative Humidity Range

8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

5% - 95% (non-condensing)

Manufacturer Part No: EXMBDSPMX10207 Brand: Supermicro Product Type: -
UPC - Product Family: Remanufactured Shipping Weight: 2.854 kg
PB Part No: EXMBDSPMX10207 Product Model: -

Warranty: 6 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
