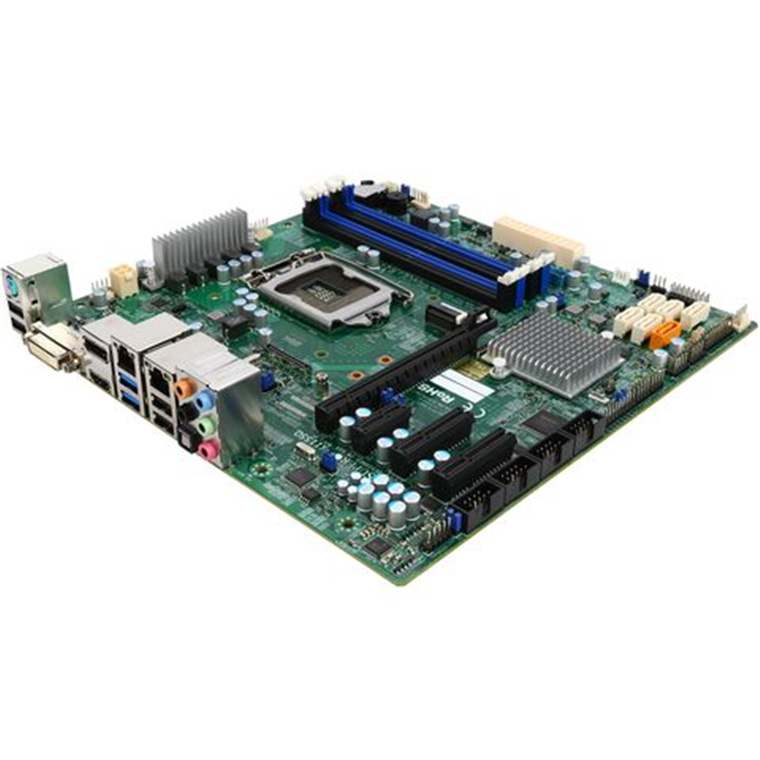

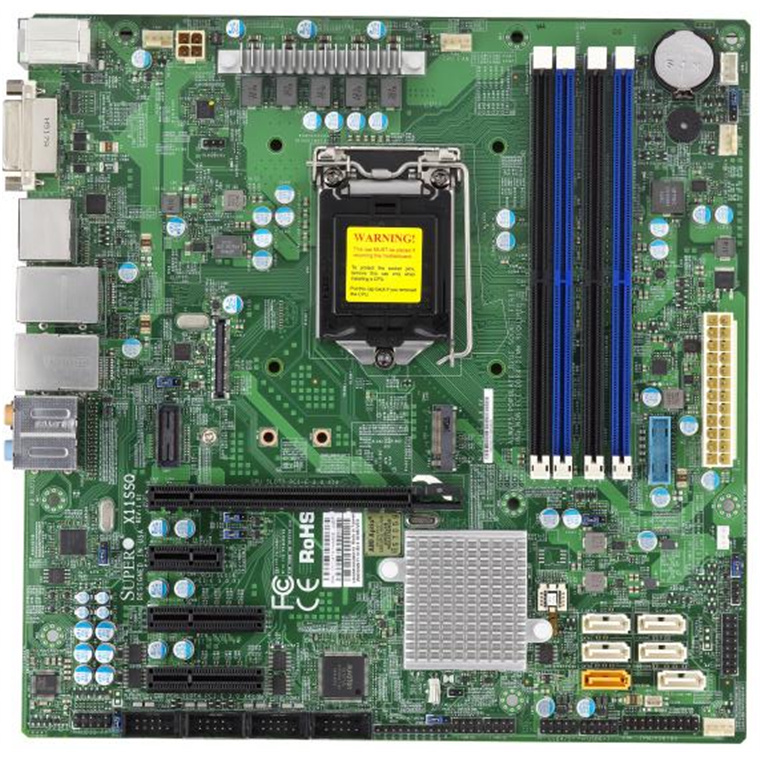

Supermicro Remanufactured X11SSQ Desktop Board mATX, LGA1151, Q170, 4 DIMM, 2x GbE (i219LM + i210AT), 6x SATA3, 4x USB3.0, 1x PCI-E 3.0 x16 2x PCI-E 3.0 x4, 1x PCI-E 3.0 x1, 1x M.2, 1x HDMI, 1x DP, 1x DVI-D, 1x eDP /PB 6 mths warranty

Supermicro Remanufactured X11SSQ Desktop Board mATX, LGA1151, Q170, 4 DIMM, 2x GbE (i219LM + i210AT), 6x SATA3, 4x USB3.0, 1x PCI-E 3.0 x16 2x PCI-E 3.0 x4, 1x PCI-E 3.0 x1, 1x M.2, 1x HDMI, 1x DP, 1x DVI-D, 1x eDP /PB 6 mths warranty
PB Tech price: PB Tech price:
$262 50  +GST $301 88  inc GST

Generating Print Page
Home PC Parts Motherboards Server Motherboards Supermicro Remanufactured X11SSQ...
Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.
This product is a Factory Remanufactured unit in full working condition. View the Help Section to learn more about Factory Remanufactured units.

Supermicro Remanufactured X11SSQ Desktop Board mATX, LGA1151, Q170, 4 DIMM, 2x GbE (i219LM + i210AT), 6x SATA3, 4x USB3.0, 1x PCI-E 3.0 x16 2x PCI-E 3.0 x4, 1x PCI-E 3.0 x1, 1x M.2, 1x HDMI, 1x DP, 1x DVI-D, 1x eDP /PB 6 mths warranty

Part #: EXMBDSPMX11120
REMANUFACTURED
PB Tech price: PB Tech price:
$262 50 $301 88
 +GST  inc GST
Hurry, only 1 unit left!


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships tomorrow When will I receive it?

Six easy payments of $51.82 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $62.19 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $2.80 per week, 18 months interest free - 36 months to pay available*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 18 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

  • Brand: Supermicro
  • MPN: EXMBDSPMX11120
  • Part #: EXMBDSPMX11120
  • UPC:
  • MB Socket: Intel LGA1151
  • Wi-Fi: No
  • Chipset: Q170
  • Form Factor: mATX
  • Multi GPU Support: None
  • Memory Type: DDR4
  • PCIE x16 Slots: 1
  • PCIE x8 Slots: N/A
  • View more

Features

- Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors
- Intel® Q170 Express chipset
- Up to 64GB DDR4 2133MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
- 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, M.2 PCIex2 M Key 2242/2280, PCIex4 w/ open slots
- 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM
- 6x SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10 Intel RST
- HDMI, DP, DVI-D, 1 eDP, Intel HD Graphics, 3x independent displays
- 1x SATA DOM, 4x COM ports, TPM header, ALC 888S HD Audio 7.1
- 4x USB 3.0 (2 rear + 2 via header) 8x USB 2.0 (4 rear + 4 via headers)

Specifications

Form Factor

microATX

Dimensions

9.6" x 9.6", (24.4cm x 24.4cm)

CPU

Intel® 6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 95W TDP
Single Socket H4 (LGA 1151)

Memory Capacity

4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 ECC UDIMM

Memory Type

2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes

16GB, 8GB, 4GB

Memory Voltage

1.2 V

Chipset

Intel® Q170 Express chipset

SATA

SATA3 (6Gbps) via Intel® Q170 Express controller
RAID 0, 1, 5, 10 Intel RST

Network Controllers

Single Intel® I210-AT Gigabit Ethernet LAN port
Single Intel® PHY I219LM Gigabit Ethernet LAN port
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio

RealTek ALC 888S High Definition Audio

SATA

6x SATA3 (6Gbps) ports

LAN

2x RJ45 Gigabit Ethernet LAN ports

USB

4x USB 3.0 ports (2 rear + 2 via header)
8x USB 2.0 ports (4 rear + 4 via headers)

Audio

7.1 HD Jacks

Video/Display

1x HDMI, 1x DP (Display Port), 1x DVI-D, Intel® HD Graphics
3x Independent Displays from Processor Graphics

Serial Port / Header

4x COM ports (4 headers)

SuperDOM

1x SuperDOM (Disk on Module) ports with built-in power

TPM

1x TPM 20-pin Header

Others

SGPIO Header
SMbus header

BIOS Type

128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

Plug and Play (PnP)
DMI 2.3
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 3.0
UEFI 2.3.1
RTC (Real Time Clock) Wakeup

Manufacturer Part No:
EXMBDSPMX11120
Brand:
Product Type:
Desktop Board
UPC
-
Product Family:
Remanufactured
Shipping Weight:
0.984 kg
PB Part No:
EXMBDSPMX11120
Product Model:
X11SSQ
Warranty: 6 months *
