be quiet Silent Wings PRO 4 Black 120mm PWM Fan for case, radiators or heat sinks - high air pressure - speed switch - small tip clearance

Quiet design & great reviews!
  • Brand: be quiet
  • MPN: BL098
  • Part #: FANBQT3220
  • UPC:
4
PB Tech price
$ 45 .00 $ 51 .75
 +GST  inc GST


Click & Collect: Available from 9 stores.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$45.00  +GST
$51.75  inc GST

Six easy payments of $8.88 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $13.26 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

  • Brand: be quiet
  • MPN: BL098
  • Part #: FANBQT3220
  • UPC:

Fan Size

120mm

CPU Air Cooler Height

N/A

Number of Fans

1

LED Colour

N/A

Radiator Size

N/A

Bearing Type Variation

Fluid Bearing

Sound Level (Roughly)

37dB

What PB Tech customers are saying about this product...

See More Reviews

"I brought 3 of these fans, very quite even at higher speeds, If your looking at cooling for your rig i highly recommend getting some."

ES
By: EoinS1 26/02/24
Verified Owner

"My old case fan was starting to shriek at me while playing some of the more demanding games, CPU wise, so I bought this one. Despite the somewhat cryptic instruction sheet it prove ...view more"

HM
By: HaroldM 08/06/23
Verified Owner

"An excellent fan on par with my Noctua, nice being able to set the max RPM just witch I could doe it without having to remove it from the radiator every time"

SY
By: smiffy885 03/06/23
Verified Owner

Features





SILENT WINGS PRO 4 120mm PWM - LEGENDARY SILENCE, EPIC PERFORMANCE AND FEATURES

Silent Wings Pro 4 120mm PWM is the most progressive, performant and versatile fan by be quiet!

- Optimized fan blades for the highest performance on radiators and heat sinks
- Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 3000 rpm)
- Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure
- Virtually inaudible operation at regular speed
- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
- Individual mounting systems for use as a case fan or with a radiator

IMPROVED ON ALL LEVELS - Altered blade arrangement for new generation performance

The fan blades are what makes a fan. It is for this reason that the fan blades of Silent Wings Pro 4 120mm PWM have been developed newly from scratch. The new blade arrangement enables a performance second to none for all possible operations. Be it in a case, on radiators or heat sinks.



OPTIMIZED FOR HIGH-END PERFORMANCE - Minimum distance for maximum air pressure

Silent Wings Pro 4 120mm PWM makes for extraordinary air pressure and therefore, significantly increases the system's performance. The decreased distance between the fan blades and the frame enables an extraordinarily high air pressure. By that, the Silent Wings Pro 4 120mm PWM allows the user to run even the most demanding applications.

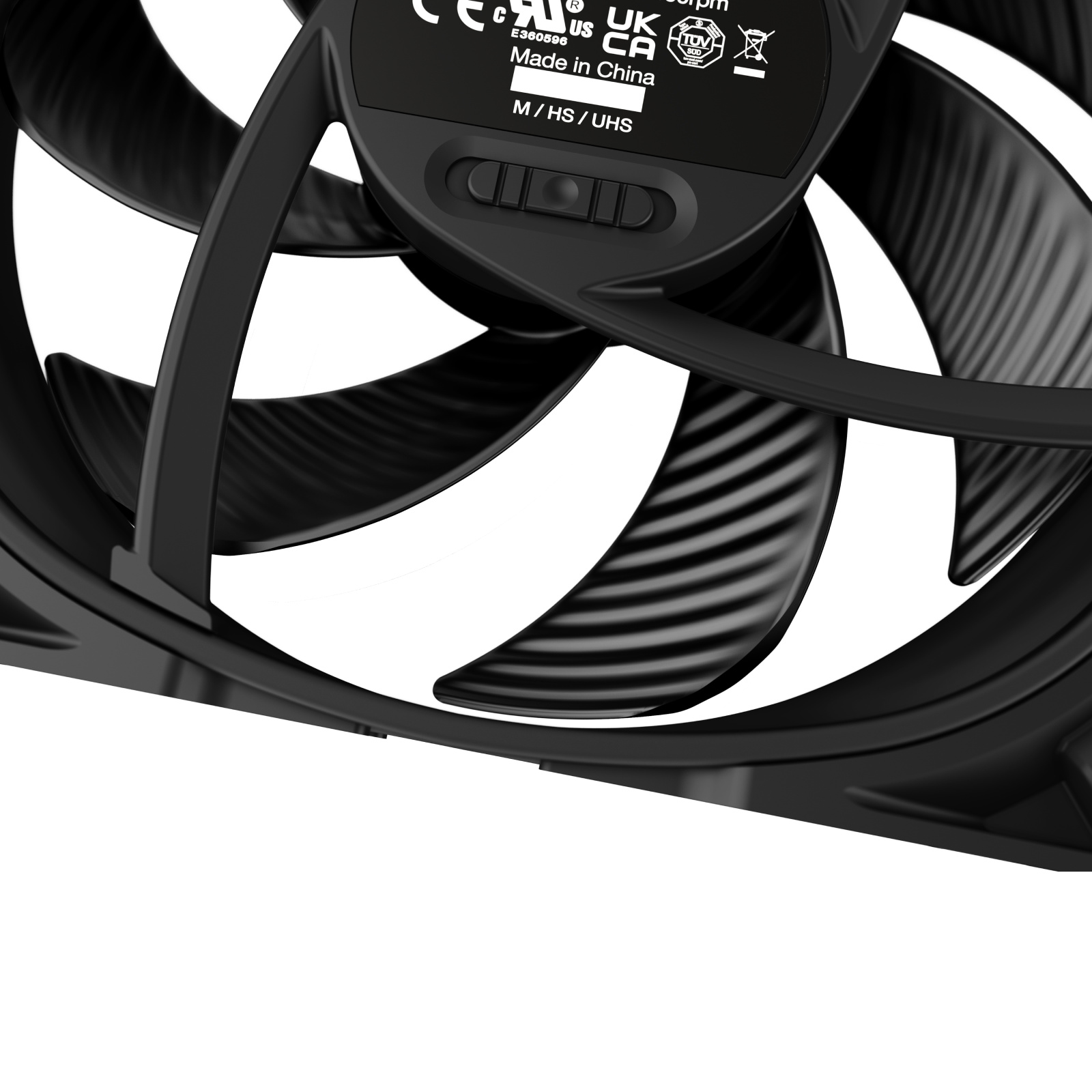

SPEED SWITCH - 3 speed options for any possible application

The speed switch makes switching between medium, high-speed and ultra-high-speed of maximum RPM levels quick and easy. The Silent Wings Pro 4 120mm PWM alters its application with a simple slide to the right. Medium-speed is suitable for any operation that requires regular cooling performance. High-speed lets the fan spin faster, providing more cooling power. Ultra-high-speed ultimately offers enough rpm to cool even the most demanding hardware in high-end PC builds.



6-POLE FAN MOTOR - The key for virtually inaudible operation when needed

6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 36.9dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated in mid-speed.



3 DIFFERENT MOUNTING OPTIONS - For any purpose

Silent Wings Pro 4 120mm PWM has 3 mounting options in the scope of delivery. The pre-installed radiator corners are specially designed for radiators on which the incomparable performance of this high-end fan completely shines. On the other hand, for chassis use, the anti-vibration mounting is the first choice as they reduce vibrations to a minimum. The plastic mountings round up the scope.



FLUID-DYNAMIC BEARING - For a sustainable operation

The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings Pro 4 120mm PWM.



ELEGANT LOOK - Magnificent appearance in all details

The all-black design combined with a high-grade fan sticker makes Silent Wings Pro 4 120mm PWM a highlight in any system. The finely sleeved PWM cable perfectly rounds up the outer appearance of the fan. Not only does the PWM cable look great: its connector can also be plugged in and out with ease, making the fan an eye-catcher and user-friendly alike.

Specifications

Mechanical specifications

Dimensions (L x W x H), (mm)

120 x 120 x 25

Bearing technology

FDB

Motor technology

6-pole fan motor

Weight incl. fixed cables (kg)

0.227

Push pin fixing

Yes

Screw fixing

Yes

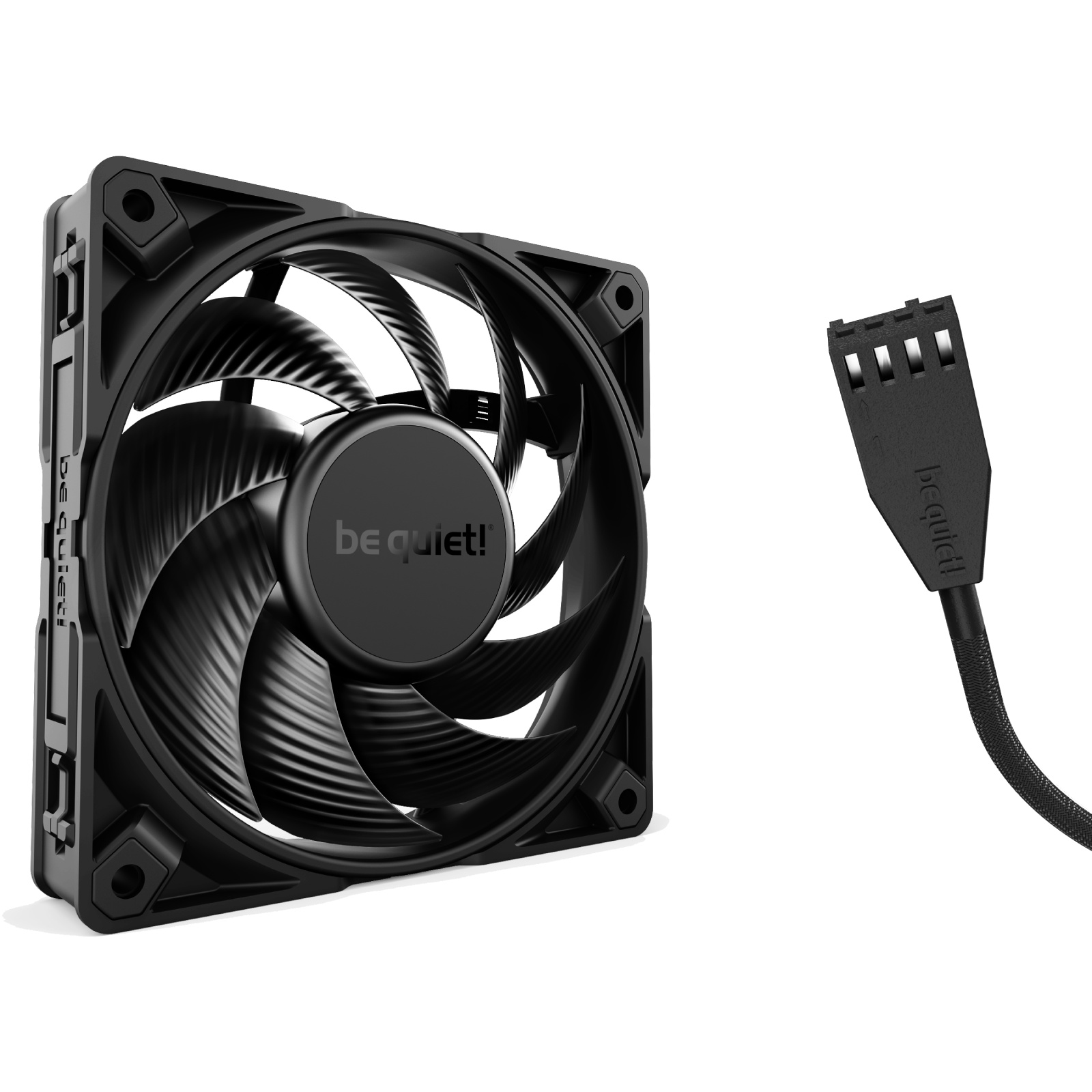

Cables / Connectors

Y-cable for lighting signal

-

Lighting connector

-

Connector

4-pin PWM

Cable length (mm)

500

Cable sleeve

Yes

Performance / Noise

Fan speed @ 100% PWM / 12V (rpm)

3000

Air Flow @ 100% PWM / 12V (CFM / m3/h)

83.9 / 142.5

Air Pressure @ 100% PWM / 12V (mm H2O)

5.31

Noise level @ 100% PWM / 12V (dB(A))

36.9

Lifespan (h / 25°C)

300,000

Electrical specifications

Rated Voltage DC (V)

12

Operating Voltage DC (V)

7 - 13.2

Current consumption (A)

0.30

Safety current (A)

0.33

Input power (W)

3.6

Rated Current LED (A)

-

Accessories

3-pin to 4-pin 12V-connector

-

12V to 7V adapter

-

12V to 5V adapter

-

Screws

4

Push pins

4

hard plastic washer

-

Others

-

Safety certification

Approvals

CE / RoHs / RU / UKCA / TÜV / WEEE

Manufacturer Part No:
BL098
Brand:
Product Type:
Black
UPC
-
Product Family:
Silent Wings PRO 4
Shipping Weight:
0.45 kg
PB Part No:
FANBQT3220
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
