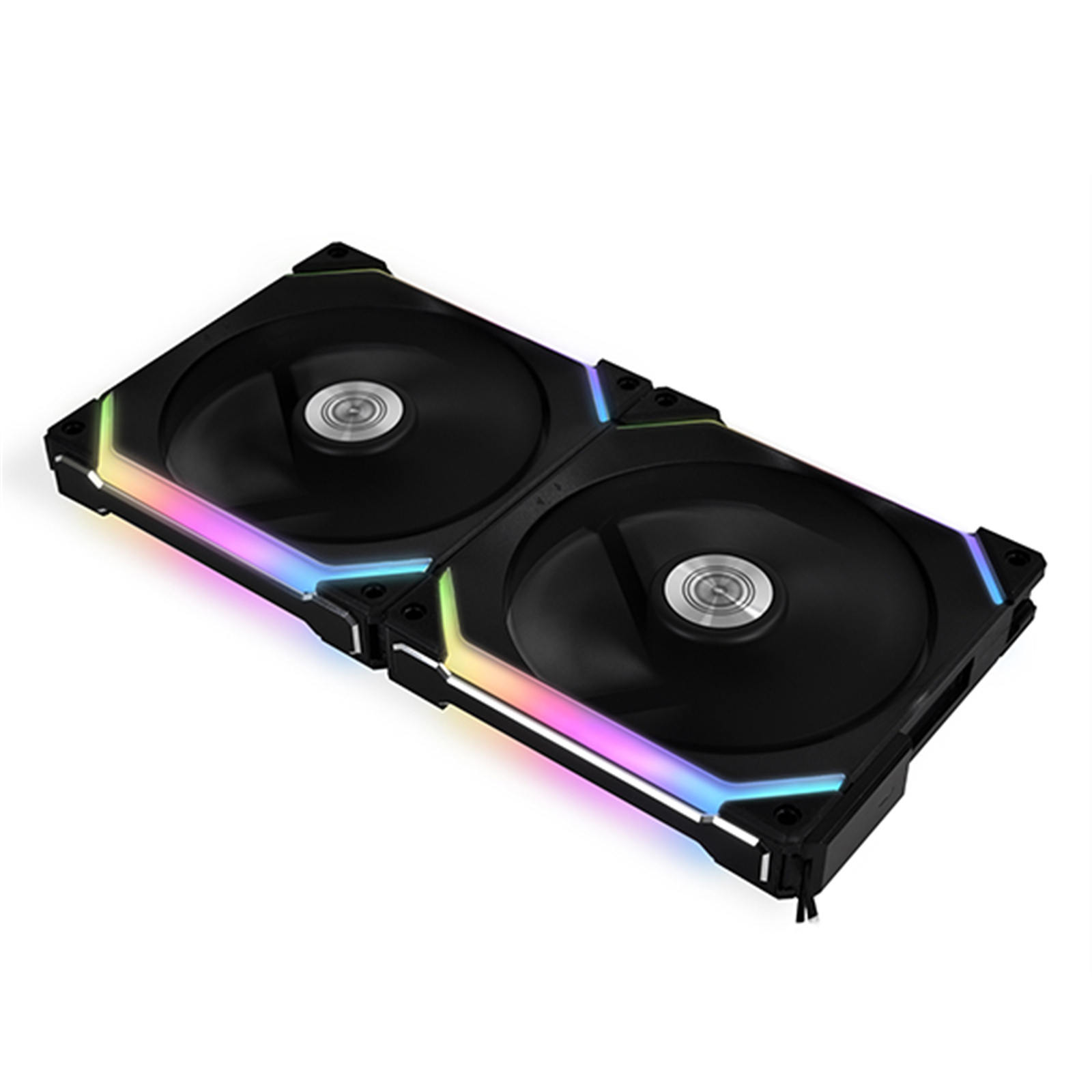

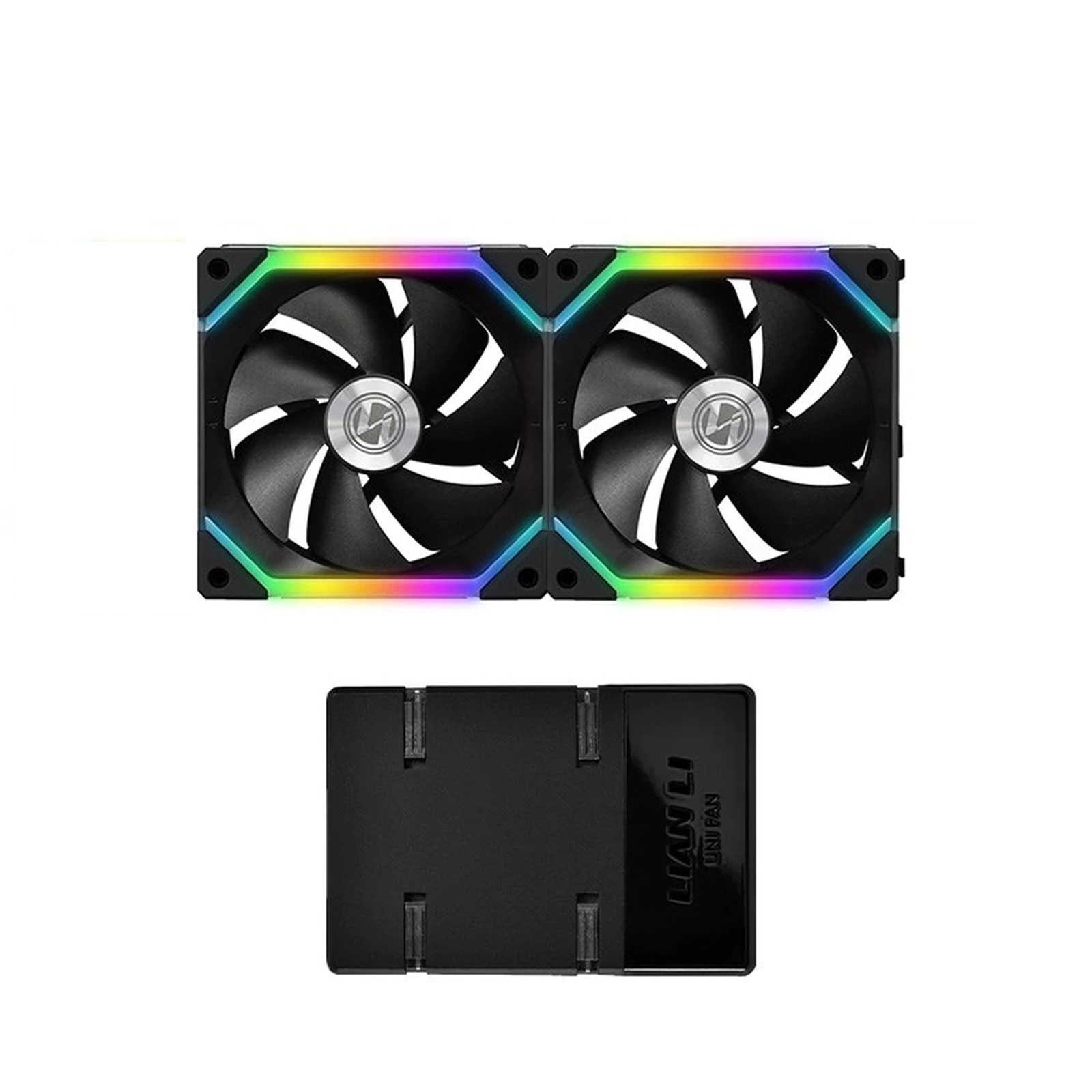

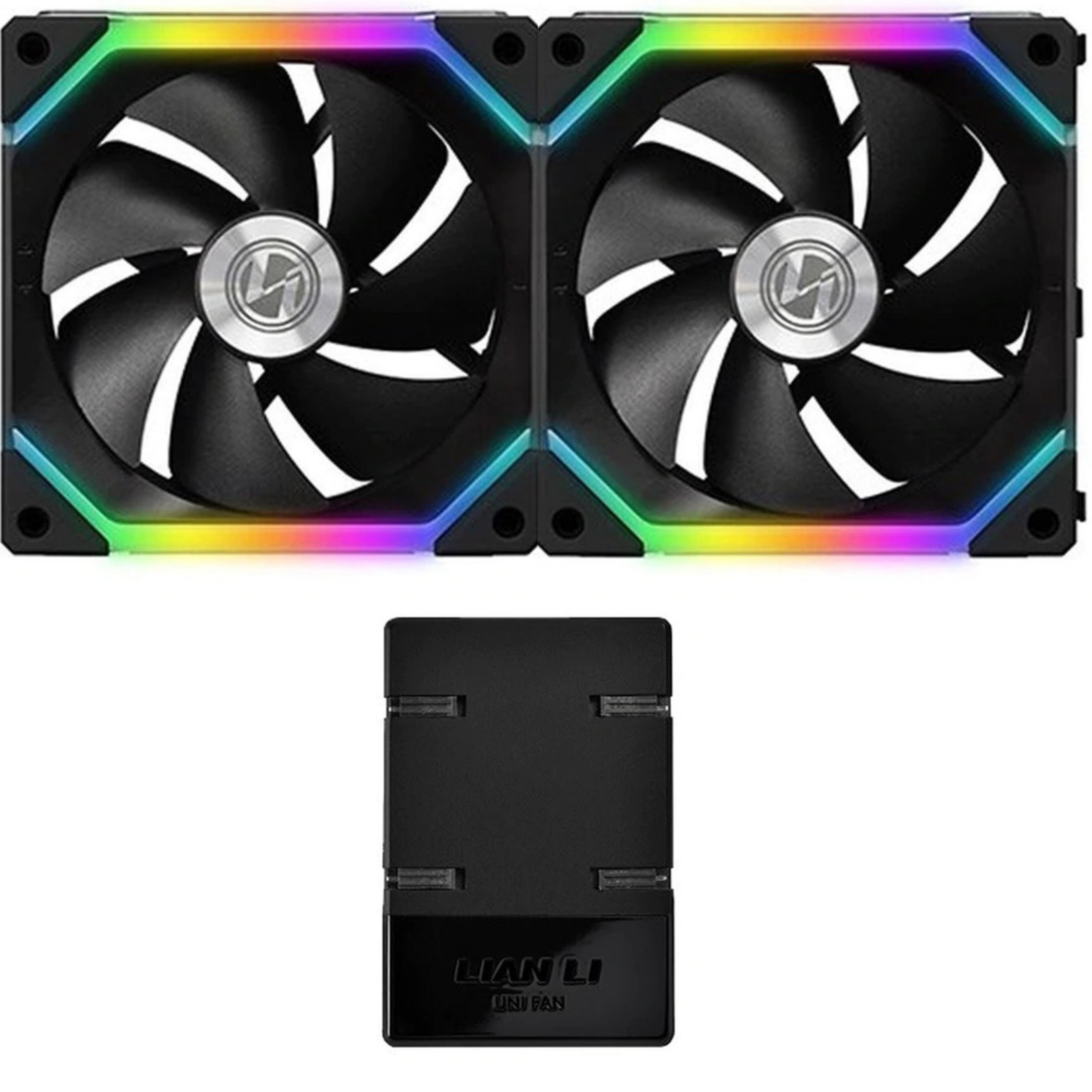

Lian Li UNI FAN SL140 Digital Addressable RGB 140mm Fan with Controller, Twin pack, Black
Lian Li UNI FAN SL140 Digital Addressable RGB 140mm Fan with Controller, Twin pack, Black
- Brand: Lian Li
- MPN: G99-14UF2B.00
- Part #: FANLAN0010
- UPC: 840353040465
Cheaper options available
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"as my perferd brand of case fans wasnt avalable in the sizes and base colors I required for my builds I went with Lian Li fans as they were avalable. knowing of the reputation of L ...view more"
"Basically the larger version of the SL120 pack but the controller on the one i received is the older version. You can use L Connect on this controller and you have to firmware upda ...view more"
"a dream to cable manage and really effective"
COMBO DEALS: Buy Together and SAVE!
Lian Li STRIMER PLUS 8 LED PSU Extension cable for 8 Pin, 3 X 8 Pin
$62.00 +GST
$71.30
Dynamix CAB150B Cable Tie 150mm x 2.5mm Bag of 100 self-locking Nylon cable tie Black Colour
$3.33 +GST
$3.83
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Case Fans
Lian Li UNI FAN SL140 Digital Addressable RGB 140mm Fan with Controller, Twin pack, Black
- Brand: Lian Li
- MPN: G99-14UF2B.00
- Part #: FANLAN0010
- UPC:840353040465
Product URL: https://www.pbtech.co.nz/product/FANLAN0010/Lian-Li-UNI-FAN-SL140-Digital-Addressable-RGB-140m
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 2 | |
Wellington | 1 | |
Head Office | 8 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
UNI FAN - SL140
A modular approach to fan design to enhance the user experience and to create a cable-free, hassle-free, and easier assembly process.

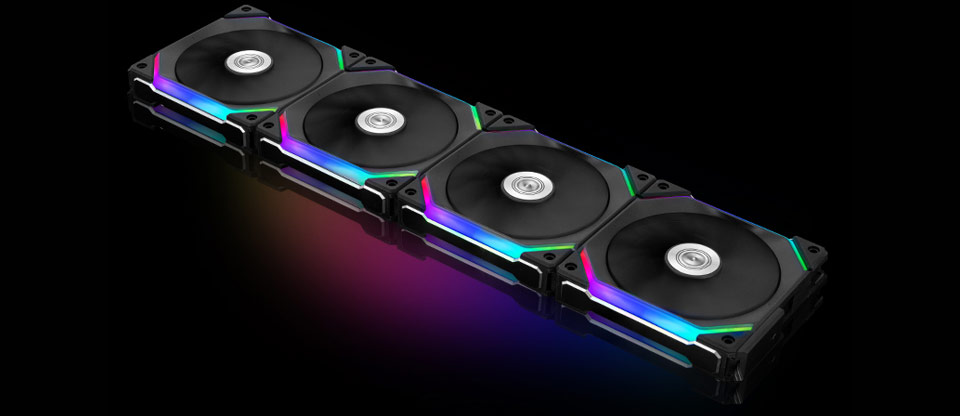

Daisy-Chain Design
An Enjoyable Experience
L-Connect
Intuitive Control Interface
Multiples Effect/Ability to Sync
32 LEDs Per Fan
High Static Pressure
Quiet Operation
Premium Quality
Sandblasted Aluminum Parts
Unprecedented Flexibility
A Quicker and Easier Installation Process

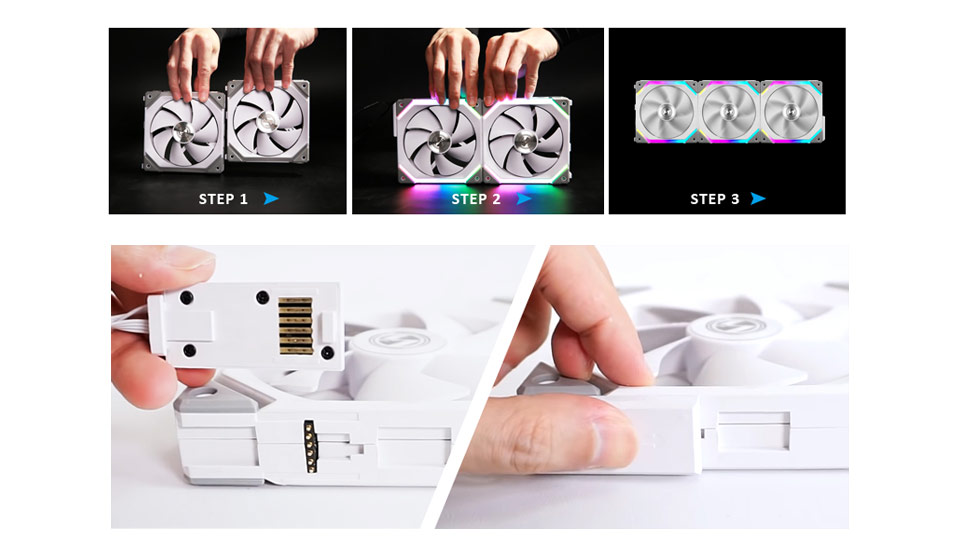

UNPRECEDENTED MODULARITY
- slide-in/ interlocking mechanism
- PIN-to-PIN contact point for receiving power and signal
- reduced need for mounting screws
DESIGNATED CABLE MODULES FOR UNI FAN SL140
Each UNI FAN features a cable module with a PIN-to-PIN contact point to receive power and signal.
Each cable module can support up to 4 UNI FAN SL140s, allowing users to choose to use either a single fan or up to 4 fans in one go.

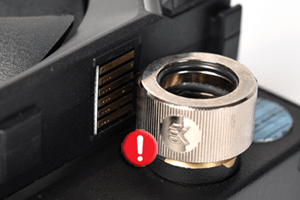

Note!
When using the UNI FAN in a custom watercooling configuration, make sure that the fittings on the radiators do not interfere with the contact point on the side of the fans.
We suggest to use the insulating tape to isolate contact points.

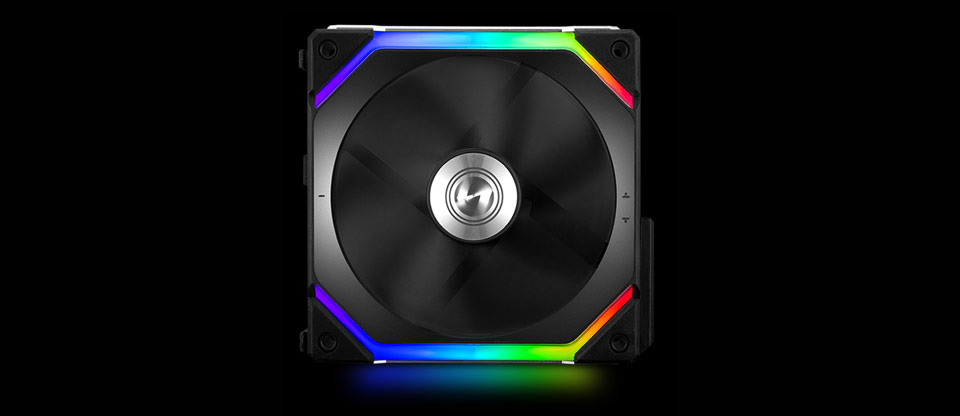

SOPHISTICATED RGB LIGHTING
The 32 addressable RGB LEDs embedded in each fan (16 LEDs on either side of the frame) ensure vibrant lighting effects.

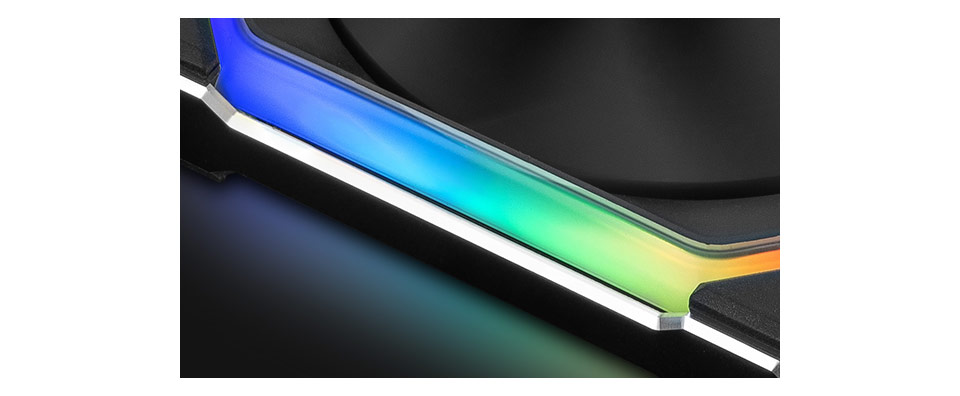

VIBRANT RGB LIGHTING VISIBLE FROM ALL ANGLES
The 16 LEDs on each side shine through a diffuser, ensuring a smooth light is visible from all angles.
L-CONNECT SOFTWARE FOR A MORE INTUITIVE FAN CONTROL
With the toggle of a switch, changing control between motherboard software and the L-Connect is a breeze.
NOTE!
The 4 possible clusters of UNI FANs that can be connected to the controller are reflected on the L-Connect interface. VIA L-Connect, users can adjust a single UNI FAN, a single cluster of up to 4 fans, or all 4 clusters of fans according to their needs.

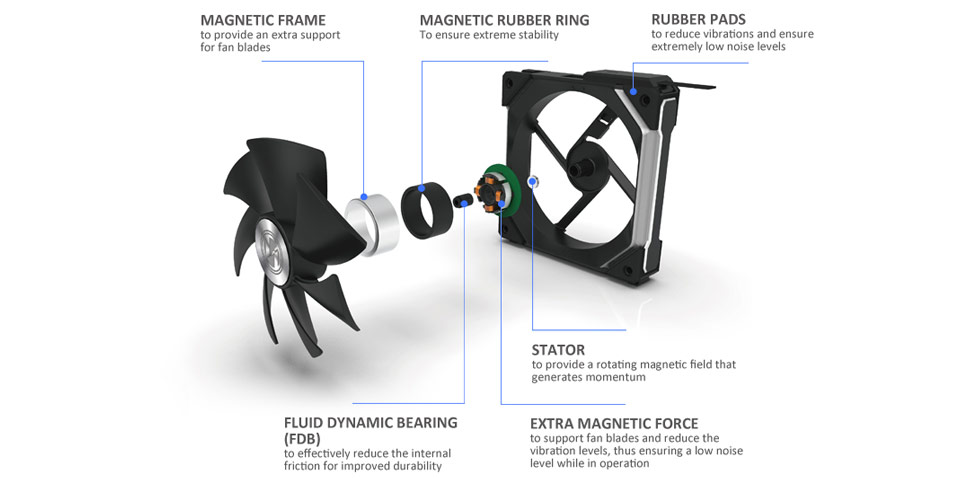

MORE DURABLE, EXTREMELY SILENT
A close look at what makes UNI FAN operate efficiently.
PREMIUM LOOK, EXQUISITE DETAILING
Machine-detailed aluminium frame
Aluminium logo badge
CD texture for an enhanced quality feel

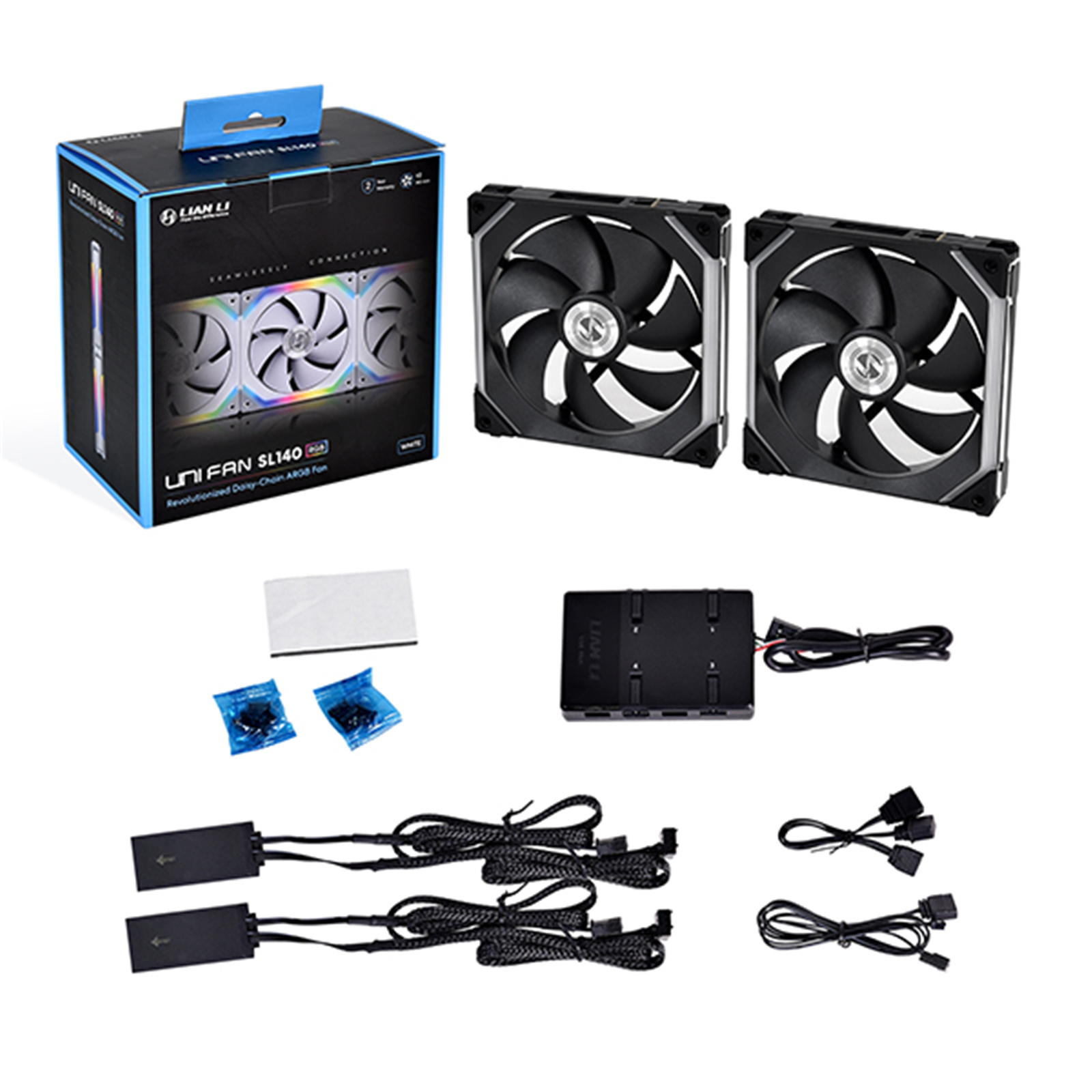

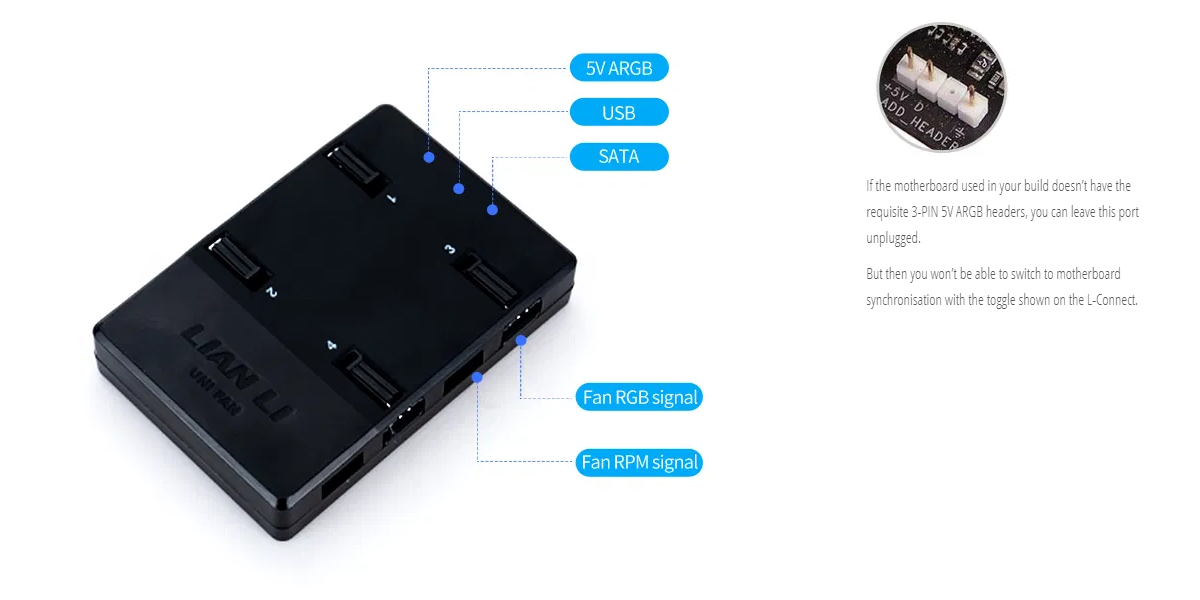

A DESIGNATED UNI FAN CONTROLLER TO EASILY MANAGE 16 FANS IN ONE GO
Note:
To fully control up to 16 UNI FAN (4 fans each cluster) in one go either through the built-in L-Connect software or the motherboard software, users must use the designated UNI FAN controller included in the SL120 3 pack or SL140 2 pack. Please note that the single pack version does not contain this controller and thus we recommend users to purchase at least one SL120 3 pack or SL140 2 pack for their build.

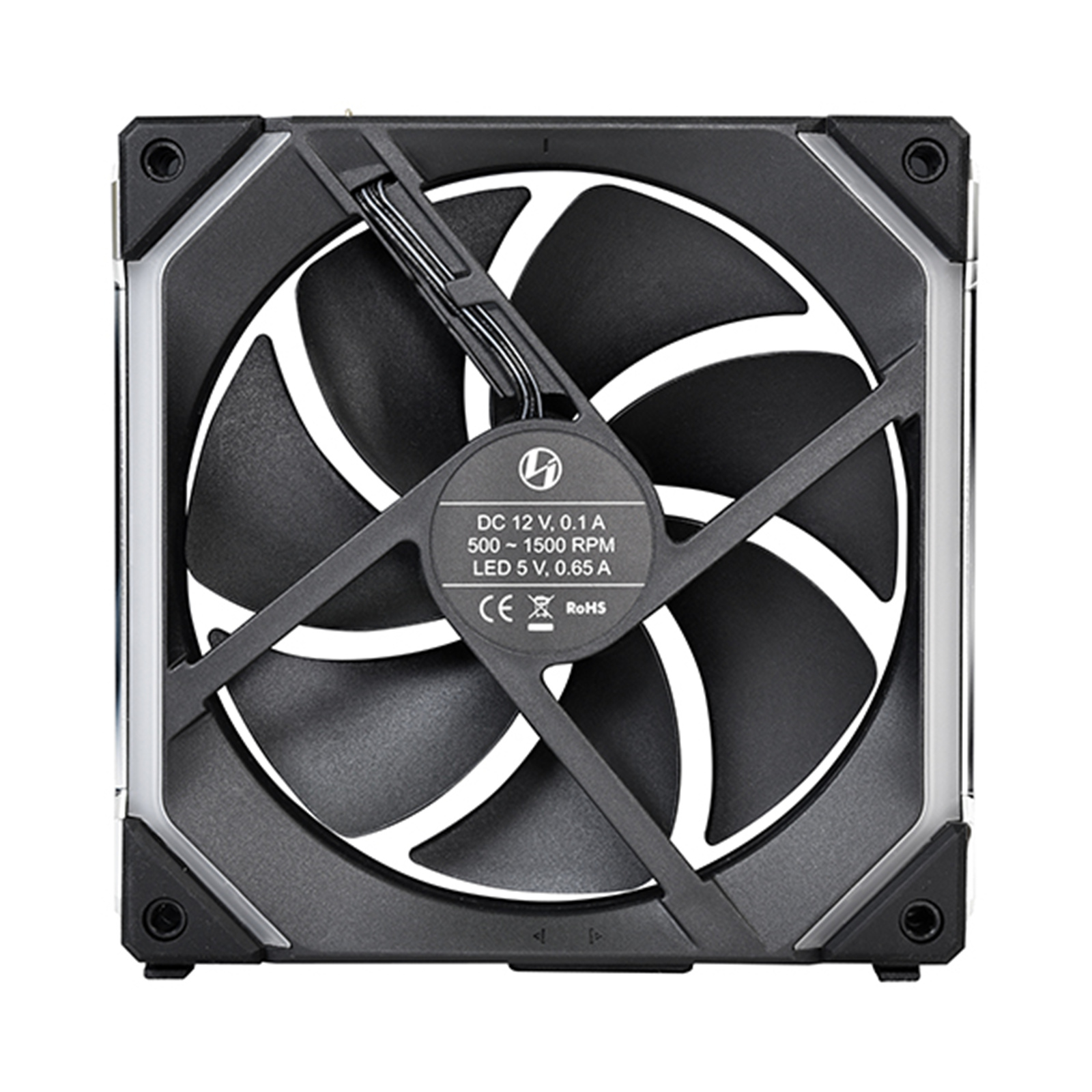

Specifications
MODEL
UNI FAN SL140
FAN DIMENSION
144 X 142.5 X25 ( mm )
RATED VOLTAGE
DC 12V(FAN) & 5V(LED)
FAN SPEED
500~1500RPM
MAX. AIR PRESSURE
1.67mmH2O
MAX. AIR FLOW
70.5 CFM
ACOUSTICAL NOISE (MIN-MAX.)
30dB(A) Max
LOCKED CURRENT
>= 10mA
BEARING TYPE
Fluid Dynamic Bearing(FDB)
START-UP VOLTAGE
DC 6.0V
INPUT CURRENT
100mA(FAN) / 340mA (LED)
INPUT POWER
3.6W
