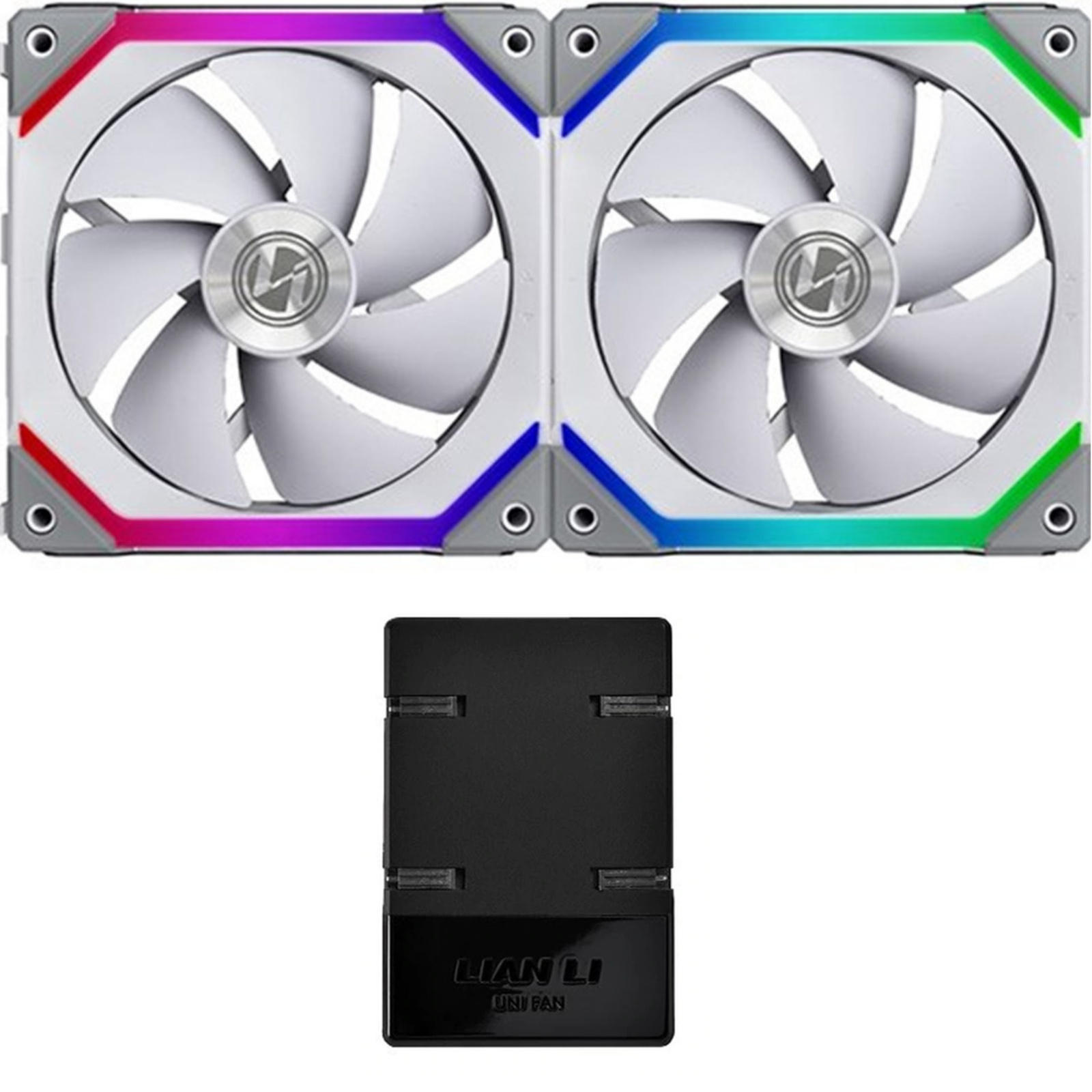

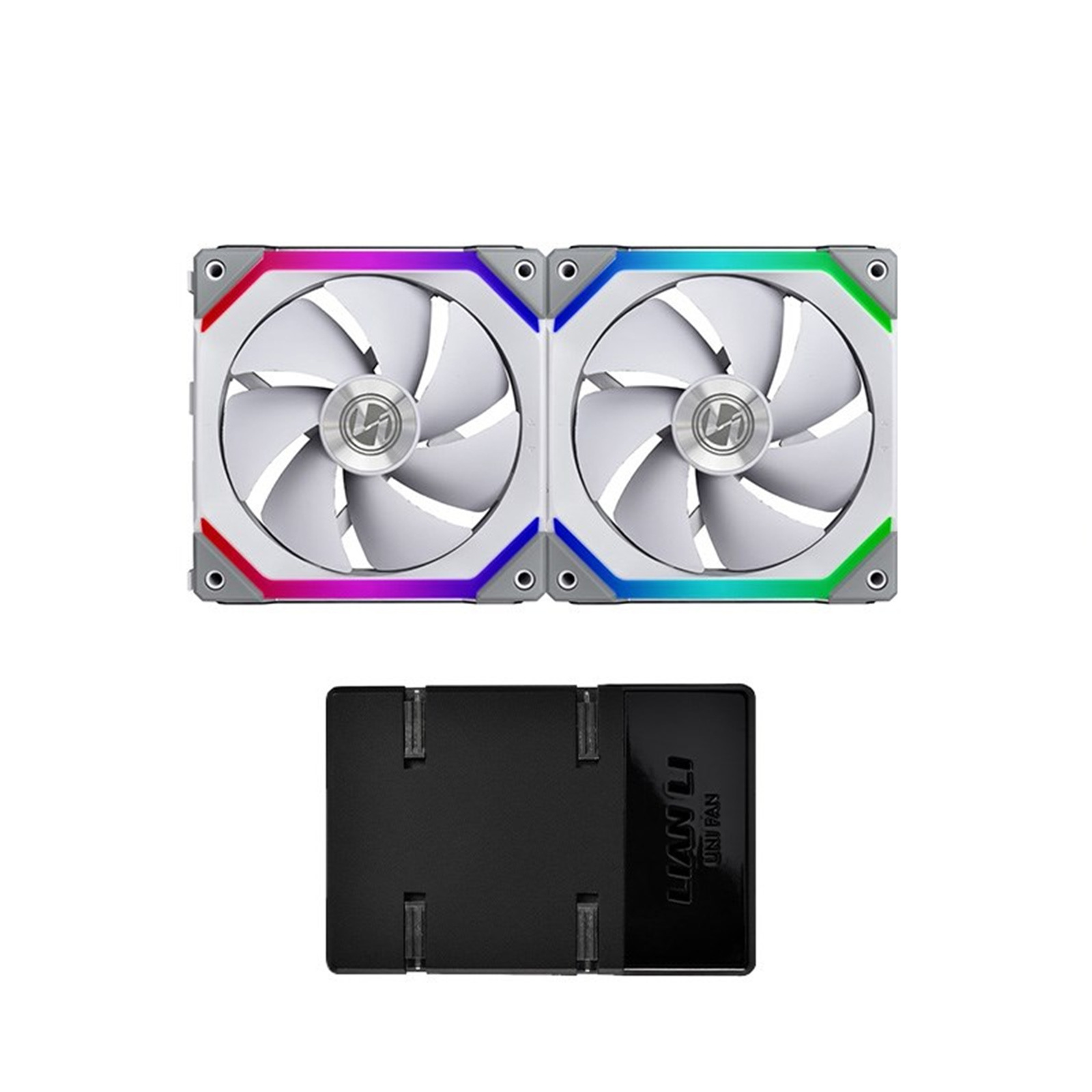

Lian Li UNI FAN SL140 Digital Addressable RGB 140 Fan with Controller , Twin pack , White

Lian Li UNI FAN SL140 Digital Addressable RGB 140 Fan with Controller , Twin pack , White
PB Tech price: PB Tech price:
$109 00  +GST $125 35  inc GST

Generating Print Page
Home PC Parts Cooling Case Fans Lian Li UNI FAN SL140 Digital...

Lian Li UNI FAN SL140 Digital Addressable RGB 140 Fan with Controller , Twin pack , White

Part #: FANLAN0011
PB Tech price: PB Tech price:
$109 00 $125 35
 +GST  inc GST


Click & Collect: Available from 11 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?

Six easy payments of $21.52 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $25.82 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

  • Brand: Lian Li
  • MPN: G99-14UF2W.00
  • Part #: FANLAN0011
  • UPC: 840353040472
  • Bearing Type Variation: Fluid Bearing
  • Fan Size: 140mm
  • LED Colour: RGB
  • Number of Fans: 2
  • Radiator Size: N/A
  • Sound Level (Roughly): 30dB
  • View more

Features



UNI FAN - SL140

A modular approach to fan design to enhance the user experience and to create a cable-free, hassle-free, and easier assembly process.

Daisy-Chain Design

An Enjoyable Experience

L-Connect

Intuitive Control Interface

Multiples Effect/Ability to Sync

32 LEDs Per Fan

High Static Pressure

Quiet Operation

Premium Quality

Sandblasted Aluminum Parts

Unprecedented Flexibility

A Quicker and Easier Installation Process

UNPRECEDENTED MODULARITY

- slide-in/ interlocking mechanism
- PIN-to-PIN contact point for receiving power and signal
- reduced need for mounting screws



DESIGNATED CABLE MODULES FOR UNI FAN SL140

Each UNI FAN features a cable module with a PIN-to-PIN contact point to receive power and signal.
Each cable module can support up to 4 UNI FAN SL140s, allowing users to choose to use either a single fan or up to 4 fans in one go.

Note!

When using the UNI FAN in a custom watercooling configuration, make sure that the fittings on the radiators do not interfere with the contact point on the side of the fans.
We suggest to use the insulating tape to isolate contact points.



SOPHISTICATED RGB LIGHTING

The 32 addressable RGB LEDs embedded in each fan (16 LEDs on either side of the frame) ensure vibrant lighting effects.



VIBRANT RGB LIGHTING VISIBLE FROM ALL ANGLES

The 16 LEDs on each side shine through a diffuser, ensuring a smooth light is visible from all angles.



L-CONNECT SOFTWARE FOR A MORE INTUITIVE FAN CONTROL

With the toggle of a switch, changing control between motherboard software and the L-Connect is a breeze.

NOTE!

The 4 possible clusters of UNI FANs that can be connected to the controller are reflected on the L-Connect interface. VIA L-Connect, users can adjust a single UNI FAN, a single cluster of up to 4 fans, or all 4 clusters of fans according to their needs.



MORE DURABLE, EXTREMELY SILENT

A close look at what makes UNI FAN operate efficiently.



PREMIUM LOOK, EXQUISITE DETAILING

Machine-detailed aluminium frame

Aluminium logo badge
CD texture for an enhanced quality feel



A DESIGNATED UNI FAN CONTROLLER TO EASILY MANAGE 16 FANS IN ONE GO



Note:

To fully control up to 16 UNI FAN (4 fans each cluster) in one go either through the built-in L-Connect software or the motherboard software, users must use the designated UNI FAN controller included in the SL120 3 pack or SL140 2 pack. Please note that the single pack version does not contain this controller and thus we recommend users to purchase at least one SL120 3 pack or SL140 2 pack for their build.

Specifications

MODEL

UNI FAN SL140

FAN DIMENSION

144 X 142.5 X25 ( mm )

RATED VOLTAGE

DC 12V(FAN) & 5V(LED)

FAN SPEED

500~1500RPM

MAX. AIR PRESSURE

1.67mmH2O

MAX. AIR FLOW

70.5 CFM

ACOUSTICAL NOISE (MIN-MAX.)

30dB(A) Max

LOCKED CURRENT

>= 10mA

BEARING TYPE

Fluid Dynamic Bearing(FDB)

START-UP VOLTAGE

DC 6.0V

INPUT CURRENT

100mA(FAN) / 340mA (LED)

INPUT POWER

3.6W

Manufacturer Part No:
G99-14UF2W.00
Brand:
Product Type:
-
UPC
840353040472
Product Family:
UNI FAN
Shipping Weight:
0.7 kg
PB Part No:
FANLAN0011
Product Model:
SL140
Warranty: 12 months *
