NOCTUA Noctua 120mm NF-P12 Redux Edition 1700RPM PWM Case Fan

NOCTUA Noctua 120mm NF-P12 Redux Edition 1700RPM PWM Case Fan
PB Tech price: PB Tech price:
$33 04  +GST $38 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

NOCTUA Noctua 120mm NF-P12 Redux Edition 1700RPM PWM Case Fan

NOCTUA Noctua 120mm NF-P12 Redux Edition 1700RPM PWM Case Fan

  • Brand: NOCTUA
  • MPN: NF-P12-REDUX-1700P
  • Part #: FANNOC1215
  • UPC:841501110368
  • Bearing Type Variation:Not Specified
  • Sound Level (Roughly):25dB
  • Number of Fans:1
  • Fan Size:120mm
  • Radiator Size:120mm
  • LED Colour:N/A
PB Tech price: PB Tech price:
$33 04 $38 00
 +GST  inc GST
Hurry, only 1 unit left!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?

Six easy payments of $6.52 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $7.83 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

What PB Tech customers are saying about this product...See More Reviews

"Replaced some industrial PPCs in old rig with these as I wanted to go a little quieter, barely made a difference to temps while dropping noise level significantly. Nice design chan ...view more"

D
By: drmccoy 10/05/21

"Great product. It always keep my pc cool"

G
By: Guest 29/03/21

"My old fan had started making noise at low speeds so I thought a Noctua might make a good replacement. It runs slower and quieter than the old fan but cooling hasn't been impacted ...view more"

G
By: GregS472 17/08/20
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the NOCTUA Noctua 120mm NF-P12 Redux Edition 1700RPM PWM Case Fan
NOCTUA Noctua 120mm NF-P12 Redux Edition 1700RPM PWM Case FanDynamix C-SATA3 50cm SATA 6Gbs Data Cable with Latch, black colour
Total:
$3633
 +GST
$4178
 inc GST
Buy together and save $0.18$0.21
This item: NOCTUA Noctua 120mm NF-P12 Redux Edition 1700RPM PWM Case Fan
$33.04 +GST$38.00 inc GST
Dynamix C-SATA3 50cm SATA 6Gbs Data Cable with Latch, black colour  View Product
$3.47$3.99 $3.29 +GST$3.78 inc GST(Buy together and save $0.18$0.21)

Features

Specifically designed for pressure demanding applications such as CPU or radiator cooling, the classic NF-P12 is a long-standing favourite among enthusiast users around the world and helped to found Noctua's reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P12 premium fan. Its industry grade SSO bearing, over 150.000 hours MTTF rating and full 6 years manufacturer's warranty make the NF-P12 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1700rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.


Proven NF-P12 design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-P12. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-P12 has become an established reference for quiet 120mm fans.


Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.


Pressure-optimised Nine-Blade Design

Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12's nine-blade impeller provides outstanding pressure and airflow performance.


Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.


Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.


Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.


SSO-Bearing

Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability.


Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.


Colour-customisable with NA-SAVP1 anti-vibration pads

The fan's frame can be outfitted with Noctua's chromax line NA-SAVP1 anti-vibration pads. Available in black, red, blue, white, green and yellow, these pads not only damp minute vibrations but also allow the fan to be colour-customised in order to coordinate it with popular build colour schemes!


6-year manufacturer's warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer's warranty.

Specifications

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

40cm

Bearing

SSO-Bearing

Blade geometry

Pressure-optimized Nine Blade Design with Vortex-Control Notches

Rotational speed (+/- 10%)

1700 RPM

Min. rotational speed (PWM, +/-20%)

450 RPM

Airflow

120,2 m³/h

Acoustical noise

25,1 dB(A)

Static pressure

2,83 mm H2O

Max. input power

1,08 W

Max. input current

0,09 A

Operating voltage

12 V

MTTF

> 150.000 h

Scope of delivery

Fan screws

Warranty

6 years

Manufacturer Part No: NF-P12-REDUX-1700P Brand: NOCTUA Product Type: -
UPC 841501110368 Product Family: - Shipping Weight: 0.25 kg
PB Part No: FANNOC1215 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 StarsBased on 3 Reviews

5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW
Displaying 1 - 3 of 3 reviews

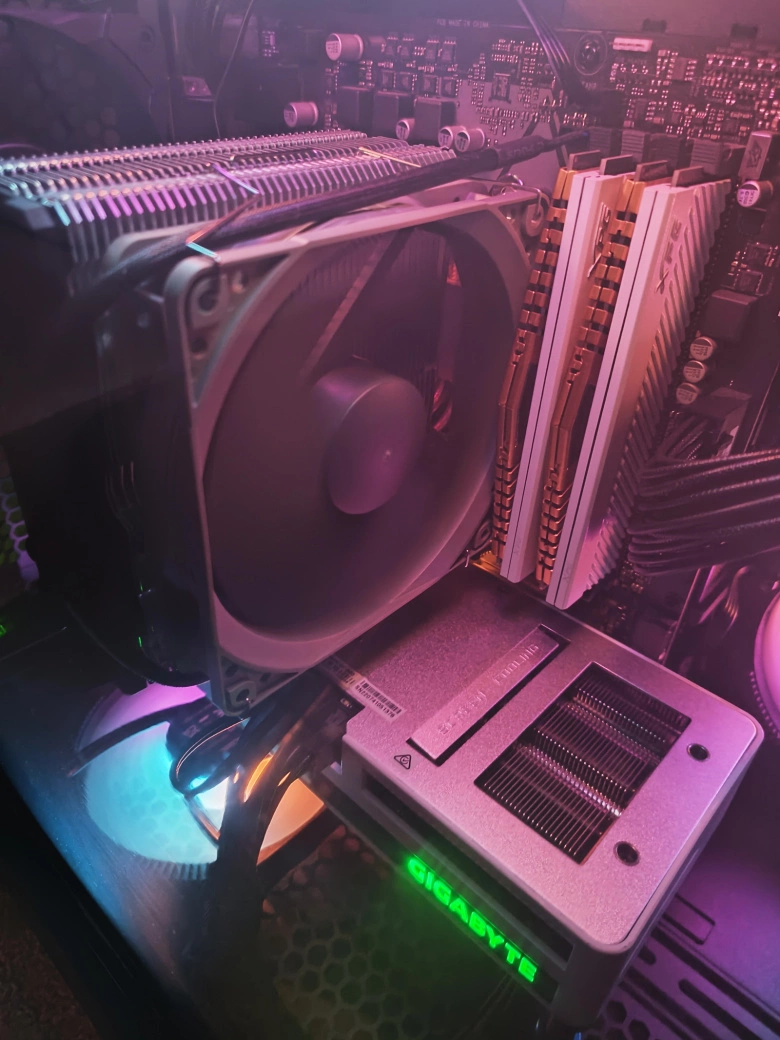

Silent replacement for CPU heatsink fan
