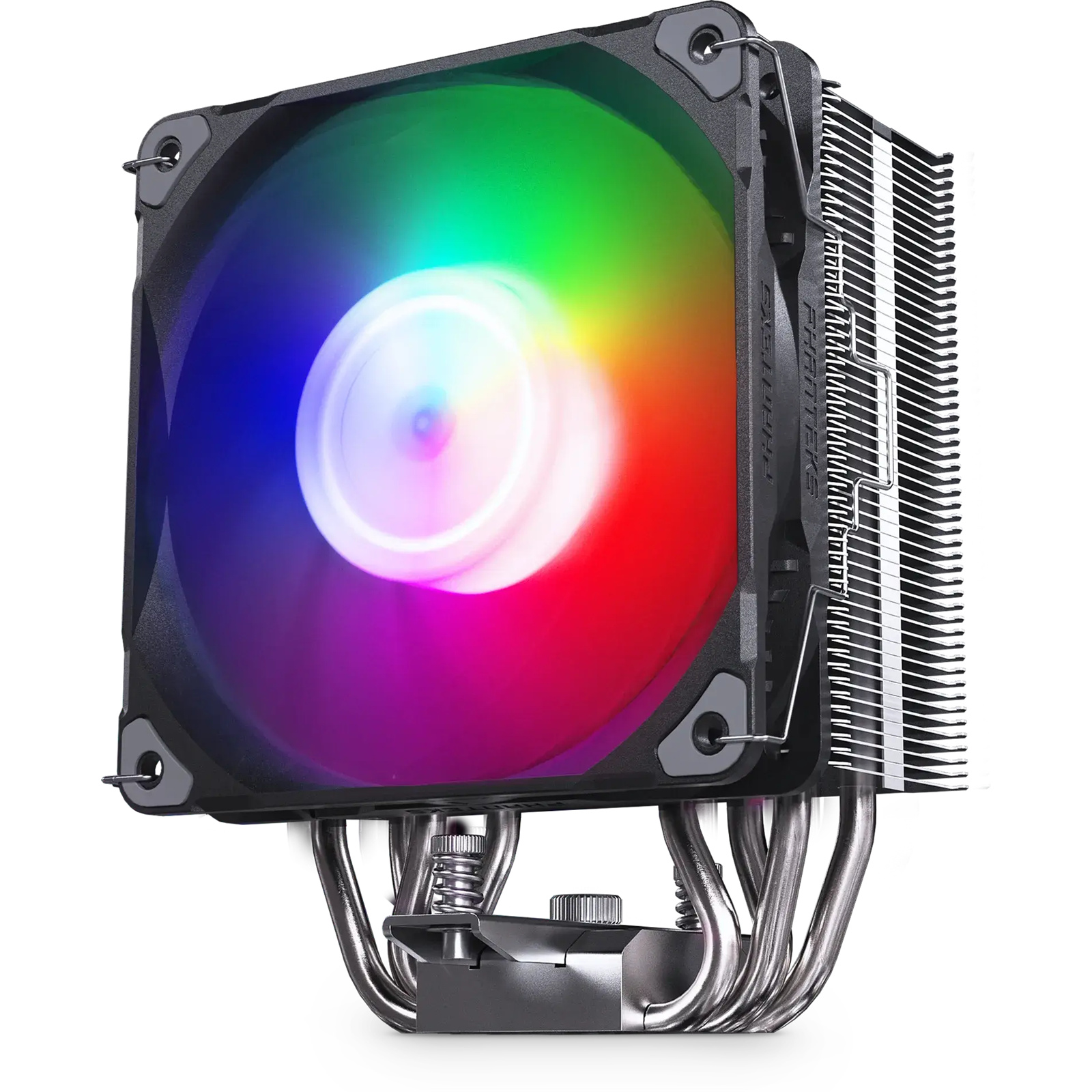

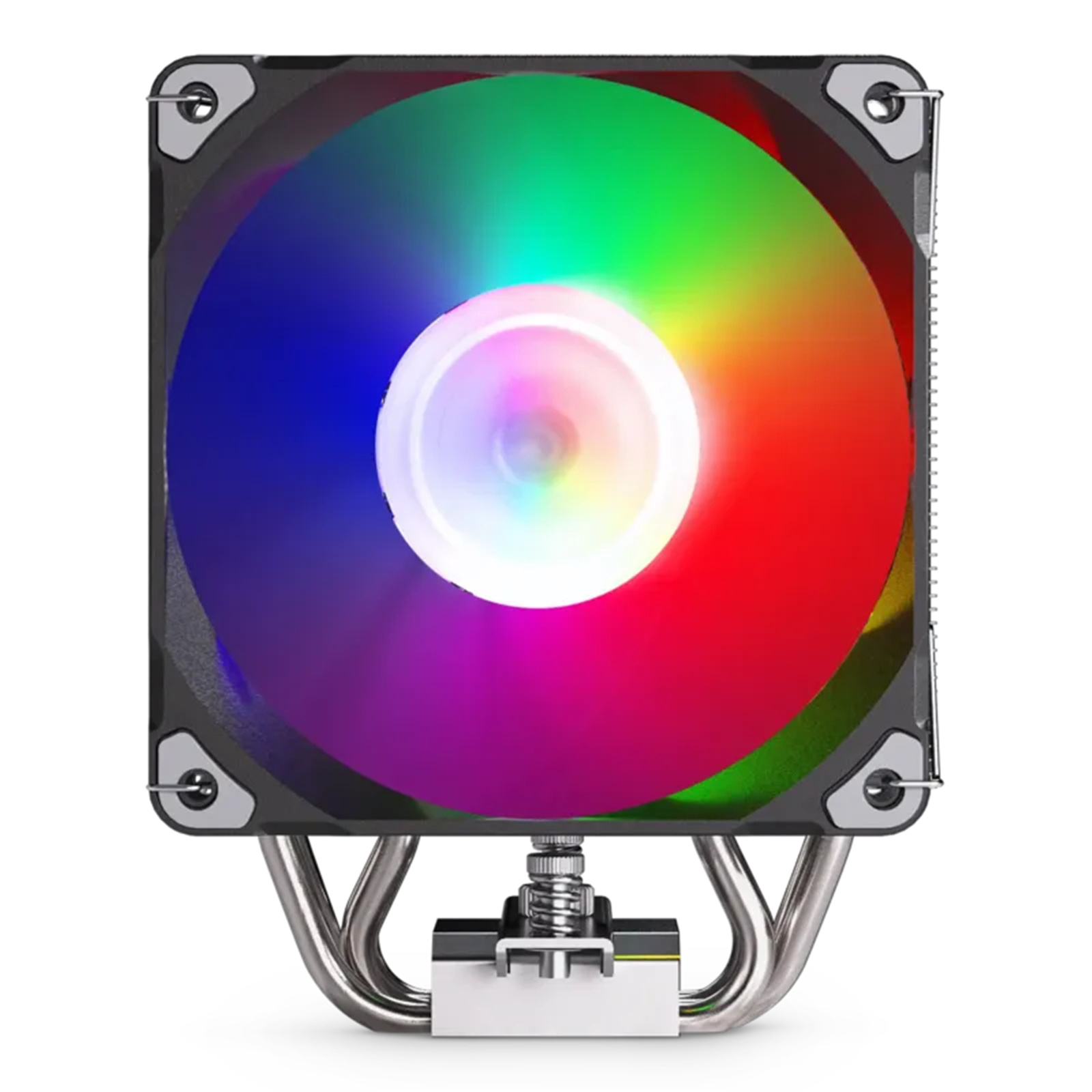

Phanteks Polar ST4 CPU Cooler with 1x 120mm PWM DRGB Fan , Black, for Intel LGA 115X , 1200, 1700. 1851, AMD: AM4. AM5
Out of stock
Phanteks Polar ST4 CPU Cooler with 1x 120mm PWM DRGB Fan , Black, for Intel LGA 115X , 1200, 1700. 1851, AMD: AM4. AM5
- Brand: Phanteks
- MPN: PH-TC12ST4_DBK01
- Part #: FANPHA0010
- UPC: 886523703105
- Brand: Phanteks
- MPN: PH-TC12ST4_DBK01
- Part #: FANPHA0010
- UPC: 886523703105
Product is out of stock. View similar products in-stock at PB Tech
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Air Cooling





Phanteks Polar ST4 CPU Cooler with 1x 120mm PWM DRGB Fan , Black, for Intel LGA 115X , 1200, 1700. 1851, AMD: AM4. AM5
- Brand: Phanteks
- MPN: PH-TC12ST4_DBK01
- Part #: FANPHA0010
- UPC:886523703105

Product URL: https://www.pbtech.co.nz/product/FANPHA0010/Phanteks-Polar-ST4-CPU-Cooler-with-1x-120mm-PWM-DR
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
POLAR ST4 - PERFORMANCE WITH EXCEPTIONAL VALUE
The Phanteks Polar CPU coolers are made to perform with high quality materials where it matters. All Polar CPU coolers use the best sintered powder heat pipes and come with the high performing M25 fan. Each component is carefully chosen to add as much cooling performance to create CPU coolers with exceptional value.
The Polar ST4 is an entry-level CPU cooler yet it comes with high-end sintered powder copper heat pipes. The 4 heat pipes directly touch the CPU heatspreader for the most cost-effective design. This makes the Polar ST4 a high performance CPU cooler with exceptional value.
HIGH QUALITY MATERIALS

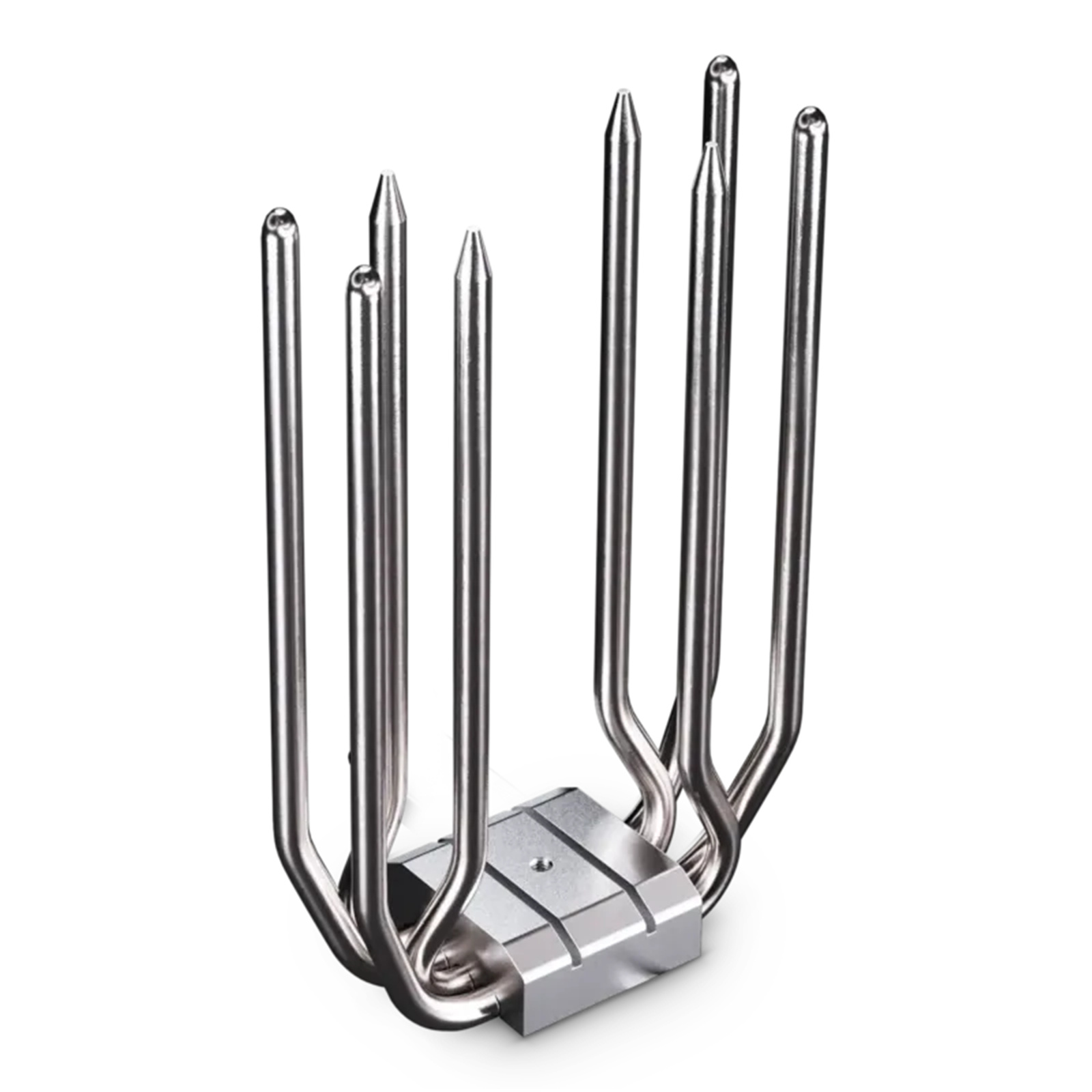

- High quality sintered powder copper heat pipes.
- Each component is carefully chosen to add as much cooling performance to create CPU coolers with exceptional value.
- Solid mounting system made of high quality steel.

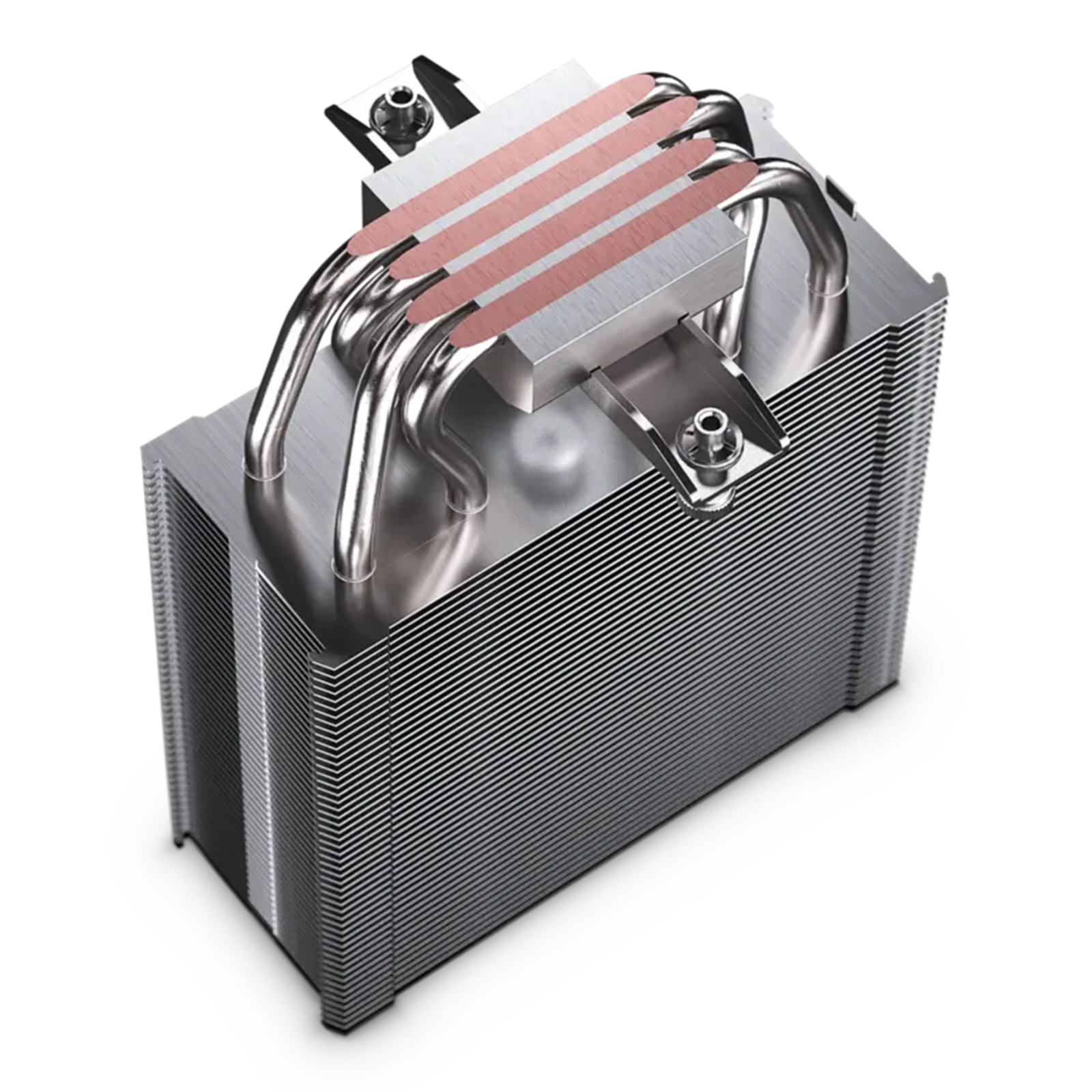

- Four heat pipes directly touch the CPU heatspreader.
HIGH PERFORMANCE WITH WIDE RPM RANGE
- High performance M25-120 fan with wide RPM range.

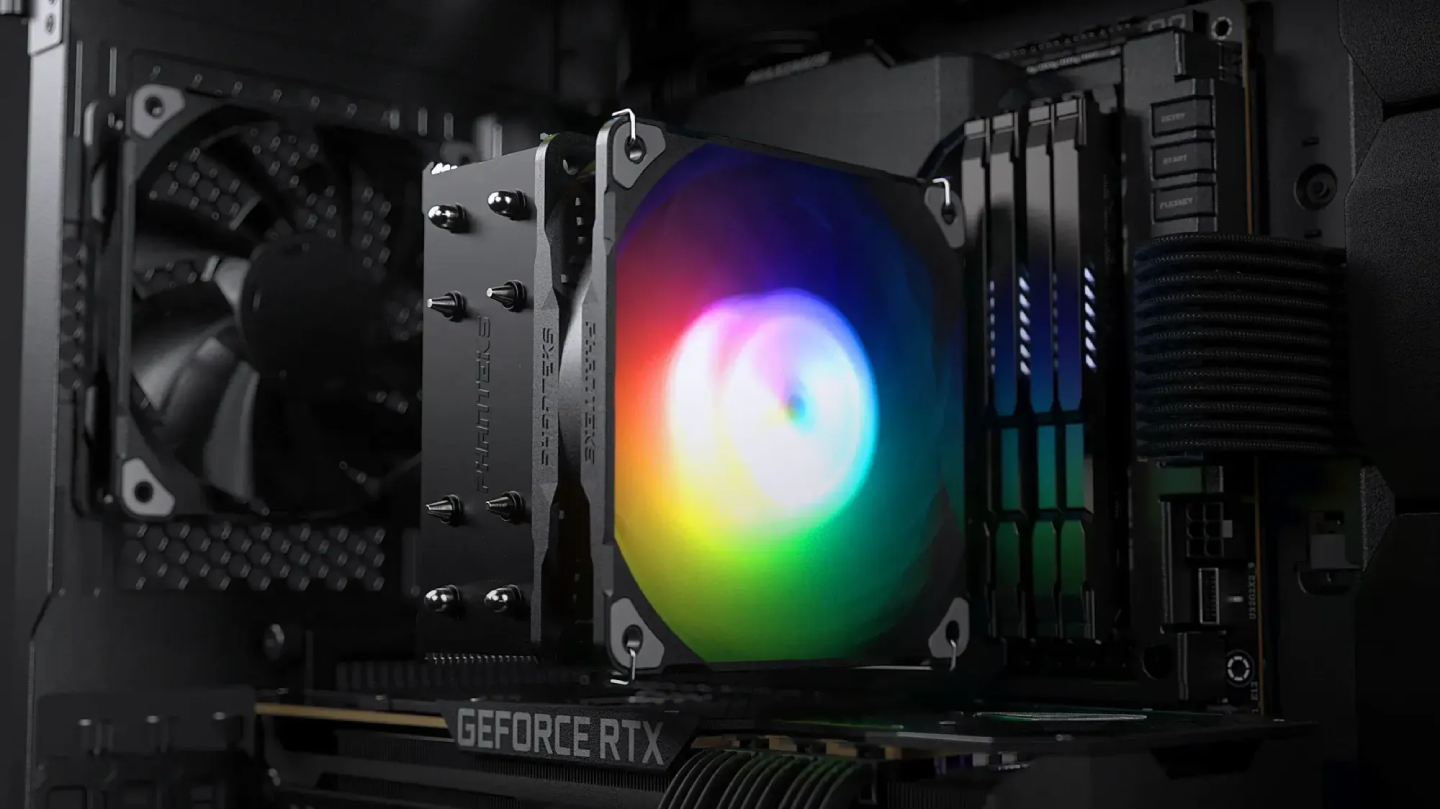

- Effective design there are no RAM clearance issues.
- Sleek design that always matches your build.

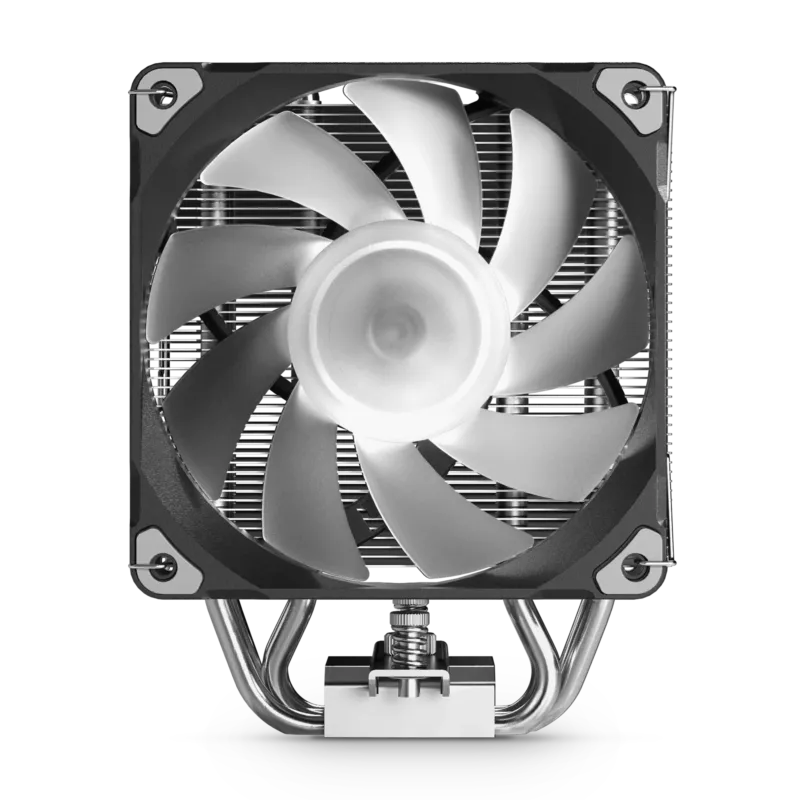

PERFORMANCE M25 FAN
- Comes with the high performing M25 fan.
- Precise RPM control through PWM with a wide RPM range.
- Excellent low noise performance.
- High cooling capacity at 2000 RPM.

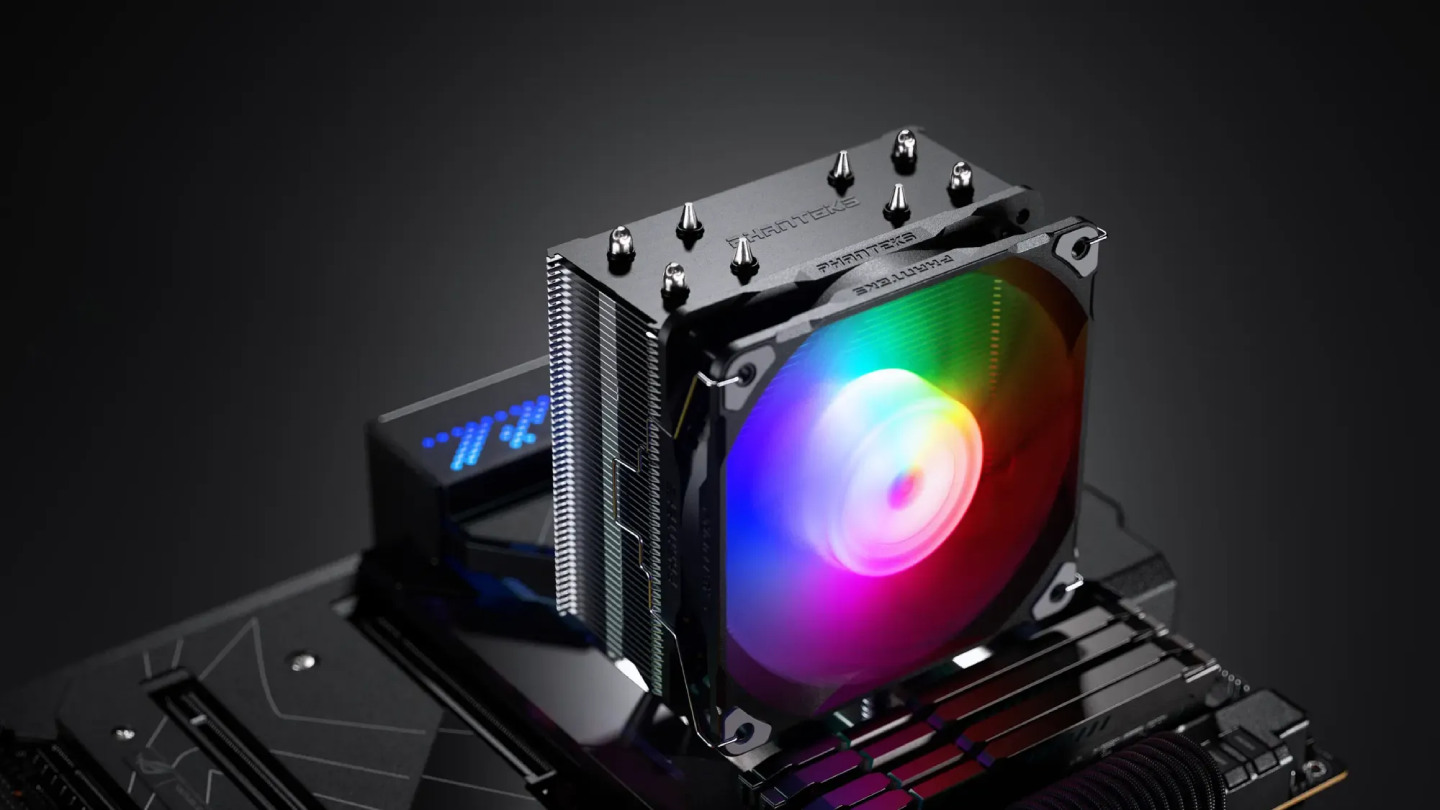

INTEGRATED D-RGB LIGHTING
- 1x 120 mm M25 D-RGB PWM fan included.
- D-RGB motherboard adapter included to connect it directly to a mainboard.
Specifications
MODEL NO.
PH-TC12ST4_DBK01
COLOR
Black
MATERIAL
Copper heat-pipes | Aluminum fins | ABS plastics
INTEL COMPATIBILITY
LGA 115x | 1200 | 1700 | 2011 | 2011-3 | 2066
AMD COMPATIBILITY
AM4 | AM5
DIMENSIONS (Length X Width X Height)
120 x 50 x 154.5 mm | 4.72 x 1.96 x 6.08 in

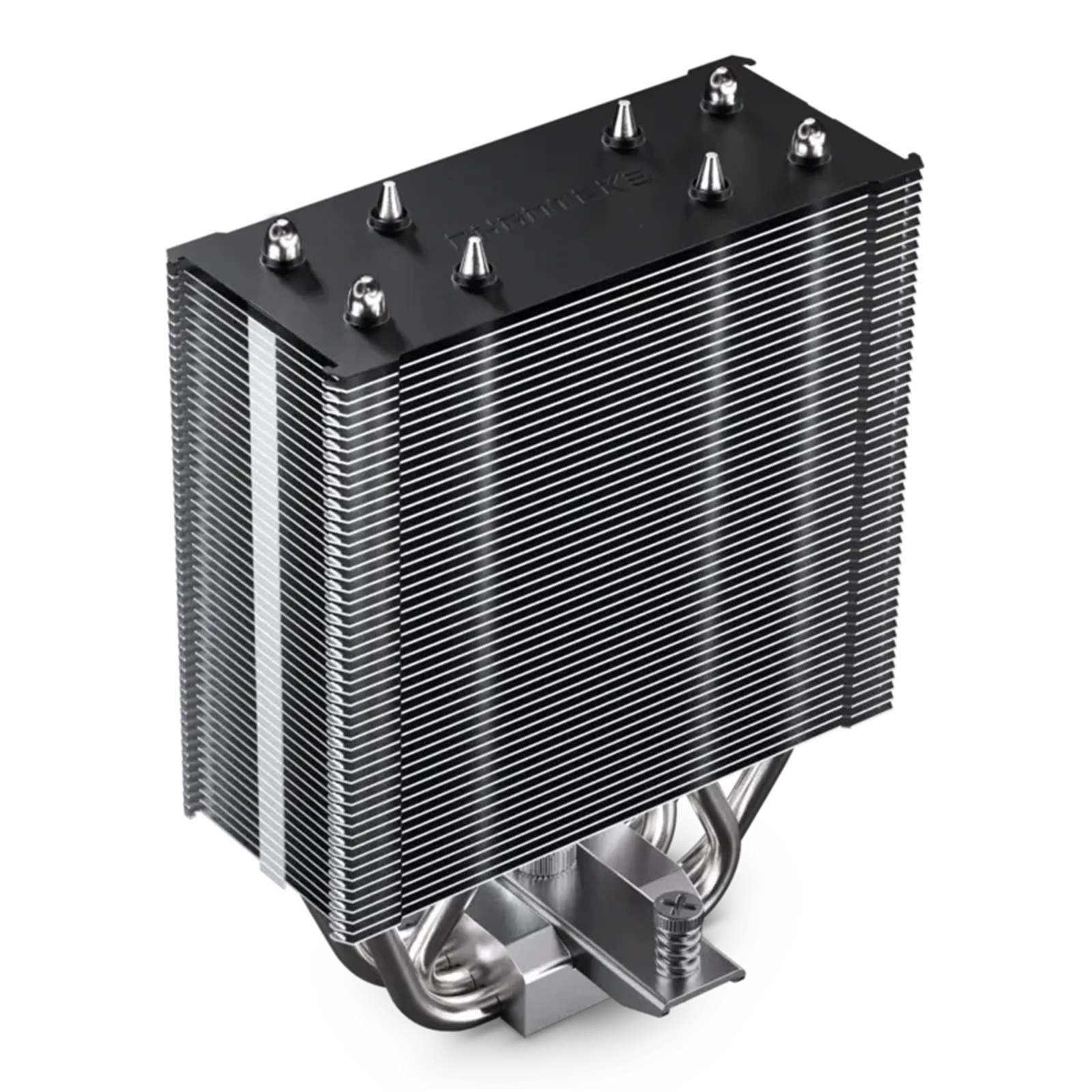

HEATSINK
HEATSINK DIMENSION
120 x 50 x 154.5 mm | 4.72 x 1.96 x 6.08 in
COLD PLATE
42 x 39 x 16 mm | 1.65 x 1.53 x 0.62 in
HEAT PIPE
Direct Touch 4x Ø 6 mm | Ø 0.23 in
NUMBER OF FINS
50
THERMAL PASTE
4.3 W/m-k Phanteks high performance thermal paste
FANS (1X INCLUDED)
FAN MODEL
M25-120 D-RGB PWM
DIMENSIONS (Length X Width X Height)
120 x 120 x 25 mm | 4.72 x 4.72 x 0.98 in
SPEED
400 ~ 2000 ± 10% RPM
AIR FLOW
84.26 CFM
FAN STATIC PRESSURE
2.67 mm H2O | 0.10 in H2O
SOUND LEVEL
35.7 dBA
MTFB
30.000 Hours
PWM CONNECTOR
4-Pin Daisy-chain
PWM CABLE LENGTH
120 mm | 4.72 in
D-RGB CONNECTOR
3-Pin D-RGB Daisy-chain
D-RGB CABLE LENGTH
300 + 100 mm | 11.8 + 3.9 in
EXTRA
NET WEIGHT
721 g | 25.43 oz
GROSS WEIGHT
883 g | 31.14 oz
SCOPE OF DELIVERY
1x Polar ST4-120 heatsink
1x M25-120 D-RGB fan
ACCESSORY
1x Low noise adapter
1x PH-NDC thermal compound
1x Thermal paste spreader
1x Installation guide
MOUNTING HARDWARE
1x Intel back plate for LGA115X | 1200 | 1700
4x Fan wire clips
2x Universal socket bracket
SCREWS
4x Stand-off for LGA1200 | AM4 | AM5
4x Stand-off for LGA1700
4x AMD AM4 | AM5 screws
4x Intel LGA115X | 1200 | 1700 screws
