Silverstone AP 120i Pro PWM Air Penetrator 120mm FDB Case Fan
- Brand: Silverstone
- MPN: G520AP12IP00020
- Part #: FANSVT1005174

Product URL: https://www.pbtech.co.nz/product/FANSVT1005174/Silverstone-AP-120i-Pro-PWM-Air-Penetrator-120mm-F
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 2 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 5 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

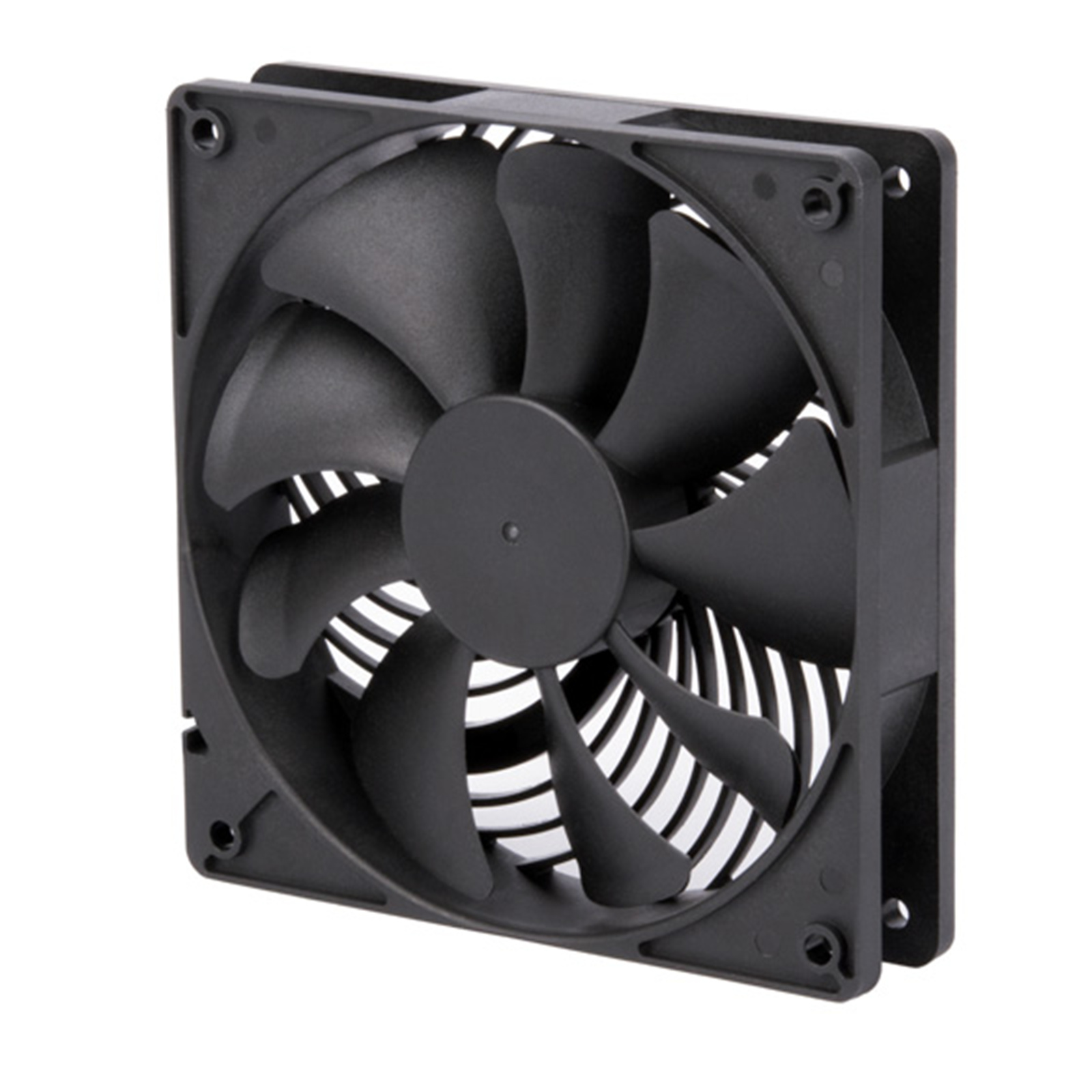

Air Penetrator 120i PRO
Enhanced 120mm PWM controlled air channeling fan
- Industry leading air channeling fan
- Dual ball bearing for longer lifetime use
- Mixed fan blade design for noise reduction
- Integrated air channeling grille double as fan guard to reduce overall size
- Low power consumption
- Wide 0-2000 RPM speed range via PWM control allowing performance on demand

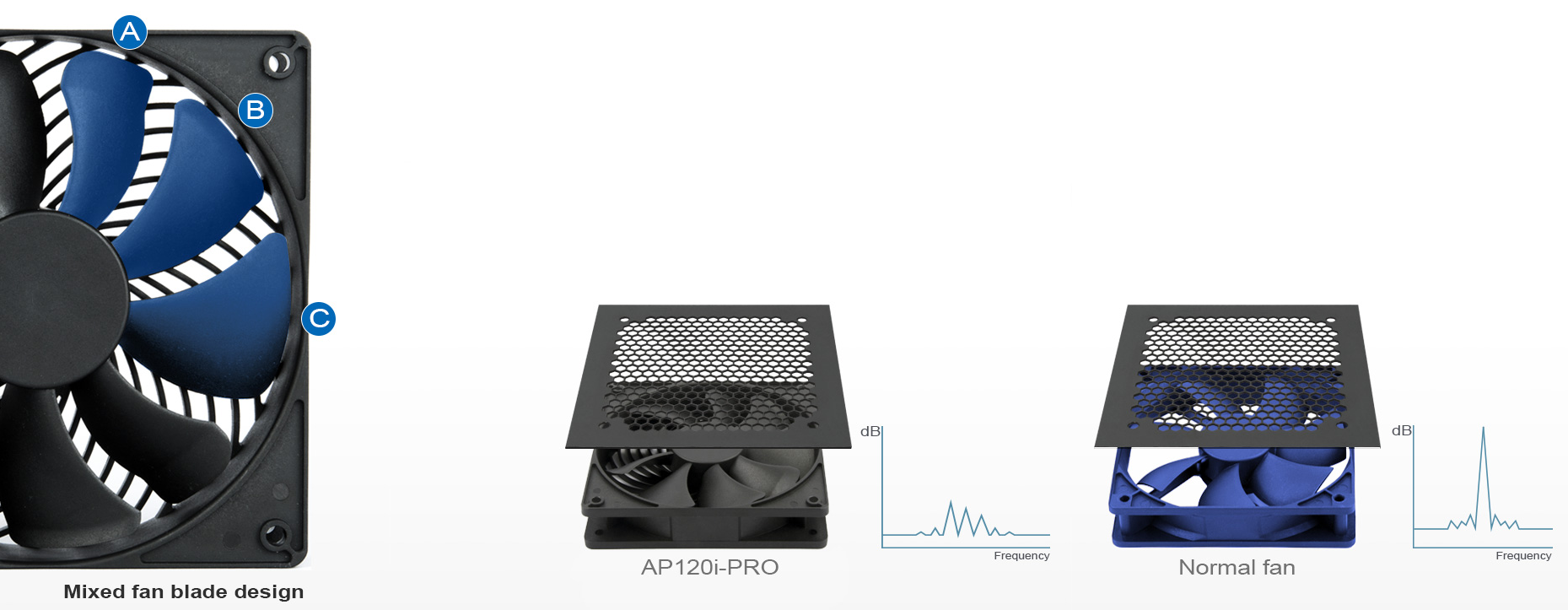

High static pressure / Low noise operation
AP120i PRO features 9 fan blades with mixed design to optimize for constant, high-pressure operation while keeping high-pitched noise low. It is perfect for intake ventilation holes as it greatly reduces noise level.

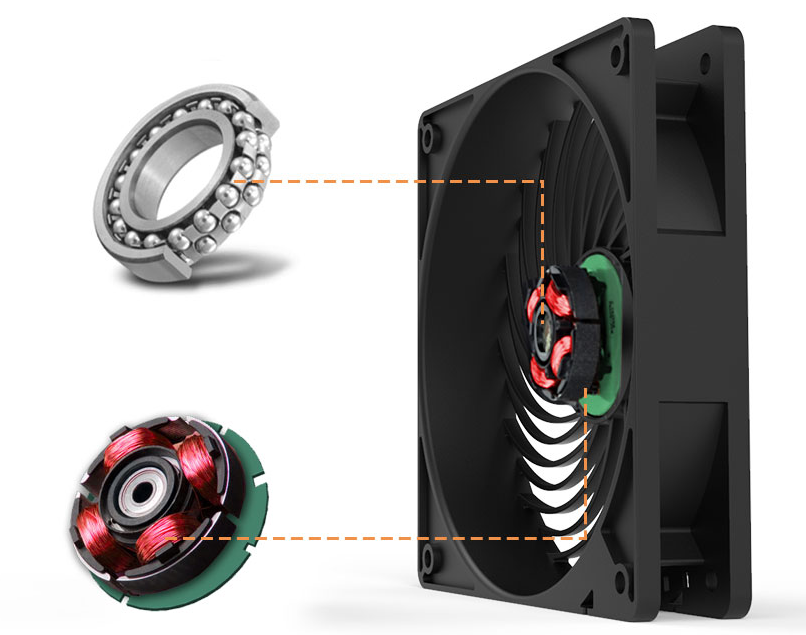

Superior motor with dual ball bearings assembly
Equipped with superior actively cooled motor with dual ball bearings to provide lower noise, higher performance, and a long lifespan of 70,000hrs MTBF.

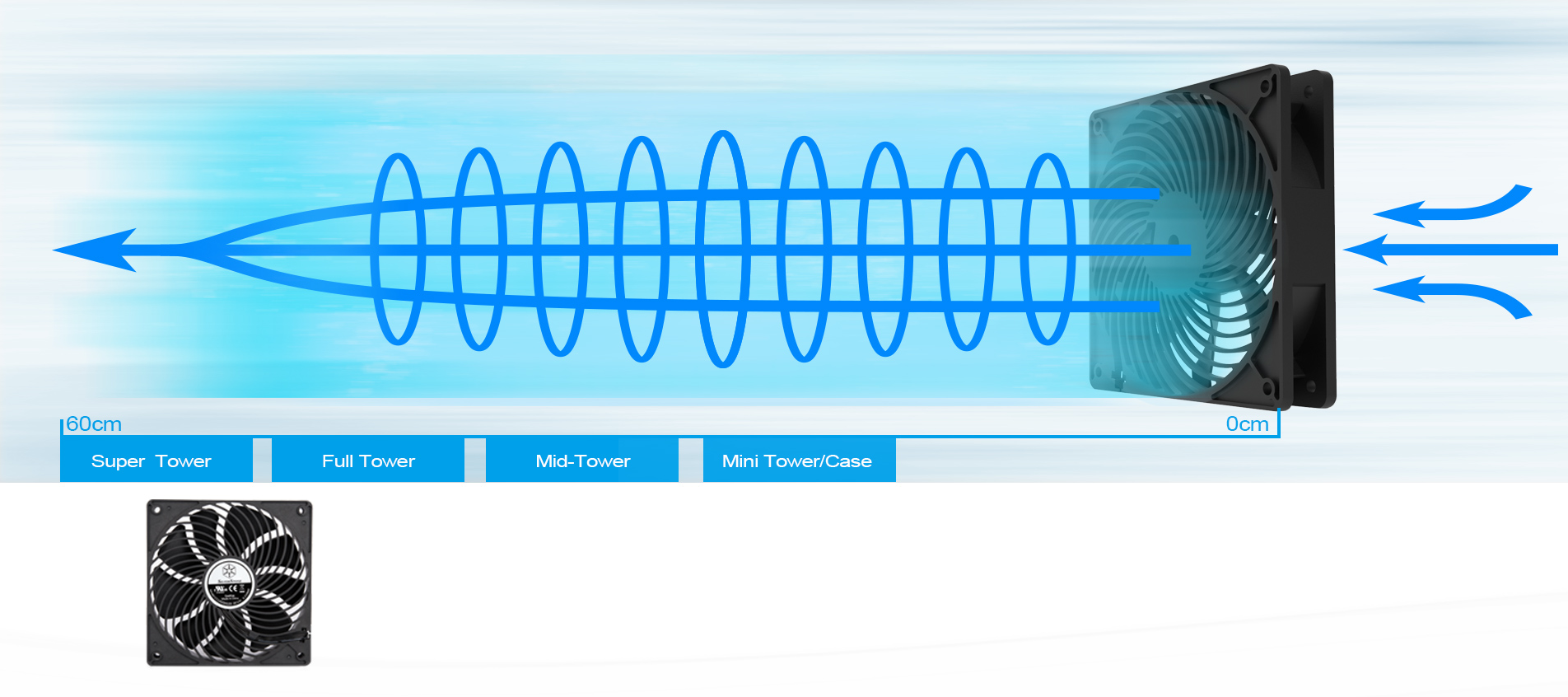

Unique grille design
AP120i PRO's unique grille design can create enough focused pressure to push air as far as 60cm away with minimal fan speed and noise. This unmatched efficiency makes AP120i-PRO ideal as an intake case fan.
0-2000 RPM / PWM Control
Wide 0-2000 RPM speed range via PWM control allows for tailored performance on demand.
Specifications
Model No.
SST-AP120i-PRO
Material
PBT
Color
Black
Bearing
Dual ball bearing

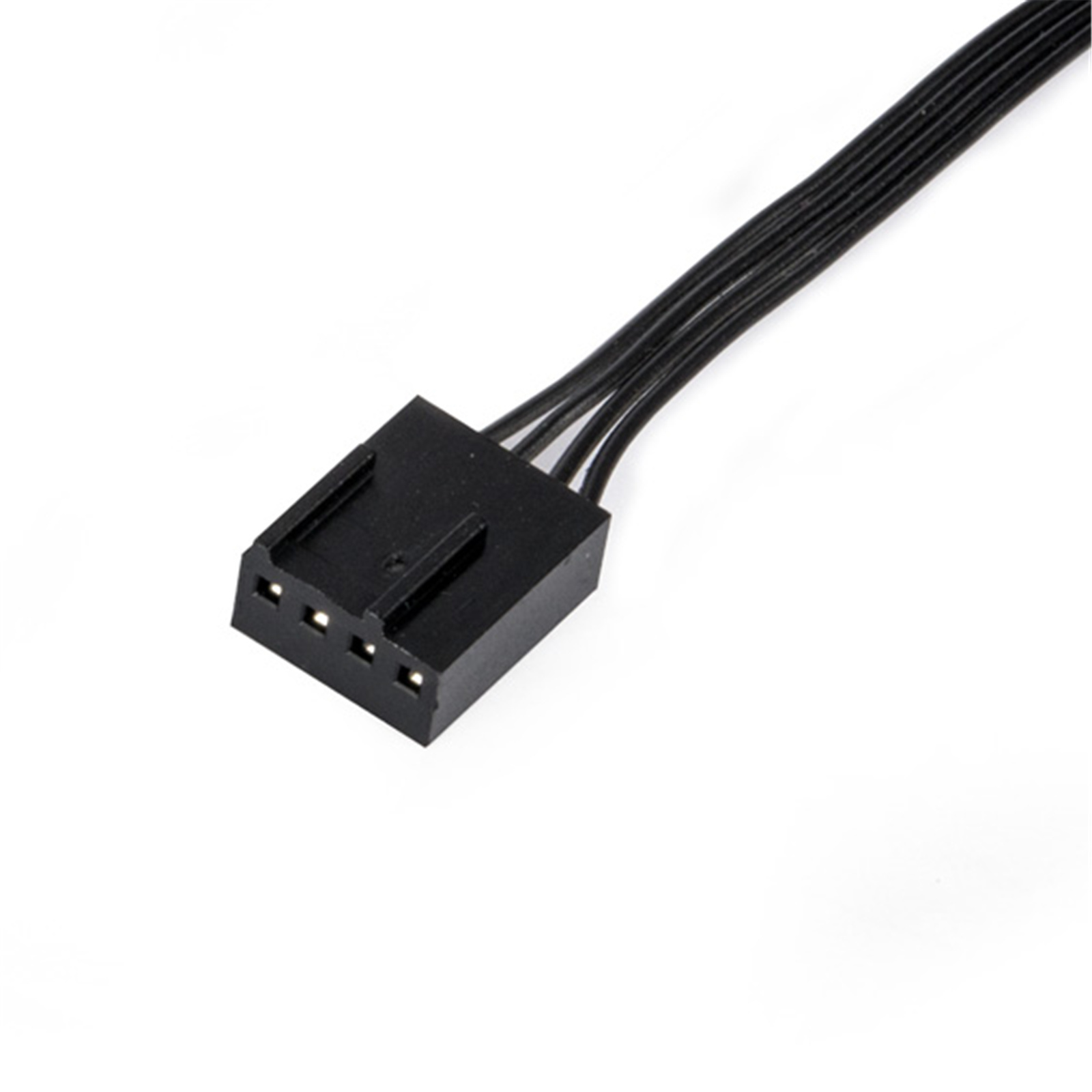

Connectors
4pin PWM
Rated Voltage
12V DC
Starting Voltage
7V
Rated Current
0.21A
Rated Power
2.52W
Speed
0-2000rpm
Airflow
0~74 CFM
Static Pressure
0~2.52mm-H2O
Noise Level
0~38.9dBA
Dimension
120mm (L) x 120mm (W) x 25mm (H)
Weight
157g
Cable length
[4-pin PWM fixed cable] 500mm
