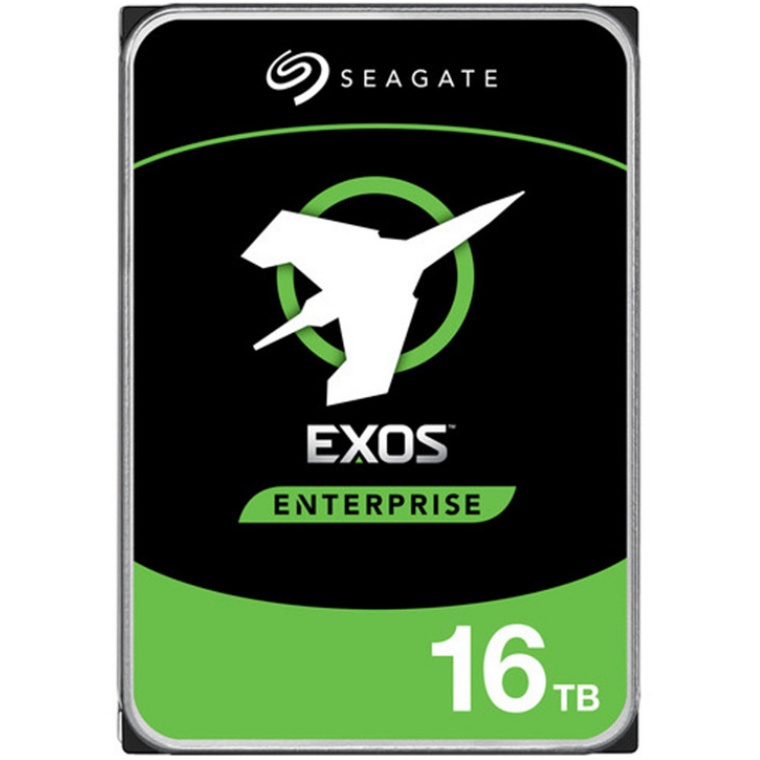

Seagate Enterprise Capacity (Exos) 16TB 3.5" HDD

SAS 12Gb/s - 7200 RPM - 256MB - 512e/4kn - Helium

PB Tech price
PB Tech price
$ 587 .00
 +GST
$ 675 .05
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Seagate Enterprise Capacity (Exos) 16TB 3.5" HDD

SAS 12Gb/s - 7200 RPM - 256MB - 512e/4kn - Helium

  • Brand: Seagate
  • MPN: ST16000NM002G
  • Part #: HDDSES151600
  • UPC: 763649124161
1
PB Tech price
$ 587 .00 $ 675 .05
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
  • Brand: Seagate
  • MPN: ST16000NM002G
  • Part #: HDDSES151600
  • UPC: 763649124161

HDD Capacity

16TB

Form Factor

3.5"

RPM

7200RPM

Cache

256MB

Interface

SAS

What PB Tech customers are saying about this product...

See More Reviews

"Works well!"

G
By: Guest 31/05/21

Features

Maximum Storage Capacity for Highest Rack Space Efficiency

- Industry's first 16 TB drive for 33% more petabytes per rack
- Highest 16 TB hard drive performance with enhanced caching, making it perfect for cloud data centre and massive scale-out data centre applications
- Hyperscale SATA model tuned for large data transfers and low latency
- PowerBalance™ feature optimises Watts/TB
- Helium sealed-drive design delivers lower total cost of ownership through lower power and weight
- Next-generation helium side-sealing weld technology for added handling robustness and leak protection
- Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
- Data protection and security: Seagate Secure™ features for safe, affordable, fast, and easy drive retirement

Best-Fit Applications

- Hyperscale applications/cloud data centers with replicated storage
- Massive scale-out data centers and big data analytics
- OLTP and HPC applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore - D2D, virtual tape
- Centralized surveillance

Specifications

Storage

Drive Capacity

16.00 TB

Cache Memory

256 MB

Performance

Interface

SAS III (12 Gb/s)

Maximum Read Speed

261 MB/s

Maximum Write Speed

249 MB/s

Random Read Speed

170 IOPS

Random Write Speed

440 IOPS

Physical

Drive Type

HDD

Form Factor

3.5"

HDD Specs

Spindle Speed (RPM)

7200 RPM

Reliability / Data Integrity

Mean Time Between Failures (MTBF)

2.5 Million Hours

Non-Recoverable Read Errors per Bits Read

1 in 1015

Electrical

Power Draw

5.0 W (Idle)
10.2 W (Active)
6.2 W (Active)

Supported Voltage

5 VDC, 12 VDC

Environmental

Operating Shock

50 G / 2.0 ms

Storage Shock

200 G / 2.0 ms

Operating Vibration

2.27 G / 2 to 500 Hz

Operating Temperature

41 to 140°F / 5 to 60°C

General

Dimensions (W x H x D)

4.01 x 1.03 x 5.79" / 101.85 x 26.11 x 147 mm

Weight

1.48 lb / 0.67 kg

Manufacturer Part No:
ST16000NM002G
Brand:
Product Type:
HDD
UPC
763649124161
Product Family:
Enterprise
Shipping Weight:
0.56 kg
PB Part No:
HDDSES151600
Product Model:
Capacity (Exos)
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
