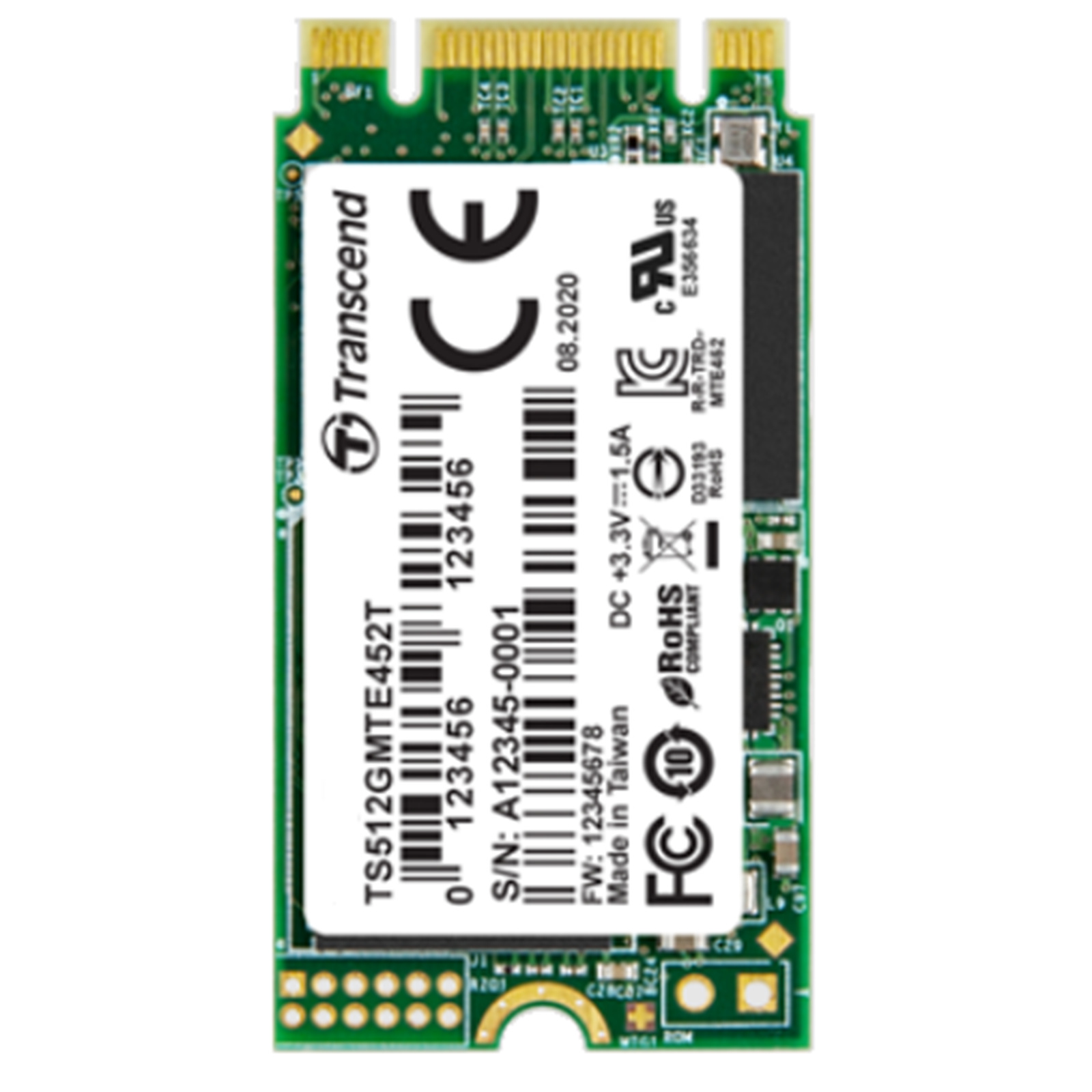

Transcend Embedded 512GB, M.2 2242, PCIe Gen3x2, B+M Key, 3D TLC, PE: 3K, Wide Temp.
Transcend Embedded 512GB, M.2 2242, PCIe Gen3x2, B+M Key, 3D TLC, PE: 3K, Wide Temp.
- Brand: Transcend Embedded
- MPN: TS512GMTE452T-I
- Part #: HDDTRSI30103
- UPC:
Select your store to check availability
- Brand: Transcend Embedded
- MPN: TS512GMTE452T-I
- Part #: HDDTRSI30103
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Storage / Memory





Transcend Embedded 512GB, M.2 2242, PCIe Gen3x2, B+M Key, 3D TLC, PE: 3K, Wide Temp.
- Brand: Transcend Embedded
- MPN: TS512GMTE452T-I
- Part #: HDDTRSI30103

Product URL: https://www.pbtech.co.nz/product/HDDTRSI30103/Transcend-Embedded-512GB-M2-2242-PCIe-Gen3x2-BM-Ke?type=ex-demo
Branch | Ex-Demo Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 1 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Transcend's MTE452T M.2 SSD features the PCI Express (PCIe) Gen 3 x2 interface and is compatible with NVM Express (NVMe) 1.3 specifications to achieve never-before-seen transfer speeds. The MTE452T features state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The MTE452T is built with DRAM cache for fast access, and is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.
Transcend also offers the MTE452T-I with wide temperature (-40? ~ 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
Firmware Features
- Supports NVM command
- SLC caching technology
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
Hardware Features
- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.3
- Compliant with PCI Express specification 3.1
- Space-saving M.2 form factor (42mm) - ideal for mobile computing devices
- PCIe Gen 3 x2 interface
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software
Specifications
Appearance
Dimensions
42 mm x 22 mm x 3.58 mm (1.65" x 0.87" x 0.14")
Weight
5 g (0.18 oz)
M.2 Type
2242-D2-B-M (Double-sided)
Form Factor
M.2 2242
Interface
Bus Interface
NVMe PCIe Gen3 x2
Storage
Capacity
512 GB
Flash Type
3D NAND flash
Operating Environment
Operating Voltage
3.3V±5%
Operating Temperature
Standard Temp.0°C (32°F) ~ 70°C (158°F)
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature
-55°C (-67°F) ~ 85°C (185°F)
Humidity
5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating)
20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power
Power Consumption (Operation)
2.81 watt(s)
Power Consumption (IDLE)
0.63 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark)
Read: up to 1,700 MB/s
Write: up to 1,250 MB/s
4K Random Read/Write (IOmeter)
Read: up to 200,000 IOPS
Write: up to 250,000 IOPS
Mean Time Between Failures (MTBF)
3,000,000 hour(s)
Terabytes Written (TBW)
up to 1,080 TBW
Drive Writes Per Day (DWPD)
2 (3 yrs)
