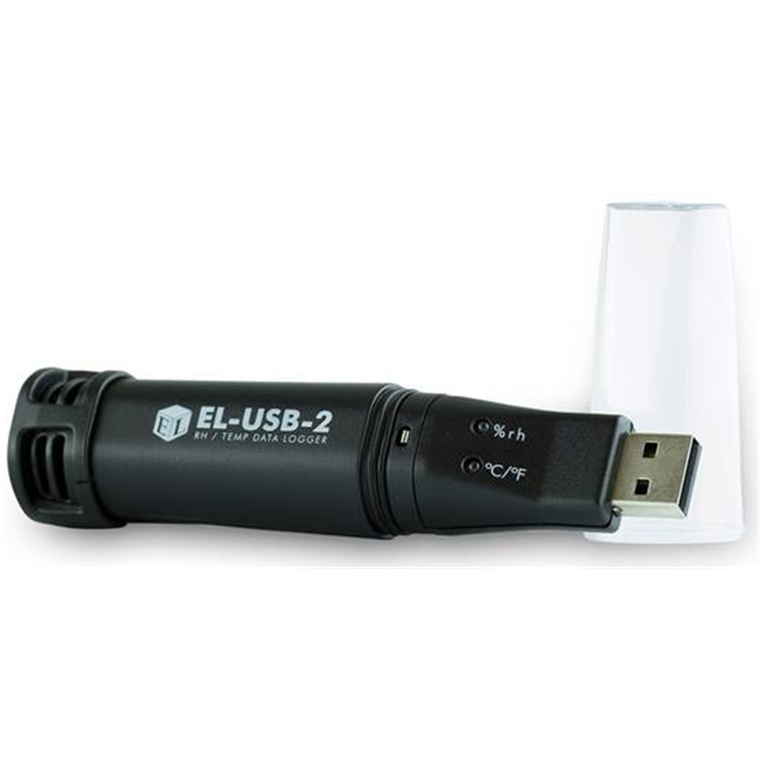

Lascar EL-USB-2 Humidity & Temperature USB Data Logger

Lascar EL-USB-2 Humidity & Temperature USB Data Logger

PB Tech price:PB Tech price:
$18087$20800
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships on 27/08/2019
When will I receive it?

Finance from $2.49 per week*

Features

This data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP, Vista and 7. Relative humidity, temperature and dew point (the temperature at which water vapor present in the air begins to condense) data can then be graphed, printed and exported to other applications.

The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust to IP67 standard when the plastic cap and seal are fitted.

Specification Min. Typ. Max. Unit
Relative Humidity Measurement range 0   100 %RH
Repeatability (short term)   ±0.1
Accuracy (overall error)   ±3** 5
Internal resolution   0.5
Long term stability   0.5
Temperature Measurement range -35 (-31)   +80 (+176) °C (°F)
Repeatability   ±0.1 (±0.2)
Accuracy (overall error)   ±0.5 (±1) ±2 (±4)
Internal resolution   0.5 (1)
Dew Point Accuracy (overall error) (25°C, 40-100%RH)   ±1.1 (±2)***   °C (°F)
Logging rate every 10s   every 12hr -
Operating temperature range -35 (-31)   +80 (+176) °C (°F)
1/2AA 3.6V Lithium Battery Life   1* year

* Depending on sample rate, ambient temperatures and use of alarm LEDs
** This specifies the overall error in the logged readings, for relative humidity measurements between 20 and 80%RH
*** This specifies the overall error in the calculated dew point, for realtive humidity measurements between 40 and 100%RH at 25°C


Application Information

The EL-USB-2 is suitable for a wide variety of applications, these include:


- Pharmaceutical fridge monitoring
- Environmental and weather monitoring
- Agricultural and livestock
- Food & drink
- Building & site monitoring
- HVAC

Specifications

Manufacturer Part No: EL-USB-2 Brand: Lascar Product Type: -
UPC - Product Family: - Shipping Weight: 0.1 kg
PB Part No: HHDLCR1002 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
