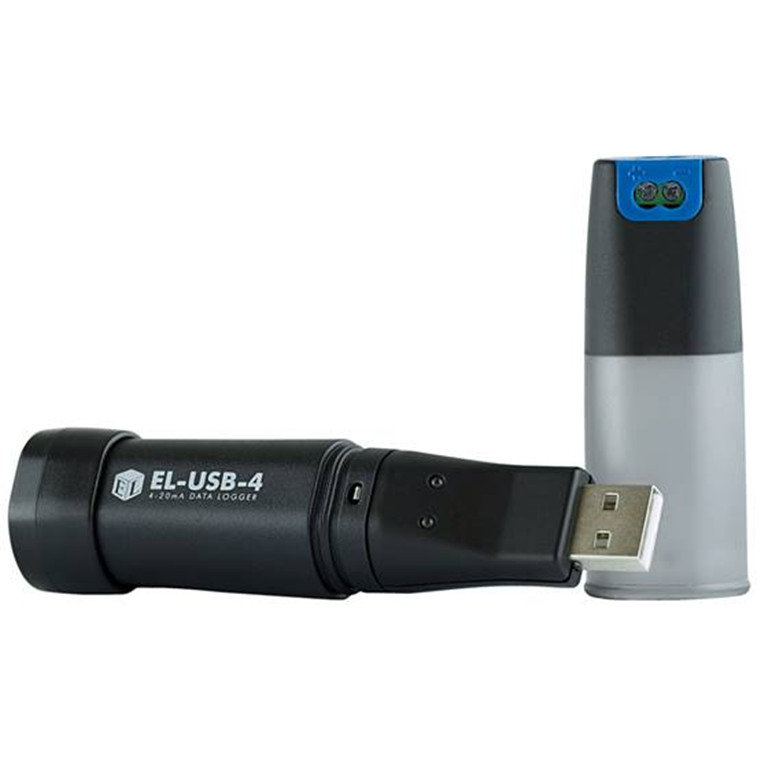

Lascar EL-USB-4 4-20mA USB Data Logger
- Brand: Lascar
- MPN: EL-USB-4
- Part #: HHDLCR1004
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Testing & Measurement Tools
Lascar EL-USB-4 4-20mA USB Data Logger
- Brand: Lascar
- MPN: EL-USB-4
- Part #: HHDLCR1004
Product URL: https://www.pbtech.co.nz/product/HHDLCR1004/Lascar-EL-USB-4-4-20mA-USB-Data-Logger
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

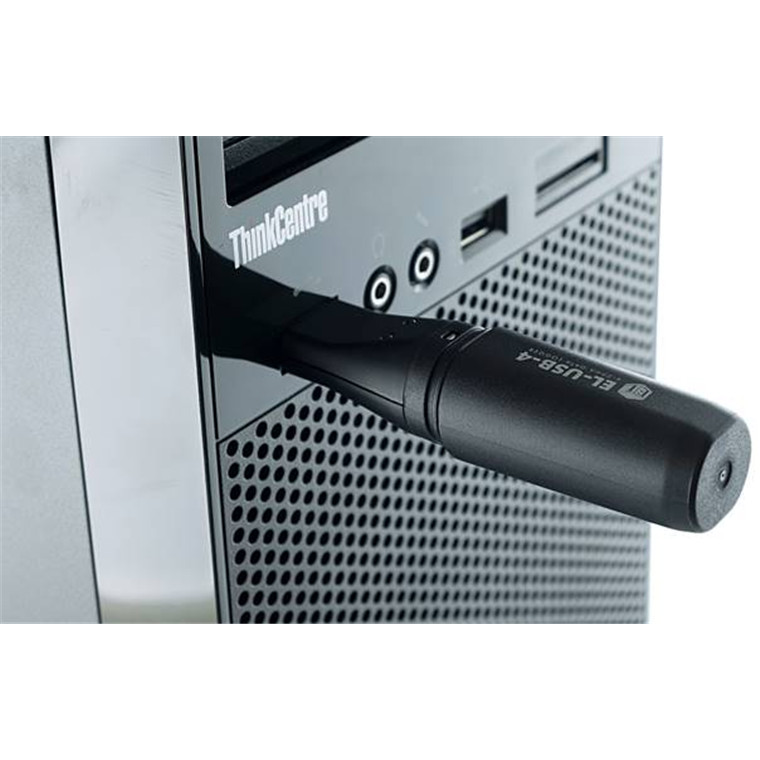

The EL-USB-4 data logger measures and stores up to 32,000 current loop readings over a 4-20mA measurement range. The user
can easily set up the logging rate and start time, and download the stored data by plugging the data logger into a PC's USB port and
running the purpose-designed software. The data can then be graphed, printed and exported to other applications. The data logger is
supplied complete with a long-life lithium battery. Correct functioning of the unit is indicated by a flashing red and green LED. The
data logger features a pair of screw terminals and is supplied complete with a set of measurement leads terminating in crocodile clips.
Product Features:
- 4-20mA Current Loop Measurement Range
- Logging Rates between 1s and 12hr
- Stores 32,000 readings
- Connection via two screw terminals
- USB Interface for Set-up and Data Download
- User-Programmable Alarm Thresholds
- Red and Green LED Status Indication
- Replaceable Internal Lithium Battery
Programmable Elements:
- Logger Name
- Logging Rate (1s, 10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
- High and Low Alarms
- Start Date and Start Time
Specifications
Measurement range
4 to 20mA d.c.
Internal resolution
0.05mA d.c.
Accuracy (overall error)
±1%
Logging rate
User selectable between 1 second & 12 hours
Operating temperature range
-35 to +80°C (-31 to +176°F)
Battery Life
3 years (at 25°C and 2 second logging rate)
Readings
32,510
Dimensions
98 x 26.8 x 26.8 mm (3.85 x 1.05 x 1.05")
