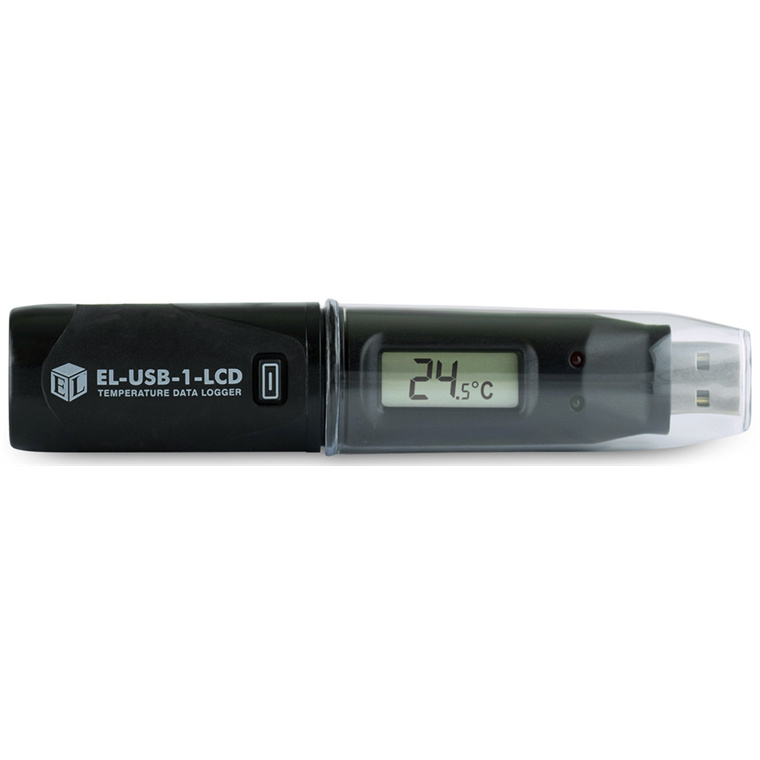

Lascar EL-USB-1-LCD Temperature Data Logger with LCD

PB Tech price
PB Tech price
$ 159 .13
 +GST
$ 183 .00
 inc GST
$159.13  +GST
$183.00

Lascar EL-USB-1-LCD Temperature Data Logger with LCD

  • Brand: Lascar
  • MPN: EL-USB-1-LCD
  • Part #: HHDLCR1005
  • UPC:
PB Tech price
$ 159 .13 $ 183 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 23 Sep When will I receive it?
$159.13  +GST
$183.00

Features

Lascar Data Loggers

The Lascar EL-USB-1-LCD standalone data logger measures and stores over 16,000 temperature readings between -35°C and 80°C (-31°F to 176°F) with a resolution of 0.5°C (0.5°F). The high contrast LCD can show a variety of temperature information. At the touch of a button, the user can cycle between the current, maximum and minimum stored values for temperature. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC's USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Supplied with:

1/2 AA battery and wall mount clip

Product Features and Benefits

The measurement ranges between -35°C and 80°C (-31 and 176°F)
Temperature measurement accuracy is ±0.5°C
Logging rates between 10 seconds and 12 hours
Number of readings per channel is 32510
Immediate and delayed logging start
User-programmable alarm thresholds
High contrast LCD with two and a half digit temperature display function
Status indication via red/green LEDs
Battery life is up to 2 years
Supplied with a 1/2AA lithium metal battery
Export to Excel functionality

Applications:

Facilities management
Housing and business premises
Outside environmental data
Agriculture and animal welfare
Veterinary
Museums and exhibitions

Certifications:

IP67 Rated

Specifications

Measurement Parameters

Temperature

Interface Type

USB

Maximum Temperature Measurement

+80 °C

Power Source

Battery

Best Temperature Measurement Accuracy

± 0.5 °C

IP Rating

IP67

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+80°C

Display Type

LCD

Alarm

Yes

Battery Type

1/2 AA battery

Temperature Measurement Resolution

0.5°C

Battery Life

2 yr

Includes

1/2 AA battery and wall mount clip

Dimensions

120 x 25 x 22mm

Number of Readings Per Channel

32510

Manufacturer Part No:
EL-USB-1-LCD
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.074 kg
PB Part No:
HHDLCR1005
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
