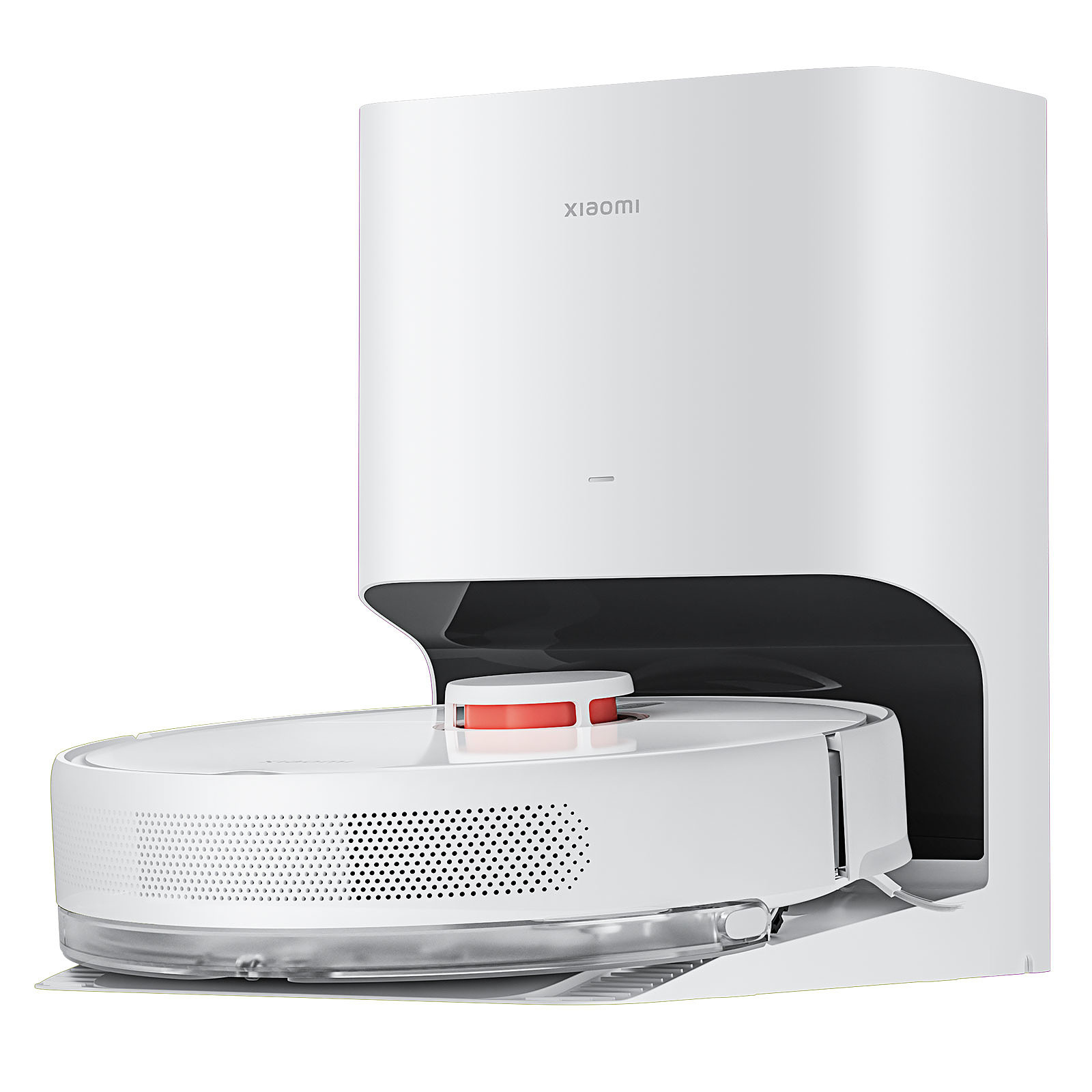

Xiaomi Mi Smart X10 Vacuum and Mop 2-in-1 Robot Vacuum With Dock 2.5L Dust Bag Collection, 4000 Pa Suction, 5200mAh Battery, Up to 180 Minutes Operating Time, Advanced LDS Laser Navigation, affordable flagship

PB Tech price
PB Tech price
$ 868 .69
 +GST
$ 998 .99
 inc GST
$868.69  +GST
$998.99  inc GST

Xiaomi Mi Smart X10 Vacuum and Mop 2-in-1 Robot Vacuum With Dock 2.5L Dust Bag Collection, 4000 Pa Suction, 5200mAh Battery, Up to 180 Minutes Operating Time, Advanced LDS Laser Navigation, affordable flagship

Works with Amazon Alexa or Google Assistant
  • Brand: Xiaomi
  • MPN: BHR6068EU
  • Part #: HOMMIX40198
  • UPC:
PB Tech price
$ 868 .69 $ 998 .99
 +GST  inc GST


Click & Collect: Available from 17 stores.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$868.69  +GST
$998.99  inc GST

Six easy payments of $171.49 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $255.99 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

Finance from $9.56 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

12 months interest free from $20.27 per week*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate of 28.50% p.a. applies to outstanding balance at the end of LTF Interest-Free Period (see Ts&Cs for Q Mastercard Standard Interest Rate). Approved applicants only. The indicative monthly repayment is the purchase amount and Establishment Fee divided by the number of weeks in the Start-up interest Period. The indicative repayments assume there are no additional purchases, cash withdrawals, fees or charges. The indicative repayments are only an estimate and figures should be used as an indication only. They do not represent either a quote. pre-qualification or approval. To repay the purchase amount by the expiry of the Start-up interest Free Period, the indicative monthly repayments stated would need to be made by the due date for each statement period.

*See here for full T&C

What PB Tech customers are saying about this product...

See More Reviews

"Great little machine. Cleans well, just doesnt like the bar stools so we have to move them otherwise works well."

G
By: Guest 15/04/24

"Was able to do a mopping of 32 meter square living room

...view more"

By: LakshaySethi 13/04/24

"Good vacuum. Not so good in mopping - leaves streaky marks on floor. Some difficulty in setting up rooms as two levels. Like the dust bag - easy to use."

PW
By: PatriciaW853 18/03/24
Verified Owner

COMBO DEALS: Frequently Bought Together

Xiaomi Mi Smart X10 Vacuum and Mop 2-in-1 Robot Vacuum With Dock 2.5L Dust Bag Collection, 4000 Pa Suction, 5200mAh Battery, Up to 180 Minutes Operating Time, Advanced LDS Laser Navigation, affordable flagship
Total:
$ 883 .69
 +GST
$ 1,016 .24
 inc GST
Xiaomi Mi Smart Robot  X10+ BHR6363EU Vacuum Cleaner White X10+/ S10+ X10 Side Brush
Xiaomi Mi Smart Robot  X10+ BHR6363EU Vacuum Cleaner White X10+/ S10+ X10 Side Brush

$15.00  +GST

$17.25  inc GST

Xiaomi Vacuum Cleaner Mop 1C/2Pro+/2Ultra Filter - 2pcs - For Xiaomi Mi Smart Robot 2 Ultra Also Compatiable for X10/X10+/S10+ Vacuum Cleaner - For BHR5195EU SKV4093GL
Xiaomi Vacuum Cleaner Mop 1C/2Pro+/2Ultra Filter - 2pcs - For Xiaomi Mi Smart Robot 2 Ultra Also Compatiable for X10/X10+/S10+ Vacuum Cleaner - For BHR5195EU SKV4093GL
$20.00 $23.00

$18.26  +GST

$21.00  inc GST

You save 8% You save 8%
Xiaomi Vacuum Cleaner Mop 1C/2Pro+/2Ultra Main Brush - For Xiaomi Mi Smart Robot 2Ultra Also Compatiable For 2C/X10/Mop/2 Pro+Vacuum Cleaner - For BHR5195EU SKV4093GL
Xiaomi Vacuum Cleaner Mop 1C/2Pro+/2Ultra Main Brush - For Xiaomi Mi Smart Robot 2Ultra Also Compatiable For 2C/X10/Mop/2 Pro+Vacuum Cleaner - For BHR5195EU SKV4093GL
$13.91 $16.00

$12.17  +GST

$14.00  inc GST

You save 12% You save 12%
Xiaomi Vacuum Cleaner Mop 1C/2Pro+/2Ultra Brush Cover - For Xiaomi Mi Smart Robot 2 Ultra Also For X10 Vacuum Cleaner - For BHR5195EU SKV4093GL STZSZ01ZHM
Xiaomi Vacuum Cleaner Mop 1C/2Pro+/2Ultra Brush Cover - For Xiaomi Mi Smart Robot 2 Ultra Also For X10 Vacuum Cleaner - For BHR5195EU SKV4093GL STZSZ01ZHM
$16.52 $19.00

$14.78  +GST

$17.00  inc GST

You save 10% You save 10%
Xiaomi Vacuum Cleaner Mop 2 Ultra Mop Pad - 2pcs - For Xiaomi Mi Smart Robot Mop 2 Ultra Also For X10 - For BHR5195EU
Xiaomi Vacuum Cleaner Mop 2 Ultra Mop Pad - 2pcs - For Xiaomi Mi Smart Robot Mop 2 Ultra Also For X10 - For BHR5195EU
$13.91 $16.00

$12.17  +GST

$14.00  inc GST

You save 12% You save 12%
Xiaomi Mi Smart Robot  X10+ BHR6363EU Vacuum Cleaner White X10+/ X10/ S10+ Disposable Bag (5pcs)
Xiaomi Mi Smart Robot  X10+ BHR6363EU Vacuum Cleaner White X10+/ X10/ S10+ Disposable Bag (5pcs)
$30.00 $34.50

$27.00  +GST

$31.05  inc GST

You save 10% You save 10%

Features



Xiaomi Robot Vacuum X10

Efficient dust collection, affordable flagship



Quick dust collection

Easy dust collection with dual auto-emptying vents and ducts2.5L high-capacity disposable bag, stores up to 60 full cleans*



Rapid computing

More intelligent vacuum, rich in functions

Advanced LDS laser navigation



Powerful cleaning

More efficient "2-in-1 vacuum and mop"

4000Pa fan blower, powerful suction*



Long battery life

5200mAh battery, up to 180 minutes of continuous cleaning*



Smart interactivity

A more personal cleaning housekeeper

Supports voice control and custom cleaning plans

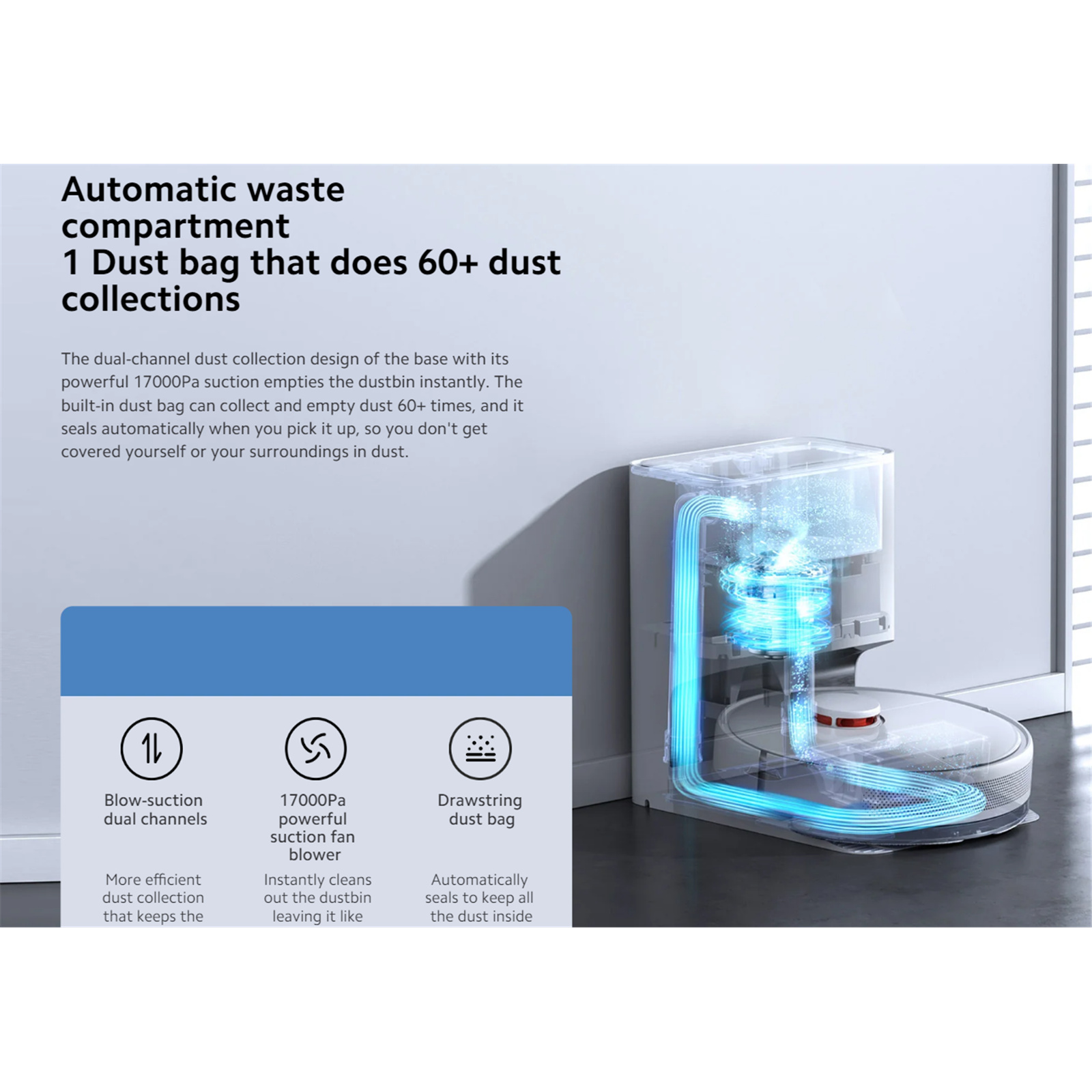

Automatic waste compartment - 1 Dust bag that does 60+ dust collections

The dual-channel dust collection design of the base with its powerful 17000Pa suction empties the dustbin instantly. The built-in dust bag can collect and empty dust 60+ times, and it seals automatically when you pick it up, so you don't get covered yourself or your surroundings in dust.

Blow-suction dual channels
More efficient dust collection that keeps the dust tubes clean

17000Pa powerful suction fan blower
Instantly cleans out the dustbin leaving it like new

Drawstring dust bag
Automatically seals to keep all the dust inside



Enjoy cleanliness and comfort - No need to touch any dust

- Say goodbye to frequent emptying
- Keep dust allergens in check
- Pet hair is automatically bagged



Precision mapping even in the dark - Slows down to avoid crashing into obstacles*

The new-generation LDS laser navigation technology accurately scans your home environment and between breaks maps the actual layout of your home. Not afraid of the dark, it can still navigate accurately in the dark and slows down when it comes across obstacles.

LDS laser navigation system
- Quick mapping and plans on the go
- Accurate positioning and precision mapping
- Precise and efficient docking and charging
- Not afraid of the dark and not easily affected by light

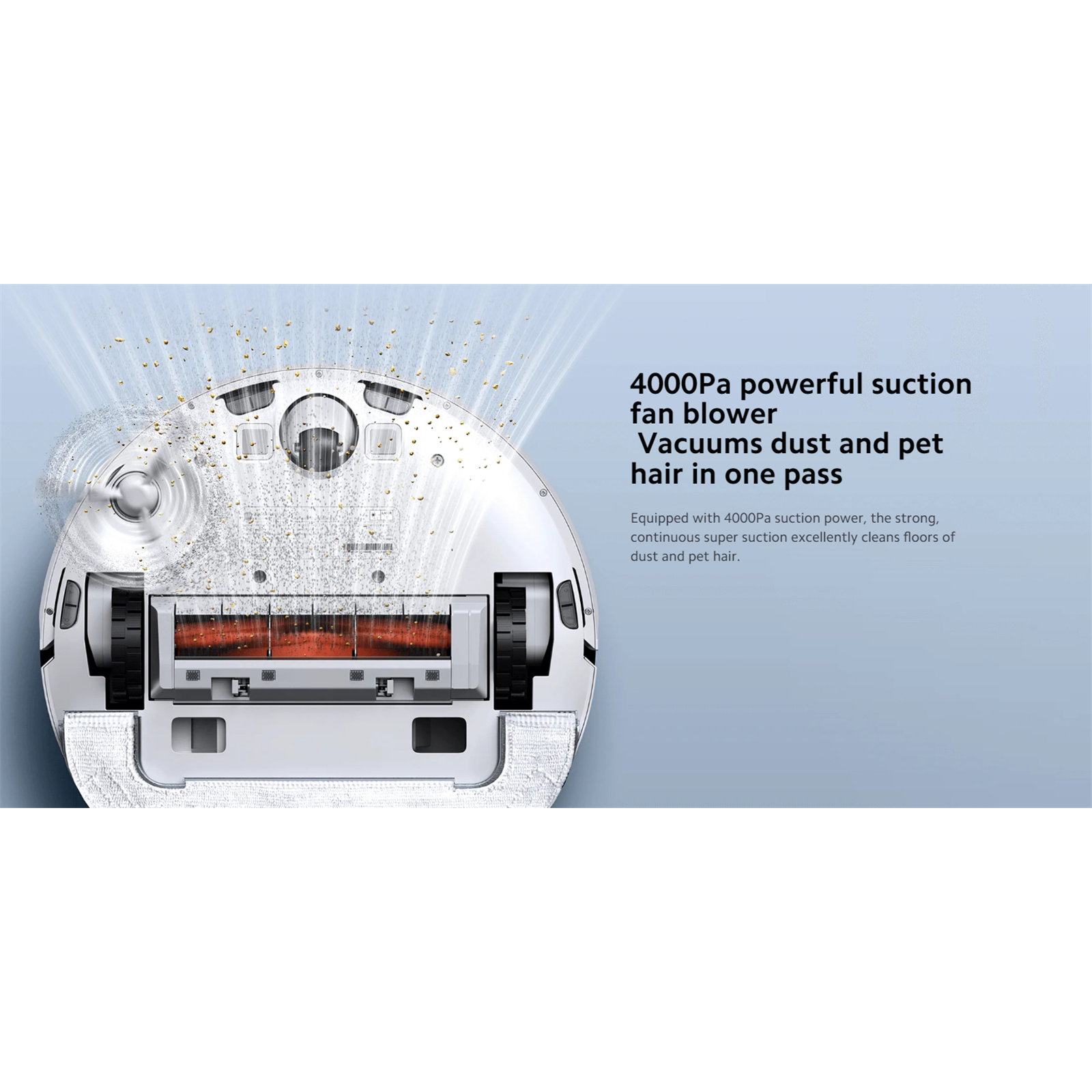

4000Pa powerful suction fan blower - Vacuums dust and pet hair in one pass

Equipped with 4000Pa suction power, the strong, continuous super suction excellently cleans floors of dust and pet hair.



Why vacuum?

High-speed brushless motor for powerful suction



Floating roller brush that cleans the floor



2-in-1 vacuum-mop design that completely removes dust particles

Equipped with a 200ml* electronically controlled water tank that allows for 80 minutes* of mopping, the water tank evenly distributes water without leakage and supports three levels of water flow control to thoroughly clean floors throughout the home.



Easily clean your large home thanks to the extra-long 180-minute* battery life

The large built-in 5200mAh battery can clean for over 180 minutes* in standard mode, so even large homes aren't a problem.

*5200mAh nominal battery capacity



Create personalised cleaning plans

Once the map has been built, a sensible cleaning plan can be created according to the floor plan, with cleaning time, setting, area and frequency all able to be set.



Plan a smart cleaning strategy

During the cleaning process, it automatically predicts drops, making cleaning tasks more efficient, safe and worry-free.



Drop sensor mechanism



Reduces speed when obstacles are detected



Smart edge cleaning



All-round protection of user security and privacy

TUV Rheinland Cybersecurity and Privacy Protection Standard Certification



Map Management
Encryption on map transmission and cloud storage



MJA1 Security Chip
Hardware-based protection for devices and secure transmission of user data



Xiaomi / Mi Home app*
Leading international security protection with accredited security certifications, based on the standards ISO 27001, ISO 27701 and ETSI EN 303 645.
* App name varies according to the country/region, Mi Home app is also named Xiaomi Home app in some countries or regions. Xiaomi deserves the right to the final interpretation.



Works with Amazon Alexa or Google Assistant

"OK, Google, start cleaning"
"Alexa, start cleaning"

*Compatible Alexa and Google Assistant-enabled devices are required. Google Assistant is not available in certain languages and countries. Google, Google Nest Mini, and Google Home are trademarks of Google LLC. Alexa is not available in certain languages and countries. Amazon, Alexa, and all related marks are trademarks of Amazon.com, Inc. or its affiliates. Please refer to official websites for more information.



2-in-1 dust collection and charging

Saves time, so you can make the most of it



Straight transparent air duct design

Easy to inspect, clean and unblock



Capable of crossing obstacles up to 20mm*

Easily crosses door thresholds and carpets



Supports OTA wireless updates

More features are waiting to be discovered



*The vacuum-mop will update its firmware to fix bugs or improve functions for better security and user experience.
 You can check whether the firmware is latest version on the settings page in Mi Home/Xiaomi Home app and select the firmware update method in settings. For the Firmware Upgrade and Support Policy, please visit Xiaomi Security Center (https://trust.mi.com/misrc/updates/iot?tab=update) for more details.
* Tested by cleaning a 100m2 house with carpet. Data comes from Xiaomi Internal labs. Actual results may vary.
* The fan blower of Xiaomi Robot Vacuum X10 generates up to 4000Pa of air pressure. Data comes from Xiaomi Internal labs.The obstacles that can be identified depend on the environmental conditions and scenario of use, so identification may vary.
* 180 minute cleaning time: When set to Vacuuming and Mopping under Standard mode, and fully charged. Data comes from Xiaomi Internal labs. Actual results may vary.
*One dust bag does 60+ dust collections: The robot vacuum-mop cleans a 100m2 carpeted house twice a day and returns to the base for dust collection each time. The amount of waste in the dust bag was measured every four days, and after 60 cleanings, there was 2390ml of waste in the dust bag (less than the volume of the dust bag).
*Slows down to avoid crashing into obstacles: Lidar can identify obstacles with a floor-standing height over 84.7mm, and the vacuum-mops slows down to avoid crashing. The obstacles that can be identified depend on the environmental conditions and scenario of use, so identification may vary.
*4000Pa powerful suction fan blower: Data from Dreame Technology Laboratory. With the main unit fully charged, suction power was verified to reach 4000Pa with a vacuum tester.
*Extra-long 180-minute battery life: When fully charged and in standard mode, the vacuum-mop performs cleaning in a rectangular open space of 4x5m. Testing was performed three times in the same environment and under the same conditions, and all results demonstrated more than 180 minutes of cleaning time. Testing was performed three times in the same environment and under the same conditions and all results demonstrated more than 80 minutes of mopping time.
*17000Pa : The input voltage was set to 220V and a fan performance test bench was used to measure the maximum suction at the inlet of three dust collection dock prototypes. The values measured were all greater than 17000Pa.
*Equipped with a 200ml electronically controlled water tank: The water tank was filled with water and the water was then poured into a measuring cup and its level on the scale of the measuring cup was recorded. Three tests were performed on three prototypes respectively and the average value of the tested results was within the range of 200±5ml.


PB Tech is an Authorised Mi Service Centre

Specifications

Package contents

Robot vacuum x1
Dust collection dock x1 (With dust bag installed)
Main brush x1 (Installed)
Brush cover x1 (Installed)
Dust bag x1 (Replacement)
Dustbin x1 (Installed)
Mop pad x1
Water tank x1
Side brush x1
Cleaning tool x1
Power cable x1
User manual x1

Auto-empty Station

Model

JCZ2201

Item Dimensions

397 × 285 × 384 mm

Rated Input

220-240 V ~ 50/60 Hz

Rated Output

20.0 V   1 A

Rated Power

1000 W

Robot Vacuum

Name

Robotic Vacuum Cleaner

Model

B102GL

Item Dimensions

353 × 350 × 98.8 mm

Battery

4800 mAh (Rated Capacity)
5200 mAh (Nominal Capacity)

Charging Time

Approx. 6 hours

Net Weight (Robot Vacuum)

3.3 kg

Net Weight (with Accessories)

7.4 kg

Rated Voltage

14.4 V

Rated Power

46 W

Sensor list

LDS laser sensor

Distancing and mapping (360°, white material 0.1-6m, black material 0.1-4m)

IMU sensor

Motion status detection (Acceleration ranges ±2g/±4g/±8g/±16g; Gyroscope ranges from ±125°/s to ±200°/s)

Drop sensor

Detects steps and drops (Black/grey carpet >15mm; light grey tile >45mm; pure white >80mm)

Wheel suspension detection

Detects if the vacuum-mop is suspended (0&1)

Infrared sensor

Communication between the vacuum-mop and base (<10cm)

Infrared sensor

Vacuum-mop and charging dock positioning (<5m)

Air pressure sensor

Tests for dust collection capacity and blocked ducts (300-1250hPa)

Hall sensor

Tests whether dustbin, water tank and cloth are installed (Operating Point ±37Gs; Releasing Point ±25Gs)

Manufacturer Part No:
BHR6068EU
Brand:
Product Type:
Vacuum and Mop 2-in-1 Robot Vacuum
UPC
-
Product Family:
Mi Smart
Shipping Weight:
10.9 kg
PB Part No:
HOMMIX40198
Product Model:
X10
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.5 out of 5 Stars Based on 4 Reviews
5 Stars
2
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Xiaomi Mi Smart X10 Vacuum and Mop 2-in-1 Robot Vacuum

Good vacuum. Not so good in mopping - leaves streaky marks on floor. Some difficulty in setting up rooms as two levels. Like the dust bag - easy to use.

PW
By: PatriciaW853 18/03/24
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

A great purchase for the price

Great little machine. Cleans well, just doesnt like the bar stools so we have to move them otherwise works well.

G
By: Guest 15/04/24
0 out of 0 users found this review helpful
Did you find it helpful?

Does the mopping

Was able to do a mopping of 32 meter square living room

Robot is very responsive to the app unlike other robot vacuums that may be slower to respond.

Does not Auto clean the mop so we need to clean manually.

Before buying I watched a few YouTube videos which I feel were rare and did not cover mopping function.

I bought this specifically for the mopping function.

It does the job but I have not tested it on difficult terrain.

Will see how it goes. looks promising.

By: LakshaySethi 13/04/24
0 out of 0 users found this review helpful
Did you find it helpful?

good product, good design.

Worth buying. Save time to clean the room. Smarter than the previous version.
The UI doesn't provide too many functions, customized one. Need some improvements on.software side.

HH
By: HannayH 23/02/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Accessories

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Xiaomi Mi Smart X10 Vacuum and Mop 2-in-1 Robot Vacuum With Dock 2.5L Dust Bag Collection, 4000 Pa Suction, 5200mAh Battery, Up to 180 Minutes Operating Time, Advanced LDS Laser Navigation, affordable flagship

Works with Amazon Alexa or Google Assistant
  • Brand: Xiaomi
  • MPN: BHR6068EU
  • Part #: HOMMIX40198
PB Tech price $868.69 Excluding GST PB Tech price $998.99 Including GST

Date Created: 00:08, 25-04-2024
Product URL: https://www.pbtech.co.nz/product/HOMMIX40198
Branch New Stock On Display
Albany 2
Glenfield 2
Queen Street 5
Auckland Uni 0
Newmarket 3
Westgate 1
Penrose 5
Henderson (Express) 3
St Lukes 2
Manukau 2
Hamilton 1
Tauranga 3
New Plymouth 3
Palmerston North 3
Petone 4
Wellington 4
Head Office 3
Hornby 3
Christchurch Central 1

Features



Xiaomi Robot Vacuum X10

Efficient dust collection, affordable flagship



Quick dust collection

Easy dust collection with dual auto-emptying vents and ducts2.5L high-capacity disposable bag, stores up to 60 full cleans*



Rapid computing

More intelligent vacuum, rich in functions

Advanced LDS laser navigation



Powerful cleaning

More efficient "2-in-1 vacuum and mop"

4000Pa fan blower, powerful suction*



Long battery life

5200mAh battery, up to 180 minutes of continuous cleaning*



Smart interactivity

A more personal cleaning housekeeper

Supports voice control and custom cleaning plans



Automatic waste compartment - 1 Dust bag that does 60+ dust collections

The dual-channel dust collection design of the base with its powerful 17000Pa suction empties the dustbin instantly. The built-in dust bag can collect and empty dust 60+ times, and it seals automatically when you pick it up, so you don't get covered yourself or your surroundings in dust.

Blow-suction dual channels
More efficient dust collection that keeps the dust tubes clean

17000Pa powerful suction fan blower
Instantly cleans out the dustbin leaving it like new

Drawstring dust bag
Automatically seals to keep all the dust inside



Enjoy cleanliness and comfort - No need to touch any dust

- Say goodbye to frequent emptying
- Keep dust allergens in check
- Pet hair is automatically bagged



Precision mapping even in the dark - Slows down to avoid crashing into obstacles*

The new-generation LDS laser navigation technology accurately scans your home environment and between breaks maps the actual layout of your home. Not afraid of the dark, it can still navigate accurately in the dark and slows down when it comes across obstacles.

LDS laser navigation system
- Quick mapping and plans on the go
- Accurate positioning and precision mapping
- Precise and efficient docking and charging
- Not afraid of the dark and not easily affected by light



4000Pa powerful suction fan blower - Vacuums dust and pet hair in one pass

Equipped with 4000Pa suction power, the strong, continuous super suction excellently cleans floors of dust and pet hair.



Why vacuum?

High-speed brushless motor for powerful suction



Floating roller brush that cleans the floor



2-in-1 vacuum-mop design that completely removes dust particles

Equipped with a 200ml* electronically controlled water tank that allows for 80 minutes* of mopping, the water tank evenly distributes water without leakage and supports three levels of water flow control to thoroughly clean floors throughout the home.



Easily clean your large home thanks to the extra-long 180-minute* battery life

The large built-in 5200mAh battery can clean for over 180 minutes* in standard mode, so even large homes aren't a problem.

*5200mAh nominal battery capacity



Create personalised cleaning plans

Once the map has been built, a sensible cleaning plan can be created according to the floor plan, with cleaning time, setting, area and frequency all able to be set.



Plan a smart cleaning strategy

During the cleaning process, it automatically predicts drops, making cleaning tasks more efficient, safe and worry-free.



Drop sensor mechanism



Reduces speed when obstacles are detected



Smart edge cleaning



All-round protection of user security and privacy

TUV Rheinland Cybersecurity and Privacy Protection Standard Certification



Map Management
Encryption on map transmission and cloud storage



MJA1 Security Chip
Hardware-based protection for devices and secure transmission of user data



Xiaomi / Mi Home app*
Leading international security protection with accredited security certifications, based on the standards ISO 27001, ISO 27701 and ETSI EN 303 645.
* App name varies according to the country/region, Mi Home app is also named Xiaomi Home app in some countries or regions. Xiaomi deserves the right to the final interpretation.



Works with Amazon Alexa or Google Assistant

"OK, Google, start cleaning"
"Alexa, start cleaning"

*Compatible Alexa and Google Assistant-enabled devices are required. Google Assistant is not available in certain languages and countries. Google, Google Nest Mini, and Google Home are trademarks of Google LLC. Alexa is not available in certain languages and countries. Amazon, Alexa, and all related marks are trademarks of Amazon.com, Inc. or its affiliates. Please refer to official websites for more information.



2-in-1 dust collection and charging

Saves time, so you can make the most of it



Straight transparent air duct design

Easy to inspect, clean and unblock



Capable of crossing obstacles up to 20mm*

Easily crosses door thresholds and carpets



Supports OTA wireless updates

More features are waiting to be discovered



*The vacuum-mop will update its firmware to fix bugs or improve functions for better security and user experience.
 You can check whether the firmware is latest version on the settings page in Mi Home/Xiaomi Home app and select the firmware update method in settings. For the Firmware Upgrade and Support Policy, please visit Xiaomi Security Center (https://trust.mi.com/misrc/updates/iot?tab=update) for more details.
* Tested by cleaning a 100m2 house with carpet. Data comes from Xiaomi Internal labs. Actual results may vary.
* The fan blower of Xiaomi Robot Vacuum X10 generates up to 4000Pa of air pressure. Data comes from Xiaomi Internal labs.The obstacles that can be identified depend on the environmental conditions and scenario of use, so identification may vary.
* 180 minute cleaning time: When set to Vacuuming and Mopping under Standard mode, and fully charged. Data comes from Xiaomi Internal labs. Actual results may vary.
*One dust bag does 60+ dust collections: The robot vacuum-mop cleans a 100m2 carpeted house twice a day and returns to the base for dust collection each time. The amount of waste in the dust bag was measured every four days, and after 60 cleanings, there was 2390ml of waste in the dust bag (less than the volume of the dust bag).
*Slows down to avoid crashing into obstacles: Lidar can identify obstacles with a floor-standing height over 84.7mm, and the vacuum-mops slows down to avoid crashing. The obstacles that can be identified depend on the environmental conditions and scenario of use, so identification may vary.
*4000Pa powerful suction fan blower: Data from Dreame Technology Laboratory. With the main unit fully charged, suction power was verified to reach 4000Pa with a vacuum tester.
*Extra-long 180-minute battery life: When fully charged and in standard mode, the vacuum-mop performs cleaning in a rectangular open space of 4x5m. Testing was performed three times in the same environment and under the same conditions, and all results demonstrated more than 180 minutes of cleaning time. Testing was performed three times in the same environment and under the same conditions and all results demonstrated more than 80 minutes of mopping time.
*17000Pa : The input voltage was set to 220V and a fan performance test bench was used to measure the maximum suction at the inlet of three dust collection dock prototypes. The values measured were all greater than 17000Pa.
*Equipped with a 200ml electronically controlled water tank: The water tank was filled with water and the water was then poured into a measuring cup and its level on the scale of the measuring cup was recorded. Three tests were performed on three prototypes respectively and the average value of the tested results was within the range of 200±5ml.


PB Tech is an Authorised Mi Service Centre

Specifications

Package contents

Robot vacuum x1
Dust collection dock x1 (With dust bag installed)
Main brush x1 (Installed)
Brush cover x1 (Installed)
Dust bag x1 (Replacement)
Dustbin x1 (Installed)
Mop pad x1
Water tank x1
Side brush x1
Cleaning tool x1
Power cable x1
User manual x1

Auto-empty Station

Model

JCZ2201

Item Dimensions

397 × 285 × 384 mm

Rated Input

220-240 V ~ 50/60 Hz

Rated Output

20.0 V   1 A

Rated Power

1000 W

Robot Vacuum

Name

Robotic Vacuum Cleaner

Model

B102GL

Item Dimensions

353 × 350 × 98.8 mm

Battery

4800 mAh (Rated Capacity)
5200 mAh (Nominal Capacity)

Charging Time

Approx. 6 hours

Net Weight (Robot Vacuum)

3.3 kg

Net Weight (with Accessories)

7.4 kg

Rated Voltage

14.4 V

Rated Power

46 W

Sensor list

LDS laser sensor

Distancing and mapping (360°, white material 0.1-6m, black material 0.1-4m)

IMU sensor

Motion status detection (Acceleration ranges ±2g/±4g/±8g/±16g; Gyroscope ranges from ±125°/s to ±200°/s)

Drop sensor

Detects steps and drops (Black/grey carpet >15mm; light grey tile >45mm; pure white >80mm)

Wheel suspension detection

Detects if the vacuum-mop is suspended (0&1)

Infrared sensor

Communication between the vacuum-mop and base (<10cm)

Infrared sensor

Vacuum-mop and charging dock positioning (<5m)

Air pressure sensor

Tests for dust collection capacity and blocked ducts (300-1250hPa)

Hall sensor

Tests whether dustbin, water tank and cloth are installed (Operating Point ±37Gs; Releasing Point ±25Gs)

Date Created: 00:08, 25-04-2024
Product URL: https://www.pbtech.co.nz/product/HOMMIX40198
