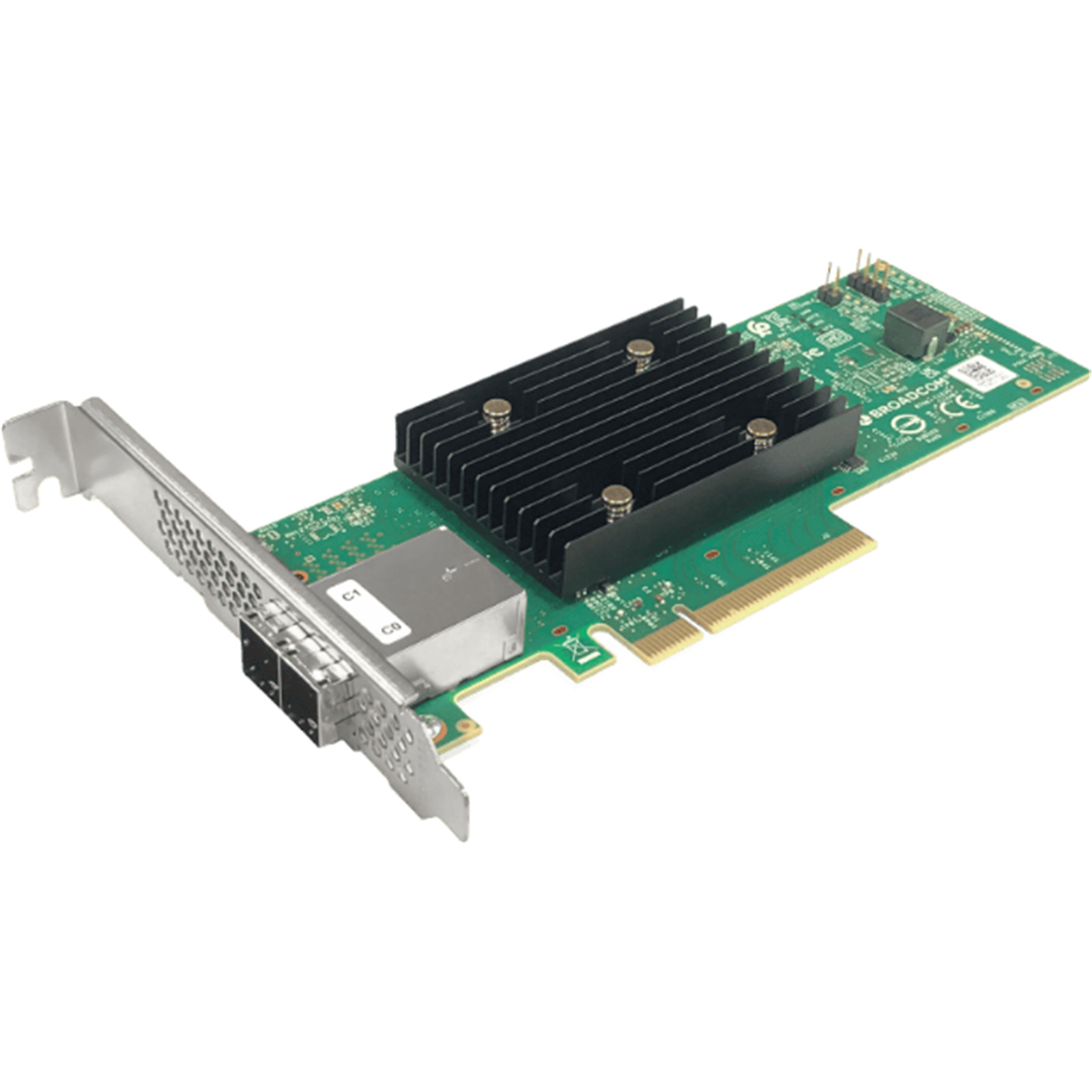

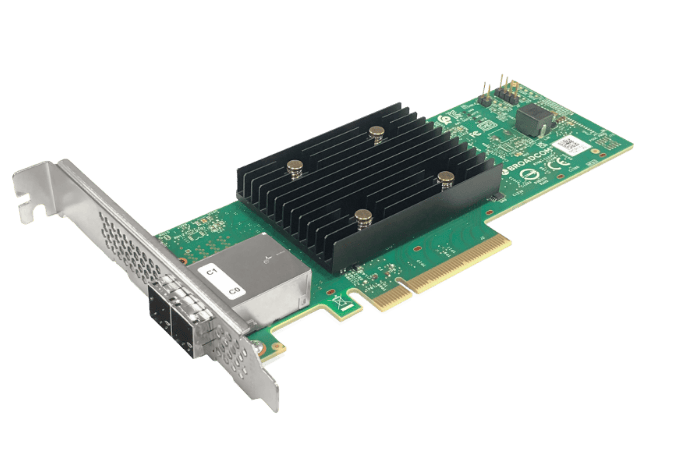

Asustor AS-SAS8e PCIe Gen4 x8 Tri-Mode Storage Adapter, SFF-8644 port (Low-Profile and Standard Bracket). For Asustor NAS Use Only

Asustor AS-SAS8e PCIe Gen4 x8 Tri-Mode Storage Adapter, SFF-8644 port (Low-Profile and Standard Bracket). For Asustor NAS Use Only

  • Brand: Asustor
  • MPN: AS-SAS8e
  • Part #: IDEAST10000
  • UPC:

Features

AS-SAS8e

- Supports SAS-3
- Compatible with ADM Storage Manager for easy management
- Suitable for 24/7 high-load operation to ensure stability and reliability
- Manufacturer & Model: Broadcom HBA 9500-8e



Amplified Storage Solutions

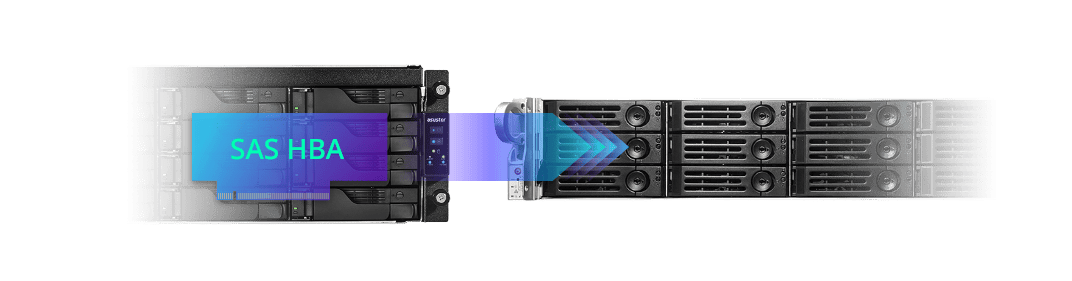

The AS-SAS8e provides a high-performance storage connection to ASUSTOR's JBOD expansion units and supports the SAS-3 and NVMe protocols. This ensures reliable and fast data transfer rates and system efficiency, making the AS-SAS8e is suitable for enterprise-level applications requiring high capacity and high throughput.



Stable and Fast

Compared with SATA III, SAS-3 has higher performance, lower latency, error correction and recovery, making it more suitable for enterprise-level scenarios that require scalability and reliability. SAS also supports SATA drives for maximum compatibility

Specifications

Hardware Specifications

I/O Controller

SAS3808

External Connectors

2x 4 SFF-8644 (ext HD)

Host Bus Type

x8 lane PCI Express 4.0

Generation

12 Gb/s

Storage Interface

12Gb/s SAS, 6Gb/s SATA

Operating Humidity

20% to 80% Non-condensing

Operating Temperature °C

0°C to 55°C

OS Support

ADM 5.0, Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Citrix XenServer, CentOS Linux, Ubuntu Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD

Applicable models

AS7112RDX / AS7116RDX / PC

Regulatory Certifications

Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE

Package Contents

AS-SAS8e HBA, Low Profile Bracket, FH (attached)

Size and Weight

Size

68.77(W) x 167.65 (D) mm

Weight

100(g) / 0.22 (lb)

Manufacturer Part No:
AS-SAS8e
Brand:
Product Type:
-
UPC
-
Product Family:
AS-SAS8e
Shipping Weight:
1 kg
PB Part No:
IDEAST10000
Product Model:
-
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
