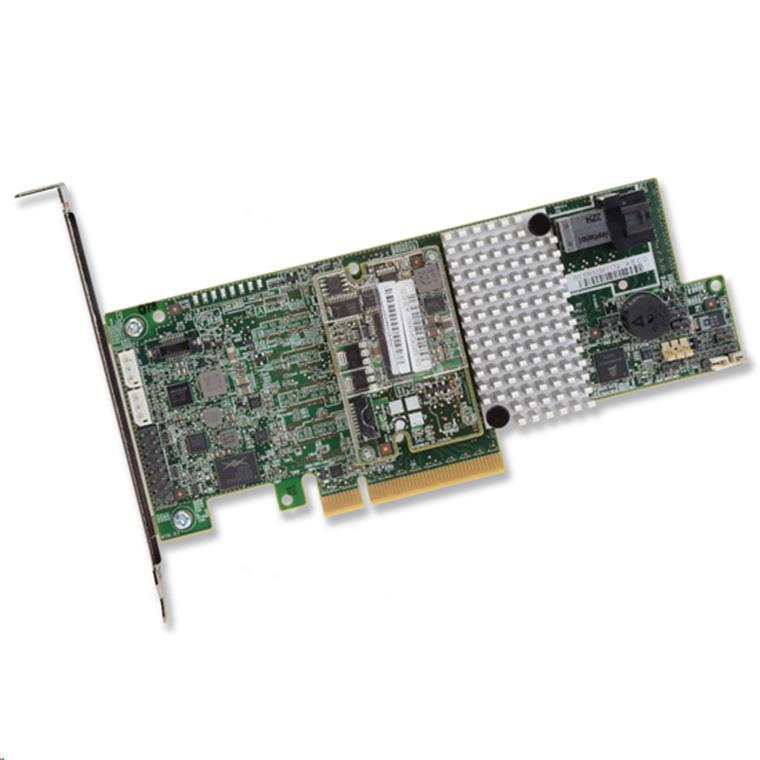

Intel RAID Controller RS3DC040 PCI Express 3.0 x8 Plug-in Card RAID 0,1,5,10,50,60,6 RAID Level x4 SATA/SAS PCIe
Intel RAID Controller RS3DC040 PCI Express 3.0 x8 Plug-in Card RAID 0,1,5,10,50,60,6 RAID Level x4 SATA/SAS PCIe

Six easy payments of $117.77 per week*
Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.
Click the button below or select Laybuy as your payment method during the checkout process.
If you do not have a Laybuy account you will be able to create one at checkout.
*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $141.33 per fortnight*
humm lets you spread the cost of your purchase over 5 or 10 interest free payments.
Click the button below or select humm as your payment method during the checkout process.
If you do not have a humm account you will be able to create one at checkout.
*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $6.61 per week*
Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.
Choose a Finance TermLearn more about Finance Now

17 months interest FREE available*
Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.
Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.
*An Establishment fee of $55 applies to your first LTF transaction, a $35 Advance Fee applies to all subsequent LTF transactions. Standard Interest Rate, currently 25.99% p.a. applies to any outstanding balance at end of the interest free period. Lending criteria, $50 annual account fee, fees, terms and conditions apply.
Learn more about Q Card
- Brand: Intel
- MPN: RS3DC040
- Part #: IDEINT2561594
- UPC: 735858265362
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular RAID Controllers





Intel RAID Controller RS3DC040 PCI Express 3.0 x8 Plug-in Card RAID 0,1,5,10,50,60,6 RAID Level x4 SATA/SAS PCIe
- Brand: Intel
- MPN: RS3DC040
- Part #: IDEINT2561594
- UPC:735858265362

Product URL: https://www.pbtech.co.nz/product/IDEINT2561594/Intel-RAID-Controller-RS3DC040-PCI-Express-30-x8-P
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 1 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
Mainstream 12Gb/s SAS-3 Intelligent RAID Adapters
As data continues to grow at an unprecedented pace, mainstream server environments that include database servers, e-mail servers, and Web servers need a higher level of performance and scalability. Now with the Intel® RAID Controller RS3DC080 and Intel® RAID Controller RS3DC040, powered by LSI MegaRAID technology, organizations get next-generation SAS 3.0 12Gb/s performance, enterprise-class data protection, and scalability designed for mainstream server environments. Featuring more than 750K RAID 5 IOPS-more than 60 percent improvement over the previous generation-and 6,000MB/s throughput performance for streaming applications, these RAID adapters unleash the full potential of enterprise PCI Express (PCIe) 3.0 systems.
The Intel RAID Controller RS3DC080 and Intel RAID Controller RS3DC040 double the available bandwidth of current 6Gb/s SAS solutions, and offer a higher level of RAID performance and security compared to entry-level products. They feature eight and four internal ports respectively, deliver two 1.2GHz processor cores, and 72-bit DDR3 interface that drives 1GB cache memory at 1866MHz. They support 8 PCIe lanes that comply with the latest PCIe 3.0 specification with 8 gigatransfers per second (GT/s) per lane.
Specifications
Low Profile MD2 Card
Data Transfer Rate
12 Gb/s
Supported Devices
SAS/SATA
RAID Level Supported
0, 1, 10, 5, 50, 6, 60
JBOD Mode
No
# of Ports Internal
4
# of Devices Supported
128
Embedded Memory
1GB
PCIe Host Interface
PCIe x8 Gen3
IO Processor Model
LSI3108
Connector Orientation
Side
Additional Extended Warranty Details
Intel® RAID Extended Warranty
