StarTech.com PEXUSB314A2V2 4-Port USB PCIe Card 3.1 Gen 2 - 2 Chips

PB Tech price
PB Tech price
$ 221 .74
 +GST
$ 255 .00
 inc GST
$221.74  +GST
$255.00

StarTech.com PEXUSB314A2V2 4-Port USB PCIe Card 3.1 Gen 2 - 2 Chips

  • Brand: StarTech.com
  • MPN: PEXUSB314A2V2
  • Part #: IDESTT5142547
  • UPC: 065030887410
PB Tech price
$ 221 .74 $ 255 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 28 Oct When will I receive it?
$221.74  +GST
$255.00

Four payments of $64.39 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $3.28 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: StarTech.com
  • MPN: PEXUSB314A2V2
  • Part #: IDESTT5142547
  • UPC: 065030887410

Features

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding four SuperSpeed USB-A (10Gbps) ports. The card features dual ASM3142 controllers with up to 20 Gbps of total bandwidth shared across all 4 ports.

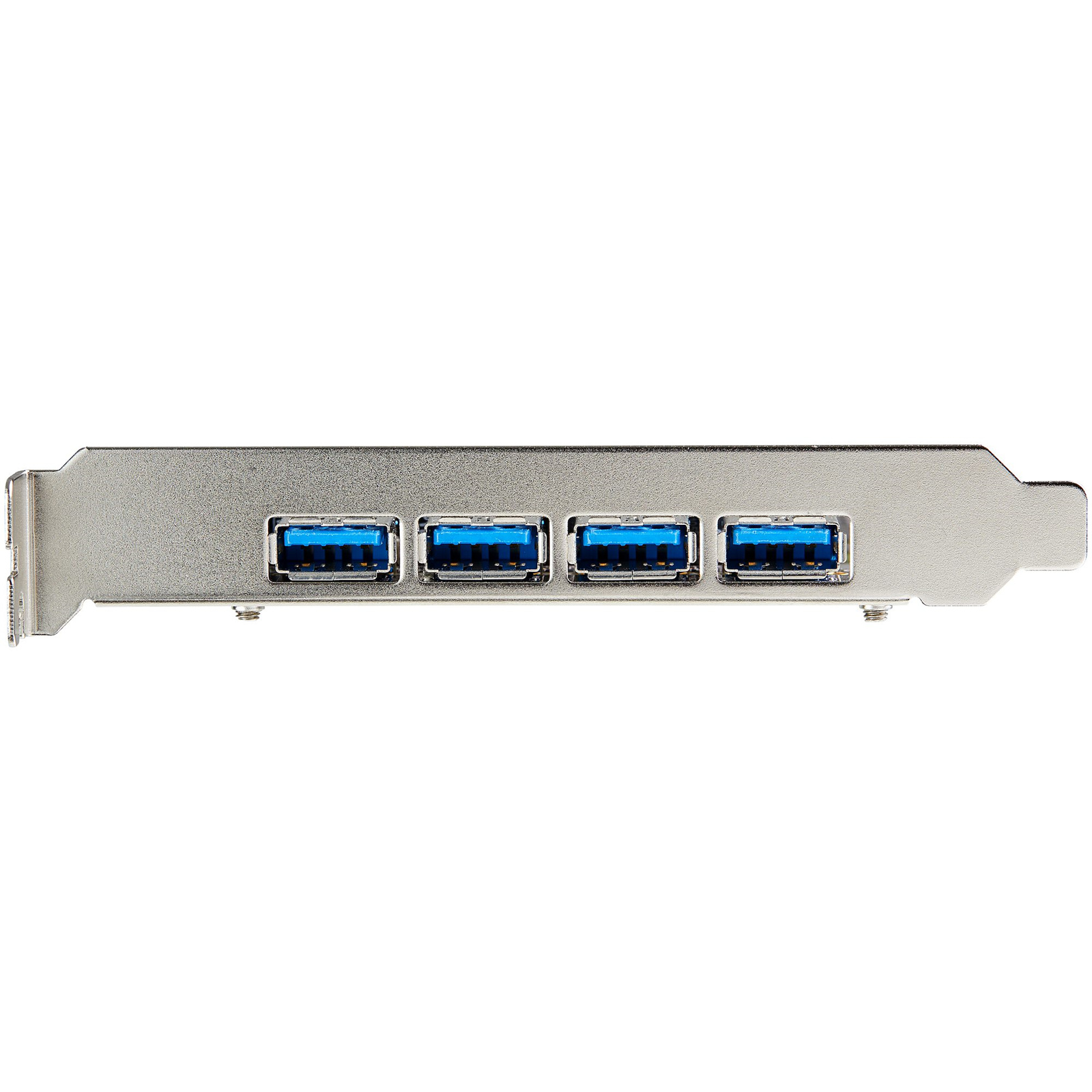

Add Four 10 Gbps USB Type-A Ports to Your Desktop Computer

The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.0 and USB 3.1 (5 Gbps).

SuperSpeed USB 3.2 Gen 2 (10 Gbps) Performance

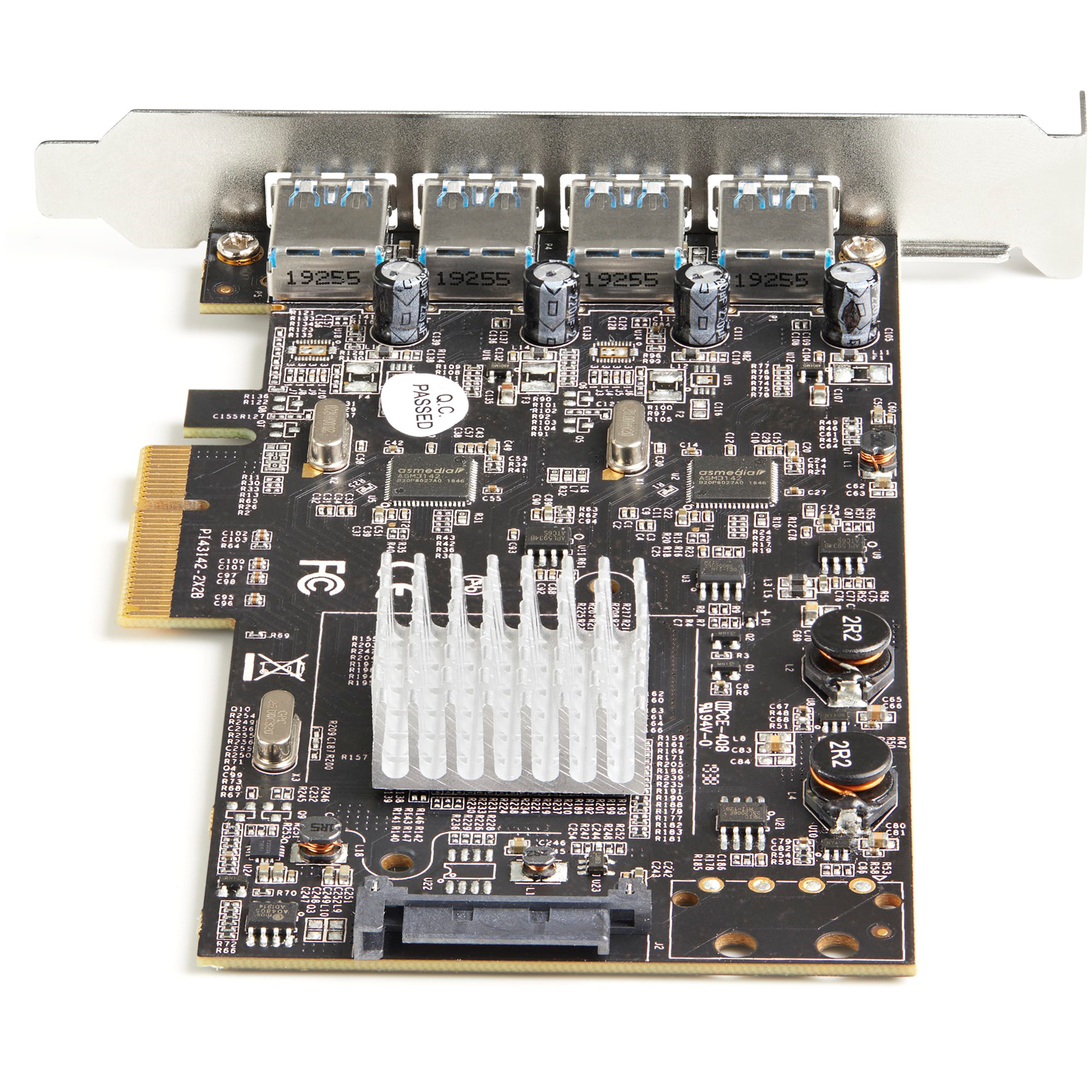

The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

Wide Installation Compatibility

This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.1/3.0/2.0 devices

Specifications

Connector(s)

1 - Connector Type(s)

PCI Express x4

1 - Internal Ports

SATA Power (15 pin)

4 - External Ports

USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps)

Environmental

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

20% ~ 80% RH

Hardware

Ports

4

Interface

PCI Express

Bus Type

USB 3.2 Gen 2 10Gbps

Card Type

Standard Profile

Port Style

Integrated on Card

Industry Standards

USB 3.1 Specification Rev. 1.0 USB Specification Rev. 2.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0

Chipset ID

ASMedia - ASM3142
ASMedia - ASM1812

Performance

Total USB Power Output

4.5W (5V @ 0.9A) nominal, per port - Ports trip before 2.1A (10.5W) for Over-Current Protection

Maximum Data Transfer Rate

10Gbps per port

Type and Rate

USB 3.1 Gen 2 - 10 Gbit/s

UASP Support

Yes

MTBF

40,000 Hours

Physical Characteristics

Color

Black

Product Height

0.7 in [1.9 cm]

Product Length

4.7 in [12.0 cm]

Weight of Product

4.4 oz [125.0 g]

Product Width

5.9 in [15.0 cm]



Manufacturer Part No:
PEXUSB314A2V2
Brand:
Product Type:
-
UPC
065030887410
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
IDESTT5142547
Product Model:
PEXUSB314A2V2
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
