Features

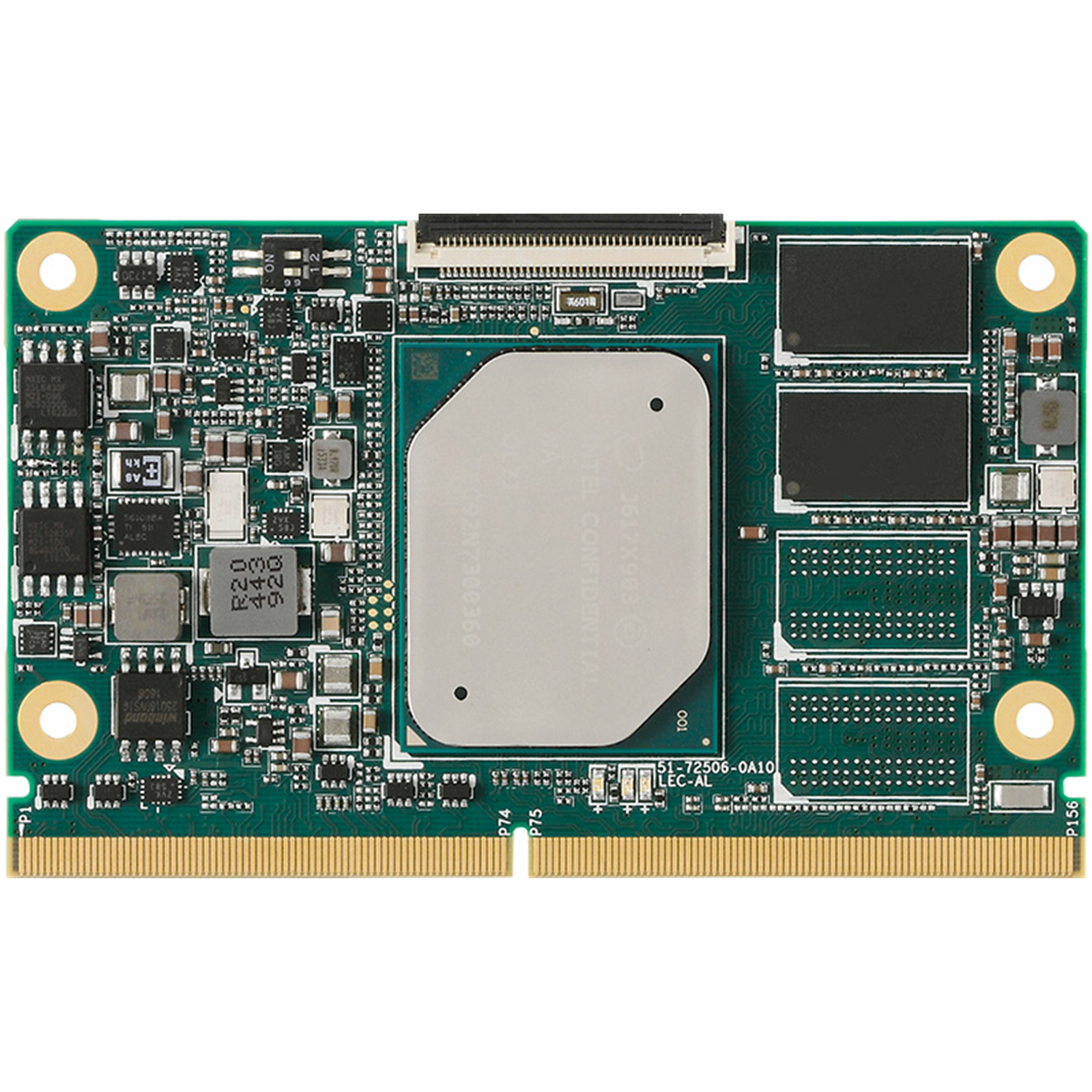

The LEC-AL Computer-On-Module (COM) combines the SMARC® 2.0 standard with the latest Intel Atom® E-Series and Pentium® and Celeron® N-series System-on-Chips (SoCs), providing ideal solutions for low power consumption and high performance requirements. The module provides the high integration, high performance, low power, and ruggedness favored by Internet- of-Things (IoT) applications such as retail transactional clients, digital signage, and in-vehicle infotainment systems. The LEC-AL module utilizes the latest Intel E-series and N-series SoCs, which are based on the Intel 64 Architecture, the new HD Graphics 500/505 engine, and a faster, 4-vector image processing unit. The SoCs are manufactured on Intel's industry-leading, tri-gate 14nm process, improving system performance by supporting more than 4 GB of both virtual and physical memory.
The module primarily targets embedded intelligent systems used in several vertical market segments such as healthcare, industrial controllers and real-time systems, retail systems, edge IOT gateways, in-vehicle infotainment systems, printers, thin clients, industrial and ruggedized tablets, and many others. The LEC-AL supports contemporary, high-bandwidth interfaces such as Ultra HD HDMI, dual-channel LVDS, PCI Express Gen2, Gigabit Ethernet, USB 2.0/3.0, SATA Gen3, enhanced MIPI CSI camera, and a state-of-the-art HD Audio interface.
The module generates its own LVDS (18/24bit), TMDS, and Display Port ++ video signals using eDP and DDI output from the SoC. Two SPI Flash chips implement a fail-safe BIOS, allowing the user to boot the module even if current BIOS settings have corrupted the system. Under the management of the BMC chip (Board Management Controller), the SEMA utility (Smart Embedded Management Agent) provides system control, security, and failure protection- counting, monitoring, and measuring hardware and software events, and using the SMBus to send corrective commands to the SoC.
- Dual or quad-core Intel Atom® E3900 Series or Pentium™ N4200 or Celeron™ N3350 Processor SoC
- Up to 8 GB DDR3L at 1867 MHz
- Triple display support
- HEVC H.265, Dual channel LVDS, HDMI/DP++, DP++, and 2x MIPI CSI camera (2/4 lanes)
- 1x GbE with IEEE1588 (PTP) supported
- 1x SATA 3.0, onboard eMMC
- 4x PCIe x1
- Windows 10 IoT Enterprise/Core and Yocto Linux supported
Specifications
Core System
CPU
Intel Atom® E3950, 4 cores, 2.0 GHz, 12 W TDP
Intel Atom® E3940, 4 cores, 1.8 GHz, 9.5 W TDP
Intel Atom® E3930, 2 cores, 1.8 GHz, 6.5 W TDP
Intel Pentium® N4200, 4 cores, 2.5 GHz, 6W TDP
Intel® Celeron® N3350, 2 cores, 2.4 GHz, 6W TDP
Memory
Up to 8 GB DDR3L at 1867 MT/s
Single/dual channel memory 1-2 64bit, non-ECC
Embedded BIOS
AMI UEFI with CMOS backup in 8 MB SPI BIOS, Fast Boot support
Cache
2 MB L2 cache
SEMA Board Controller
Supports: Voltage/Current monitoring, Power Sequencing, Logistics and
Forensic Information, Flat Panel Control, I²C Bus Control, GPIO Control, User
Flash, Failsafe BIOS (dual BIOS), Watchdog Timer and Fan Control
Ethernet
Intel® MAC/PHY
1x Intel® i210-IT or i210-AT Ethernet controller
Interface
1x 10/100/1000 GbE, IEEE 1588 trigger signals
Video
GPU Feature Support
9th generation Intel® graphics core architecture with up to 18 execution
units, supports three independent displays 2D and 3D graphics hardware
acceleration
Support for DirectX 12, OpenGL 4.2, OpenCL 1.2 Video decode HW
acceleration for H.265/HEVC, H.264, MPEG2, MVC, VC-1, WMV9, JPEG/
MJPEG, VP8, VP9Video encode HW acceleration for H.265/HEVC, H.264,
MPEG2, MVC, JPEG/MJPEG, VP8, VP9 (resolution depends on operating
system)
LVDS
Dual channel LVDS (18/24-bit)
HDMI/DP++
HDMI up to 3840 x 2160 @ 30Hz
DP++
DP++ up to 4096 x 2160 @ 60Hz
Power
Standard Input
3.0 V~5.25 V DC ±5%
Power States
C0-C6, S0, S3, S4, S5
Audio
Chipset
Intel® HD Audio integrated in SoC
Ports
1x I²S and 1x HDA for audio codec on carrier
