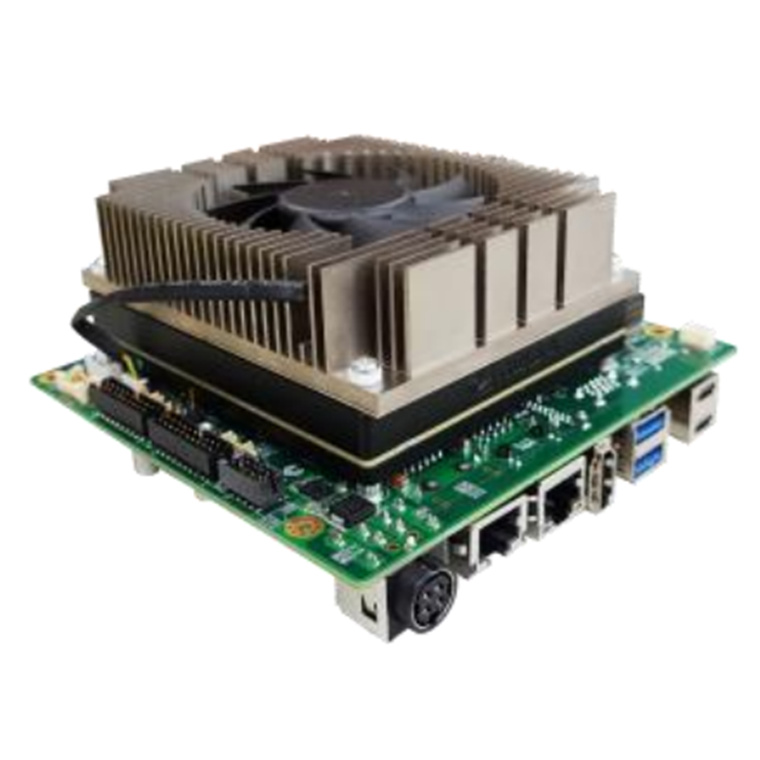

Aetina Platform AGX ORIN 32GB 1 x HDMI, 1 x GbE, 1 x 10GbE, 0 x PoE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25 C + 80 C
Aetina Platform AGX ORIN 32GB 1 x HDMI, 1 x GbE, 1 x 10GbE, 0 x PoE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25 C + 80 C
- Brand: Aetina
- MPN: AIB-MX13
- Part #: IPCAEA10009
- UPC:
- Brand: Aetina
- MPN: AIB-MX13
- Part #: IPCAEA10009
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT
Aetina Platform AGX ORIN 32GB 1 x HDMI, 1 x GbE, 1 x 10GbE, 0 x PoE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25 C + 80 C
- Brand: Aetina
- MPN: AIB-MX13
- Part #: IPCAEA10009
Product URL: https://www.pbtech.co.nz/product/IPCAEA10009/Aetina-Platform-AGX-ORIN-32GB-1-x-HDMI-1-x-GbE-1-x
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
AIB-MX13/23
- Supports NVIDIA Jetson AGX Orin™ 32GB/64GB module
- Up to 275 TOPS of AI performance
- Wide input voltage range from 9 to 36VDC
- 1 x M.2 B-Key/1 x E-Key/1 x M-Key slot
- 1 x GbE/1 x 10GbE LAN port
- Operating Temperature: -25°C ~ +80°C
8 x AI performance enables AI inference with low latency
NVIDIA Jetson AGX Orin module offers up to 275 TOPS, 8 times more than NVIDIA Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA CUDA® cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin module enables server-class AI inference at the edge with low latency.
Comprehensive M.2 expansion and 1x10GbE LAN port
AIB-MX13/23 is a platform with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 M-Key for storage, and 1x M.2 E-Key for Wifi/Bluetooth/GPS. For network, on-board 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard.
Wide input power and operating temperature for various embedded applications
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIB-MX13/23 supports temperature ranging from -25°C to 80°C and wide input power from 9 to 36VDC.

Specifications
Model Number
AIB-MX13
Module Compatibility
NVIDIA Jetson AGX ORIN 32GB
AI Performance
200 TOPS
GPU
1792-core NVIDIA Ampere GPU with 56 Tensor Cores
CPU
8-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 2MB L2 + 4MB L3
Memory
32 GB 256-bit LPDDR5 204.8 GB/s
Storage
64GB eMMC 5.1
Display
1 x HDMI 2.0 Type A
TPM
TPM v2.0 (optional)
RTC
With super capacitor, battery (optional)
Audio
Line-out/Line-in/Mic (optional with daughter board)
Camera Input
1x 16-Lane MIPI Expansion Connector
LAN
1 x RJ-45 GbE port, 1 x RJ-45 10GbE port
USB
2 x USB 3.2 Gen1 Type A, 1 x OTG Type-C, 1 x USB 3.2 Gen2 Type-C
I/O Interfaces
2 x I2C,
1 x I2S,
1 x SPI,
5 x GPIO,
1 x 3.3VDC/0.5A,
2 x 5VDC/0.5A,
1 x 12VDC/0.5A,
1 x USB 2.0,
2 x UART,
1 x UART (Debug only),
1 x RS-232,
1 x RS-422/485 (2-in-1),
2 x CAN 2.0b (isolation; support CAN FD)
Expansion
1 x M.2 B-Key 3042/3052 (LTE/4G/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2280 (supports NVMe; PCIe x4 Gen4)
1 x microSD Card Slot
MISC. Function
1 x Power / 1 x Recov ery / 1 x Reset button
Power Consumption
Idle: 6.655 W
Full Loading: 52.25* W
*For more test condition information, please refer to user manual
Power Input/Connector
DC-in 9 to 36 VDC / 4-pin DC Jack Power Connector
Dimension (WxDxH)
131 x 120 x 62.9 mm (5.16 x 4.72 x 2.47 in)
Net Weight
0.701 kg (1.54 lb) w/ Fansink
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature
Operating Temp.: -25°C ~ +80°C (-13°F ~ +176°F)
Storage Temp.: -40°C ~ +85°C (-40°F ~ +185°F)
Humidity
95% @ 40°C (104°F) (non-condensing)
Software Support
Linux (Support Jetpack 5.0 above)
Certification
CE / FCC Class A / UKCA
