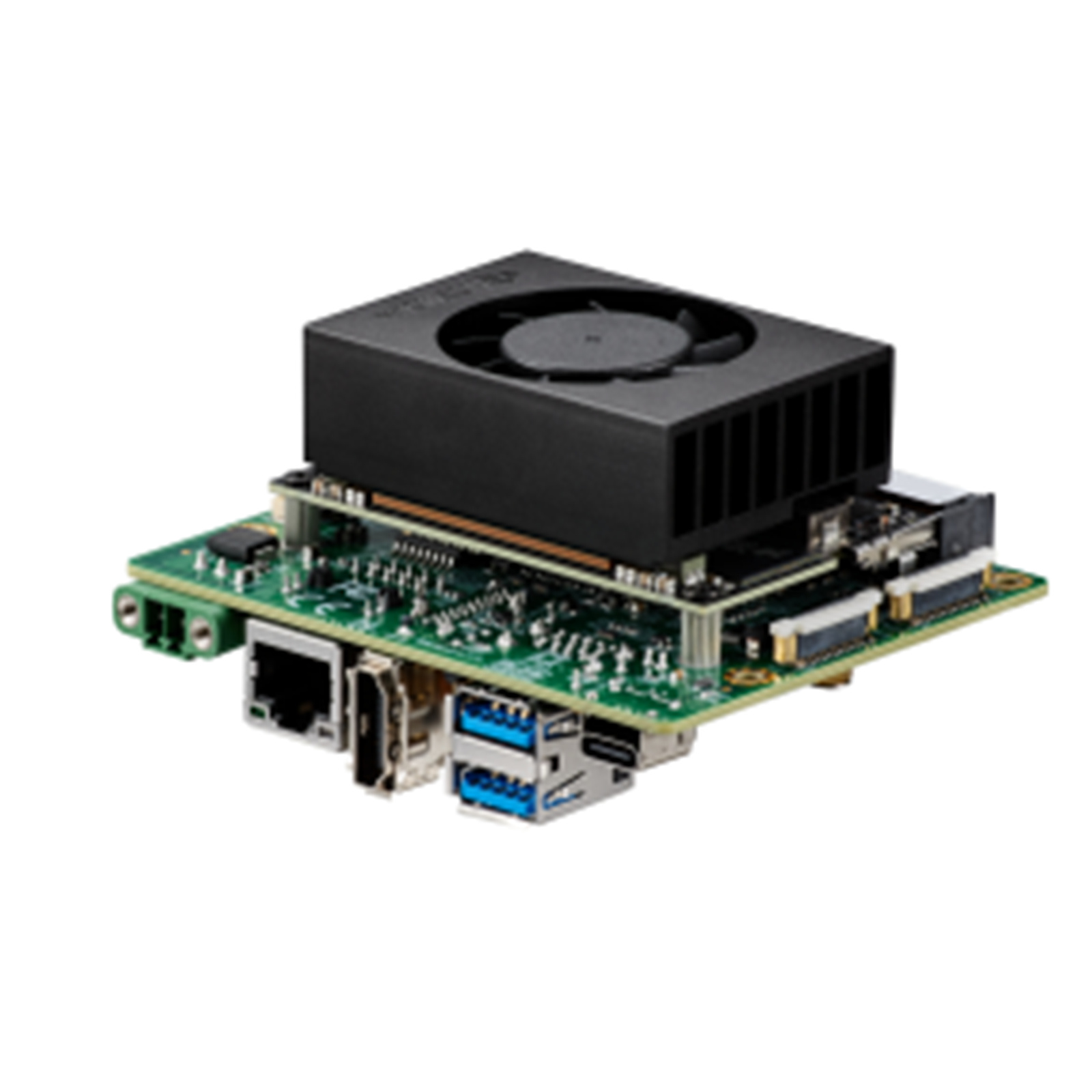

Aetina Platform ORIN NANO 8GB 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -25 C + 80 C
Aetina Platform ORIN NANO 8GB 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -25 C + 80 C
- Brand: Aetina
- MPN: AIB-SO31
- Part #: IPCAEA10041
- UPC:
- Brand: Aetina
- MPN: AIB-SO31
- Part #: IPCAEA10041
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT
Aetina Platform ORIN NANO 8GB 1 x HDMI, 1 x GbE, 2 x USB, 2 x 4 lane MIPI 22 pins, 128GB SSD, E/M Key, 12 to 24 VDC input, -25 C + 80 C
- Brand: Aetina
- MPN: AIB-SO31
- Part #: IPCAEA10041
Product URL: https://www.pbtech.co.nz/product/IPCAEA10041/Aetina-Platform-ORIN-NANO-8GB-1-x-HDMI-1-x-GbE-2-x
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
AIB-SO21/31 | AIB-SN31/41
- Supports NVIDIA Jetson Orin™ NX and Orin Nano™ (Super Mode-enabled) module
- Wide input voltage range from 12 to 24VDC
- 1 x M.2 E-Key, 1 x M-Key (NVMe 128GB built-in)
- Supports Innodisk Out-of-Band Remote Management Module (optional)
- Operating temperature -25°C ~ +80°C
Up to 80 x AI performance enables AI inference in the smallest Jetson form factor
The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor.
Sufficient M.2 for internal and external storage expansion
AIB-SO21/31 and AIB-SN31/41 are edge computing platforms, built in 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. To avoid insufficient data storage for edge computing, AIB-SO31/41 and AIB-SN31/41 support external M.2 2242 NVMe with fast data transmission.
Wide input power and operating temperature for various embedded applications
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIB-SO21/31 and AIB-SN31/41 support operating temperature ranging from -25°C to 80°C and wide input power from 12 to 24VDC.

Specifications
Model Number
AIB-SO31
Module Compatibility
NVIDIA Jetson Orin Nano 8GB
AI Performance
40 TOPS
GPU
1024 Core NVIDIA Ampere, with 32 Tensor Cores
CPU
6-core Arm® Cortex®-A78AE v 8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory
8GB 128-bit LPDDR5 68GB/s
Storage
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
Display
1 x HDMI 2.0 Type A
Audio
Line-out / Line-in / Mic (optional with daughter board)
RTC
With super capacitor, battery (optional)
MIPI Camera Input
2 x 4-Lane MIPI CSI-2 22-Pin Connector
LAN
1 x RJ-45 GbE ports
USB
2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)
1 x OTG Type-C

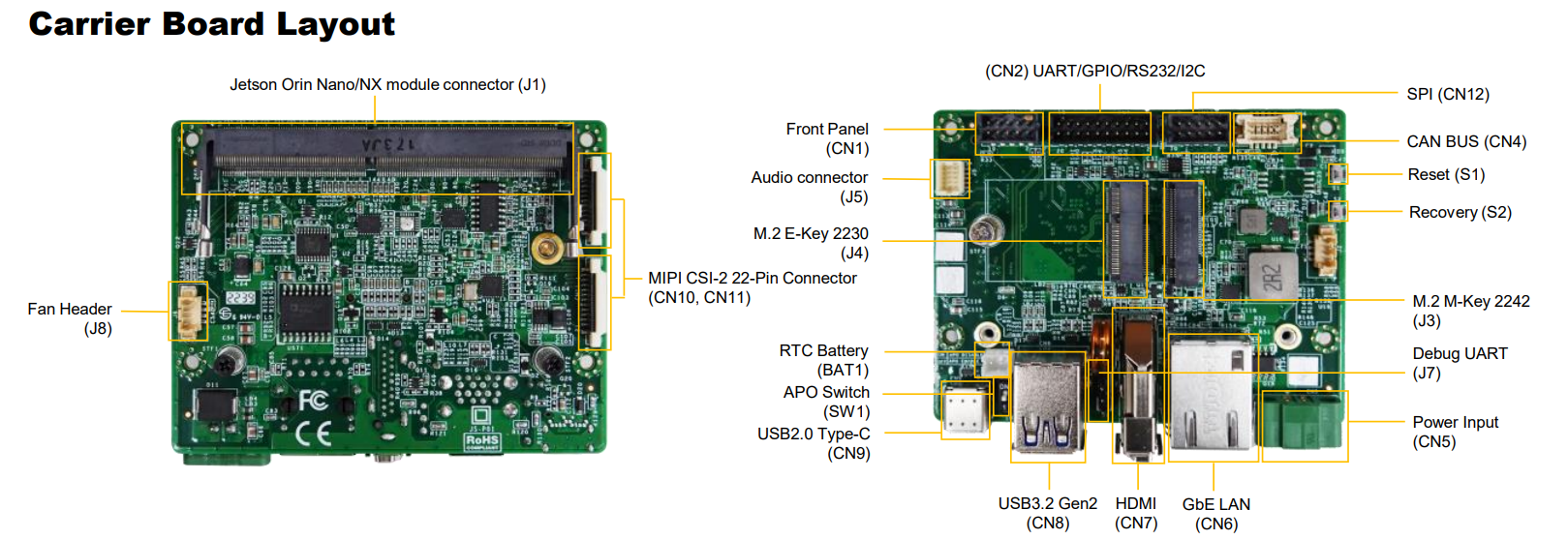

I/O Interfaces
5 x GPIO,
1 x I2C,
1 x I2S,
1 x RS-232,
1 x UART,
1 x UART (Debug Only),
1 x SPI,
1 x CAN (isolation; support CAN FD)
Expansion
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
MISC. Function
1 x Power / 1 x Recovery / 1 x Reset Button
Power Consumption
Idle: 5.4 W
Full Loading: 27.08* W
*For more test condition information, please refer to user manual
Power Input/Connector
DC-in 12-24VDC / 2-Pin Terminal Block
Dimension (WxDxH)
87.4 x 67.4 x 28.45 mm (3.44 x 2.65 x 1.12 in)
Net Weight
0.144 kg (0.32 lb) w/ Fansink
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature
Operating Temp. -25°C ~ +80°C (-13°F ~ +176°F)
Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)
Humidity
95% @ 40°C (104°F) (non-condensing)
Software Support
Linux (Support Jetpack 5.0 above)
Certification
CE / FCC Class A / UKCA
