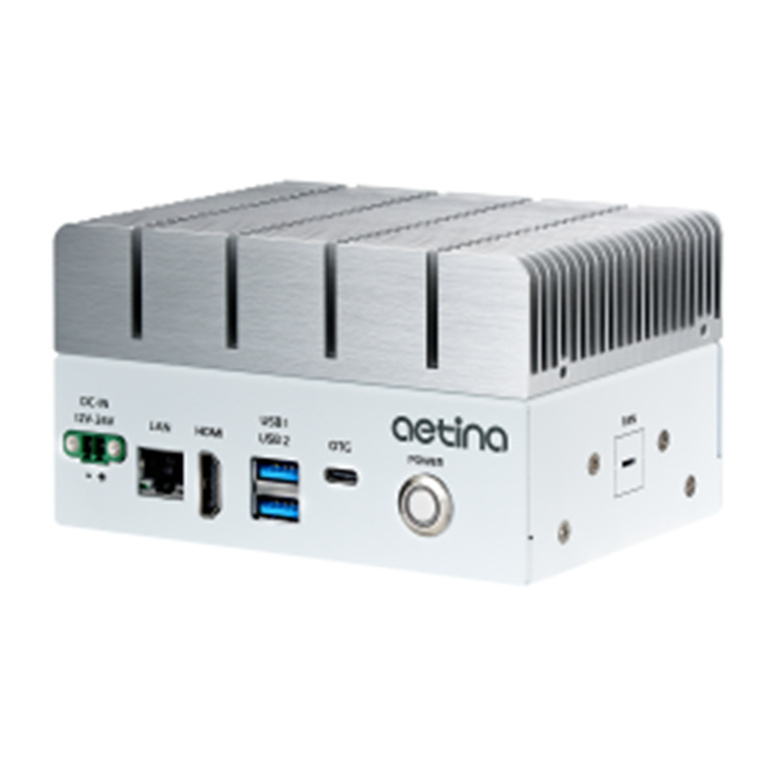

Aetina Fanless System ORIN NANO 4GB 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25 C + 55 C
Aetina Fanless System ORIN NANO 4GB 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25 C + 55 C
- Brand: Aetina
- MPN: AIE-CO21
- Part #: IPCAEA10042
- UPC:
- Brand: Aetina
- MPN: AIE-CO21
- Part #: IPCAEA10042
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT
Aetina Fanless System ORIN NANO 4GB 1 x HDMI, 1 x GbE, 2 x USB, 128GB SSD, E/M Key, 12 to 24 VDC input, -25 C + 55 C
- Brand: Aetina
- MPN: AIE-CO21
- Part #: IPCAEA10042
Product URL: https://www.pbtech.co.nz/product/IPCAEA10042/Aetina-Fanless-System-ORIN-NANO-4GB-1-x-HDMI-1-x-G
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
AIE-CO21/31 | AIE-CN31/41
- Supports NVIDIA Jetson Orin™ NX and Orin Nano™ (Super Mode-enabled) module
- 1 x M.2 E-Key, 1 x M.2 M-Key (128GB built-in)
- 1 x RJ-45 GbE port
- Wide input voltage range from 12 to 24 VDC
- Operating temperature -25°C ~ +55°C
- Fanless Design
Up to 80 x AI performance enables AI inference in the smallest Jetson form factor
The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor.
Sufficient M.2 for internal and external storage expansion
AIE-CO21/31 and AIE-CN31/41 are fanless systems, built in 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. To avoid insufficient data storage for edge computing, AIE-CO21/31 and AIE-CN31/41 support external M.2 2242 NVMe with fast data transmission.
Wide input power and fanless design for smart city and smart agriculture
To cater to diverse applications, such as smart city and smart agriculture, where cost-effective maintenance and improved reliability are crucial, AIE-CO21/31 and AIE-CN31/41 have been specifically designed with a fanless and silent mechanism. These systems are capable of operating within a wide temperature range of -25°C to 55°C. Additionally, they support a wide input power range from 12 to 24 VDC, enabling flexible power supply options.

Specifications
Model Number
AIE-CO21
Module Compatibility
NVIDIA Jetson Orin Nano 4GB
AI Performance
20 TOPS
GPU
512 Core NVIDIA Ampere, with 16 Tensor Cores
CPU
6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3
Memory
4GB 64-bit LPDDR5 34GB/s
Storage
1 x M.2 M-Key 2242 (128GB built-in)
Display
1 x HDMI 2.0 Type A
RTC
With super capacitor, battery (optional)
LAN
1 x RJ-45 GbE ports
USB
2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)
1 x OTG Type-C
I/O Interfaces
5 x GPIO,
1 x UART,
1 x I2C,
1 x CAN (isolation; support CAN FD)
Expansion
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)

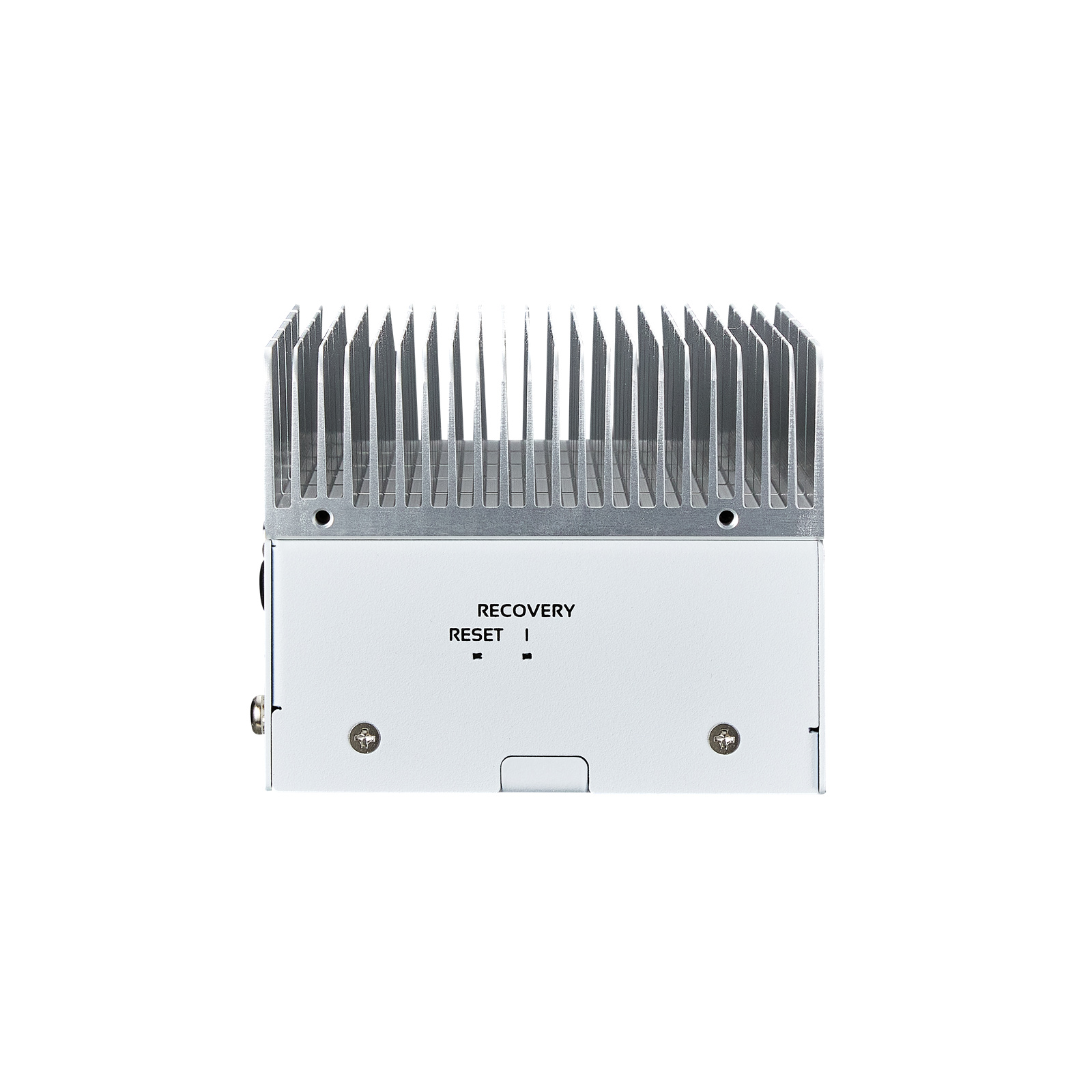

MISC. Function
1 x Power / 1 x Recovery Button / 1 x Reset Button
1 x CAN 2.0b with isolation

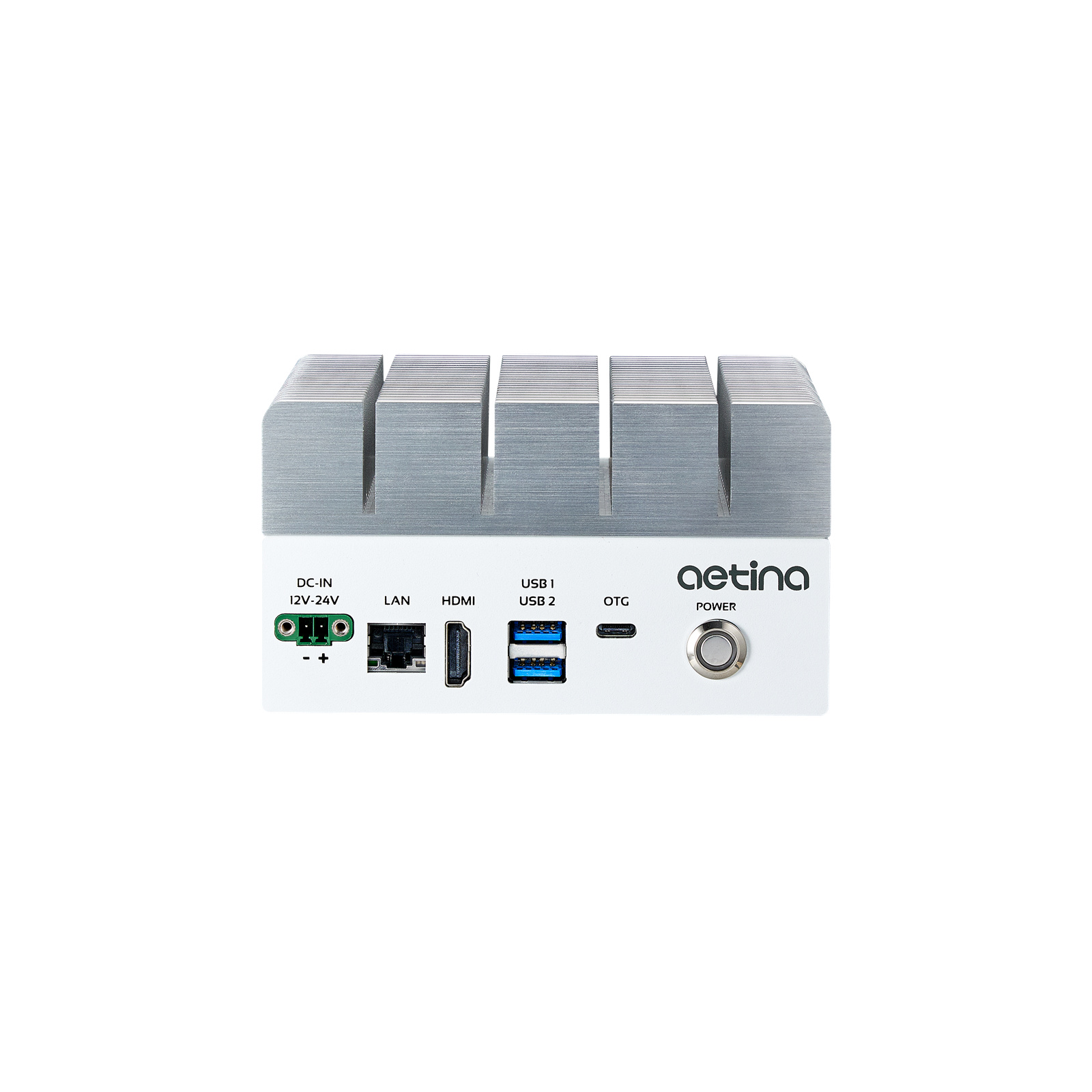

Power Input/Connector
DC-in 12-24VDC / 2-Pin Terminal Block
Power Consumption
Idle: 6.4 W
Full Loading: 25.08* W
*For more test condition information, please refer to user manual
Dimension (WxDxH)
130 x 90.2 x 72 mm (5.11 x 3.55 x 2.83 in)
Mounting
Wall Mount (optional) / Din Rail (optional)
Net Weight
0.927 kg (2.044 lb)
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 ms duration
Temperature
Operating Temp. -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow
Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)
Humidity
95% @ 40°C (104°F) (non-condensing)
Software Support
Linux (Support Jetpack 5.0 above)
Certification
CE / FCC Class A / UKCA
